CANchecked Display OBD2 Cable Kit for MFD28 / MFD32 / MFD32S (CC22711)
The CANchecked CC22711 OBD2 cable kit is designed to connect CANchecked MFD28, MFD32, and MFD32S displays to the vehicle’s OBD2 port so OBD2 data can be shown directly on the display, including stored fault codes.
Compatibility
- For CANchecked Display: MFD28 / MFD32 / MFD32S
- OBD2 cable for VAG Group vehicles: Audi, VW, Seat, Skoda
Key details
- Extra K-Line wire (VAG cars only; 12V on the plug)
- Terminal 15 (ignition plus) is taken internally at the OBD plug, so no external power cable is routed out
- Plug & Play connection in a few seconds
- Supports all OBD2 values output by the control unit
- Up to 128 values can be displayed
- Works with pre-configured OBD TRI files for easy value display
What’s included

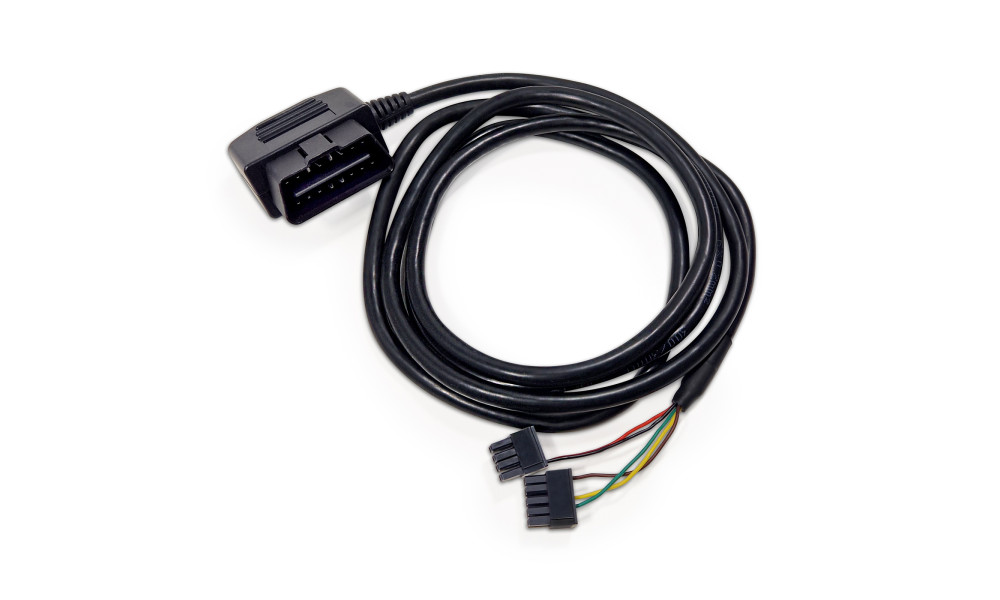

- OBD connector with 2-meter (6 ft 6 in) cable for connection to MFD28/MFD32/MFD32S
OBD connector pinout to display
- Terminal 15: Pin 1
- Ground: Pins 4 + 5
- CAN High: Pin 6
- CAN Low: Pin 14
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Audi | - | - | - |
| Seat | - | - | - |
| Skoda | - | - | - |
| VW | - | - | - |
CANchecked Connection Cable MFD28 32 Gen2 to OBD2 - Pin1 KL15 K-Line (VAG)
48.21€
47.72€
Excl. VAT: 39.44€
EU Shipping — No Import Taxes
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Audi | - | - | - |
| Seat | - | - | - |
| Skoda | - | - | - |
| VW | - | - | - |
