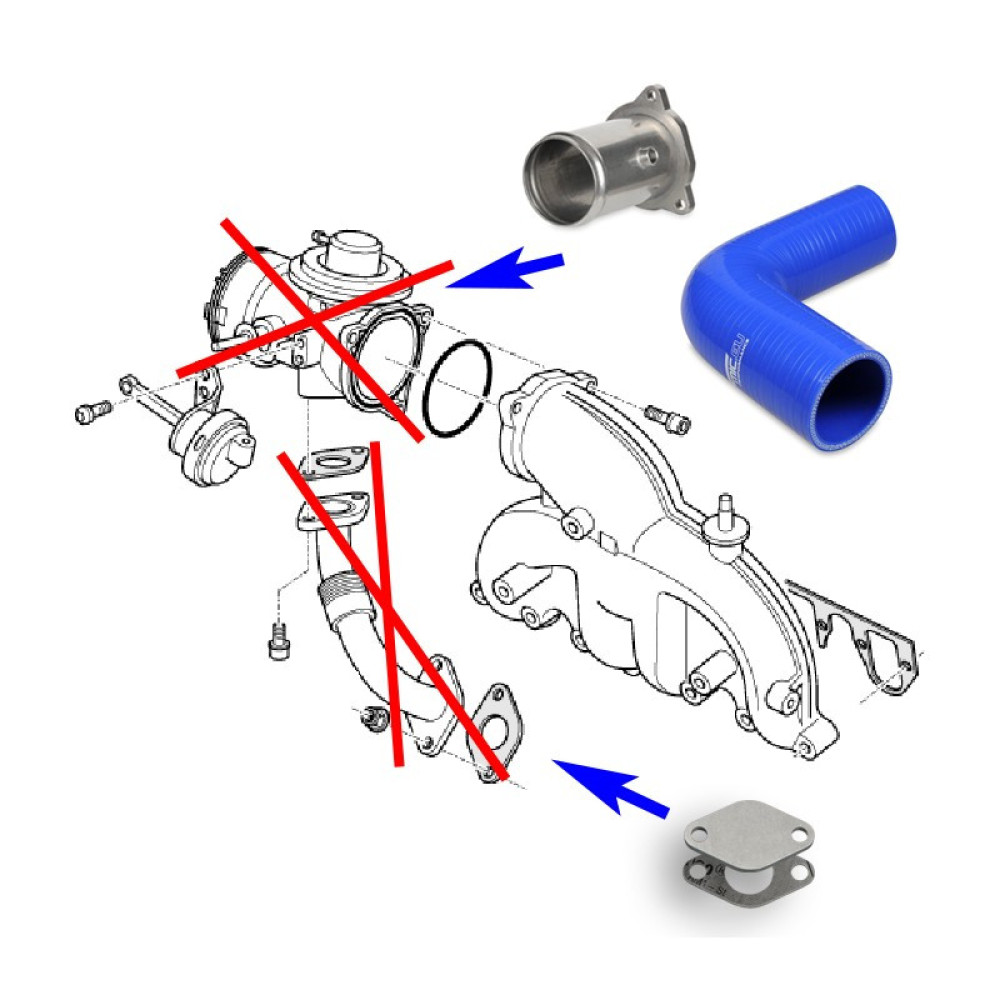

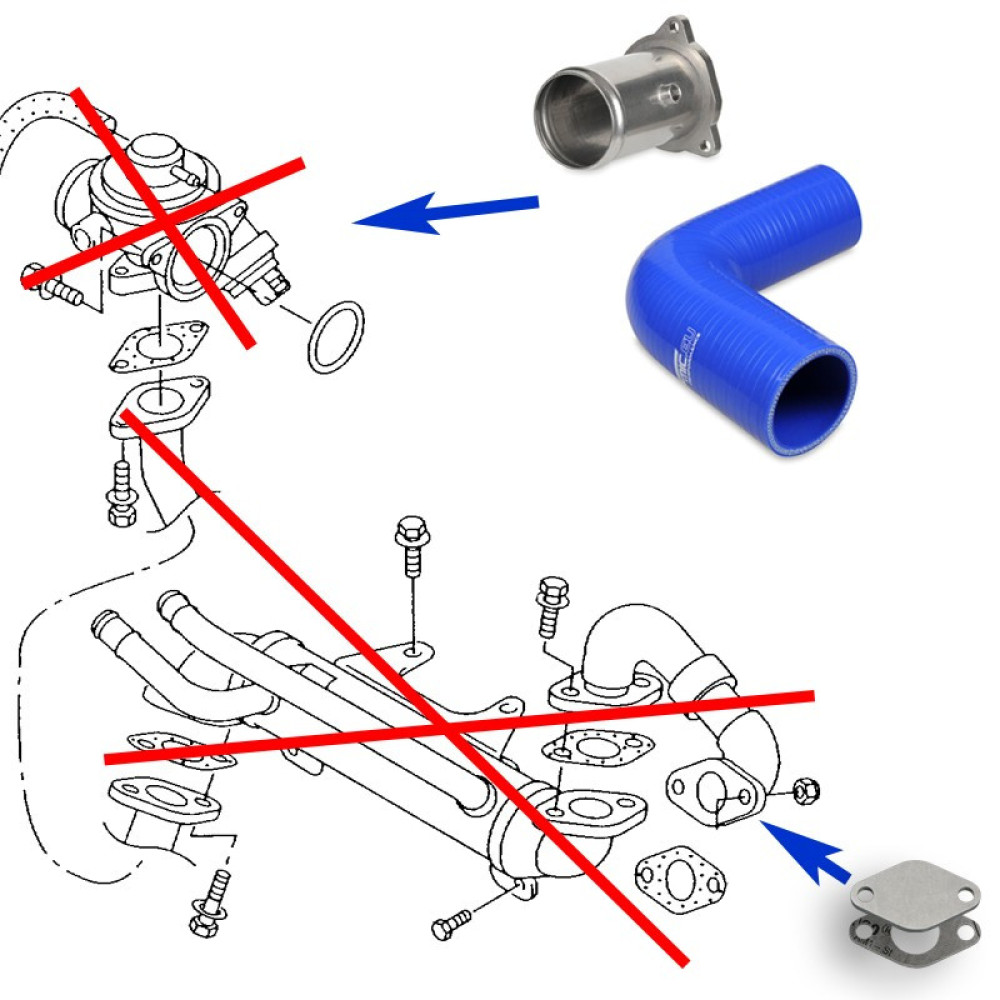

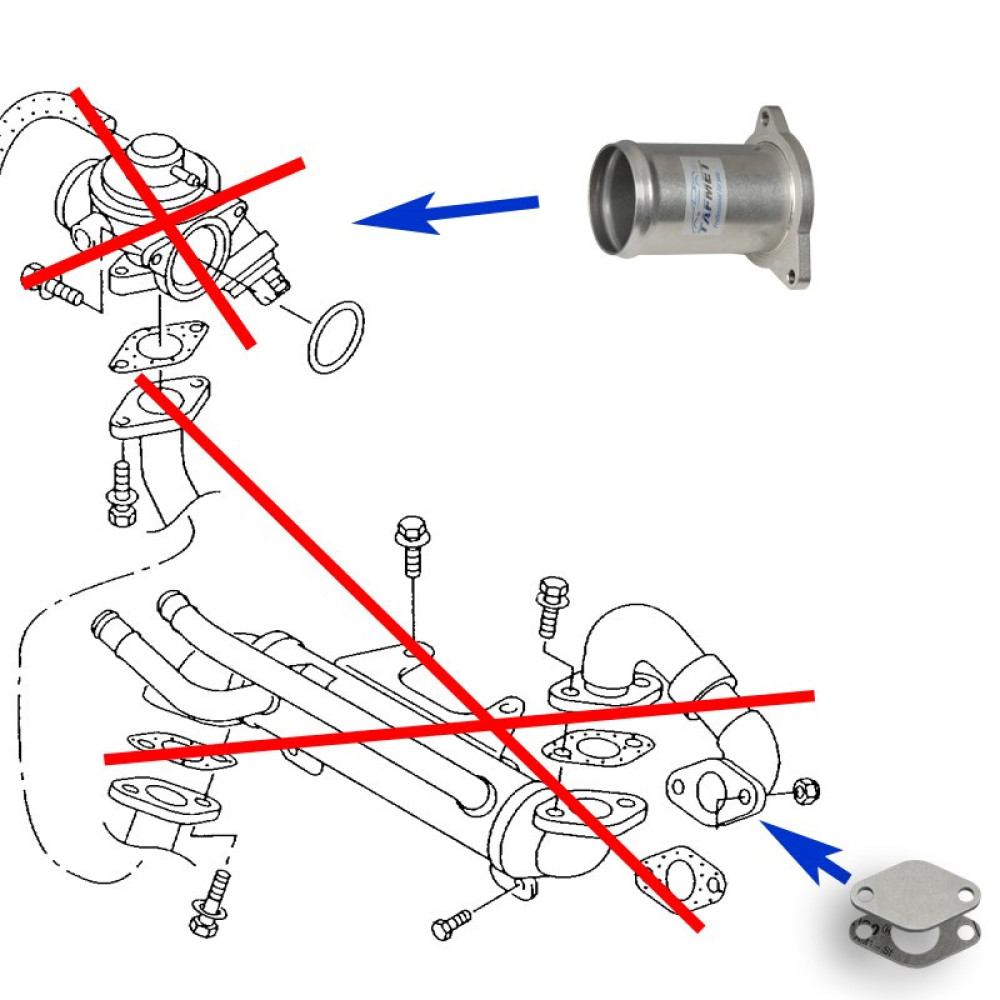

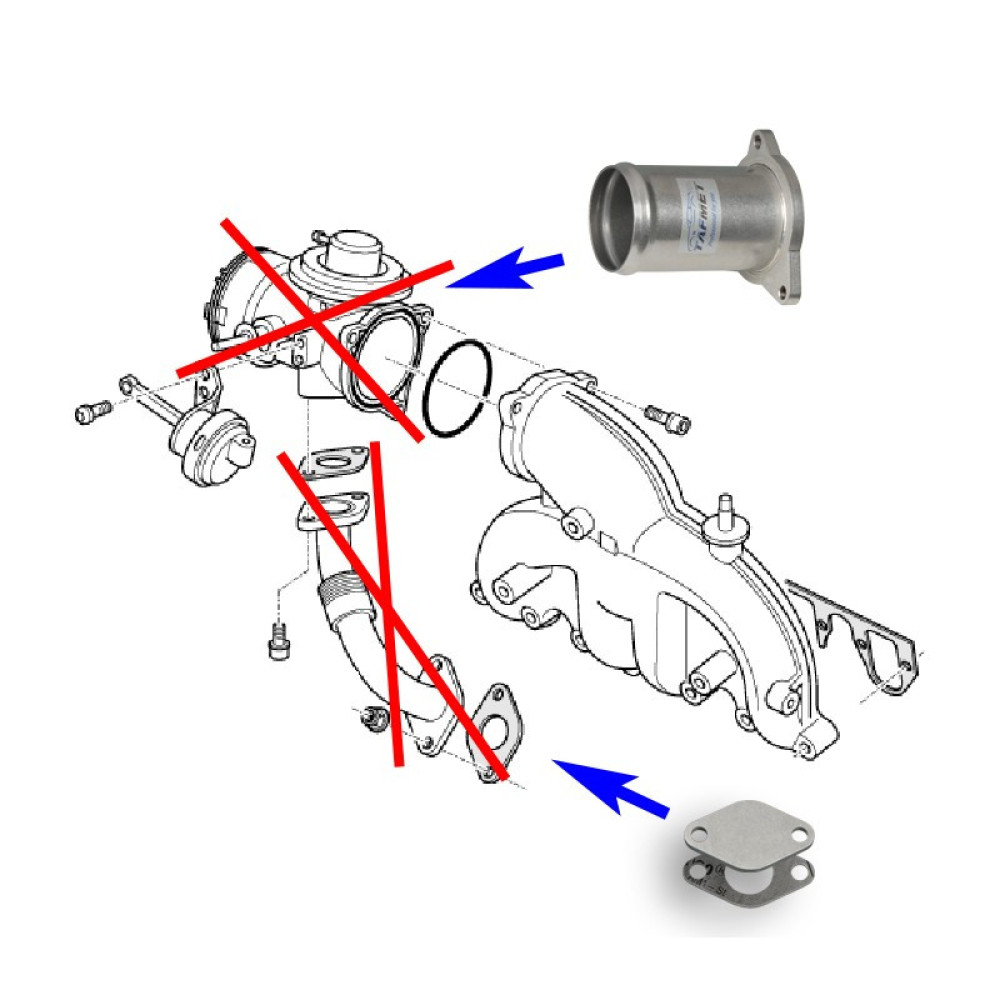

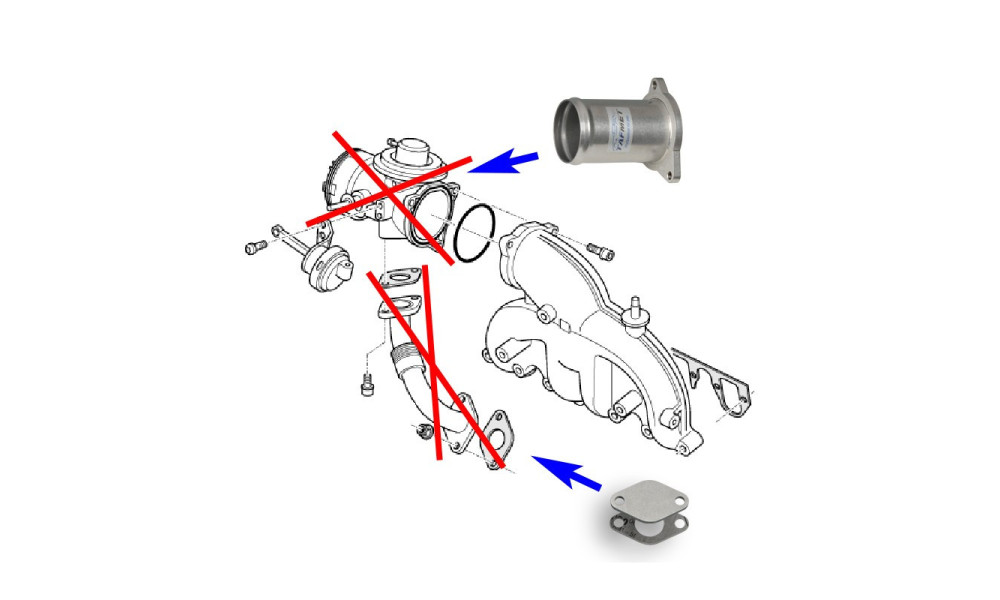

Over time, the EGR system in your vehicle can become blocked with tar and sediment, affecting fuel economy and performance. The TAFMET EGR Kit offers a direct and straightforward replacement to resolve these issues.

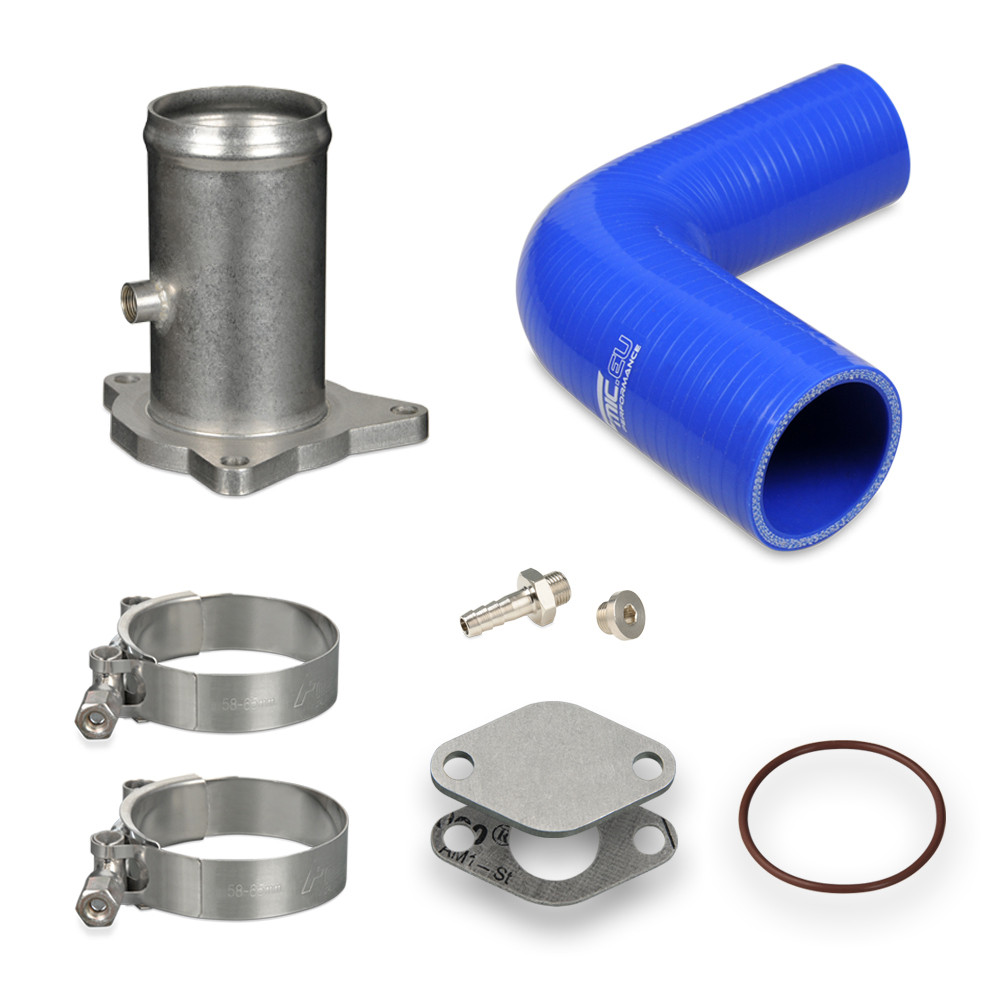

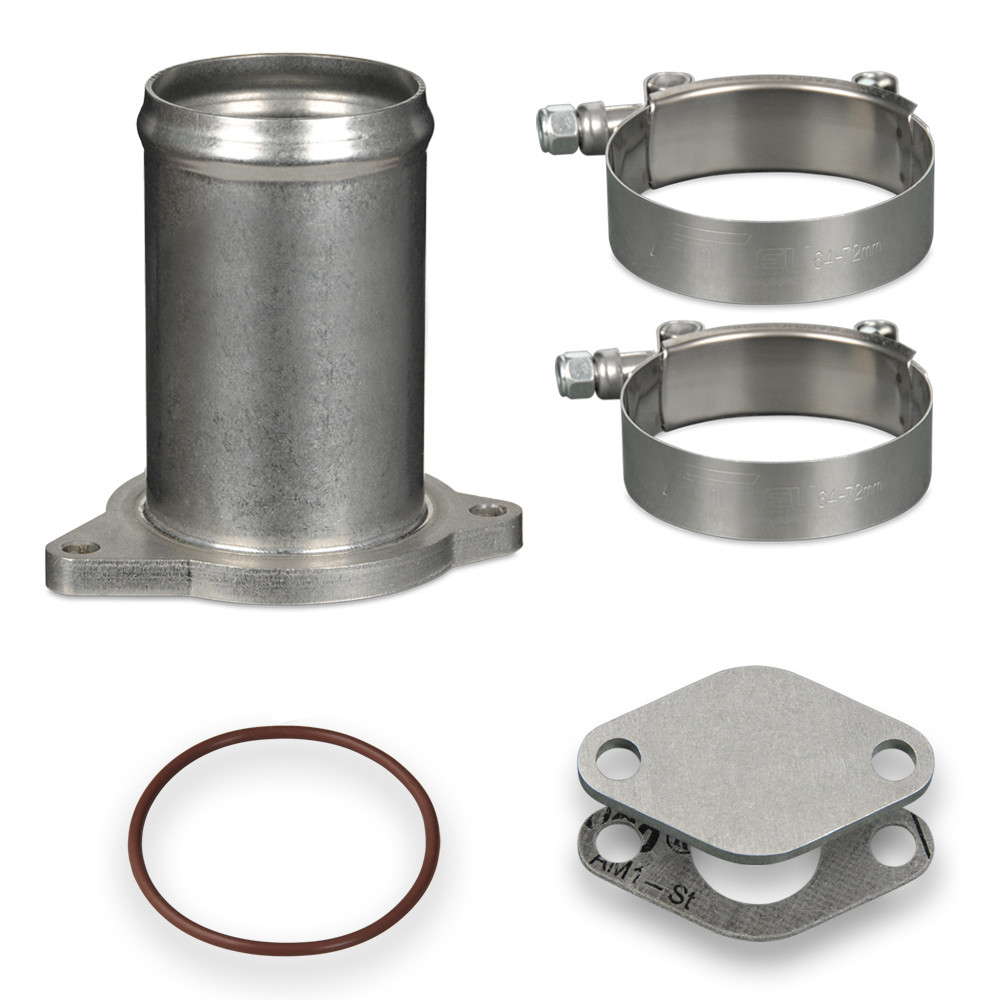

Kit Contents & Specifications

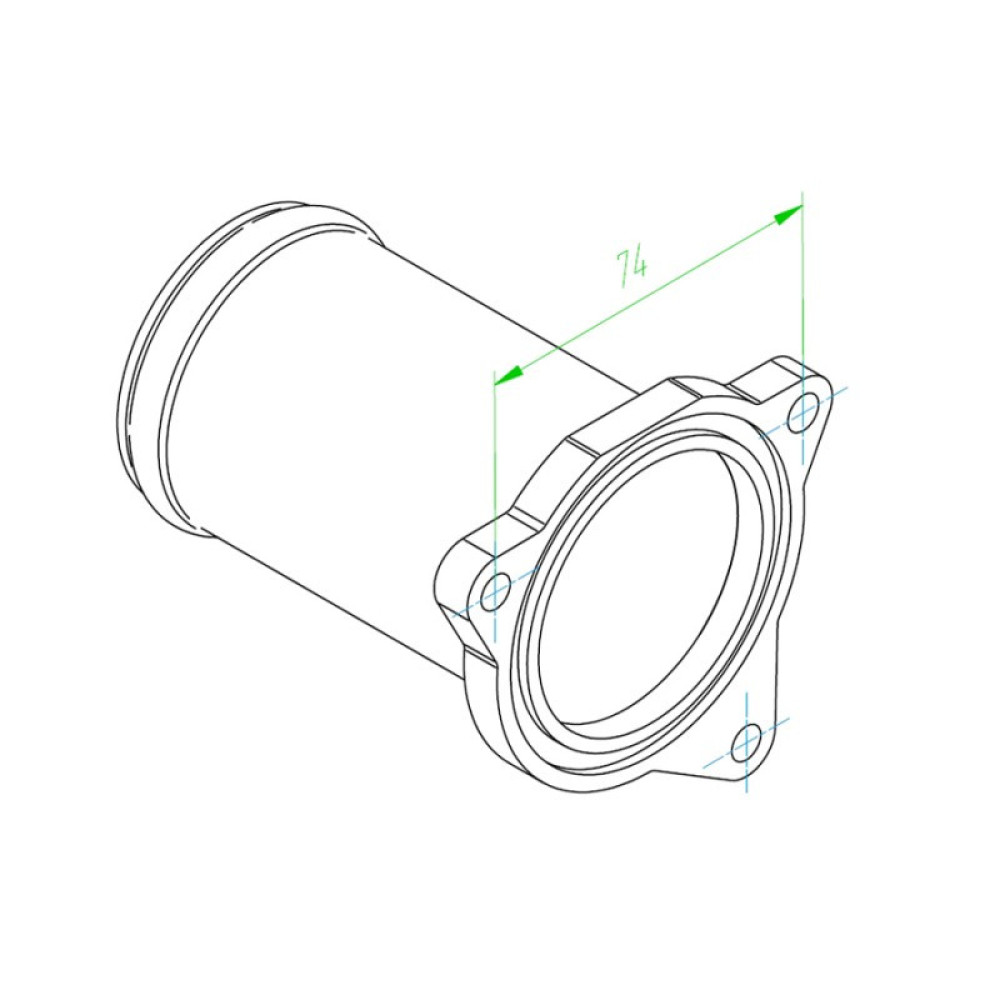

• 1 x EGR Replacement Pipe (57 mm outer diameter, 100 mm length, stainless steel, lifetime warranty)
• 1 x Blanking Plate (stainless steel, lifetime warranty)
• 1 x Blanking Plate Gasket
• 1 x O-ring Seal
• 2 x Hose Clips (from FMIC)

Important Information

• For vehicles up to approx. 2002–2004, no ECU warning light is expected.
• Later models with pneumatic and electronic EGR valves may trigger an ECU warning light upon installation of this kit. A remap of the ECU to disable the EGR function is recommended and can be performed by a tuner.
• For use outside public roads and in motorsport only.

Application

Audi

• A3 1.9 TDI, 2000–2003, 96 kW, engine ASZ
• A4 B6 1.9 TDI, 2000–2004, 96 kW, engines AVF, AWX
• A6 C5 1.9 TDI, 2001–2005, 96 kW, engines AVF, AWX

Seat

• Ibiza 1.9 TDI, 2004–2008, 118 kW, engines BPX, BUK
• Ibiza 1.9 TDI, 2002–2009, 96 kW, engines ASZ, BLT
• Cordoba 1.9 TDI, 2002–2009, 96 kW, engines ASZ, BLT
• Leon 1.9 TDI, 2003–2006, 96 kW, engine ASZ
• Leon 1.9 TDI, 2000–2006, 110 kW, engine ARL
• Toledo II 1.9 TDI, 2003–2006, 96 kW, engine ASZ
• Toledo II 1.9 TDI, 2000–2004, 110 kW, engine ARL
• Alhambra 1.9 TDI, 2000–2010, 85 kW, engines AUY, BVK
• Alhambra 1.9 TDI, 2002–2008, 96 kW, engine ASZ
• Alhambra 1.9 TDI, 2005–2007, 110 kW, engine BTB

Skoda

• Fabia 1.9 TDI RS, 2003–2008, 96 kW, engines ASZ, BLT
• Octavia I 1.9 TDI, 2002–2004, 96 kW, engine ASZ
• Superb I 1.9 TDI, 2001–2008, 96 kW, engines AVF, AWX

Volkswagen

• Bora 1.9 TDI, 2000–2005, 96 kW, engine ASZ
• Bora 1.9 TDI, 2000–2005, 110 kW, engine ARL
• Bora Variant 1.9 TDI, 2000–2005, 96 kW, engine ASZ
• Bora Variant 1.9 TDI, 2001–2005, 110 kW, engine ARL
• Golf IV 1.9 TDI, 2000–2005, 96 kW, engine ASZ
• Golf IV 1.9 TDI, 2000–2005, 110 kW, engine ARL
• Golf IV Variant 1.9 TDI, 2000–2005, 96 kW, engine ASZ
• Golf IV Variant 1.9 TDI, 2001–2005, 110 kW, engine ARL
• Multivan V 1.9 TDI, 2003–2009, 63 kW, engine AXC
• Multivan V 1.9 TDI, 2003–2009, 77 kW, engine AXB
• Passat B5 FL 1.9 TDI, 2001–2005, 96 kW, engines AVF, AWX
• Sharan 1.9 TDI, 2000–2005, 85 kW, engines AUY, BVK
• Sharan 1.9 TDI, 2000–2005, 96 kW, engine ASZ
• Sharan 1.9 TDI, 2000–2005, 110 kW, engine BTB
• Transporter V 1.9 TDI, 2003–2009, 63 kW, engine AXC
• Transporter V 1.9 TDI, 2003–2009, 77 kW, engine AXB

If unsure, check your engine code. If your engine or vehicle model is not listed, please contact us before ordering.
