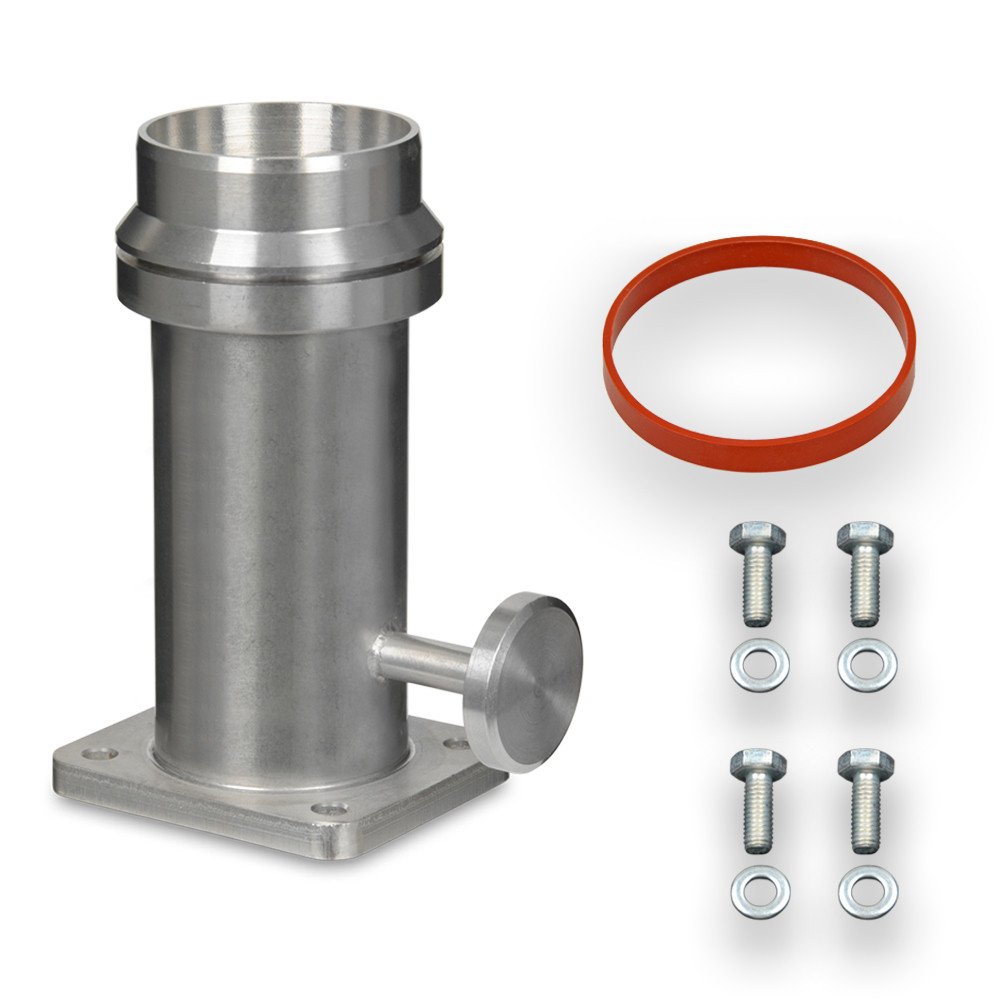

Kit Contents & Specifications

• 1 x EGR Replacement Pipe (54 mm outer diameter, 142 mm length, stainless steel, lifetime warranty)
• 1 x Flange Gasket
• 4 x EGR Bypass Screw with Washer

Important Information

• For vehicles up to 2002-2004, no ECU warning light is expected. On later models with pneumatic or electronic EGR valves, installation may trigger an ECU warning light. An ECU remap to fully disable the EGR function is recommended and can be performed by a tuning specialist.
• This product is intended for off-road and motorsport use only.

Vehicle Applications

• BMW 1 Series E87: 118d, 120d (M47N2, 02/2003–02/2007)
• BMW 3 Series E90: 318d, 320d (M47N2, 02/2004–08/2008); 330d, 330xd (M57N2, 02/2004–08/2008)
• BMW 3 Series E92: 330d, 330xd (M57N2, 02/2004–08/2008)
• BMW 3 Series E93: 330d (M57N2, 09/2005–02/2009)
• BMW 5 Series E60: 520d (M47N2, 02/2002–02/2007); 525d (M57N, 02/2002–02/2007); 530d, 530xd (M57N2, 02/2002–02/2007)
• BMW 5 Series E60 LCI: 520d (M47N2, 10/2005–12/2009); 530d, 530xd (M57N2, 10/2005–12/2009)
• BMW 5 Series E61: 520d (M47N2, 11/2002–02/2007); 525d (M57N, 11/2002–02/2007); 530d, 530xd (M57N2, 11/2002–02/2007)
• BMW 5 Series E61 LCI: 520d (M47N2, 11/2005–05/2010); 530d, 530xd (M57N2, 11/2005–05/2010)
• BMW 7 Series E65: 730d (M57N2, 07/2004–07/2008)
• BMW 7 Series E66: 730Ld (M57N2, 03/2005–07/2008)
• BMW X3 E83: 2.0d (M47N2, 01/2003–07/2006); 3.0d (M57N, 01/2003–07/2006); 3.0d (M57N2, 01/2003–07/2006)
• BMW X3 E83 LCI: 2.0d (M47N2, 03/2006–08/2010); 3.0d (M57N2, 03/2006–08/2010)
• BMW X5 E70: 3.0d (M57N2, 02/2006–03/2010)
• BMW X6 E71: 30dX (M57N2, 09/2007–03/2010)

If unsure, check your engine code. For unlisted models, please contact before ordering.

OEM EGR Valve Reference Numbers

• 11717792077
• 11717804381
