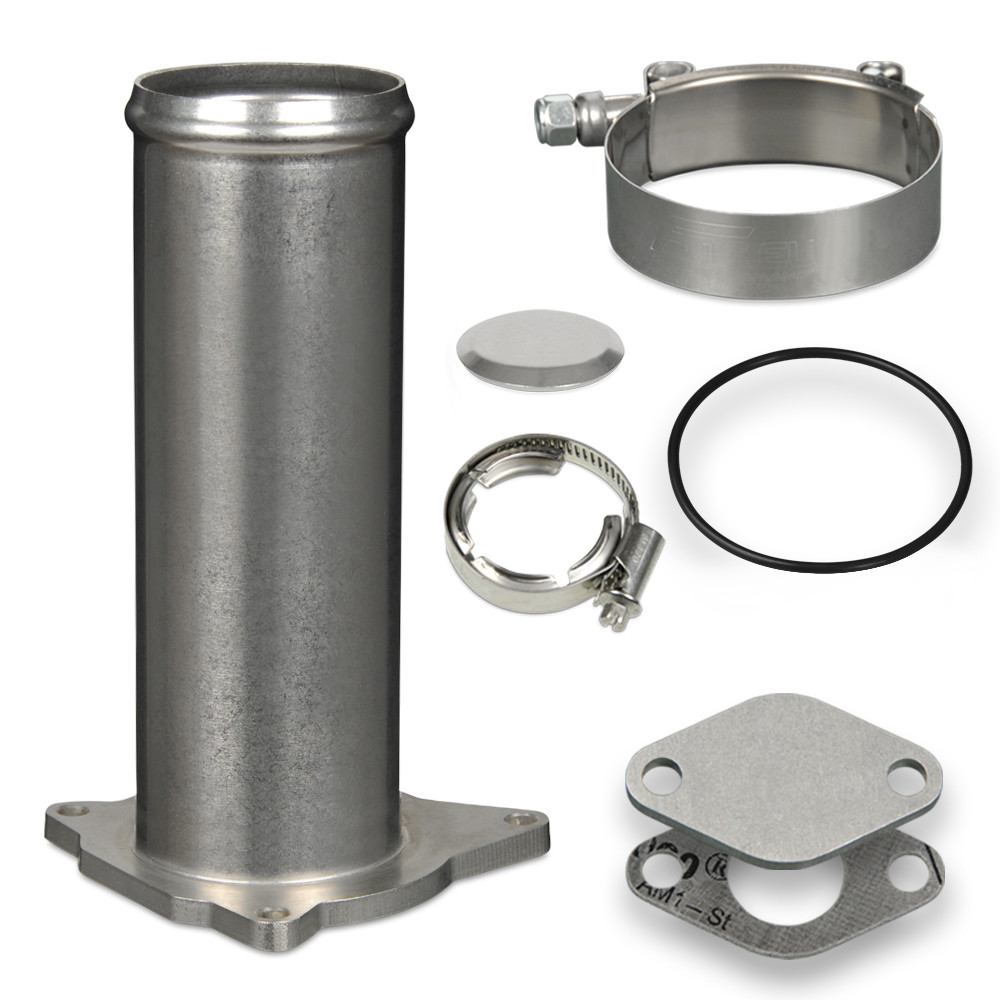

Kit Contents & Specifications
- 1 x EGR Replacement Pipe (63.5 mm outer diameter, 190 mm length, stainless steel, lifetime warranty)
- 1 x Blanking Plate (stainless steel, lifetime warranty)
- 1 x Blanking Plate Gasket
- 1 x Blanking Plate (stainless steel, lifetime warranty)
- 1 x Blanking Plate Clamp
- 1 x O-ring Seal
- 1 x Hose Clip
Important Notes
- For vehicles manufactured up to 2002–2004, no ECU warning light is expected. Later models with pneumatic and electronic EGR valves may trigger a warning light upon installation. ECU remapping is recommended to fully disable the EGR function; this must be performed by a qualified tuner.
- Intended for off-road and motorsport use only.
Application
Volkswagen
- Touareg 2.5 R5 TDI (2003–2006), 128 kW / 174 HP, engines: BAC, BLK
- Touareg 2.5 R5 TDI (2003–2006), 120 kW / 163 HP, engines: BAC, BLK
- Transporter Mk V 2.5 R5 TDI (2003–2009), 96 kW / 130 HP, engine: AXD
- Transporter Mk V 2.5 R5 TDI (2003–2009), 128 kW / 174 HP, engine: AXE
- Multivan Mk V 2.5 R5 TDI (2003–2009), 96 kW / 130 HP, engine: AXD
- Multivan Mk V 2.5 R5 TDI (2003–2009), 128 kW / 174 HP, engine: AXE
If unsure, verify your engine code. For unlisted engines or models, contact before ordering.
OEM EGR Valve Reference Numbers
- 070 128 073
- 070128070B
- 070128070C
- 070128070E
- 070128070F
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Volkswagen | MULTIVAN | Touareg (2003–2006), Transporter Mk V (2003–2009), Multivan Mk V (2003–2009) | BAC, BLK, AXD, AXE |
| Volkswagen | TOUAREG | Touareg (2003–2006), Transporter Mk V (2003–2009), Multivan Mk V (2003–2009) | BAC, BLK, AXD, AXE |
| Volkswagen | TRANSPORTER | Touareg (2003–2006), Transporter Mk V (2003–2009), Multivan Mk V (2003–2009) | BAC, BLK, AXD, AXE |
EGR Removal Delete Kit Bypass Blanking Plate for VW Touareg T5 with R5 2.5 TDI BAC BLK AXE AXD engines
45.50€
45.04€
Excl. VAT: 37.22€
EU Shipping — No Import Taxes
