The TAFMET EGR Kit is designed as a direct replacement for the EGR system in your vehicle, addressing common issues caused by blockage from tar and sediment, which can negatively impact fuel economy and engine performance.

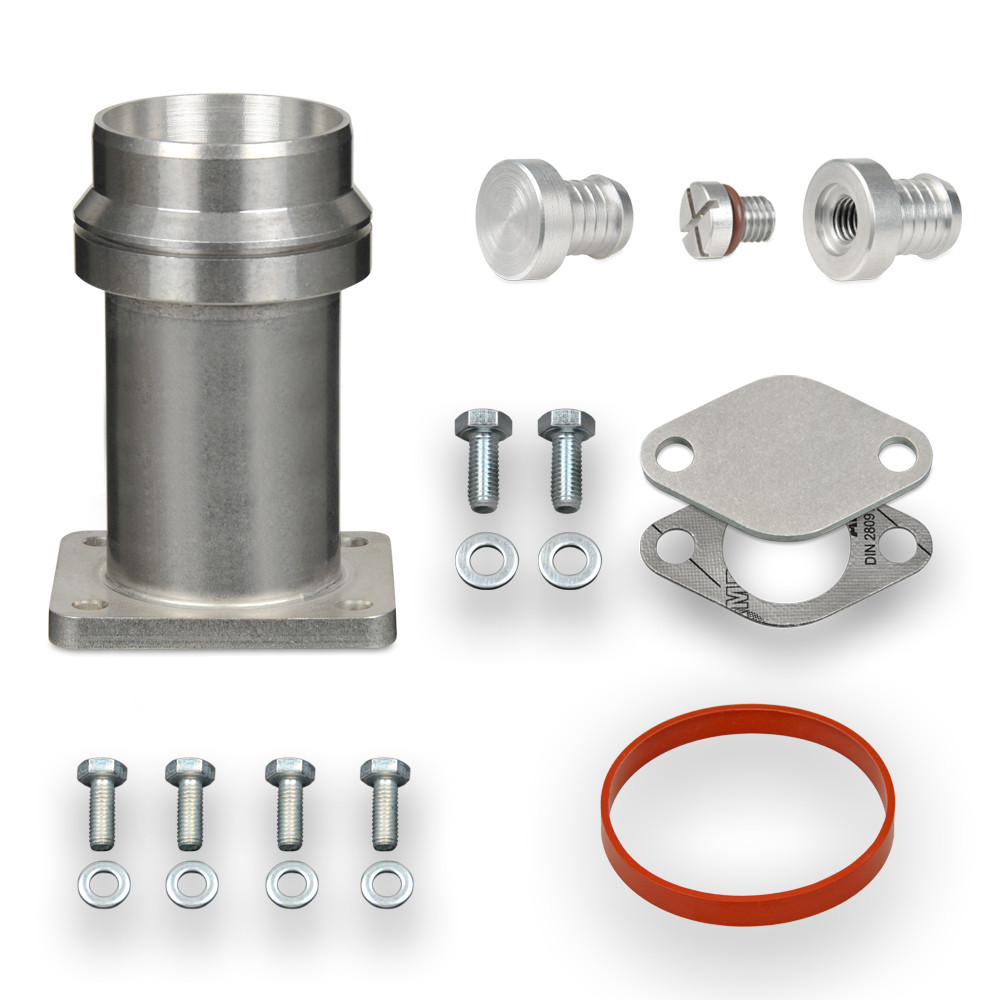

Kit Contents & Specifications

• 1 x EGR Replacement Pipe (54 mm outer diameter, 114 mm length, stainless steel, lifetime warranty)
• 1 x Blanking Plate (stainless steel, lifetime warranty)
• 1 x Blanking Plate Gasket
• 1 x Flange Gasket
• 2 x Blanking Plate Screws with Washers
• 4 x EGR Bypass Screws with Washers
• 1 x CNC machined aluminium bung for the bottom EGR cooler hose
• 1 x CNC machined aluminium vented bung for the EGR thermostat hose
• 1 x CNC machined aluminium leak screw and o-ring

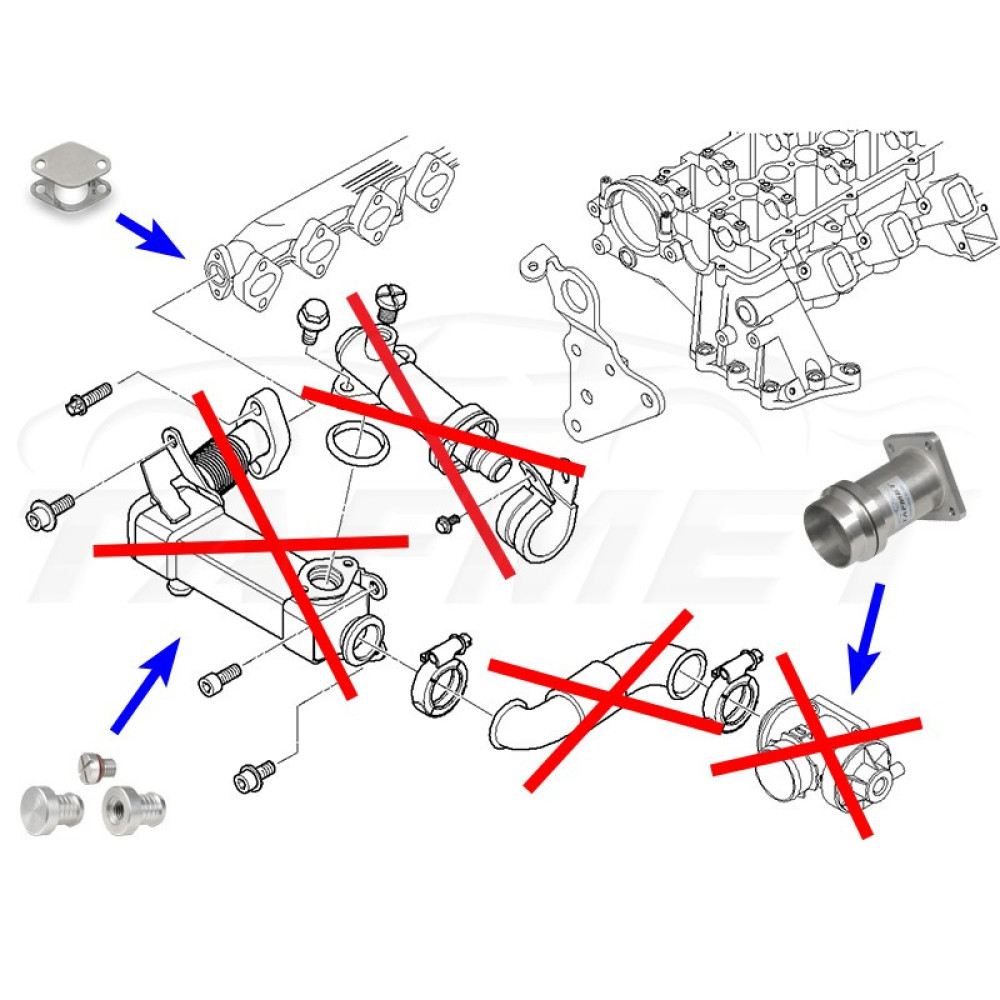

This kit includes EGR cooler hose blanks, allowing removal of the EGR cooler and EGR thermostat, which are redundant after EGR valve removal.

Important Notes

• On most vehicles produced until 2002-2004, no ECU warning light will appear after installation.
• Later models with pneumatic and electronic EGR valves may trigger an ECU warning light. An ECU remap is recommended to fully disable EGR function. This must be performed by a qualified tuner.
• Intended for off-road and motorsport use only.

Application

• BMW 3 Series E46, 330d, M57N, 09/2002 – 08/2006
• BMW 5 Series E60, 530d, M57N, 09/2002 – 09/2005
• BMW 5 Series E61, 530d, M57N, 09/2002 – 09/2005
• BMW 7 Series E65, 730d, M57N, 09/2002 – 02/2005
• BMW X5 E53, 3.0d, M57N, 09/2002 – 09/2006

If unsure, please verify your engine code. For other models or engines not listed, contact us before ordering.

OEM EGR Valve Numbers

• 11717789999
• 11717804379
