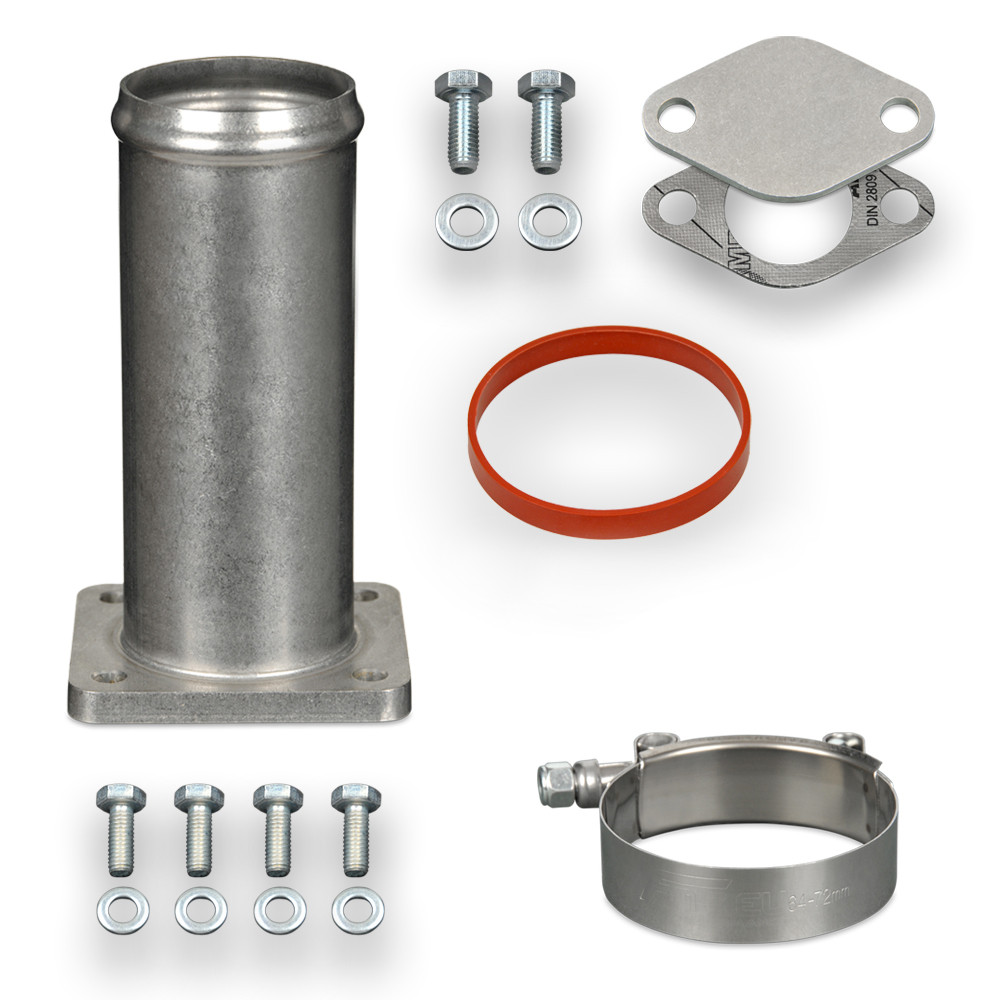

Kit Contents & Specifications

• 1 x EGR Replacement Pipe (54 mm outer diameter, 140 mm length, stainless steel, lifetime warranty)
• 1 x Blanking Plate (stainless steel, lifetime warranty)
• 1 x Blanking Plate Gasket
• 1 x Flange Gasket
• 1 x Hose Clip
• 1 x Keychain - bottle opener

Important Notes

• Generally, vehicles produced up to 2002-2004 will not display an ECU warning light after installation. Later models with pneumatic and electronic EGR valves may trigger the ECU warning light. For these, ECU remapping is recommended to fully disable the EGR function. This service can be performed by a qualified tuner.
• For off-road and motorsport use only.

Application

• BMW 1 Series E87: 118d, M47N2, 02/2003 - 02/2007
• BMW 1 Series E87: 120d, M47N2, 02/2003 - 02/2007
• BMW 3 Series E90: 318d, M47N2, 02/2004 - 08/2008
• BMW 3 Series E90: 320d, M47N2, 02/2004 - 08/2008
• BMW 5 Series E60: 520d, M47N2, 02/2002 - 02/2007
• BMW 5 Series E60: 525d, M57N, 02/2002 - 02/2007
• BMW 5 Series E60 LCI: 520d, M47N2, 10/2005 - 12/2009
• BMW 5 Series E61: 520d, M47N2, 11/2002 - 02/2007
• BMW 5 Series E61: 525d, M57N, 11/2002 - 02/2007
• BMW 5 Series E61 LCI: 520d, M47N2, 11/2005 - 05/2010
• BMW X3 E83: 2.0d, M47N2, 01/2003 - 07/2006
• BMW X3 E83: 3.0d, M57N, 01/2003 - 07/2006
• BMW X3 E83 LCI: 2.0d, M47N2, 03/2006 - 08/2010

If unsure, verify your engine code. If your engine or vehicle model is not listed, contact us before ordering.

OEM EGR Valve Numbers

• 11717792077
• 11717804381
