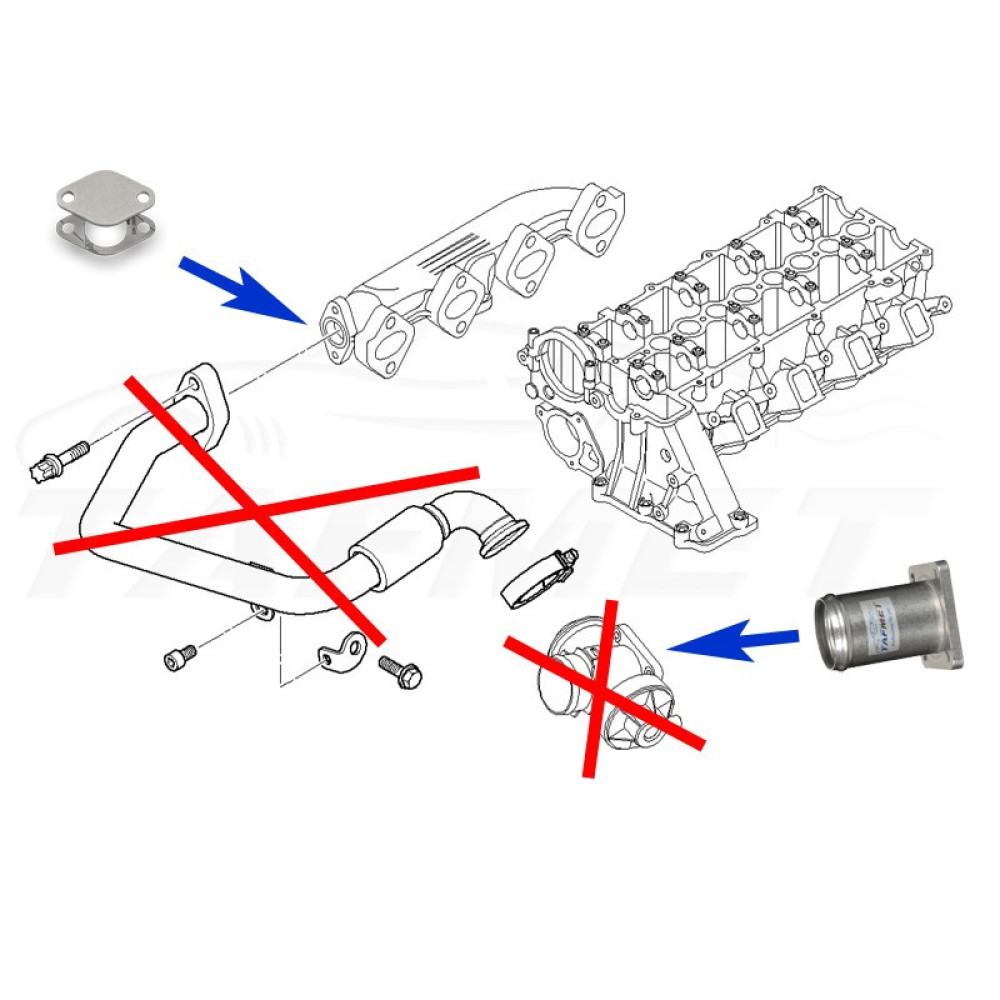

Over time, the EGR system in your vehicle can become blocked with tar and sediment, negatively affecting fuel economy and performance. The TAFMET EGR Kit is a direct and straightforward replacement designed to resolve these issues.

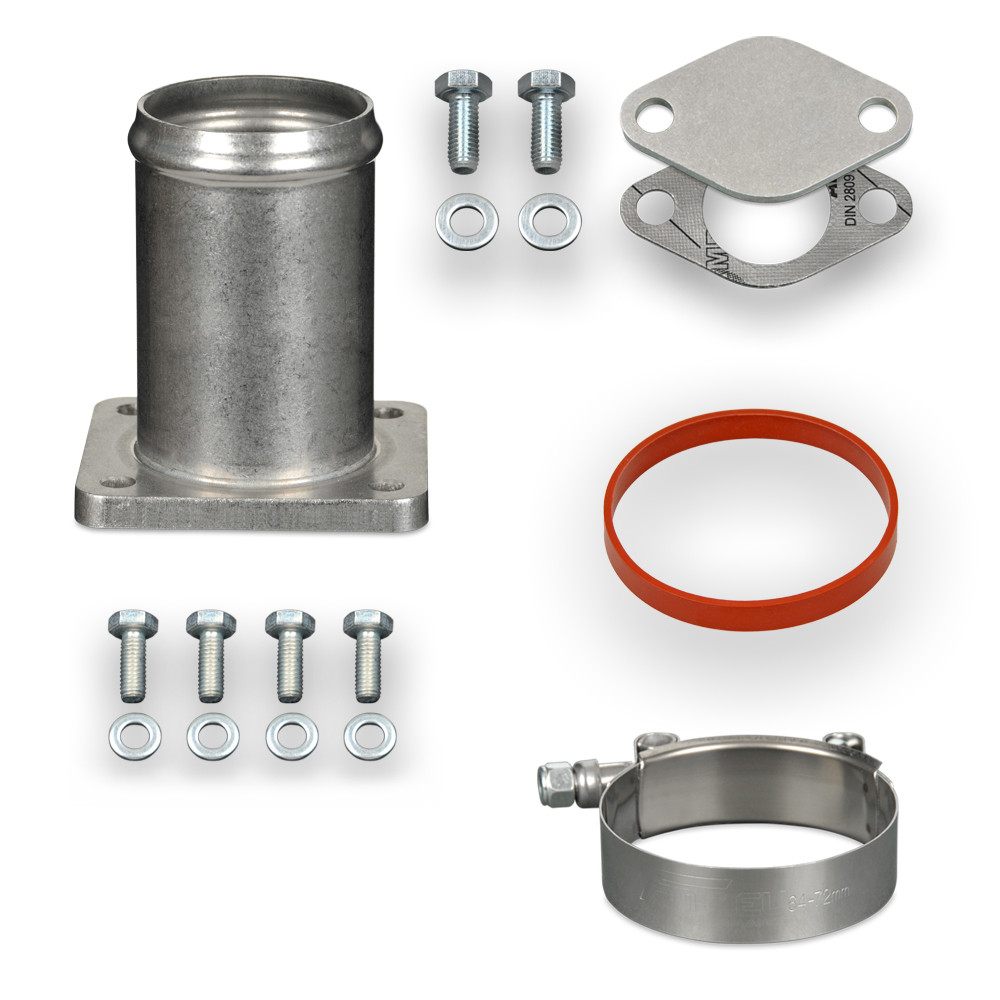

Kit Contents & Specifications

• 1 x EGR Replacement Pipe (54 mm outer diameter, 90 mm length, stainless steel, lifetime warranty)
• 1 x Blanking Plate (stainless steel, lifetime warranty)
• 1 x Blanking Plate Gasket
• 1 x Flange Gasket
• 1 x Hose Clip
• 2 x Blanking Plate Screw with Washer
• 4 x Flange Screw with Washer

Important Notes

• For vehicles up to 2002-2004, no ECU warning light is expected. On later models with pneumatic/electronic EGR valves, installation may trigger an ECU warning light. ECU remapping is recommended to fully disable the EGR function.
• Intended for off-road and motorsport use only.

Applications

• BMW 3 Series E36 (1991–1998):
  • 325td Limousine, engine M51
  • 325td Touring, engine M51
  • 325tds Limousine, engine M51
  • 325tds Touring, engine M51
• BMW 3 Series E46 (1997–2003):
  • 318d Limousine, engine M47 / M47N
  • 318d Touring, engine M47 / M47N
  • 318td Compact, engine M47N
  • 320Cd Cabrio, engine M47N
  • 320Cd Coupé, engine M47N
  • 320d Limousine, engine M47N
  • 320d Touring, engine M47N
  • 320td Compact, engine M47N
  • 330Cd Coupé, engine M57N
  • 330d Limousine (up to 08.2000), engine M57
  • 330d Touring, engine M57
  • 330d Limousine, engine M57N
  • 330d Touring, engine M57N
  • 330xd Limousine, engine M57 / M57N
  • 330xd Touring, engine M57 / M57N
• BMW 5 Series E34 (1991–1996):
  • 525td Limousine, engine M51
  • 525td Touring, engine M51
  • 525tds Limousine, engine M51
  • 525tds Touring, engine M51
• BMW 5 Series E39 (1995–08.2000):
  • 525td Limousine, engine M51
  • 525td Touring, engine M51
  • 525tds Limousine, engine M51
  • 525tds Touring, engine M51
  • 525d Limousine, engine M57
  • 525d Touring, engine M57
  • 530d Limousine, engine M57
  • 530d Touring, engine M57
• BMW 7 Series E38 (up to 03.2000):
  • 725tds Limousine, engine M51
  • 730d Limousine, engine M57
• BMW X5 E53 (1999–2003):
  • 3.0d, engine M57 / M57N
• Land Rover Freelander:
  • 2.0 Td4 4x4, 2000.11–2006.10, engine 204D3
  • 2.0 Td4 4x4, 2001.11–2006.10, engine M47

If unsure, verify your engine code. If your engine or vehicle is not listed, please contact before ordering.

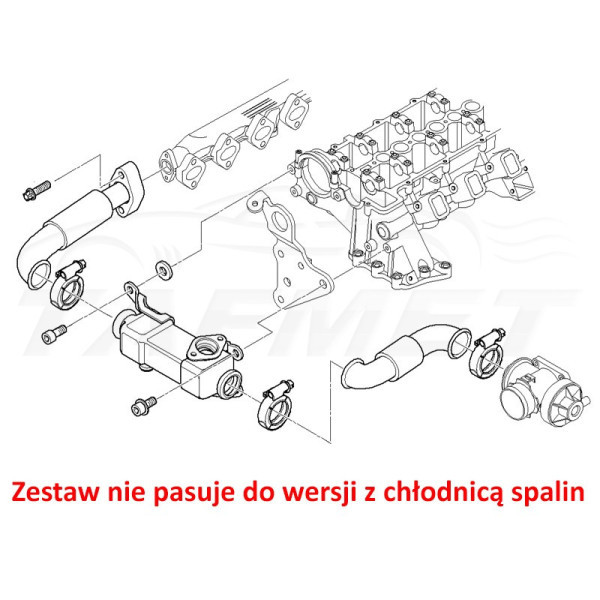

Not compatible with vehicles equipped with an exhaust cooler.

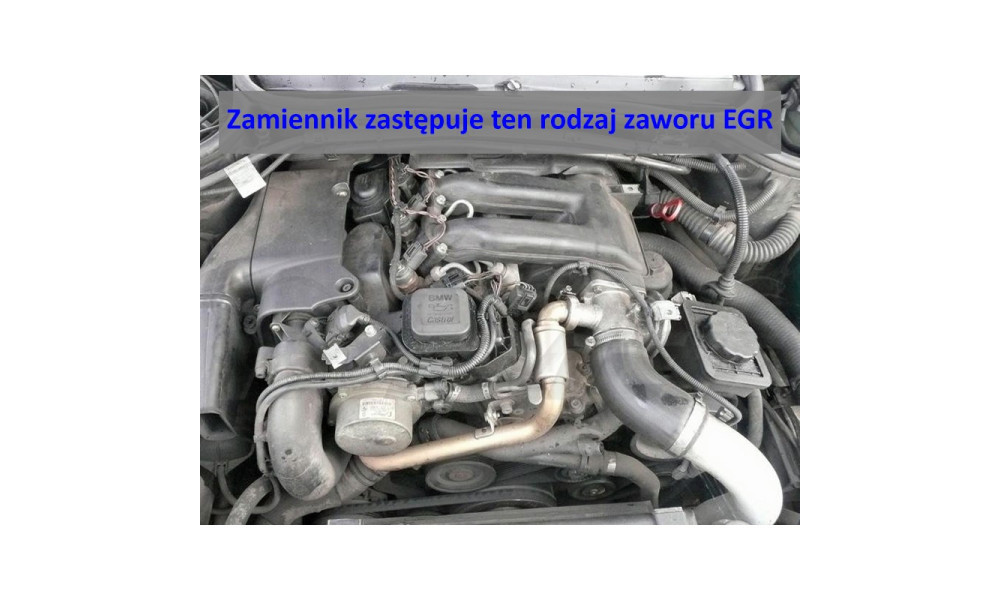

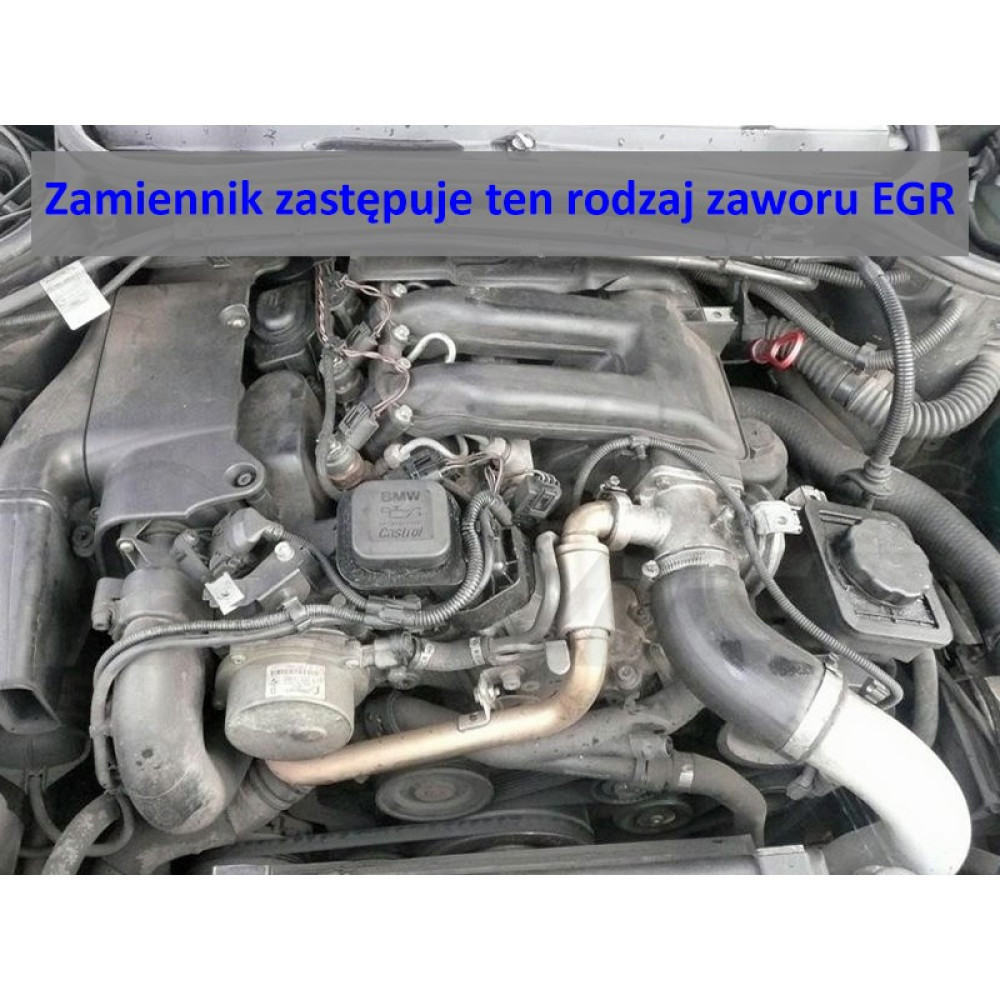

OEM EGR Valve Reference Numbers

• Pierburg: 7.28264.06.0
• BMW: 11717785452, 11717804378, 11714701242
• Land Rover: LR005791, WAV000040
