Over time, the EGR system in your vehicle can become blocked with tar and sediment, negatively impacting fuel economy and performance. The TAFMET EGR Kit is a direct and straightforward replacement designed to resolve these issues.

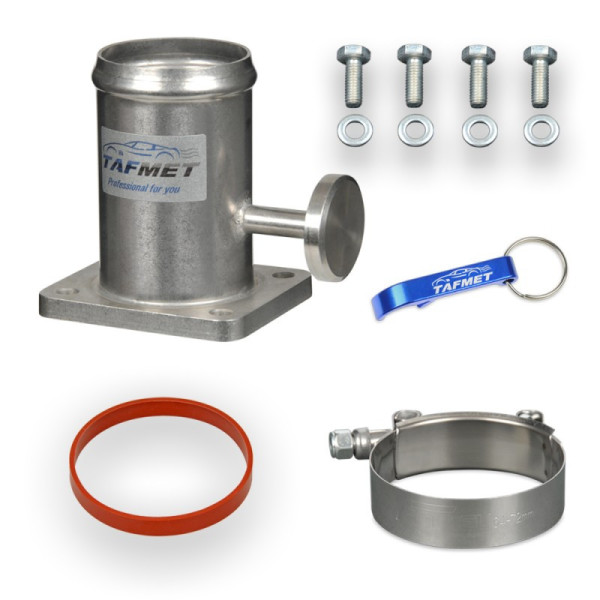

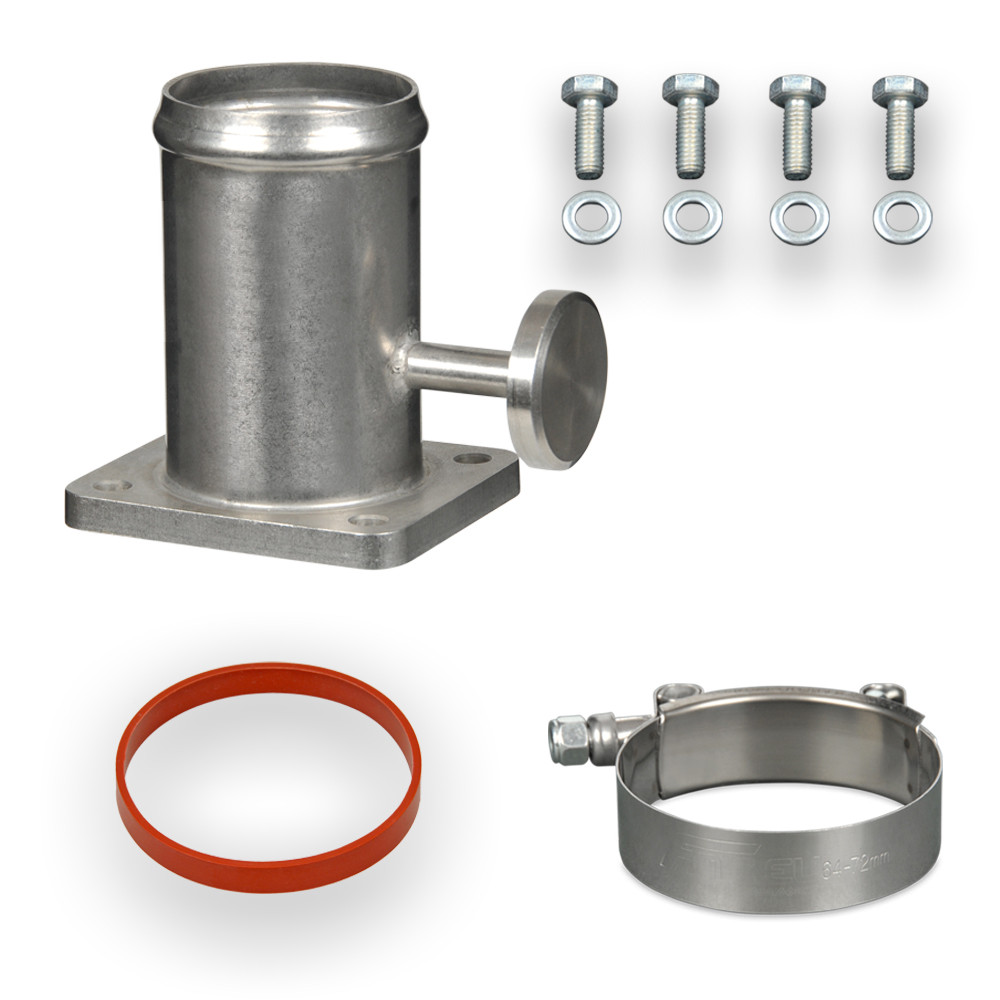

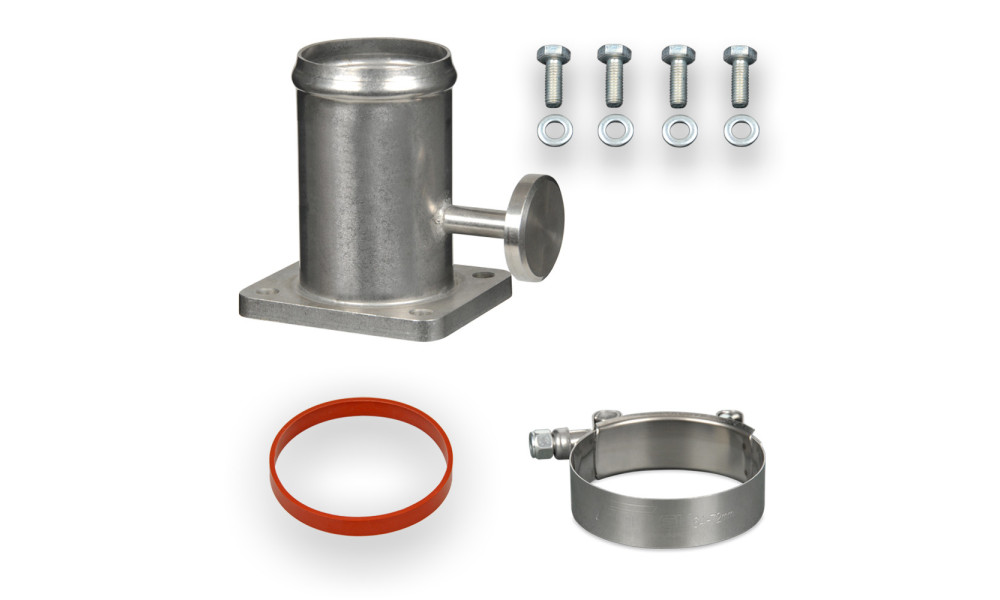

Kit Contents & Specifications

• 1 x EGR Replacement Pipe (54mm outer diameter, 90mm length, stainless steel, lifetime warranty)
• 1 x Flange Gasket
• 1 x Hose Clip
• 4 x Flange Screws with Washers

Important Notes

• For vehicles manufactured up to 2002–2004, no ECU warning light will typically appear. On later models with pneumatic or electronic EGR valves, installation may trigger an ECU warning light. ECU remapping is recommended to fully disable the EGR function; consult a qualified tuner for this service.
• Intended for off-road and motorsport use only.

Application

• BMW 3 Series E46 (1997–2006)
  • 318d Limousine, engine M47
  • 318d Touring, engine M47
  • 318d Limousine, engine M47N
  • 318d Touring, engine M47N
  • 318td Compact, engine M47N
  • 320Cd Cabrio, engine M47N
  • 320Cd Coupé, engine M47N
  • 320d Limousine, engine M47
  • 320d Touring, engine M47
  • 320d Limousine, engine M47N
  • 320d Touring, engine M47N
  • 320td Compact, engine M47N
  • 330Cd Coupé, engine M57N
  • 330d Limousine (until 08.2000), engine M57
  • 330d Touring, engine M57
  • 330d Limousine, engine M57N
  • 330d Touring, engine M57N
  • 330xd Limousine, engine M57
  • 330xd Touring, engine M57
  • 330xd Limousine, engine M57N
  • 330xd Touring, engine M57N
• BMW 5 Series E39 (until 08.2000)
  • 520d Limousine, engine M57
  • 520d Touring, engine M57
  • 525d Limousine, engine M57
  • 525d Touring, engine M57
  • 530d Limousine, engine M57
  • 530d Touring, engine M57
• BMW 5 Series E60 (2003–2005)
  • 530d Limousine, engine M57N
• BMW 5 Series E61 (2003–2005)
  • 530d Touring, engine M57N
• BMW 7 Series E38 (until 03.2000)
  • 730d Limousine, engine M57
• BMW 7 Series E65 (2001–2005)
  • 730d Limousine, engine M57N
• BMW X5 E53 (1999–2006)
  • 3.0d, engine M57
  • 3.0d, engine M57N
• BMW X5 E83 (2003–2006)
  • 2.0d, engine M47N2
• BMW X5 E83 LCI (2006–2007)
  • 2.0d, engine M47N2
• Land Rover Freelander
  • 2.0 Td4 4x4, 2000.11–2006.10, engine: 204D3
  • 2.0 Td4 4x4, 2001.11–2006.10, engine: M47

If you are unsure about compatibility, please check your engine code. If your engine or vehicle model is not listed, contact us before ordering.

OEM EGR Valve Reference Numbers

• Pierburg: 7.28264.06.0
• BMW: 11717785452, 11717804378, 11714701242
• Land Rover: LR005791, WAV000040
