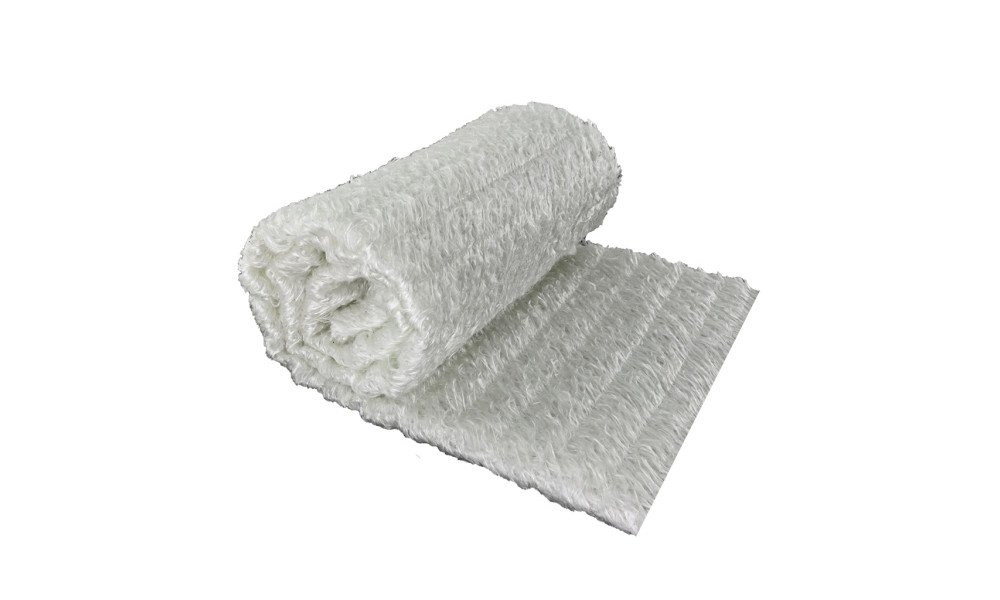

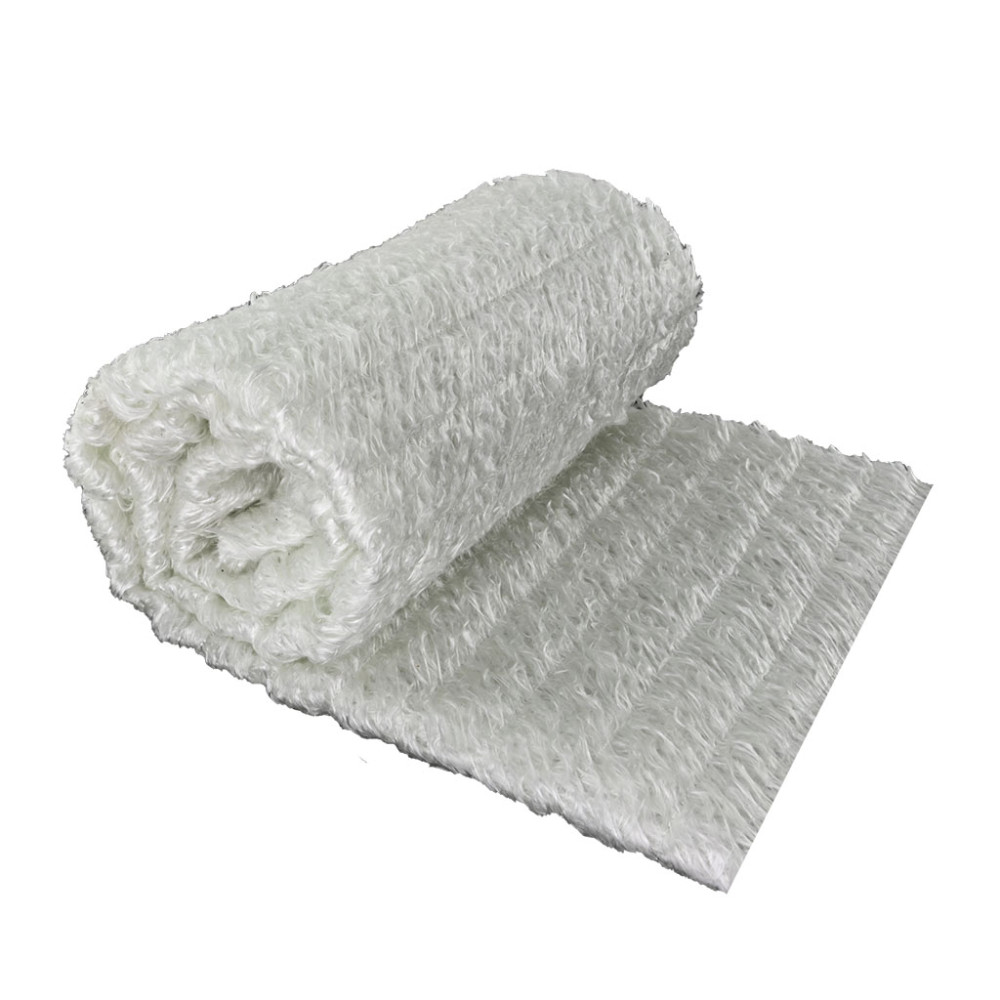

The ECR 1300 x 600 mm fibreglass thermal mat is a three-layer textile mat made of glass fibres. This product offers high thermal resistance, improved acoustic properties, and high mechanical strength.

ECR matting is an insulating material consisting of textured continuous glass fibres. It is utilized in various applications due to its high thermal resistance, excellent acoustic properties, and mechanical strength. Common uses include car and motorbike silencers, quads (ATV tuning and motorsport), power generators, technical equipment, industrial exhaust systems, gas and steam exhausts, industrial noise absorbers, acoustic enclosures and screens, welding equipment, bakery equipment, heat insulating covers, and protective clothing. It is suitable for industries requiring insulation that can withstand high pressure, temperature, and mechanical vibration.

Material characteristics:
Softening temperature: 905-920 °C
Max. working temperature: 761 °C
Monofilament diameter: 16 µm
Flammability: Non-flammable
Acid resistance: ≥ 99 %
Loss on ignition: max 1.5 %

Mineral composition of ECR fibre:
SiO2: 58-62%
Al2O3: 12-16%
CaO: 20-24%
MgO: 2-4.5%
K2O+Na2O: ≤0.9
ZnO: ≤1.2
