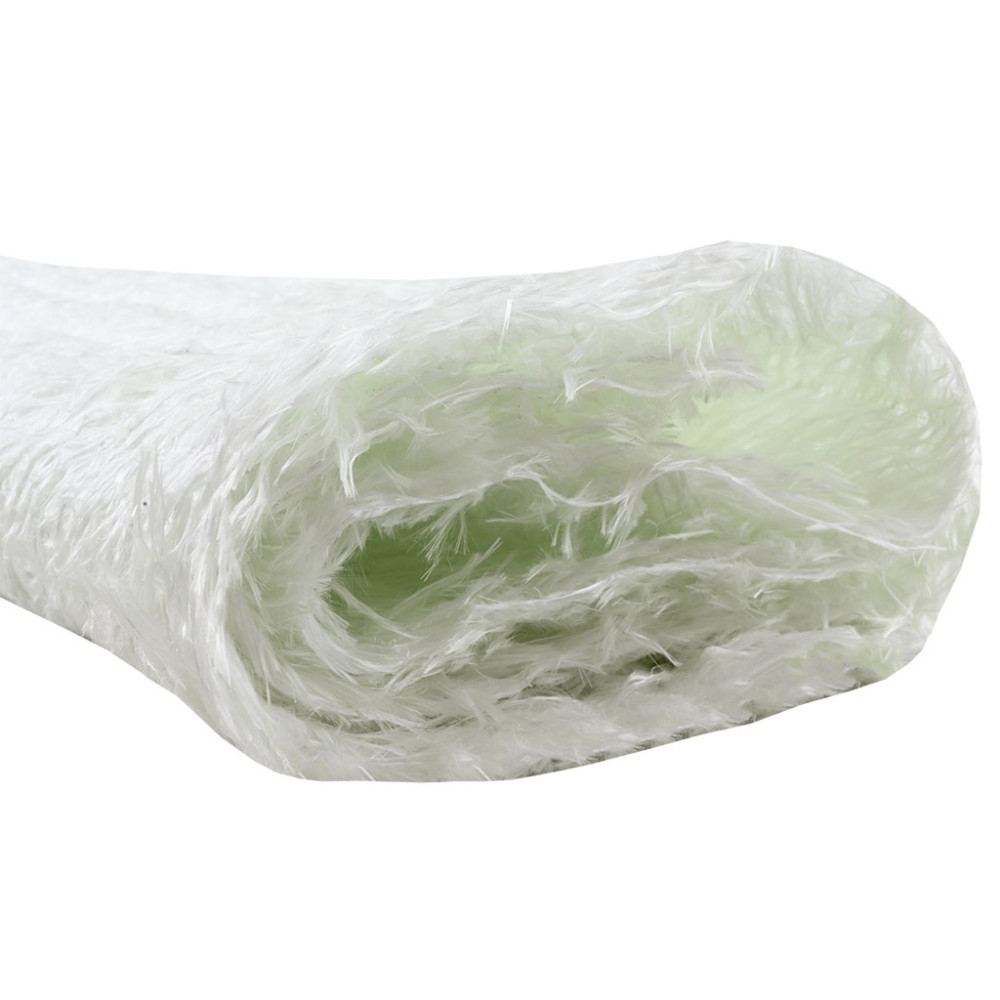

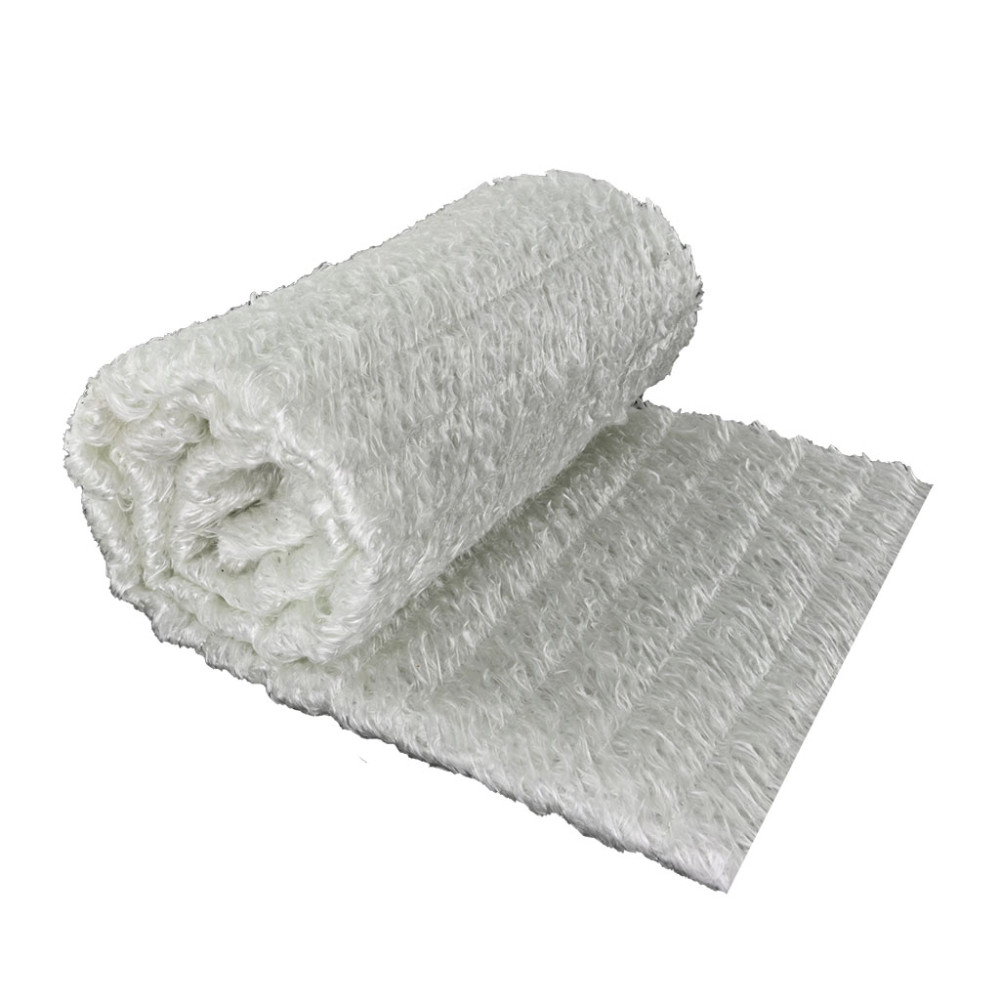

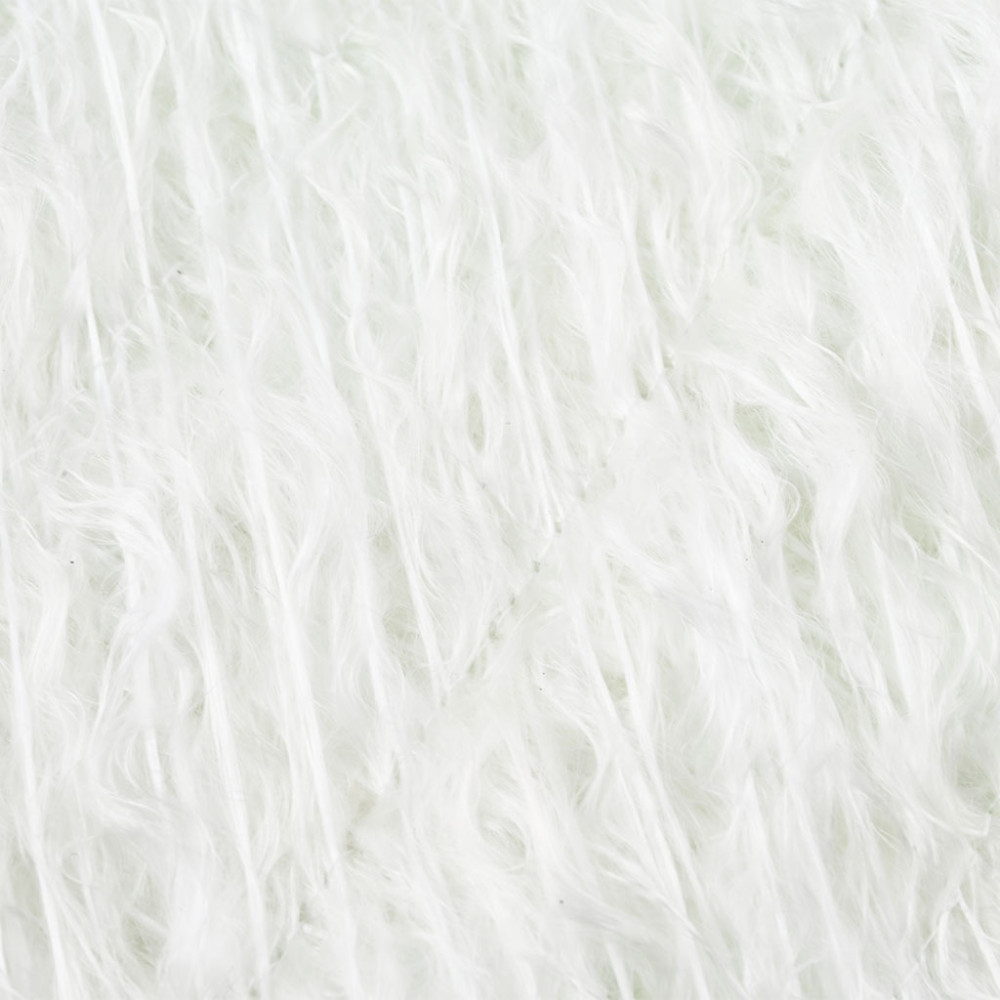

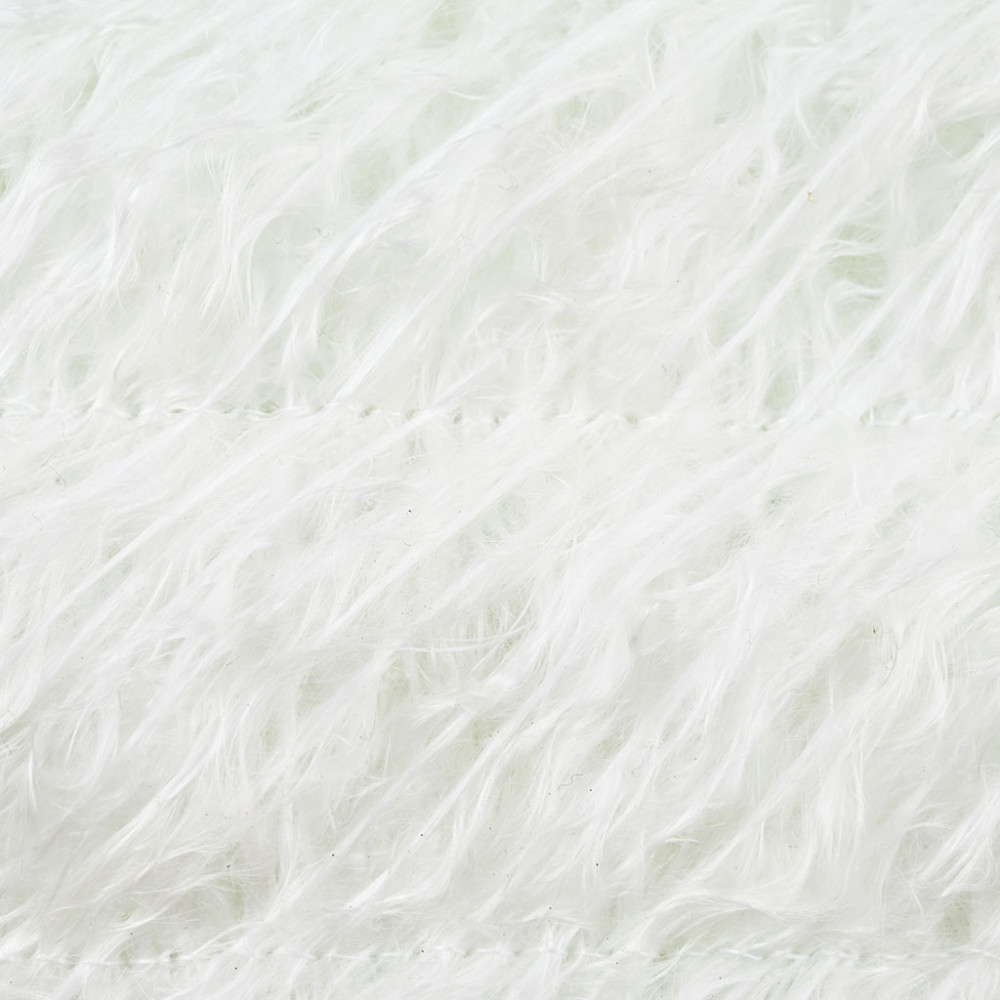

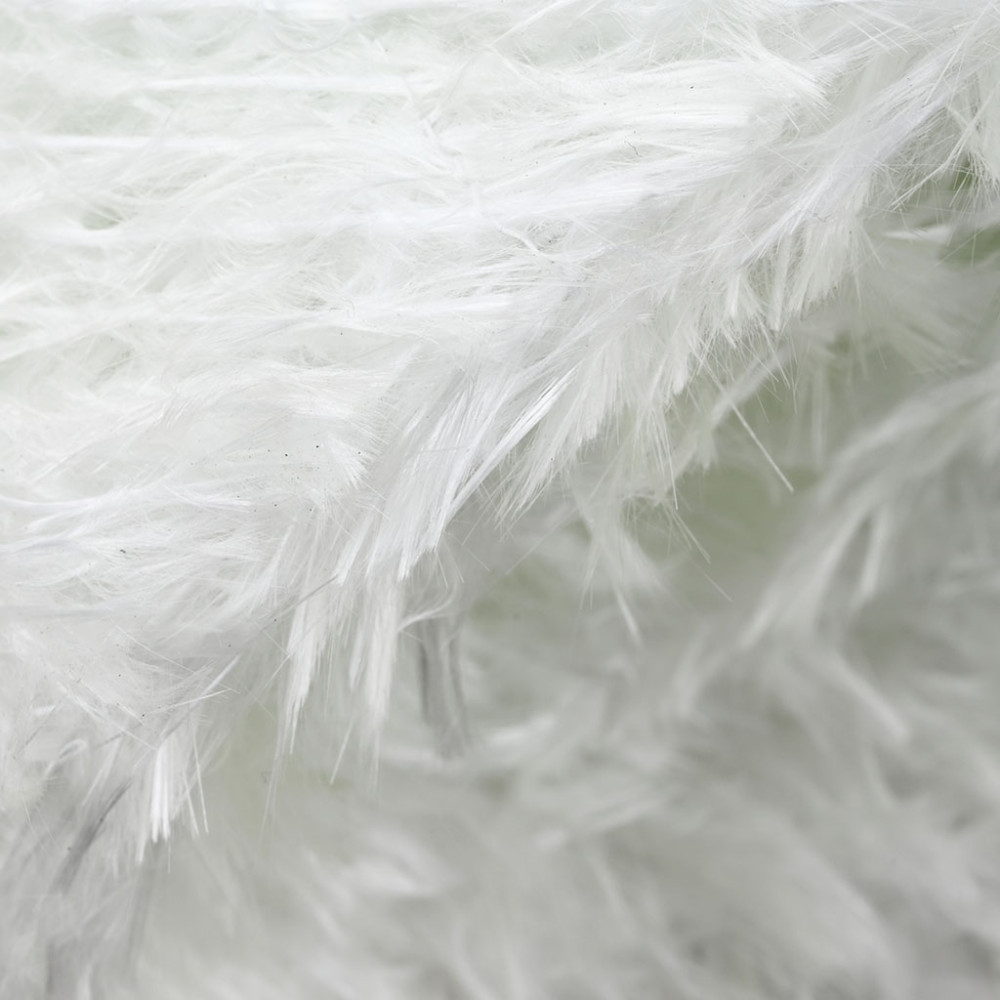

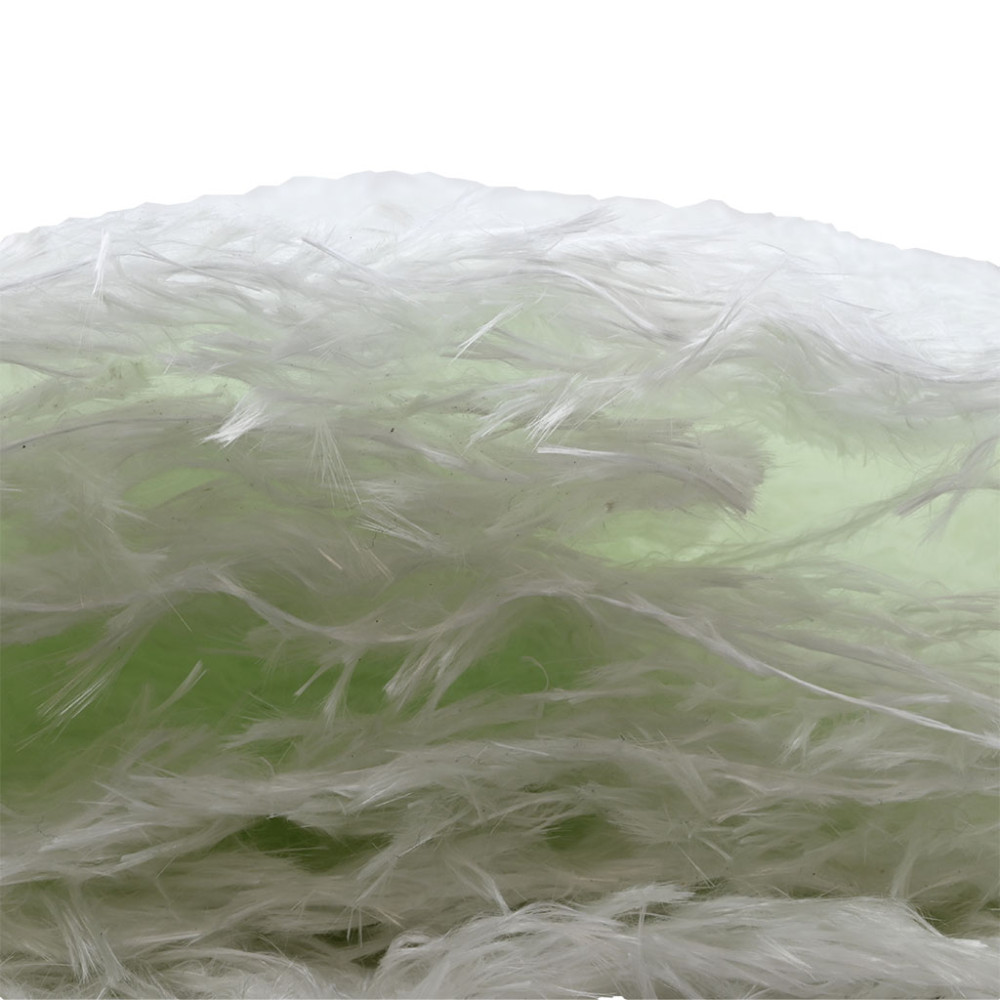

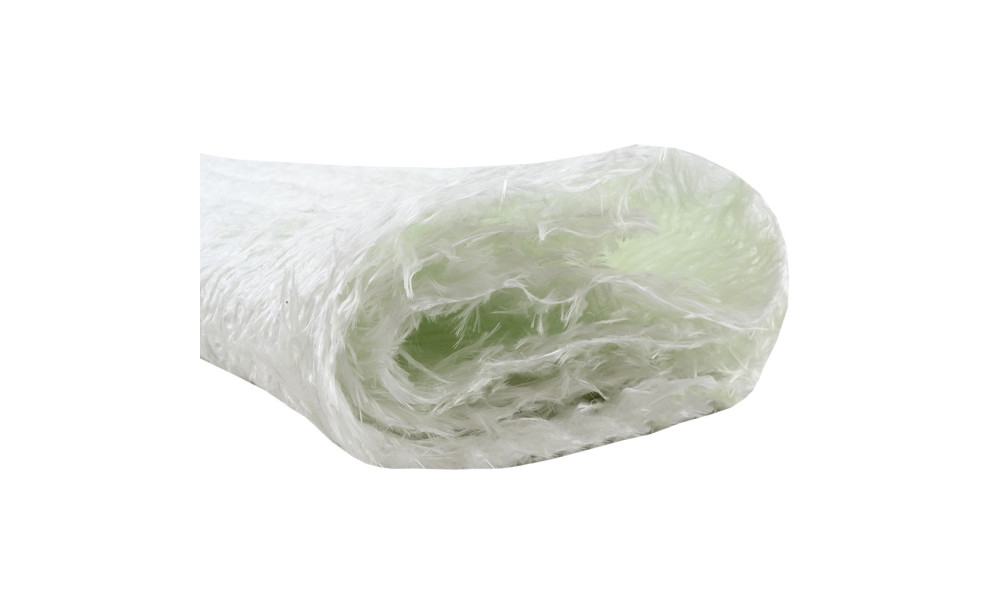

The ECR 1300 x 450 mm fibreglass thermal mat is a three-layer textile mat made of glass fibres. This product offers high thermal resistance, improved acoustic properties, and high mechanical strength.

ECR matting is an insulating material consisting of textured continuous glass fibres. It features numerous advantages, including high thermal resistance, excellent acoustic properties, and mechanical strength. It is utilized as a filler material in various applications such as car and motorbike silencers, quads (ATV tuning and motorsport), power generators, technical equipment, industrial exhaust systems, gas and steam exhausts, industrial noise absorbers, acoustic enclosures and screens, curtains, welding, bakery equipment, heat insulating covers, and protective clothing. It is suitable for industries that require insulation capable of withstanding high pressure, temperature, and mechanical vibration.

Material characteristics:
Softening temperature: 905-920 °C

Max. working temperature: 761 °C

Monofilament diameter: 16 µm

Flammability: Non-flammable

Acid resistance: ≥ 99 %

Loss on ignition: max 1.5 %

Mineral composition of ECR fibre:
SiO2: 58-62%

Al2O3: 12-16%

CaO: 20-24%

MgO: 2-4.5%

K2O+Na2O: ≤0.9

ZnO: ≤1.2
