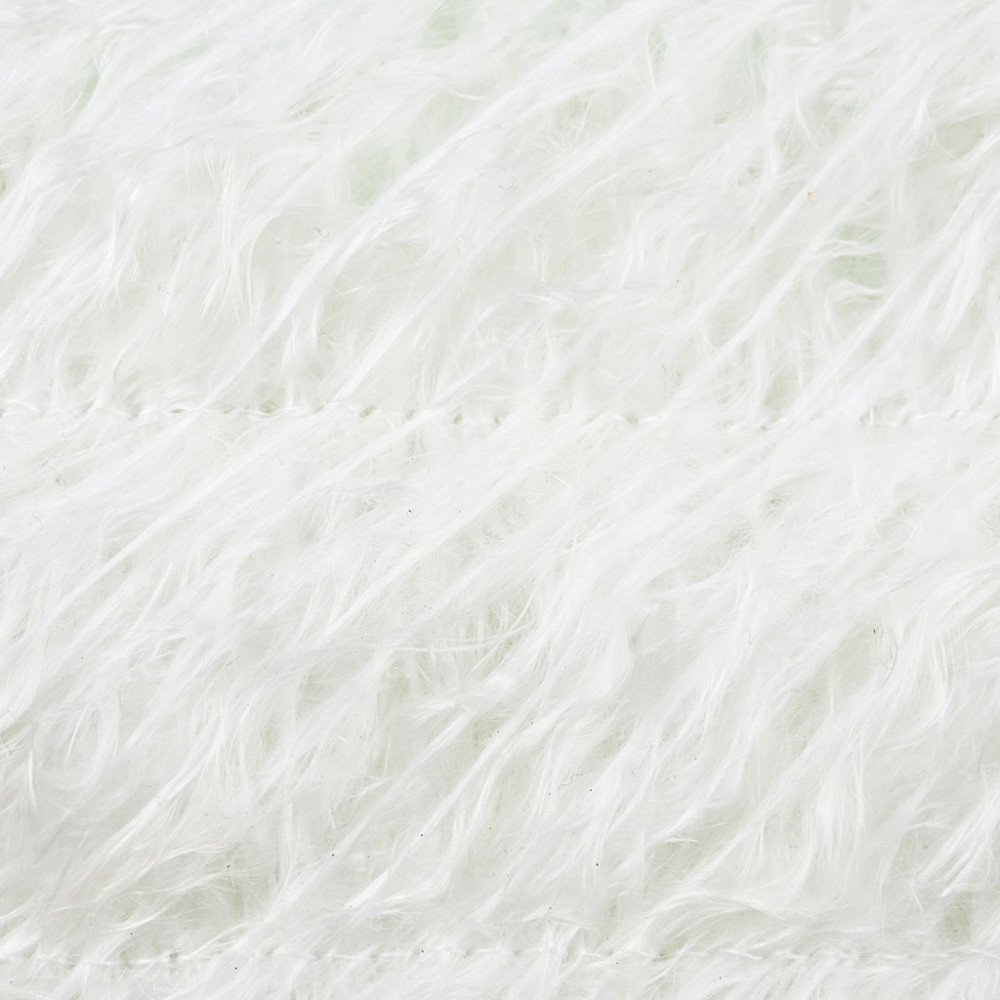

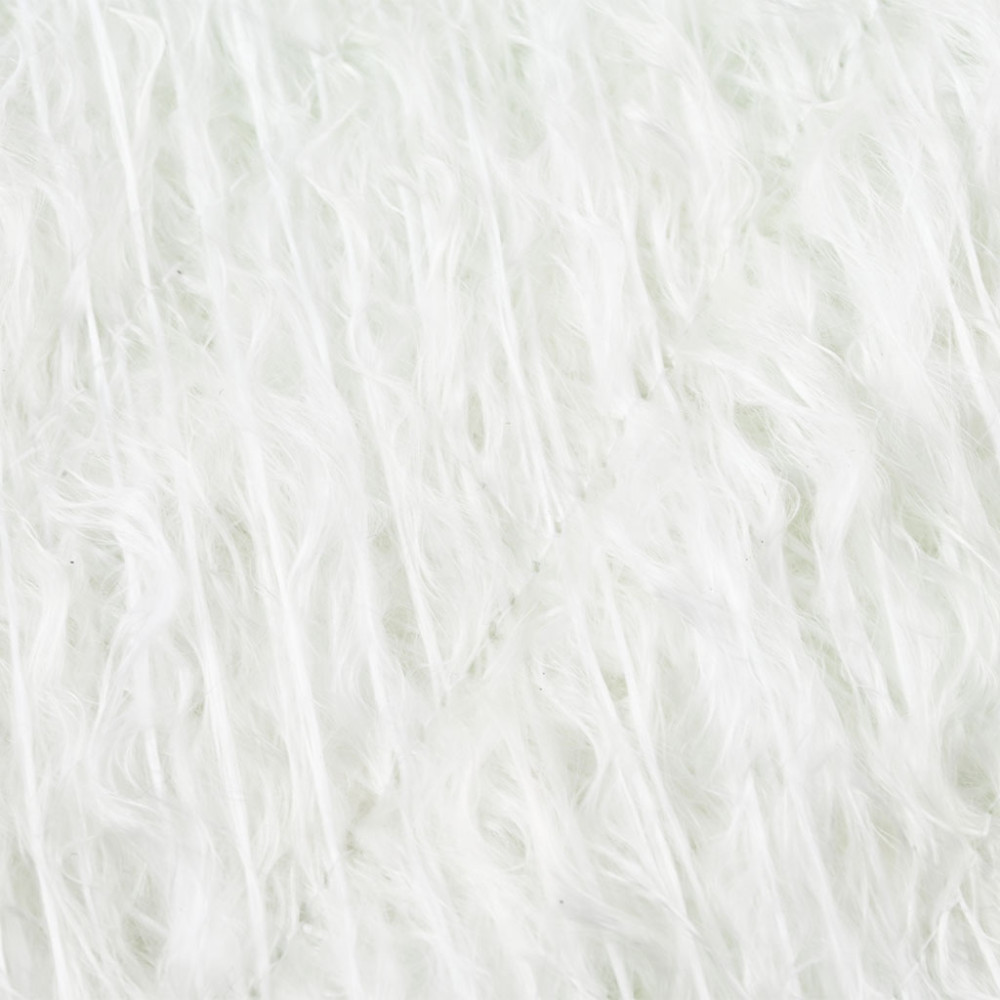

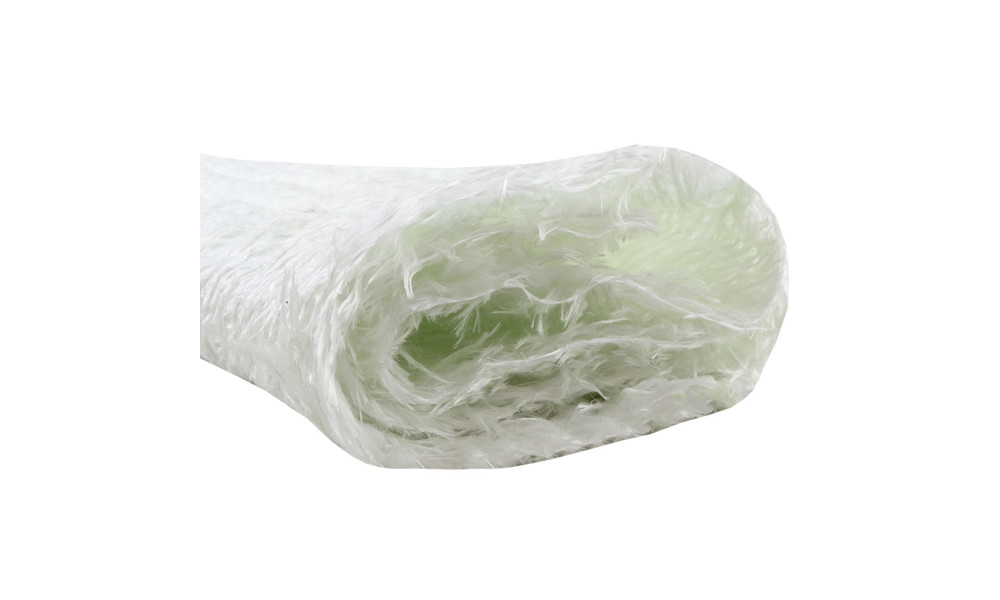

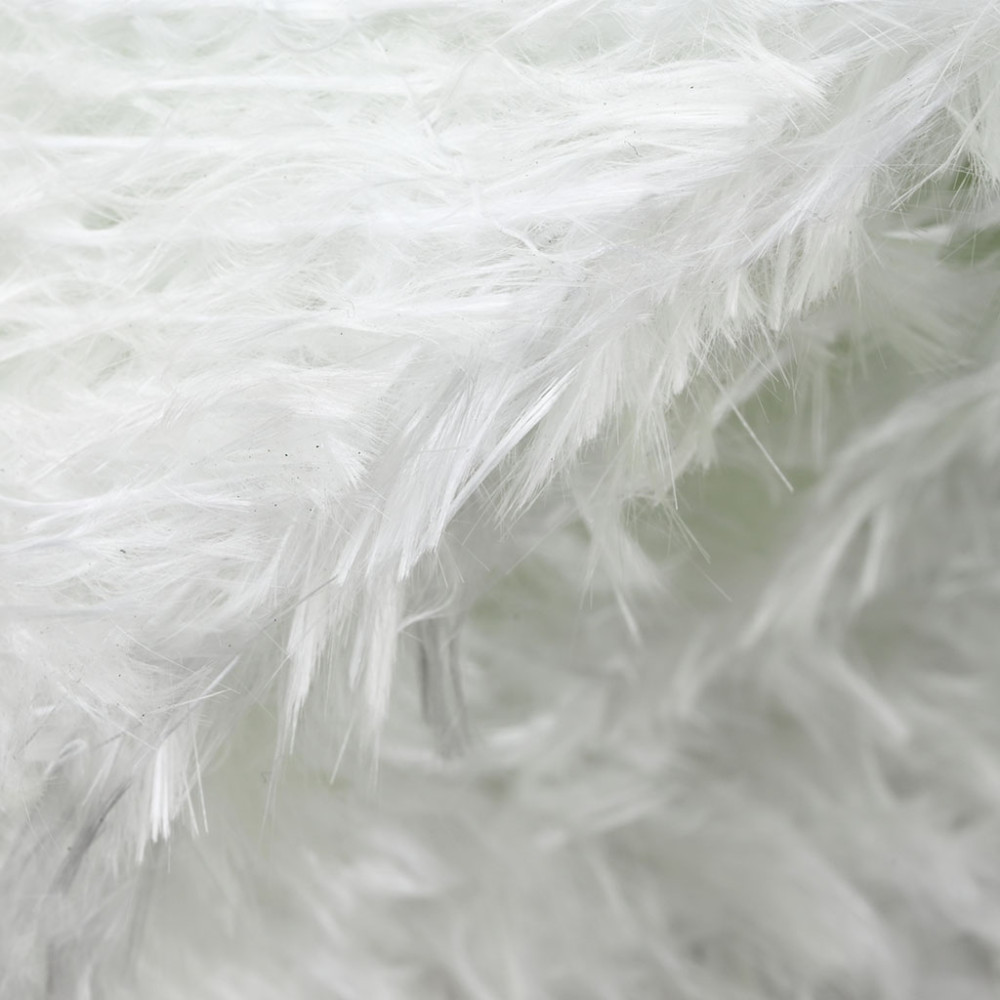

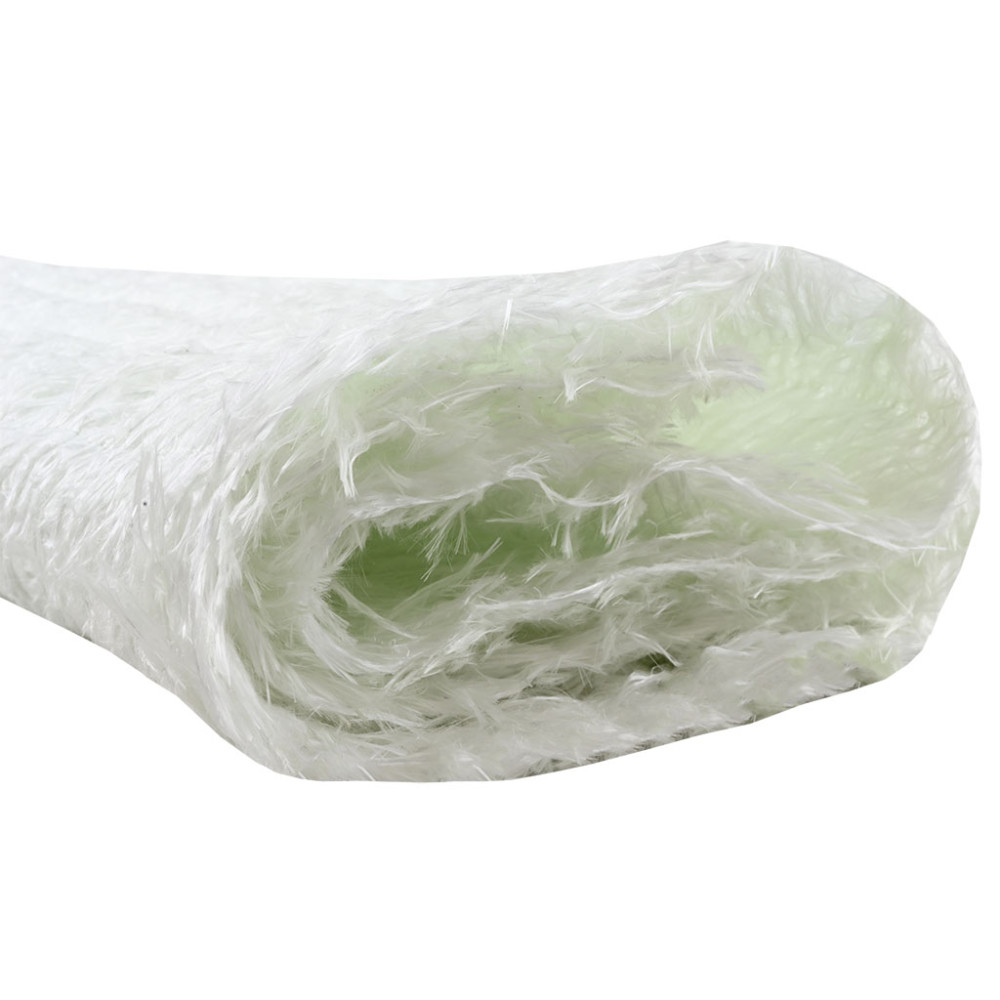

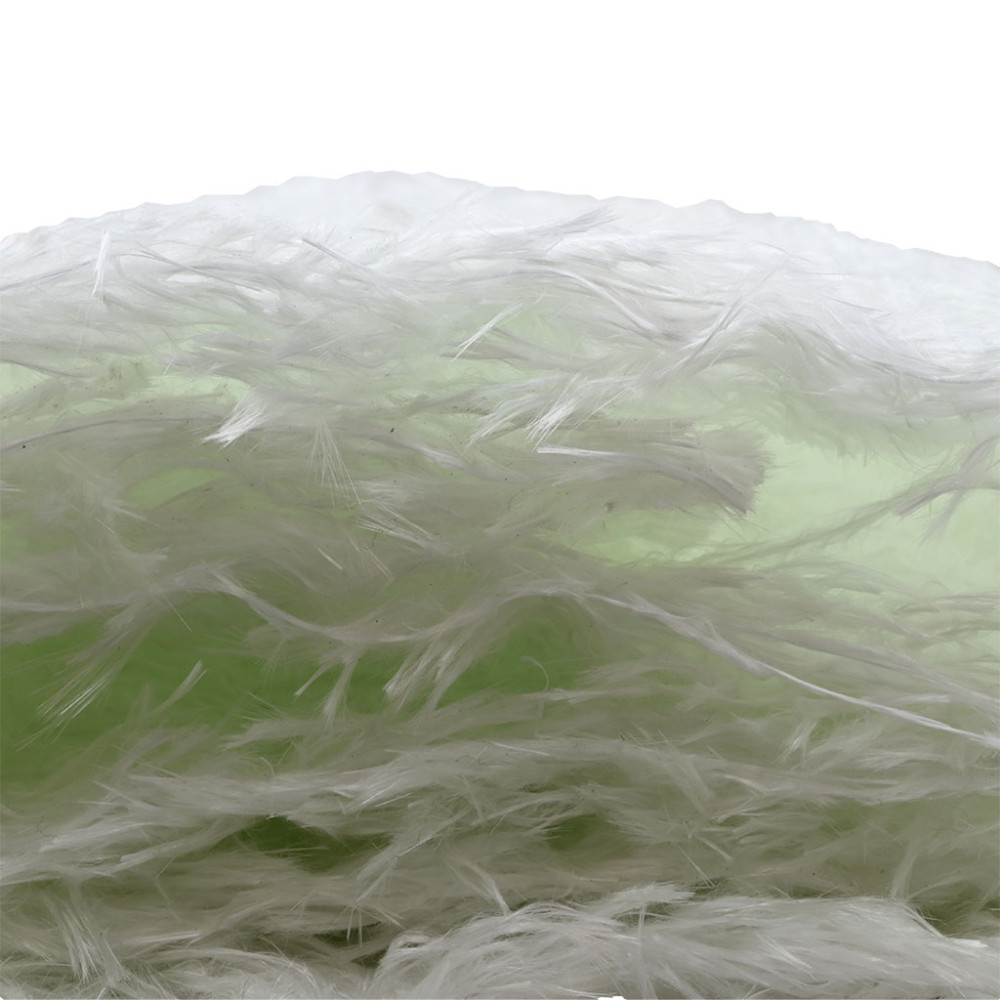

ECR 1300 x 300 mm Fibreglass Thermal Mat is a three-layer textile mat made of glass fibres, offering high thermal resistance, improved acoustic properties, and high mechanical strength.

ECR Matting is an insulating material composed of textured continuous glass fibres. Its high thermal resistance, excellent acoustic properties, and mechanical strength make it suitable for various applications, including car and motorbike silencers, quads, power generators, industrial exhaust systems, gas and steam exhausts, acoustic enclosures, welding equipment, and heat insulating covers. It is designed to withstand harsh working conditions involving high pressure, temperature, and mechanical vibration.

Material Characteristics:
Softening Temperature: 905-920 °C
Max. Working Temperature: 761 °C
Monofilament Diameter: 16 µm
Flammability: Non-flammable
Acid Resistance: ≥ 99 %
Loss on Ignition: Max 1.5 %

Mineral Composition of ECR Fibre:
SiO2: 58-62%
Al2O3: 12-16%
CaO: 20-24%
MgO: 2-4.5%
K2O+Na2O: ≤0.9
ZnO: ≤1.2
