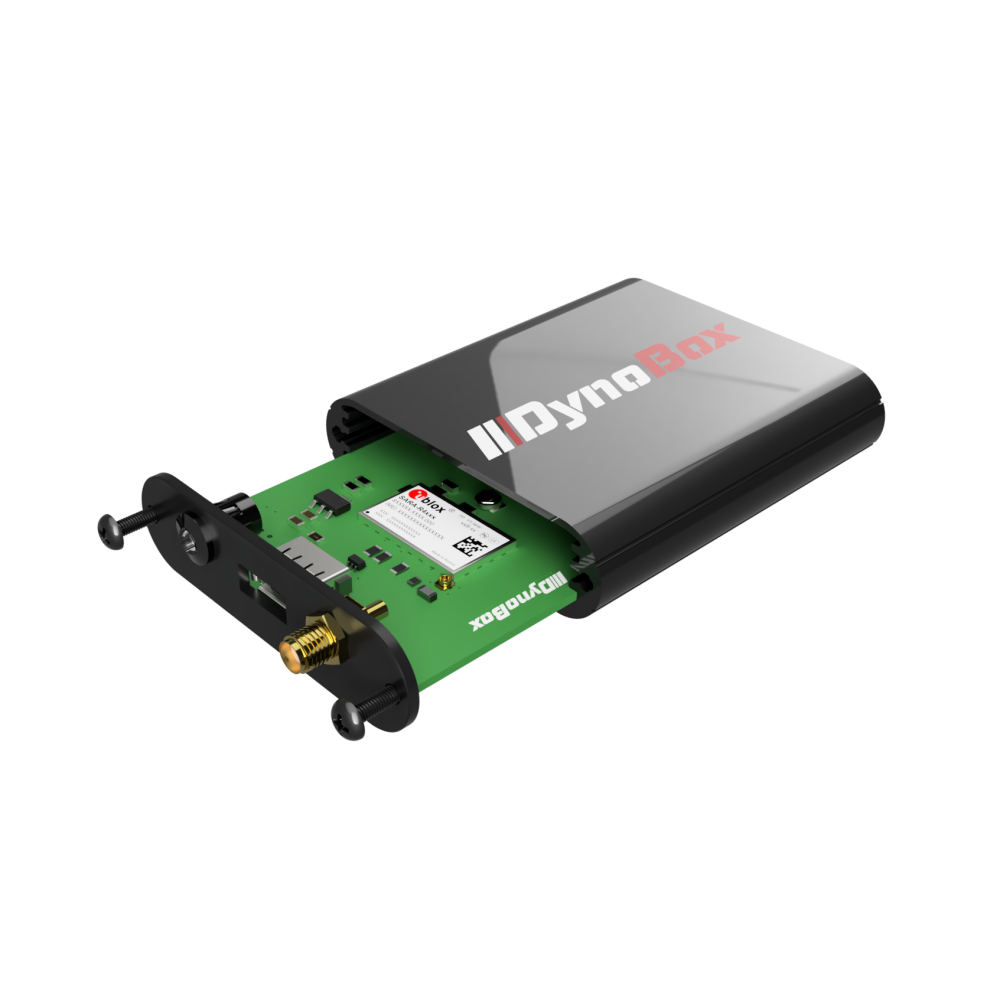

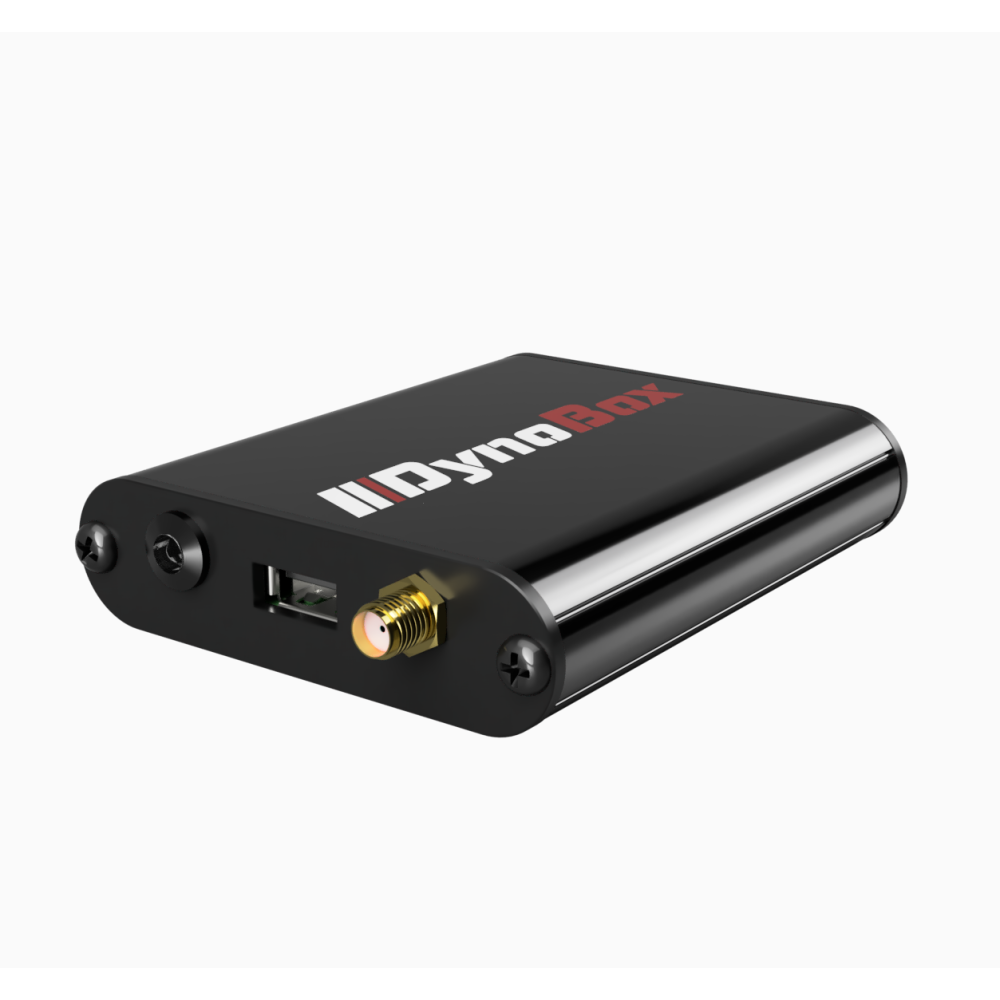

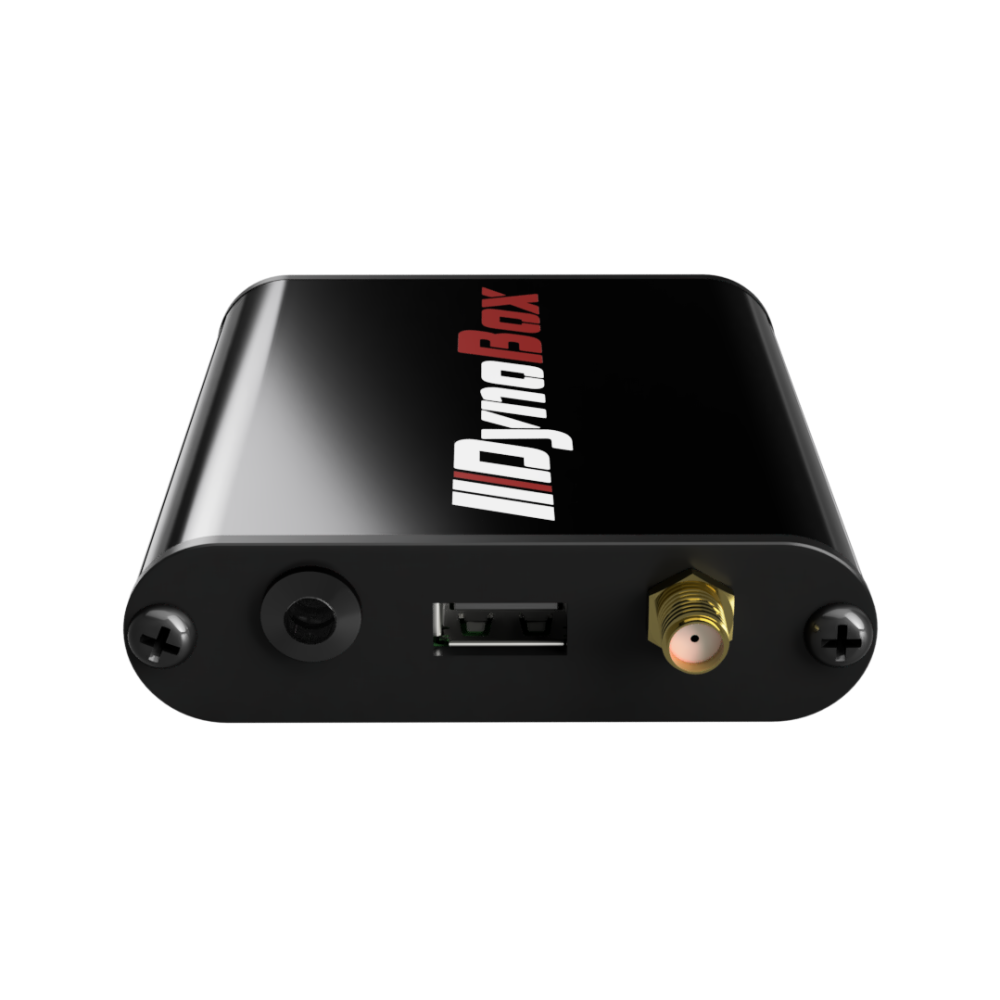

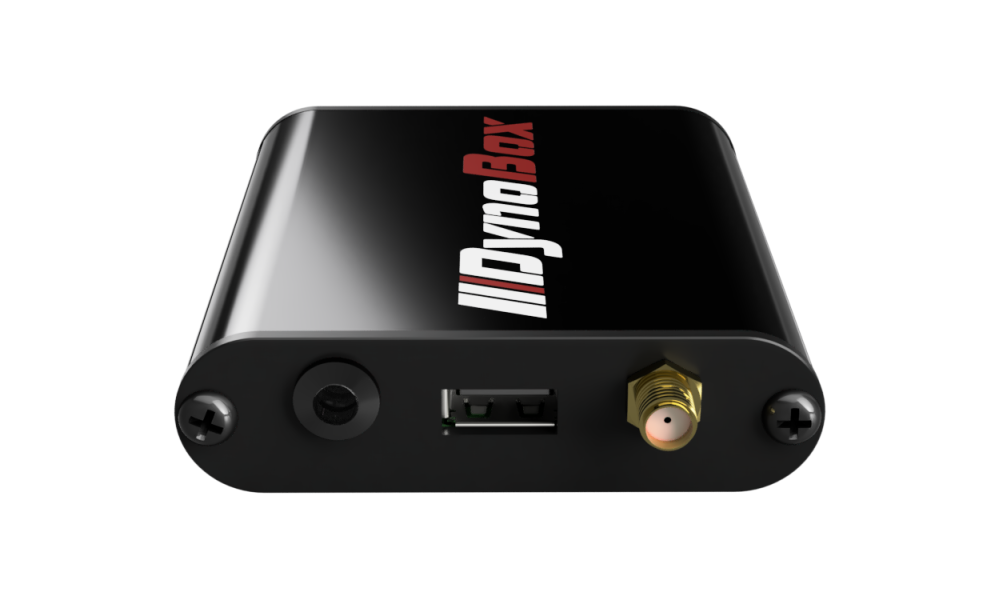

DynoBox is a portable road dynamometer for measuring vehicle power and torque across the full engine speed range. It uses a precise Ublox GPS module paired with an active GNSS antenna to deliver accurate, repeatable results.

Setup is straightforward: mount the magnetic antenna on the roof, create a vehicle profile, and run a measurement on the road. It’s a practical tool for engine optimization, offering similar capability to a stationary dynamometer at a significantly lower cost.

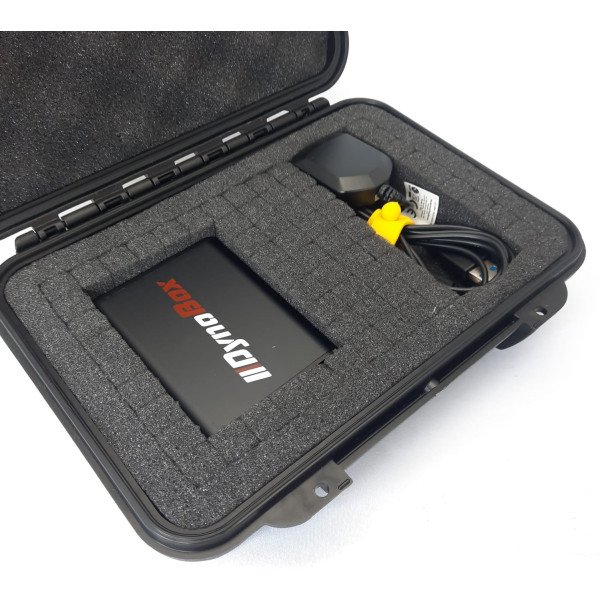

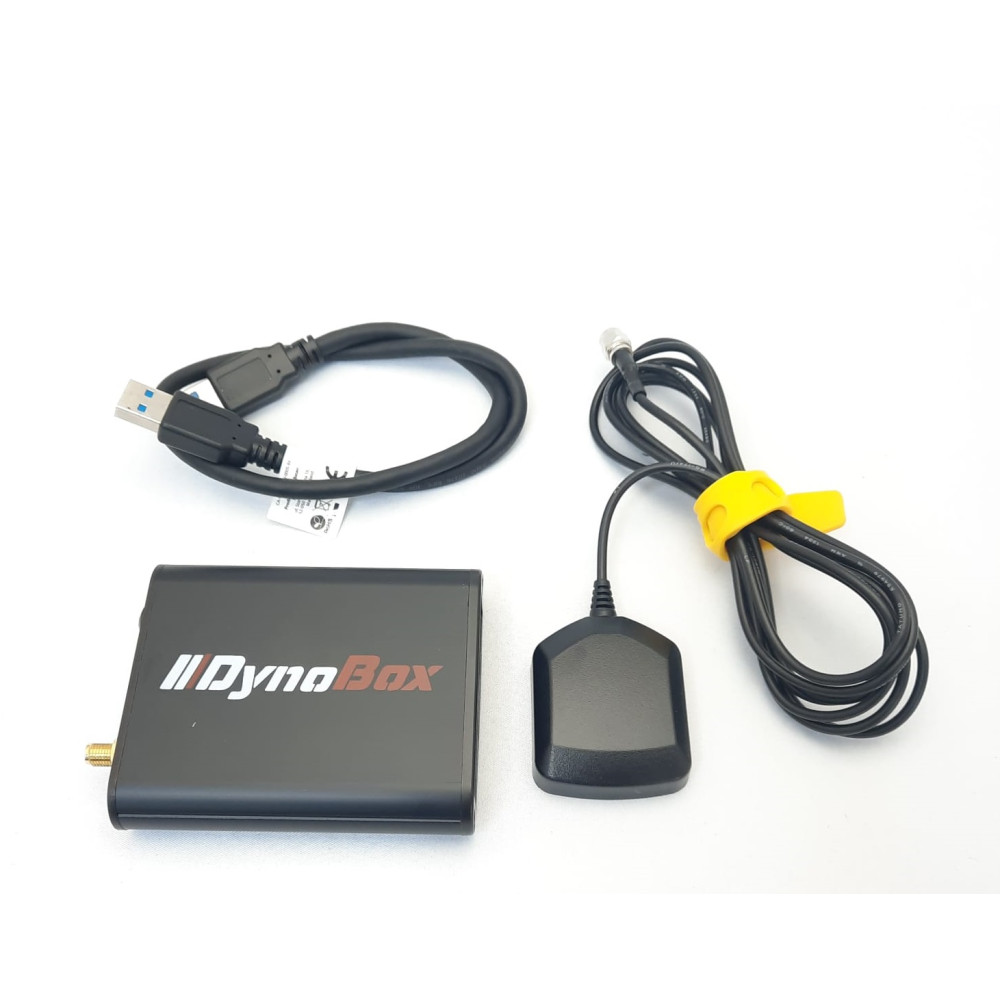

What’s in the box

• DynoBox module
• Active GNSS antenna with magnet
• Licensed Windows PC app
• USB cable
• Compact carrying case
• User guideline

*Full support is provided, including assistance with device setup if needed.

How a measurement works

1. Connect DynoBox to a computer via USB with the DynoBox app installed, and place the magnetic antenna on the vehicle roof.
2. Create the vehicle profile and enter required parameters such as weight, ambient temperature, and atmospheric pressure (DIN 70020).
3. Calibrate by holding 3000 RPM for a few seconds in the gear used for the run.
4. Accelerate from around 1200 RPM to the limit, then immediately shift to neutral for 15 seconds.
5. Results are displayed as a graph immediately after the run.

DynoBox app features

• Database for storing measurements
• Graph comparison across runs
• Intuitive, user-friendly interface
• Report generation
• Free software updates
• DIN 70020 measurement corrections

Advantages

• Supports testing 4×4 vehicles
• Ublox GPS module selected for this application
• Measurements taken under real road conditions
• No cooling concerns even on hot days
• Highly mobile compared to stationary systems
• Precision comparable to chassis dynamometers from established German manufacturers such as MAHA

Developed by enthusiasts for enthusiasts, DynoBox focuses on making power and torque measurement simple and accessible without sacrificing the essentials tuners rely on.
