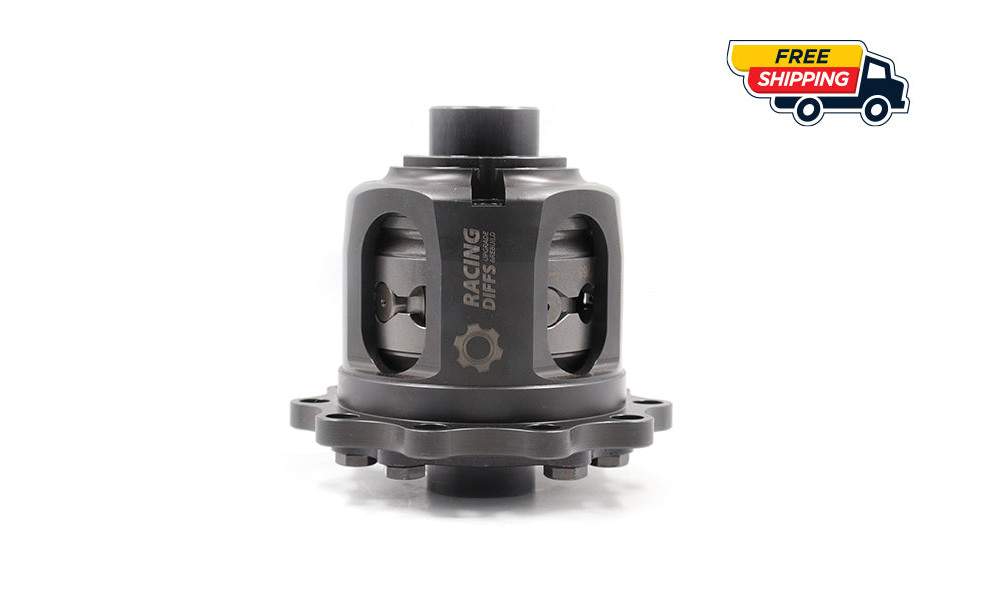

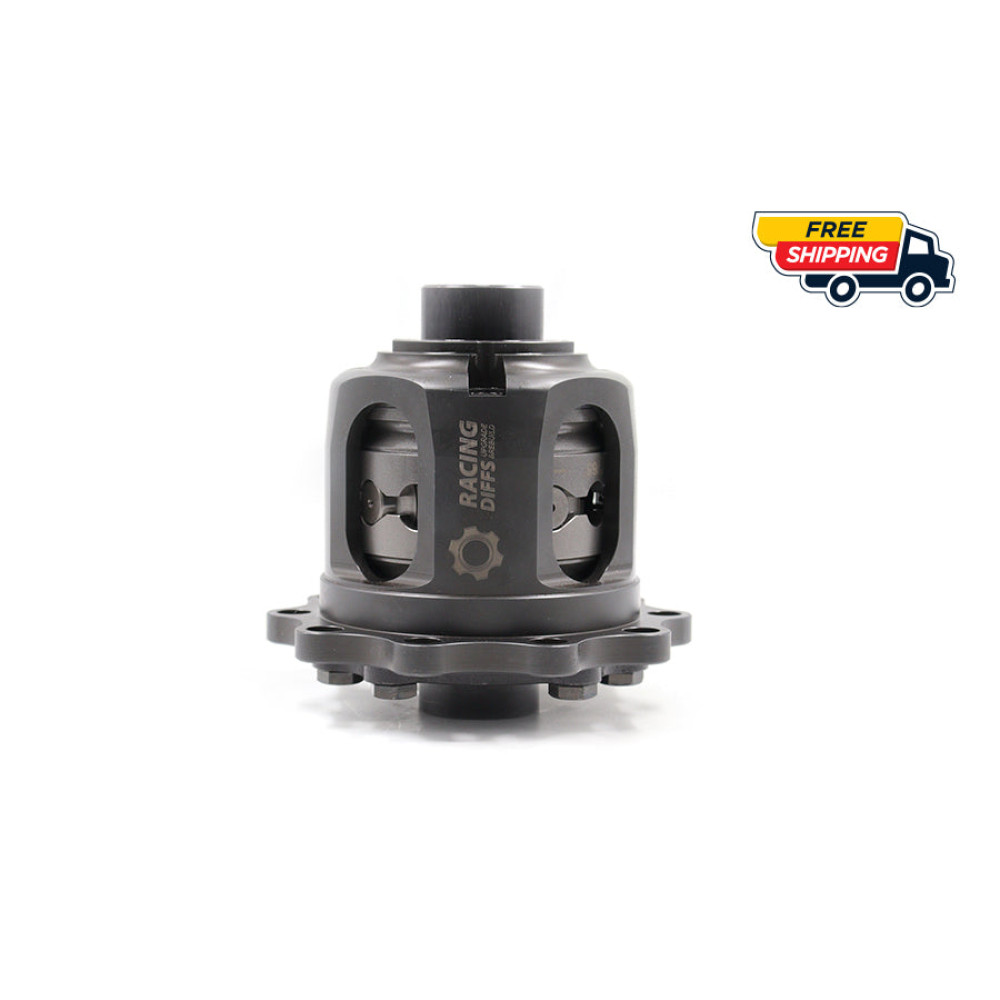

BMW LSD 210mm – E36 M3, E39 M5, E34 M5 Limited Slip Differential

BMW LSD 210mm – E36 M3, E39 M5, E34 M5 Limited Slip Differential, RacingDiffs part no. RD1003. It is a complete clutch-type limited slip differential unit that replaces the open or worn factory differential carrier.

Key Features

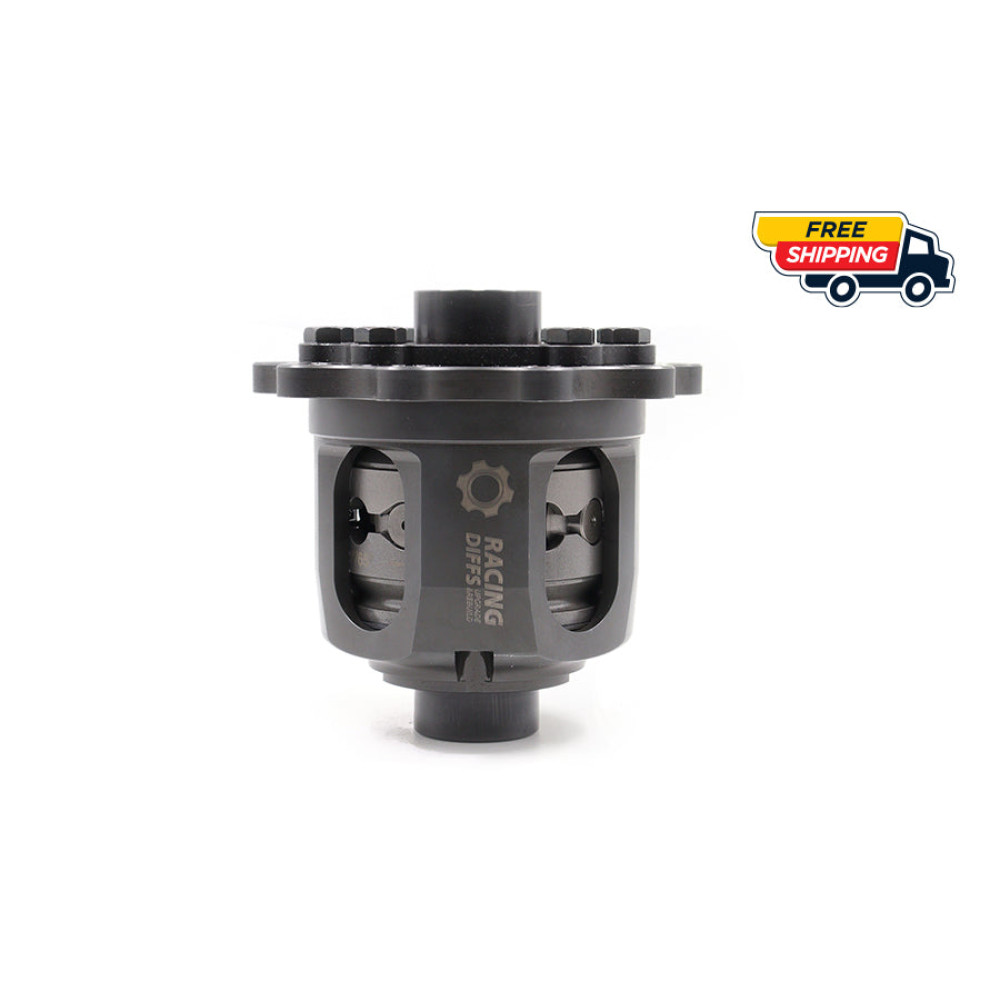

• Fully forged construction: Forged internals and forged housing for maximum strength and longevity.

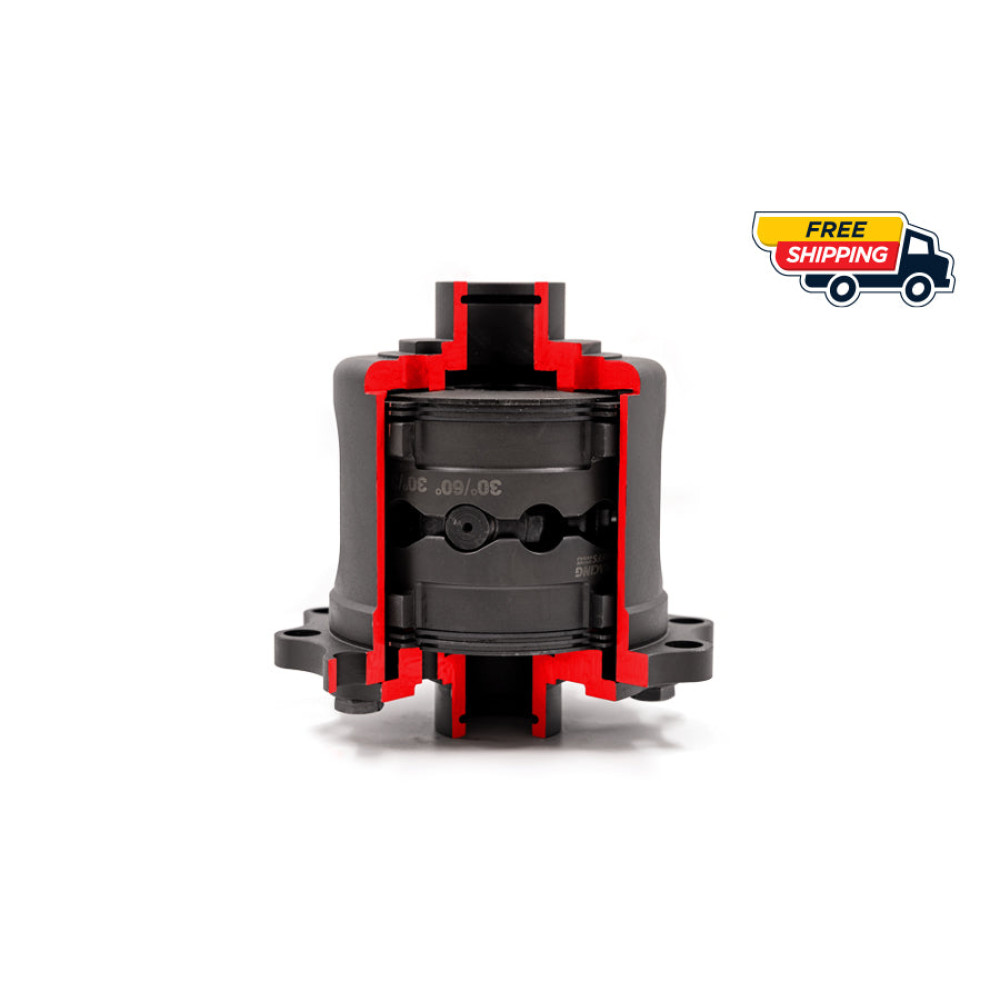

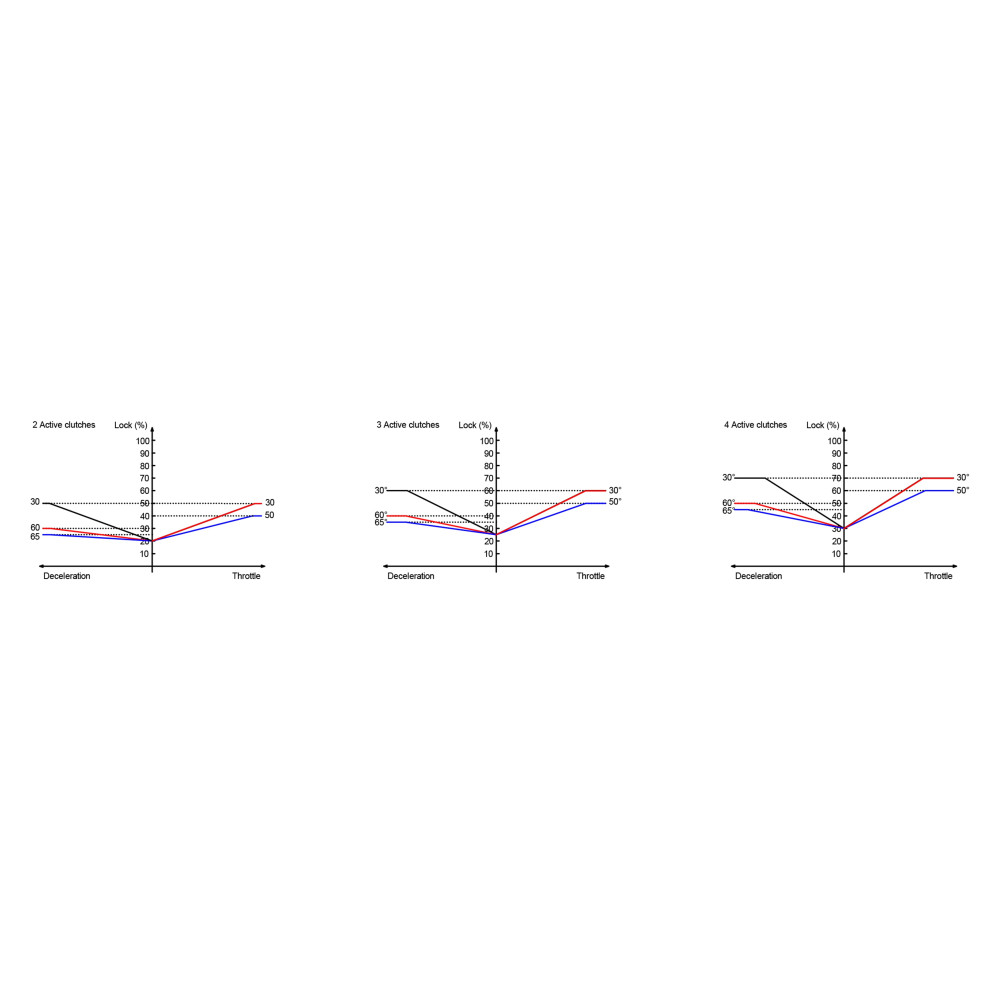

• Adjustable ramp settings: 30/30 (2-way), 30/60 (1.5-way), 50/65 (smooth lock).

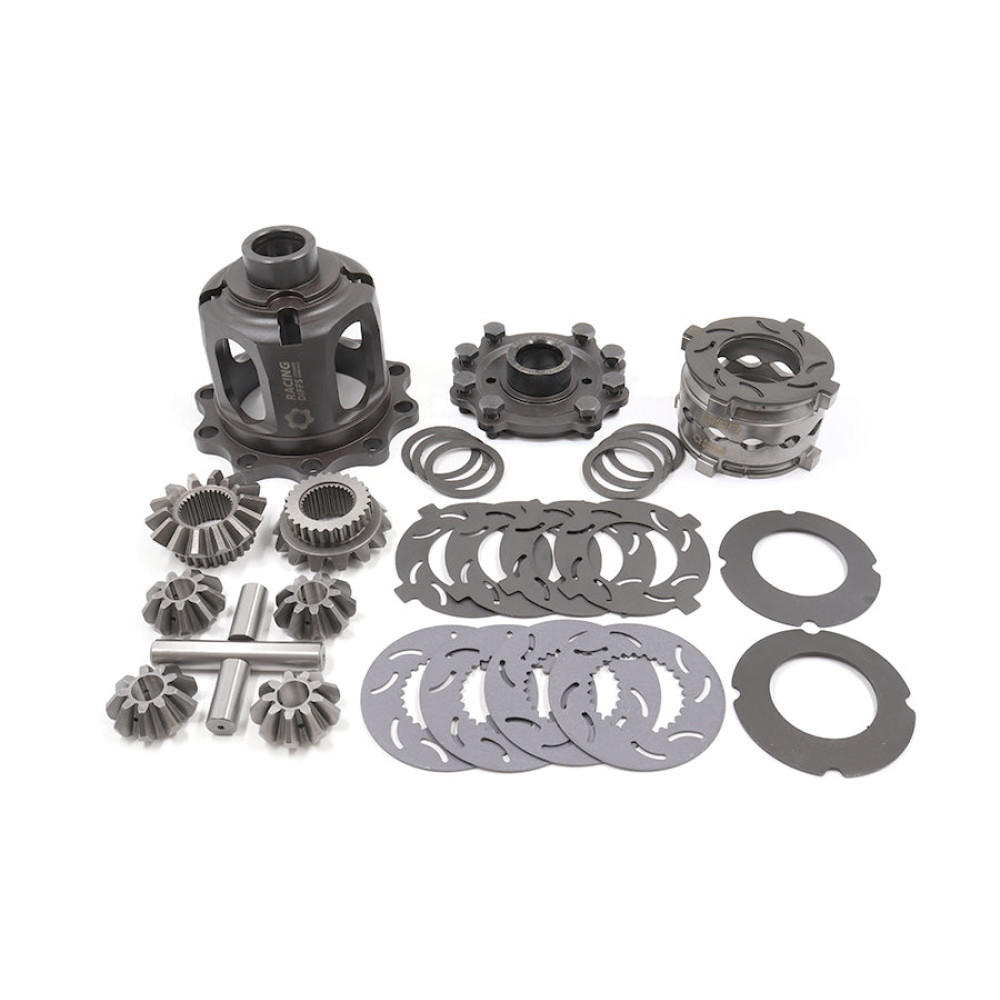

• 4 moly-ceramic clutch plates: Consistent grip and heat resistance, lifetime warranty included.
• Track & street ready: Built to handle continuous high-performance use while remaining civil on the road.
• Optimized NVH: Proper preload and quality LSD oil ensure quiet, vibration-free operation.

Technical Specs

Installation Notes

• Carrier-adjustment shims required: Needed to set preload and backlash correctly.
• Shims let you: Dial factory backlash, center the ring gear for a clean contact pattern, and eliminate whine/heat/premature wear.
• TIP: We stock shim packs in 0.1 mm steps to fine-tune preload and backlash without chasing OEM spacers.
• Watch before you wrench: Our 8-minute video covers bearing pressing, backlash measurement (dial indicator), shim selection, and contact-pattern checks with marking compound.

Fitment

• E36: 3.2 M3
• E28: M5, M535i
• E34: 540i, M5 3.6, M5 3.8
• E39: M5 S62
• E24: M635CSi
• E32: 740i, 750i
• E38: 740i, 750i (pre-facelift)
• E31: 840i, 850Ci, 850CSi
• Z8: S62

Specifications
