BMW LSD 188LW – F20, F30, 135i, 335i, 340i Upgrade

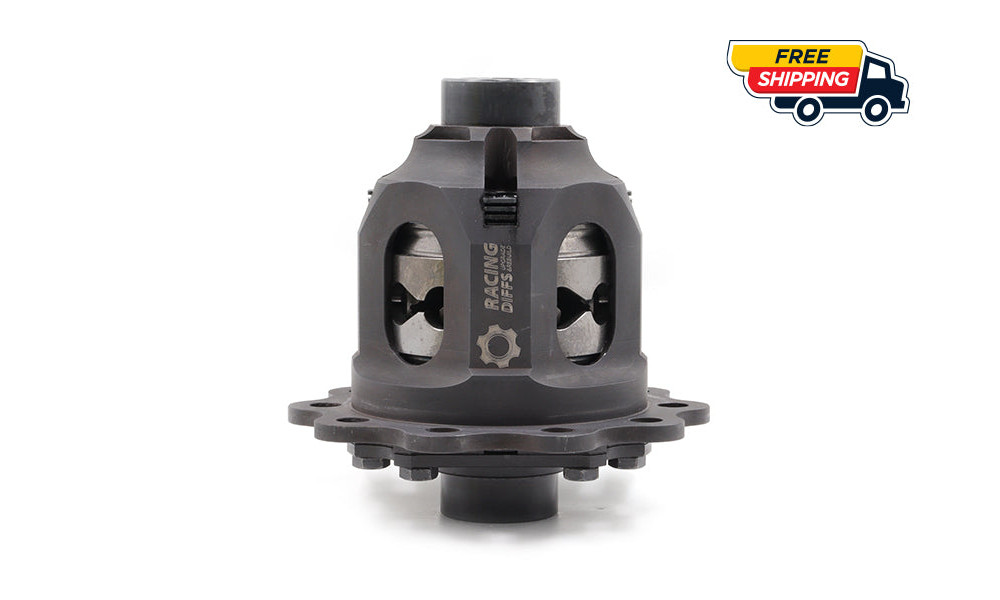

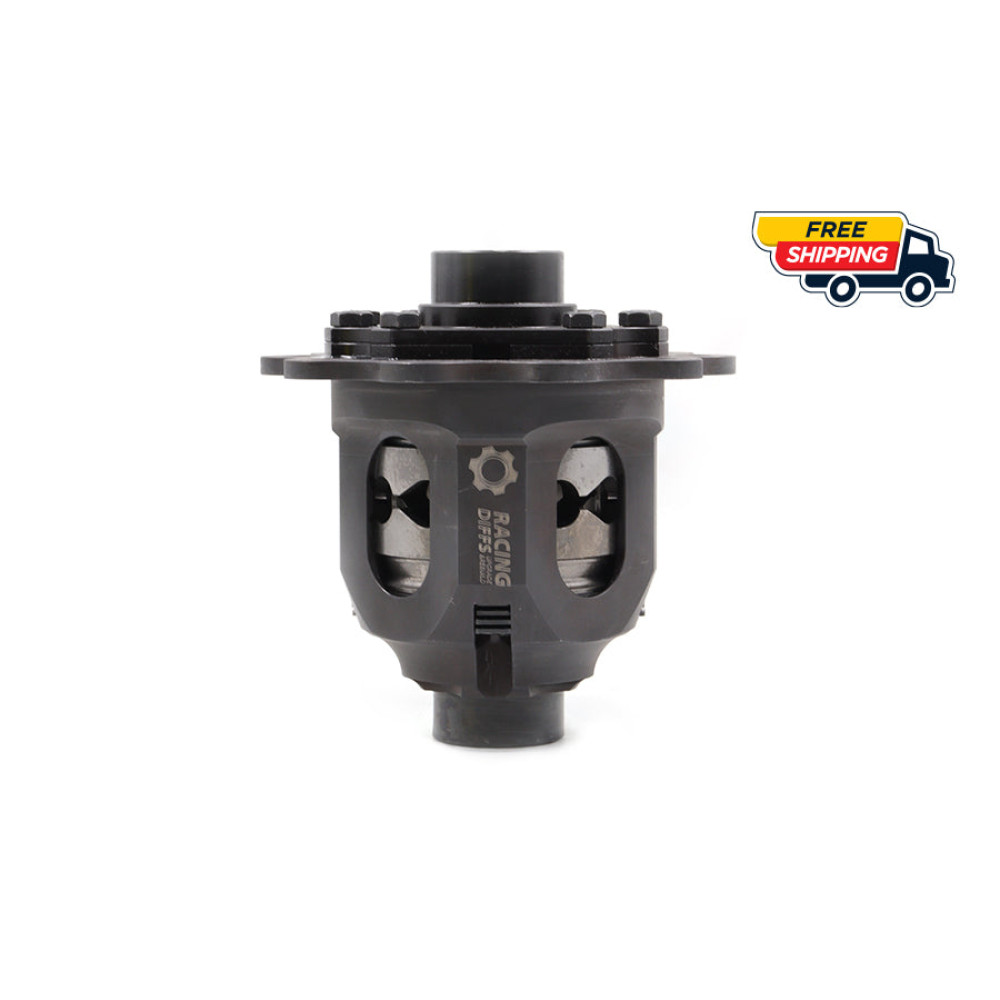

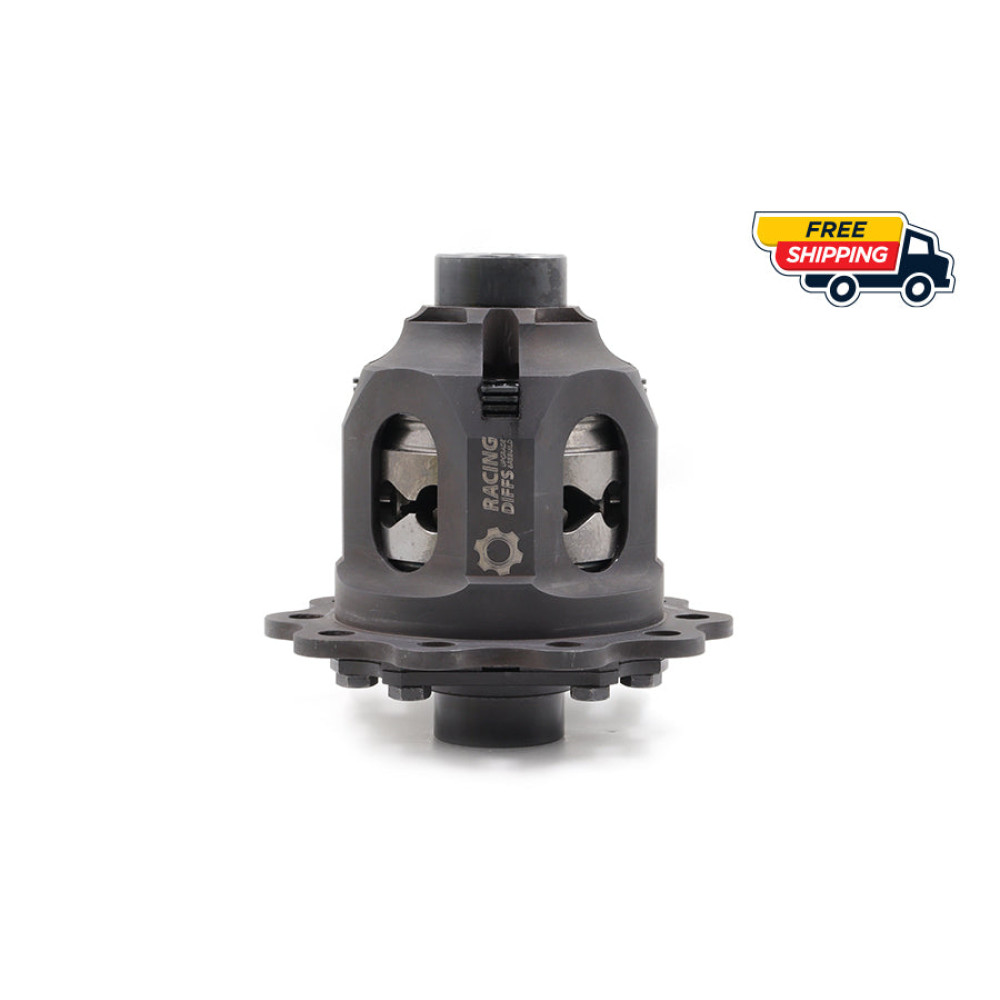

BMW LSD 188LW – F20, F30, 135i, 335i, 340i Upgrade, RacingDiffs part no. RD1017, RD1018. It is a complete clutch-type limited slip differential unit that replaces the open or worn factory differential carrier.
Key Features
- Clutch-Type LSD Behavior: Smooth, progressive locking for predictable handling and grip in all conditions.

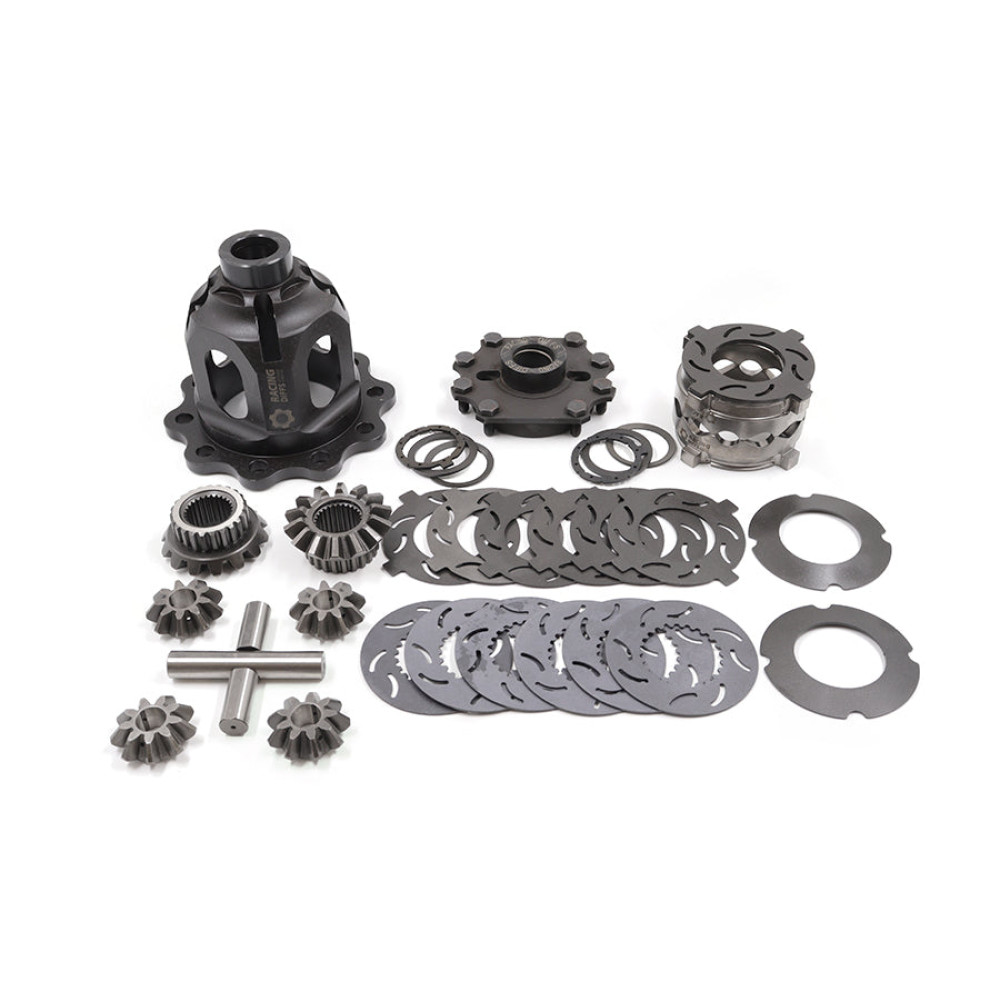

- Fully Serviceable Kit: Includes fully forged ramp plates, pressure rings, clutch packs, and preload springs.
- Adjustable Ramp Angles: 30/60, 30/30, 50/65 and other options for street, track, or drift setups.
- Fully Forged Construction: Every internal and external component is fully forged and thermally treated for maximum strength and longevity.
Technical Specs
| Spec | Value |
|---|---|
| Differential types | BMW 188LW (welded ring gear) |
| Lock type | Clutch-type LSD, fully forged internals |
| Ramp options | 30/60, 30/30, 50/65 |
| Max lock | Up to 100% under full throttle |
| Carrier preload | Set to 1 Nm |
| Backlash | 0.06–0.08 mm at ring gear (measure with dial indicator) |
| Required parts | Backlash Adjustment C-Clip Set + new OEM-spec side oil seals + bearings (optional) |
Installation Notes
- Ring-gear bolts: clean threads, apply medium-strength thread locker, and torque to 140 Nm in a star pattern.
Fitment
Compatible with BMW differentials of type 188LW (welded ring gear). Ordered by chassis.
120d N47N · 120dX N47N · 125i N20 · M135iX N55
Facelift (LCI): 120d B47 · 120dX B47 · 125i N20 · M135iX N55
Versions
| Gear ratio | Part number |
|---|---|
| Low range (2.47 - 2.65) | RD1017 |
| High range (2.81 - 4.45) | RD1018 |
Specifications
| Spec | Value |
|---|---|
| Brand | RacingDiffs |
| Part number | RD1017, RD1018 |
RacingDiffs
Founded in Belgium, RacingDiffs is a specialist developer of limited slip differential conversions and upgrades for popular rear-wheel-drive platforms. Their bolt-in LSD kits convert open differentials into performance units without a full housing swap — a cost-effective solution for track day and drift enthusiasts seeking better traction and balance.
Official page: racingdiffs.com
Official page: racingdiffs.com
BMW LSD 188LW – F20, F30, 135i, 335i, 340i Upgrade
1,813.79€
Excl. VAT: 1,499.00€
