Haldex Block Disc Set – 100% AWD Lock for Gen 1-5 (Drag & Track)

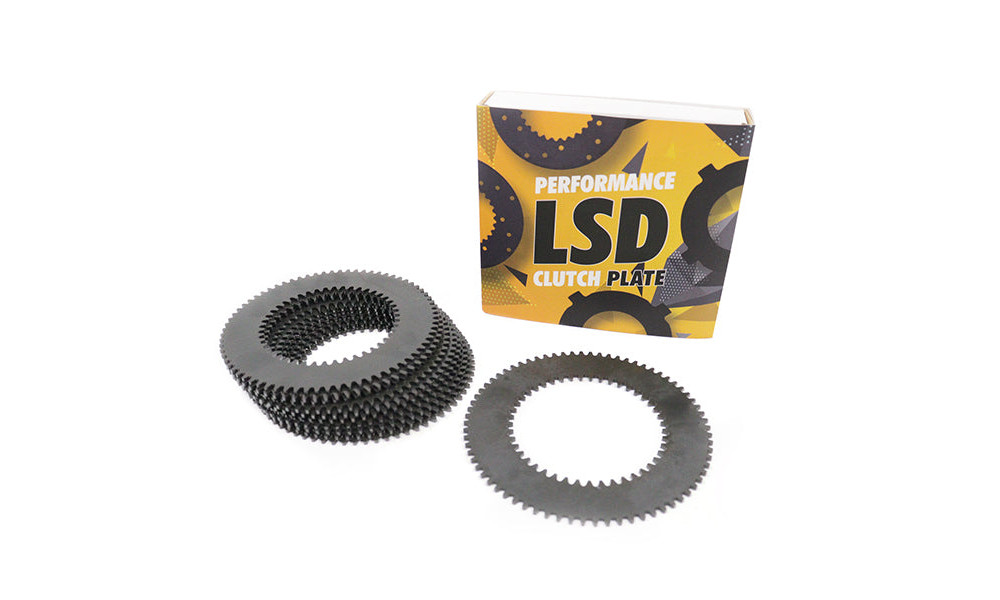

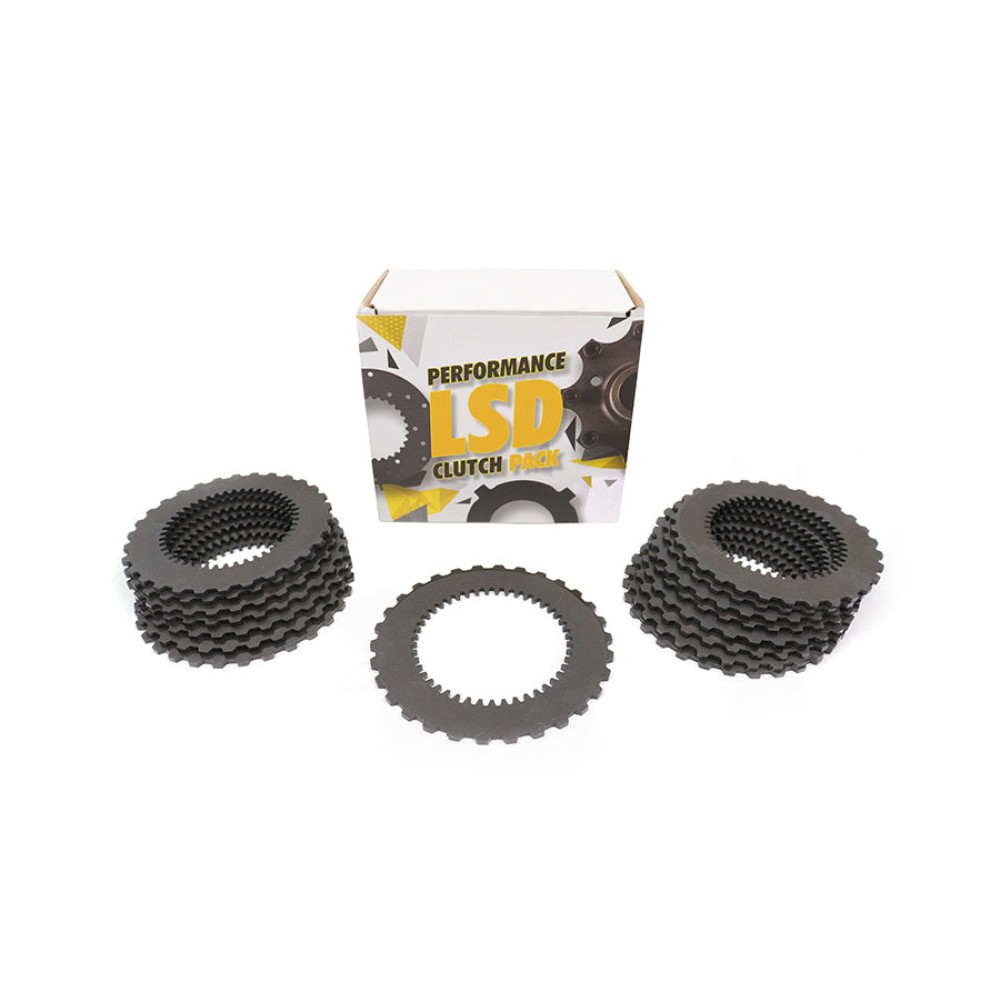

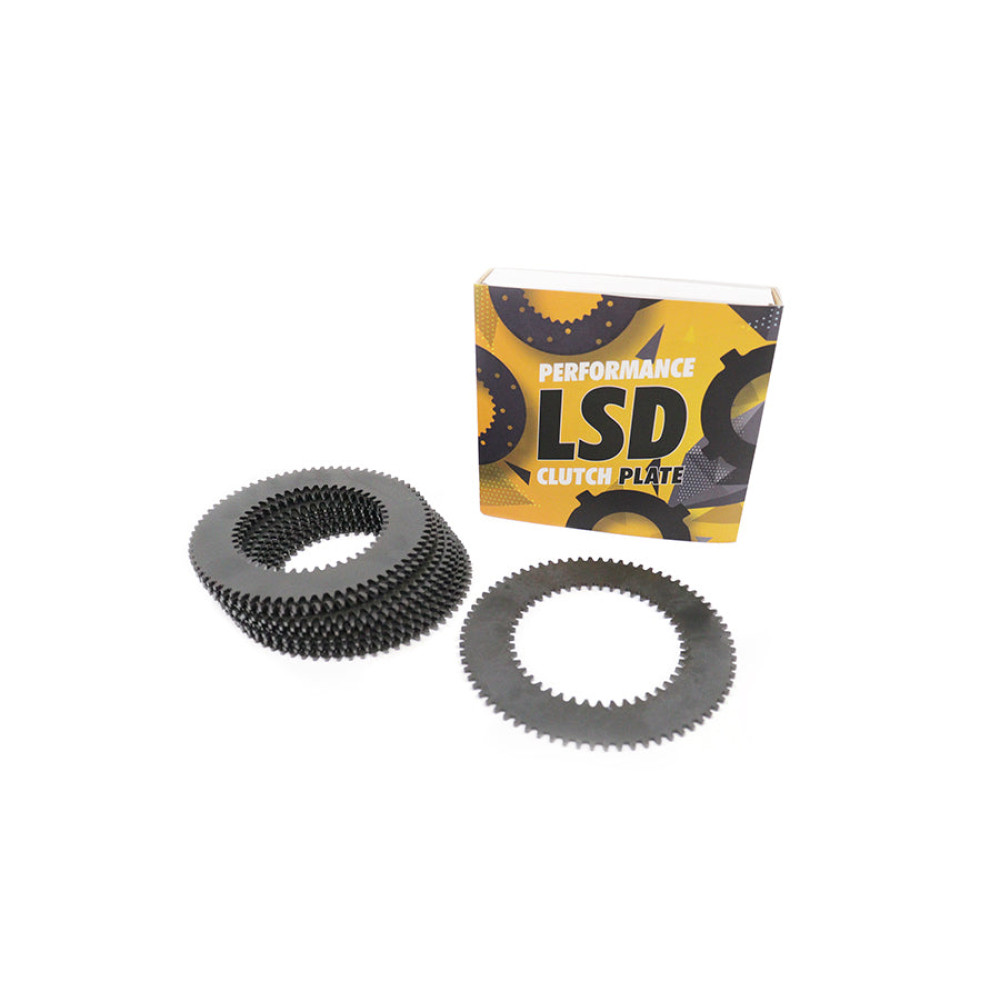

Haldex Block Disc Set – 100% AWD Lock for Gen 1-5 (Drag & Track), RacingDiffs part no. RD6013, RD6010. Block discs replace the clutch pack and lock the differential to 100 %, like a welded diff; removing the discs returns the original LSD function.

What's Included

• Block discs: for Haldex clutch pack (application-specific).
• Install notes: with best practices and torque guidance.

Installation Notes

• Function: Replaces clutch friction stacks to force permanent 100% engagement of the Haldex coupling.
• Setup: Verify clutch basket condition; follow factory procedures for sealing and fluid service; check for DTCs after reassembly.
• Use case: Intended primarily for motorsport/off-highway use.
• After install: Recheck fastener torque and fluid condition after the first heat cycle/session.

Fitment

Audi Audi A3 / S3 (8L) quattro (1998–2003) Audi TT (8N) quattro (1998–2006)

Volkswagen VW Golf Mk4 (1J) R32 / 4Motion (1998–2004) VW Bora 2.8 V6 4Motion (1998–2004) VW Sharan Mk1 (7M) (1998–2007) VW New Beetle RSi (1998–2003)

SEAT SEAT Leon Mk1 (1M) Cupra4 (1998–2005) SEAT Alhambra (7M) (1998–2007)

Škoda Škoda Octavia Mk1 (1U) 4×4 (1998–2004)

Audi Audi A3 / S3 (8P) quattro, pre-facelift (2004–2008) Audi TT / TTS (8J) quattro, early models (2007–2009)

Volkswagen VW Golf Mk5 (1K) R32 / 4Motion (2004–2008) VW Passat / CC (3C) 4Motion (2005–2009) VW Transporter T5 4Motion, pre-facelift (2003–2009)

SEAT SEAT Altea AWD (2007–2010) SEAT Alhambra (7M) facelift (2005–2010)

Škoda Škoda Octavia Mk2 (1Z) 4×4, pre-facelift (2004–2009)

Generation 3 Haldex systems were primarily fitted to selected Volvo, Ford, Land Rover and related AWD applications . They were not generally used in Volkswagen Group vehicles.

Because fitment varies by model, production date and Haldex unit version, please confirm compatibility using the identification details on the coupling or contact us with your VIN before ordering.

Audi Audi A3 / S3 (8P) Facelift (2009–2012) Audi TT / TTS / TT RS (8J) Facelift (2008–2012) Audi Q3 / RS Q3 (8U) (2011–2013)

SEAT SEAT Altea XL / Freetrack (2010–2015) SEAT Alhambra Mk2 (7N) (2011–2013)

Škoda Škoda Yeti, pre-facelift (2009–2014) Škoda Superb Mk2 (3T) 4×4 (2008–2014) Škoda Octavia Mk2 (1Z) 4×4 / Scout / vRS 4×4 Facelift (2009–2013)

Audi Audi A1 / S1 (8X) quattro (2015–2018) Audi A3 / S3 / RS3 (8V) quattro (2012–2019) Audi Q2 / SQ2 quattro (2016–2019) Audi Q3 / RS Q3 (8U / F3) quattro (2012–2019) Audi TT / TTS / TT RS (8S / FV) quattro (2014–2019)

SEAT SEAT Alhambra 4Drive (2014–2019) SEAT Leon Mk3 (5F) 4Drive (2012–2019) SEAT Ateca 4Drive (2016–2019) SEAT Tarraco 4Drive (2018–2019)

Škoda Škoda Octavia Mk3 (5E) 4×4 (2012–2019) Škoda Kodiaq 4×4 (Scout / vRS / Sportline) (2016–2019) Škoda Superb Mk3 (3V) 4×4 (2015–2019) Škoda Karoq 4×4 (2017–2019) Škoda Yeti 4×4 (2014–2018)
