BMW 188mm oem LSD swap kit into E46/E39 188k – No spacer needed

BMW 188mm oem LSD swap kit into E46/E39 188k – No spacer needed, RacingDiffs part no. RD3060. A RacingDiffs part for differential rebuilds, gear ratio swaps and LSD setup.

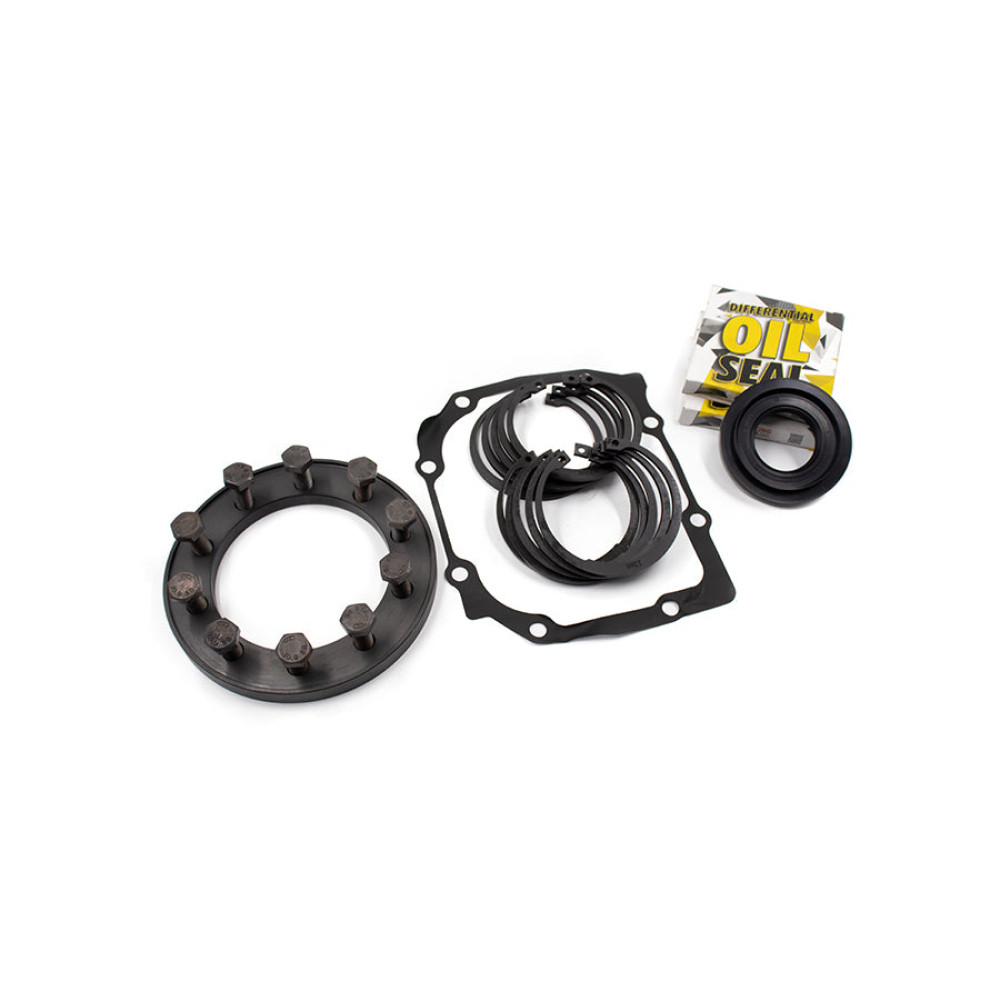

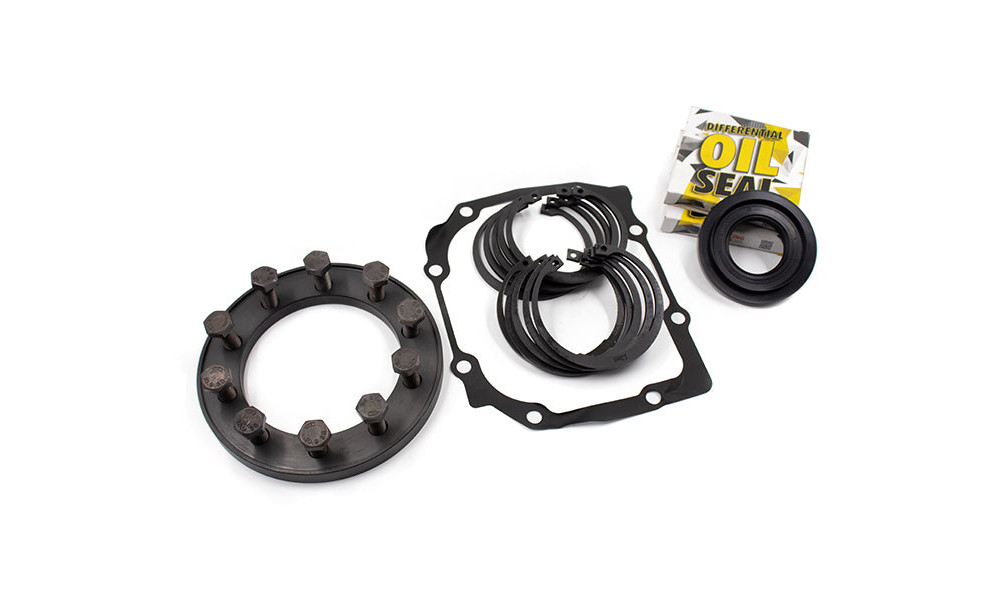

What's Included

• Adapter components: to install a ZF plated LSD unit (from E30/E36/E34) into an E46 188K differential housing.
• Custom crown-gear spacers: matched to your gear ratio (see Spacer Selection table under technical specs section).
• Step-by-step tutorial: for the swap process, plus video resources on rebuilding the 188 mm ZF LSD.

Technical Specs

Installation Notes

• Diff type: BMW E46 188K.
• Donor LSD: ZF plated core from E30 / E36 / E34 (188 mm).
• Preparation: Inspect/refresh clutch packs , ramps, and bearings on the donor unit prior to install.
• Setup: After assembly, set carrier preload and backlash per BMW spec; verify gear contact pattern.
• Clean all mating surfaces; use medium-strength thread locker on ring-gear bolts; torque in a star pattern.
• Measure backlash at ring gear; target per factory spec after spacer selection.

Fitment

• 320Cd M47N
• 320Ci M54
• 320d M47
• 320d M47N
• 320i M54
• 323Ci M52
• 323i M52
• 323i 2.4 M52
• 325Ci M54
• 325Ci M56
• 325i M54
• 328i M52
• 330Ci M54
• 330i M54
• 330xd M57
• 330xd M57N
• 330xi M54

This kit installs an E30/E36/E34 ZF plated LSD core into an E46 188K differential. Below is the complete 188K chassis/application list for reference.

Specifications
