BMW 168mm LSD – E30, E36, Z3 Small Case Limited Slip Differential

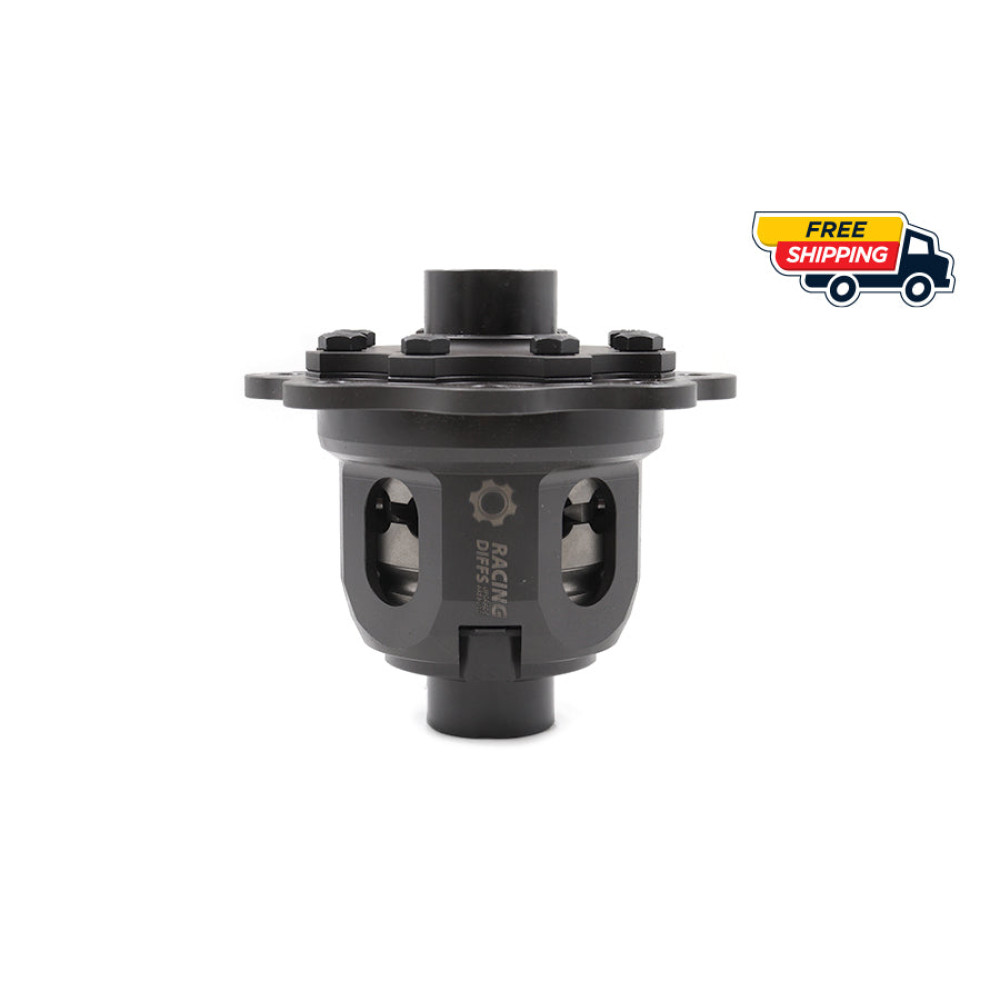

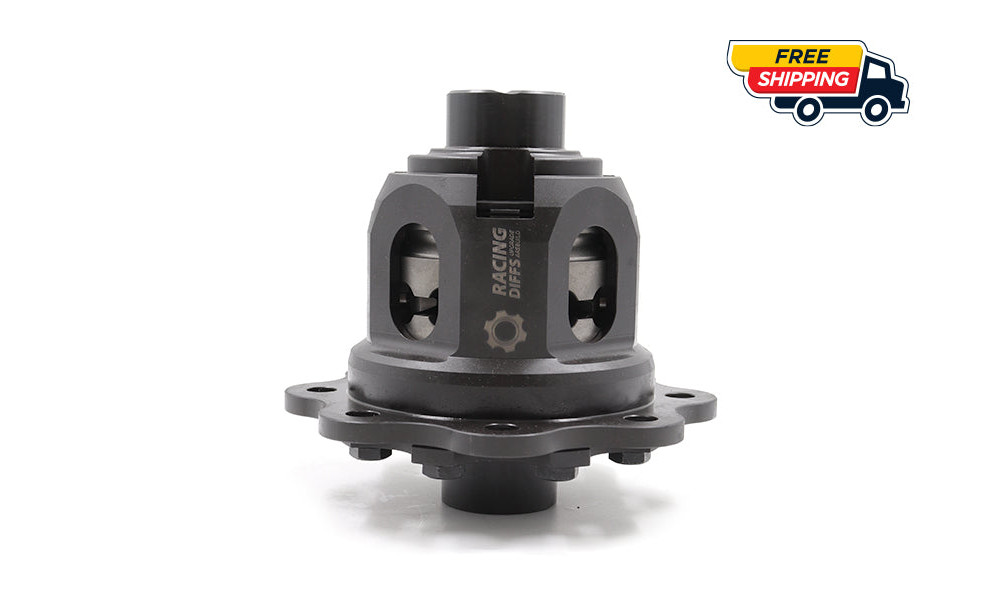

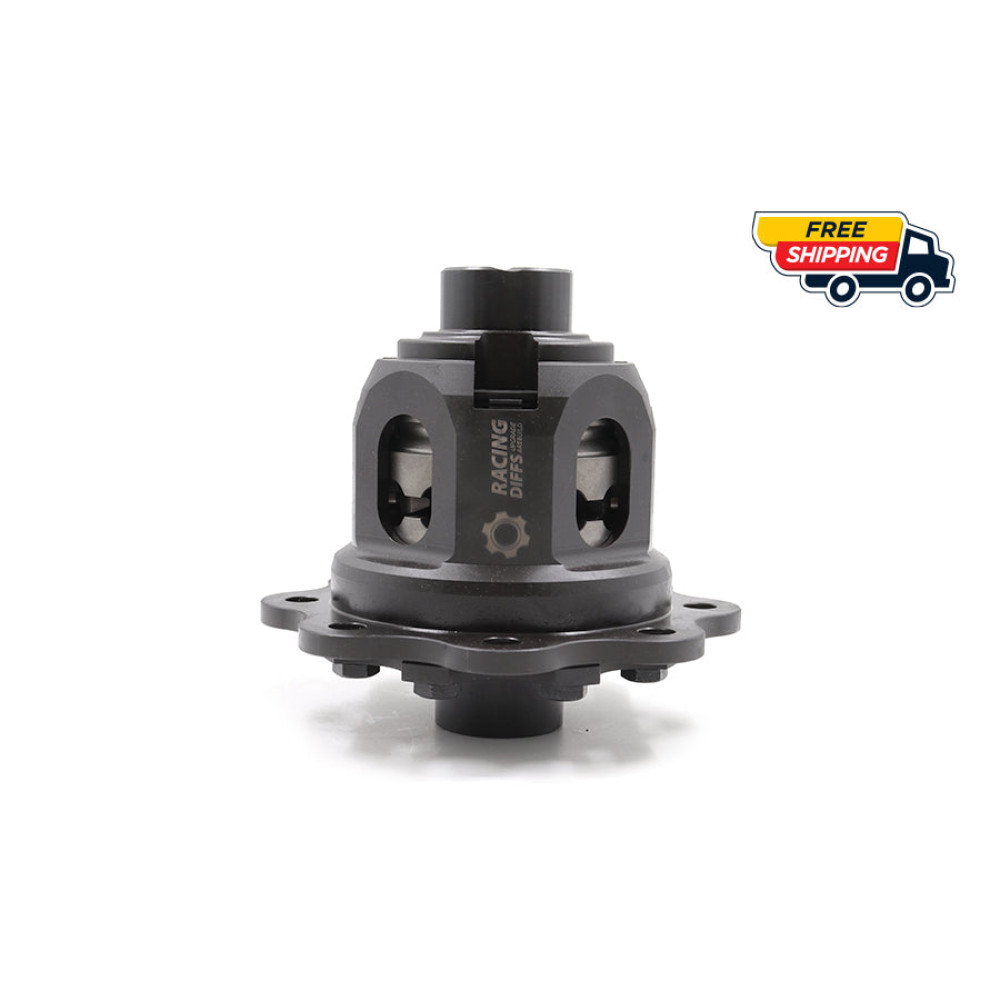

BMW 168mm LSD – E30, E36, Z3 Small Case Limited Slip Differential, RacingDiffs part no. RD1001. It is a complete clutch-type limited slip differential unit that replaces the open or worn factory differential carrier.

Key Features

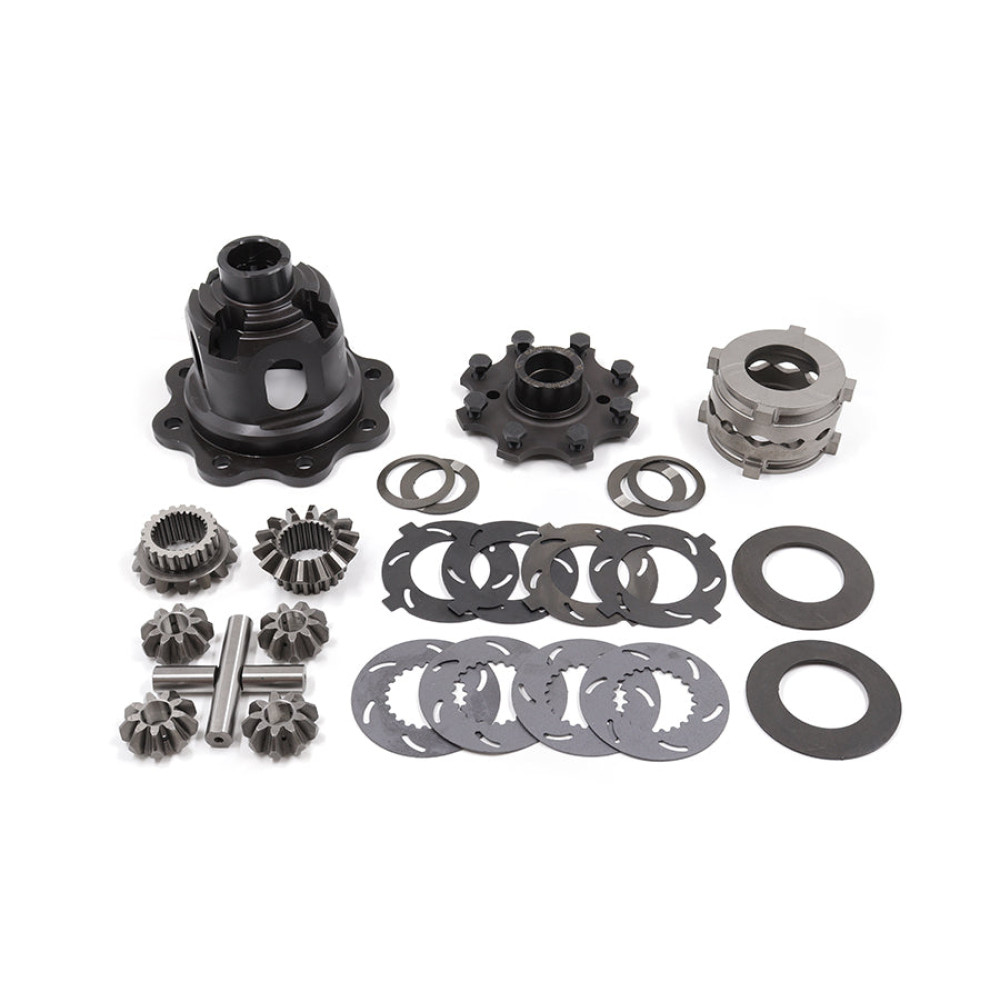

• Fully forged construction: Forged internals and forged housing for maximum strength and longevity.

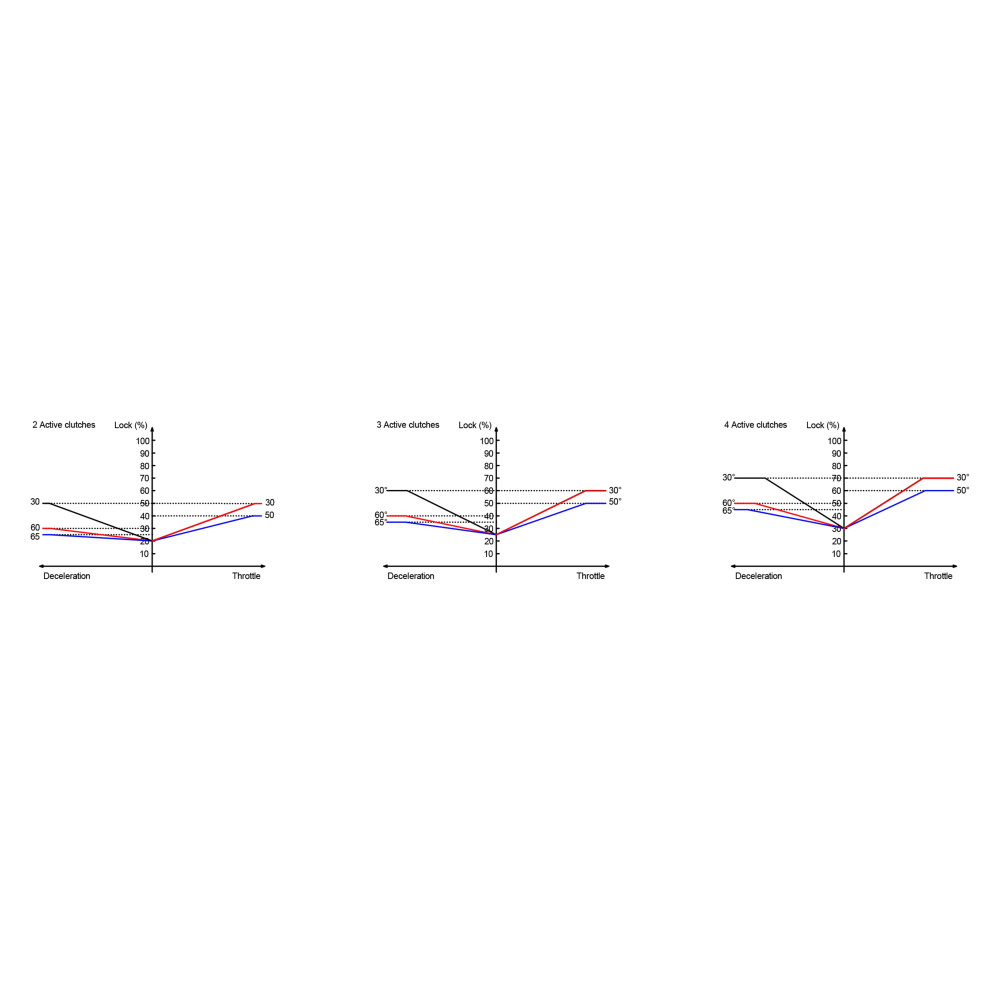

• Adjustable ramp settings: 30/30 (2-way), 30/60 (1.5-way), 50/65 (smooth lock).
• 4 moly-ceramic clutch plates: Consistent grip and heat resistance, lifetime warranty included.
• Track & street ready: Tunable behavior for motorsport or spirited road use.
• Optimized NVH: Proper preload and quality LSD oil ensure quiet, vibration-free operation.

Technical Specs

Installation Notes

• Carrier-adjustment shims required: Needed to set preload and backlash correctly.
• Shims let you: Dial factory backlash, center the ring gear for a clean contact pattern, and eliminate whine, heat build-up, and premature wear.
• TIP: We stock shim packs in 0.1 mm increments to fine-tune preload and backlash without chasing OEM spacers.
• Watch before you wrench: Our 8-minute video covers bearing pressing, backlash measurement (dial indicator), shim selection, and contact-pattern checks with marking compound.

Fitment

• E30: 316i, 318i, 318is
• E36: 316i, 318i, 318is, 318ti
• Z3: 1.8i, 1.9i
• E21: 323i

Specifications
