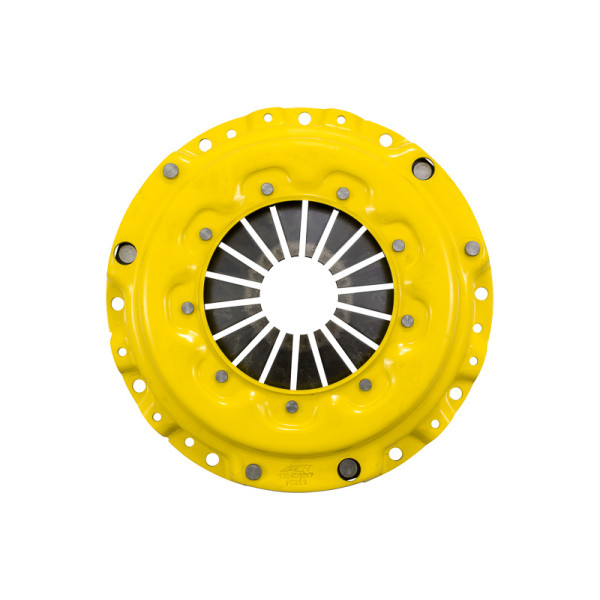

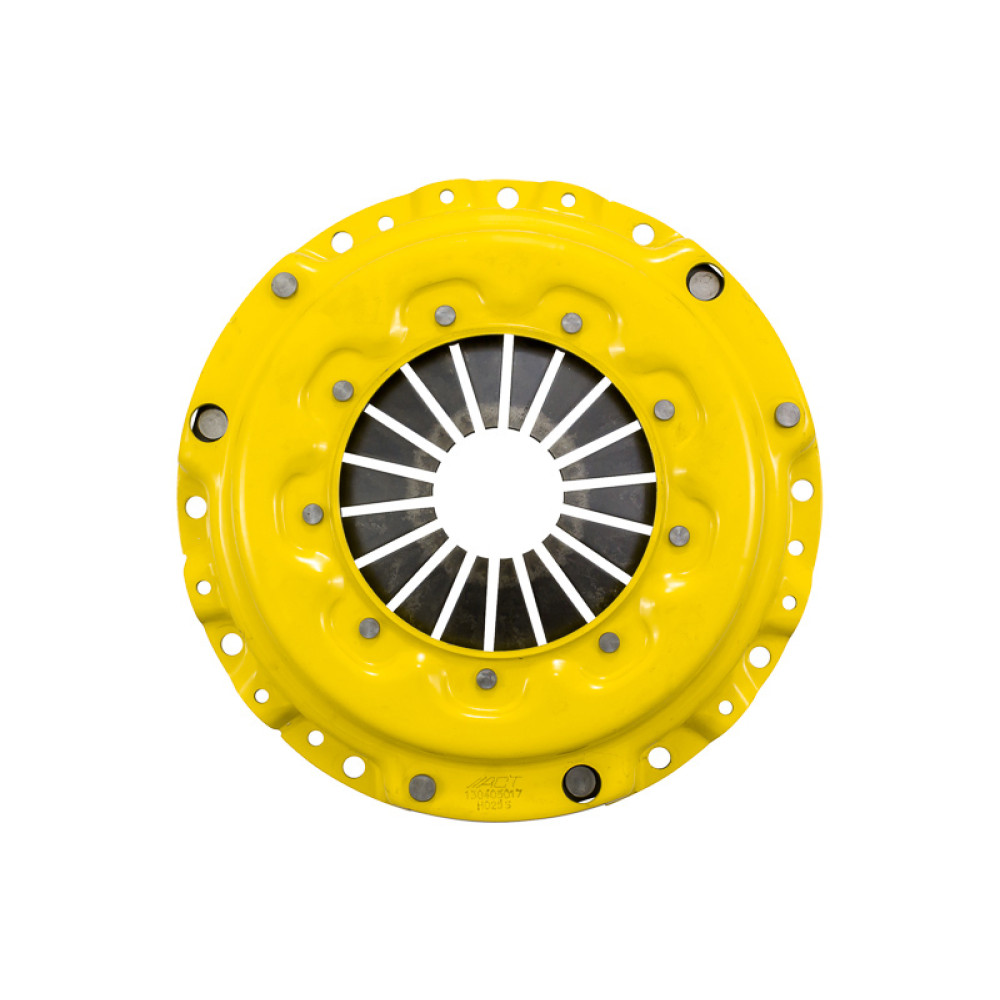

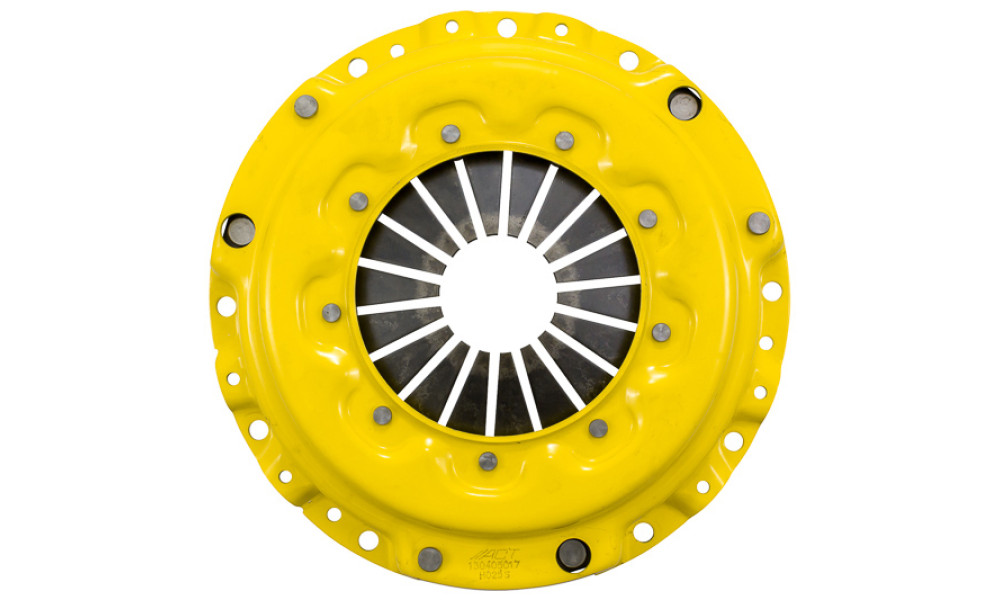

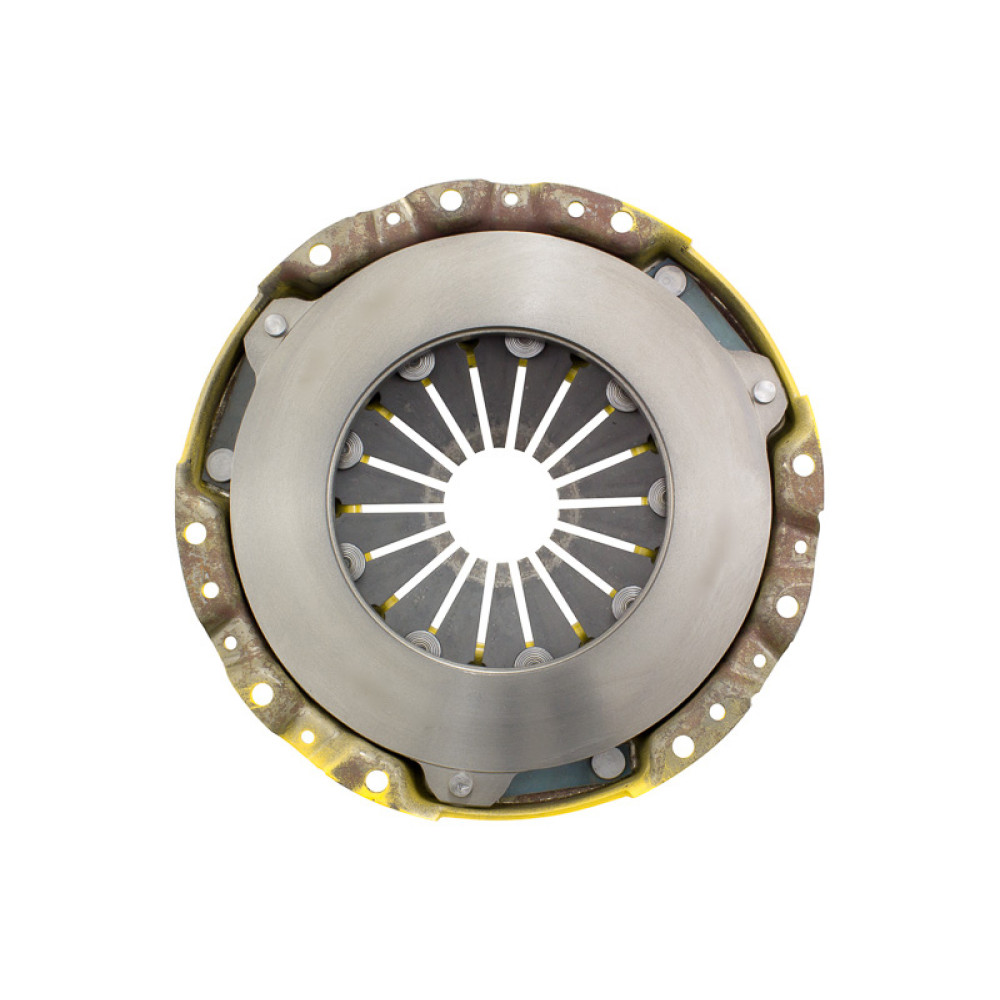

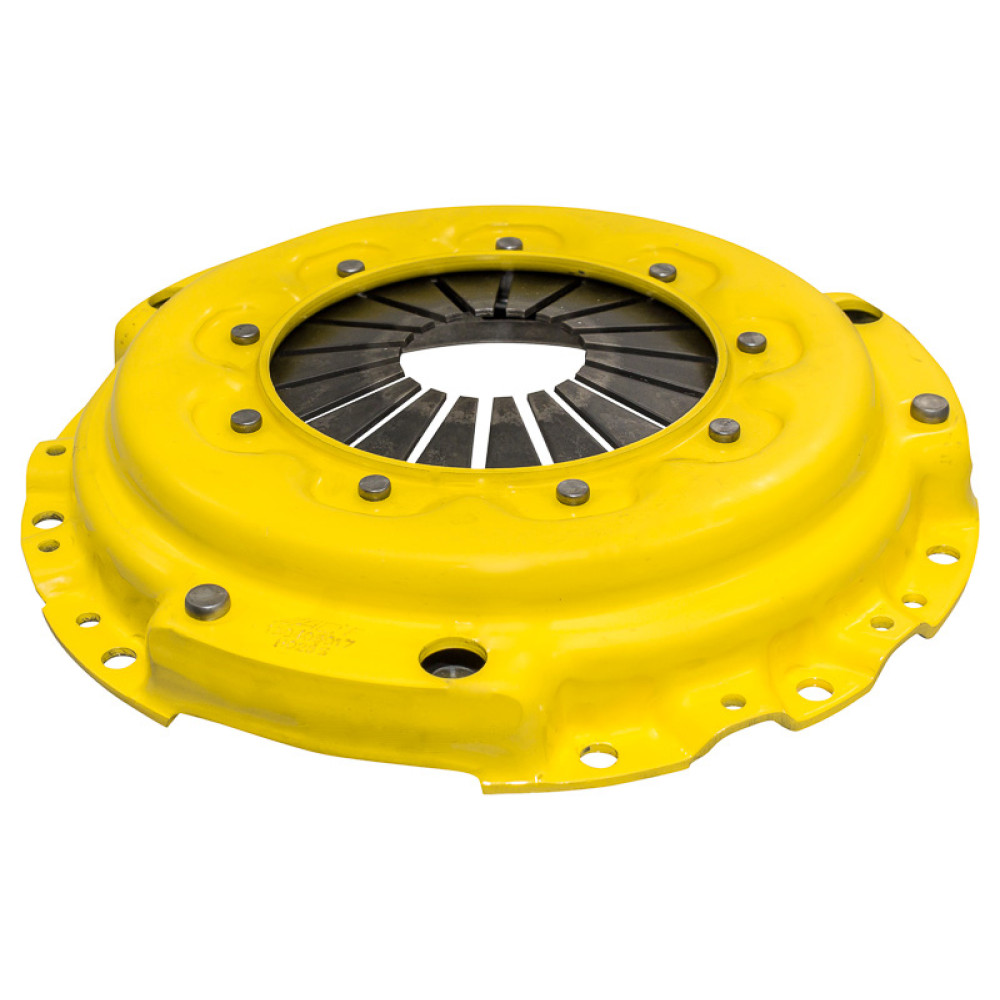

ACT H025S Pressure Plate Sport – Honda CRX Del Sol, Integra & more
The ACT H025S uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Sport pressure plates increase clamp load by 20 to 40 percent . ACT's Sport pressure plates are recommended for use with a street disc.
Key Features
- Feel: Light to moderate pedal effort
- Life: Available disc life extended by ACT's exclusive diaphragm design
- Quality: Carefully engineered for improved durability, precisely assembled, accurately balanced
- Recommendation: Recommended for street use
- Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specifications
| Spec | Value |
|---|---|
| Brand | ACT (Advanced Clutch Technology) |
| Part number | H025S |
| Product type | Pressure Plate Sport |
| Pressure plate diameter | 220 mm |
| Package weight | 5.22 kg |
Fitment
| Make | Model | Years | Engine |
|---|---|---|---|
| Honda | CRX Del Sol | 1992–1998 | 1.6L L4 1590cc VTi B16A2 |
| Honda | Integra | 1994–2001 | 1.8L L4 1834cc Type-R B18 |
| Honda | Civic | 1987–2000 | 1.6L L4 1590cc VTi B16A2; 1.6L L4 1590cc VTi/Type-R B16A2/B16B; 1.8L L4 1.797cc VTi B18C4; 1.6L L4 1590cc i-VT B16A1 |
| Honda | CR-V | 1996–2002 | 2.0L L4 1972cc B20B |
| Honda | CRX | 1987–1992 | 1.6L L4 1590cc i-VT B16A1 |
ACT H025S Pressure Plate Sport – Honda CRX Del Sol, Integra & more
324.82€
321.58€
Excl. VAT: 265.77€
Tags: ACT-H025S,
