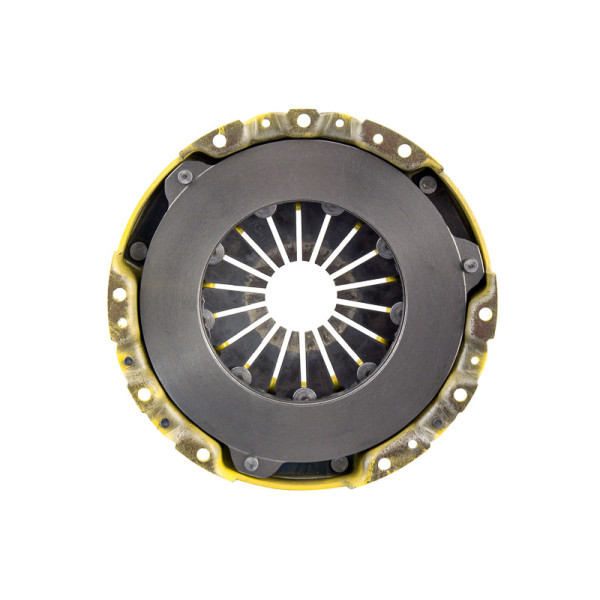

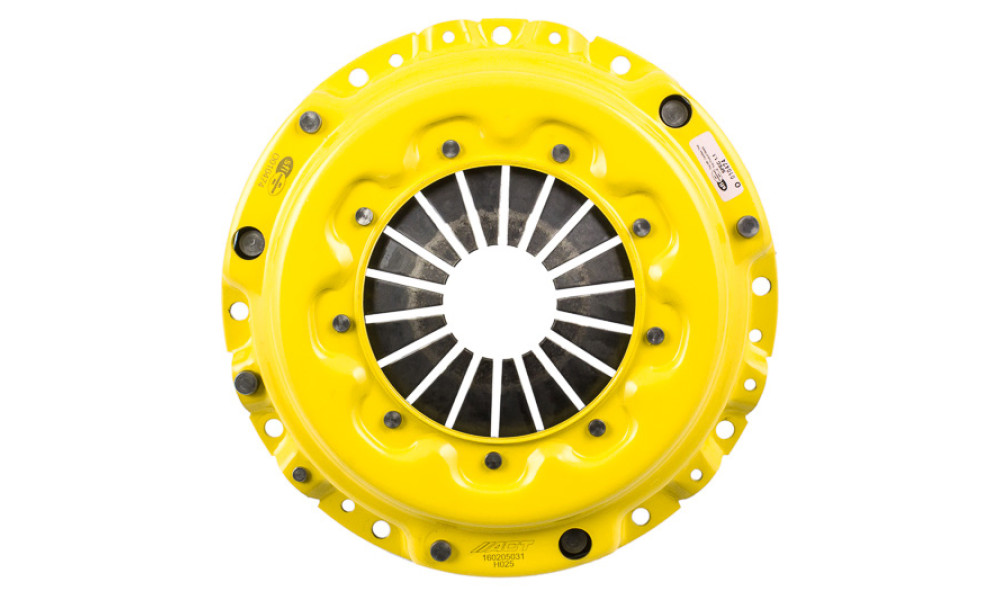

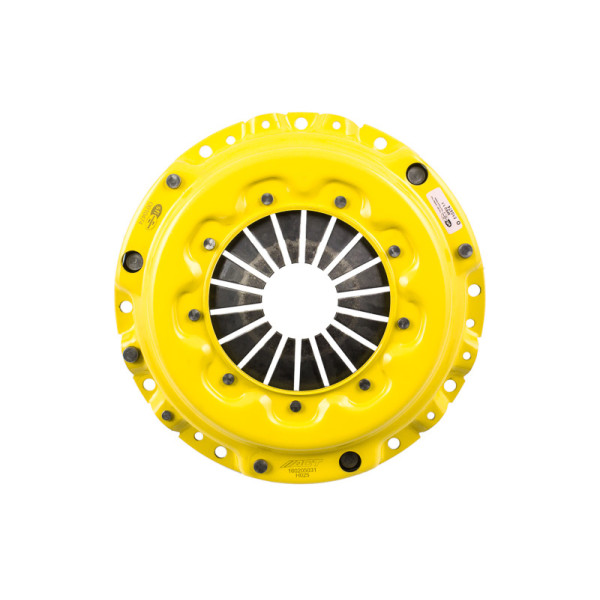

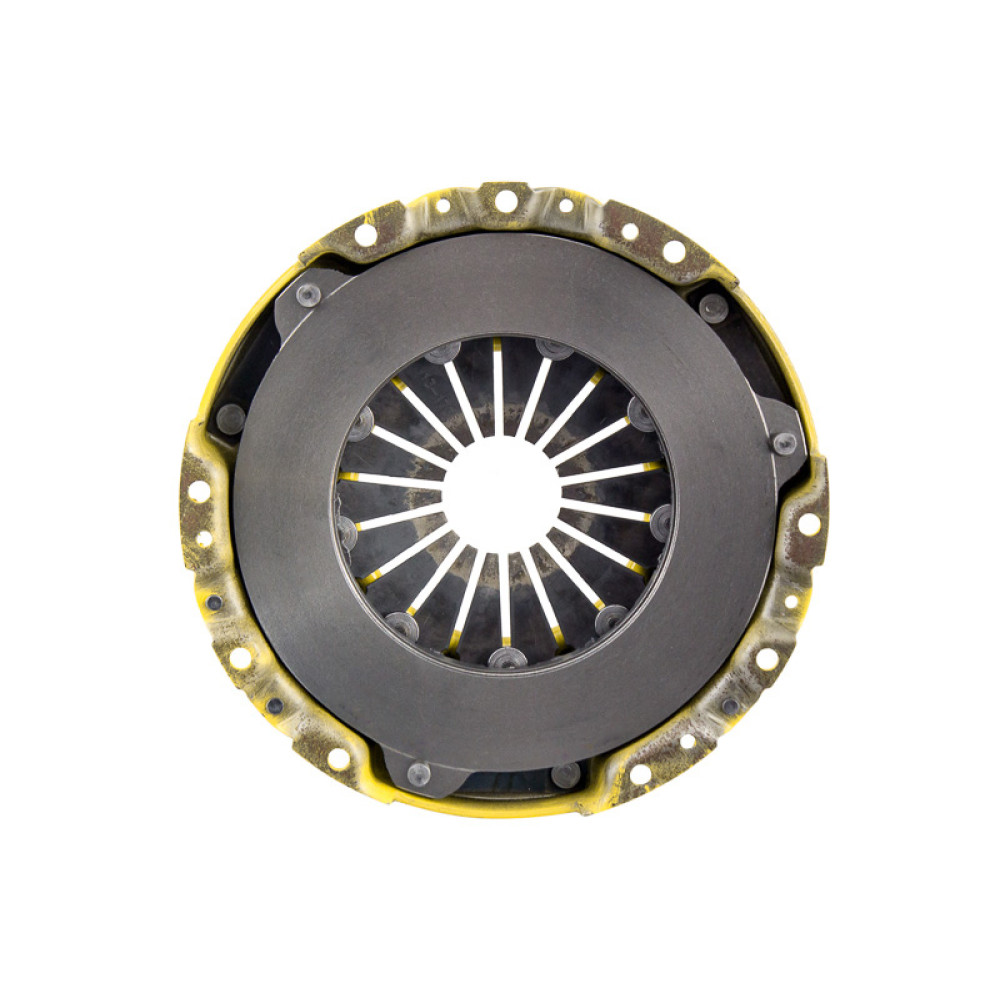

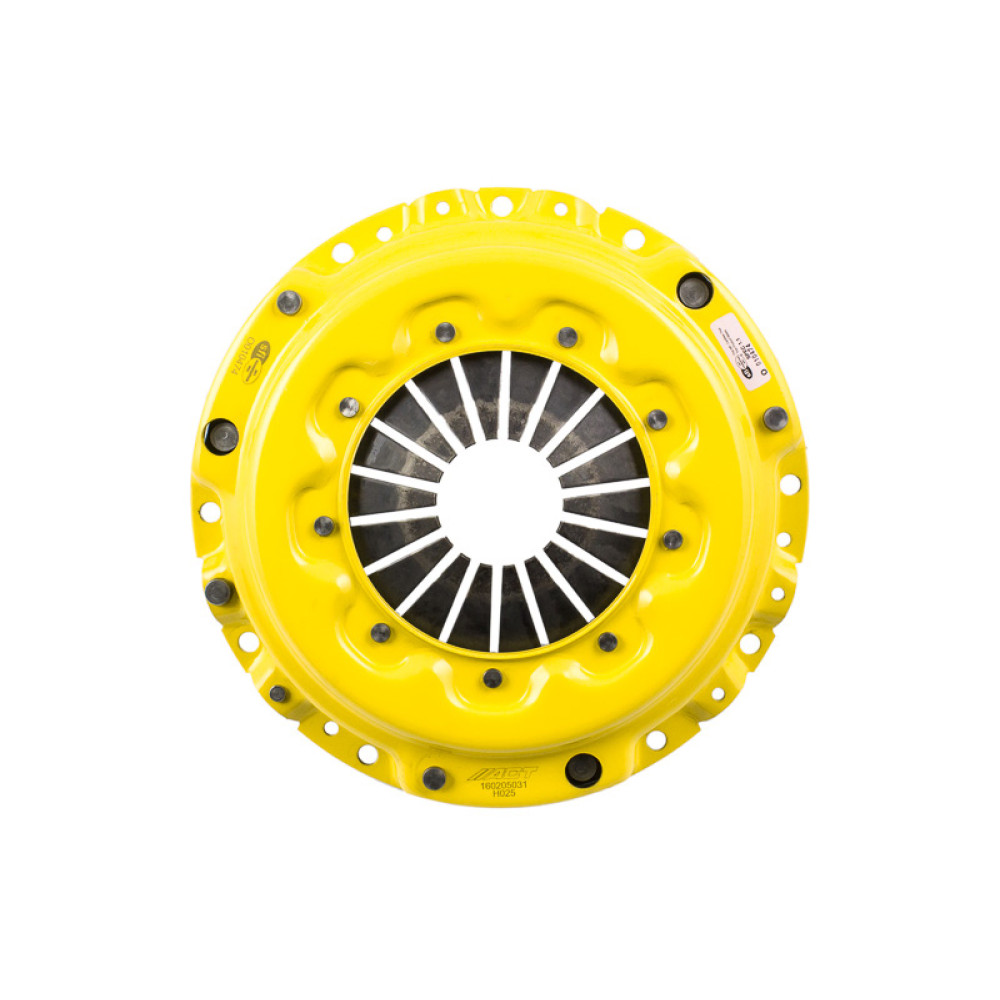

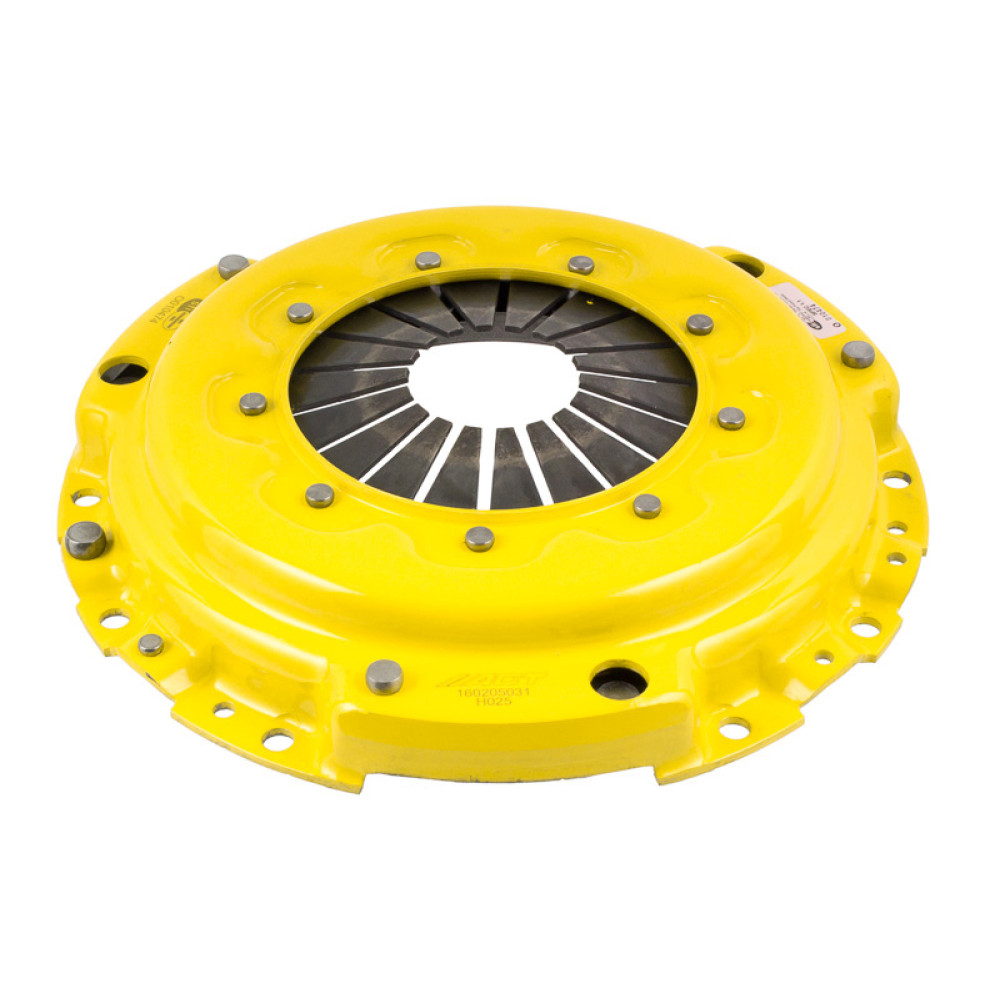

ACT H025 Pressure Plate Heavy Duty – Honda CRX Del Sol, Integra & more
The ACT H025 pressure plate features an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Heavy Duty pressure plates increase clamp load by 20 to 50 percent. The Heavy Duty pressure plates are recommended for use with a street or race disc.
Key Features
- Feel: Light to moderate pedal effort, positive engagement
- Life: Available disc life extended by ACT's exclusive diaphragm design
- Quality: Carefully engineered for improved durability, precisely assembled and accurately balanced
- Recommendation: Recommended for street and race use
- Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specifications
| Spec | Value |
|---|---|
| Brand | ACT (Advanced Clutch Technology) |
| Part number | H025 |
| Product type | Pressure Plate Heavy Duty |
| Pressure plate diameter | 220 mm |
| SFI specification | SFI 1.1 |
| Package weight | 5.22 kg |
Fitment
| Make | Model | Years | Engine |
|---|---|---|---|
| Honda | CRX Del Sol | 1992–1998 | 1.6L L4 1590cc VTi B16A2 |
| Honda | Integra | 1994–2001 | 1.8L L4 1834cc Type-R B18 |
| Honda | Civic | 1987–2000 | 1.6L L4 1590cc VTi B16A2; 1.6L L4 1590cc VTi/Type-R B16A2/B16B; 1.8L L4 1.797cc VTi B18C4; 1.6L L4 1590cc i-VT B16A1 |
| Honda | CR-V | 1996–2002 | 2.0L L4 1972cc B20B |
| Honda | CRX | 1987–1992 | 1.6L L4 1590cc i-VT B16A1 |
ACT H025 Pressure Plate Heavy Duty – Honda CRX Del Sol, Integra & more
314.55€
364.08€
Excl. VAT: 300.89€
Tags: ACT-H025,
