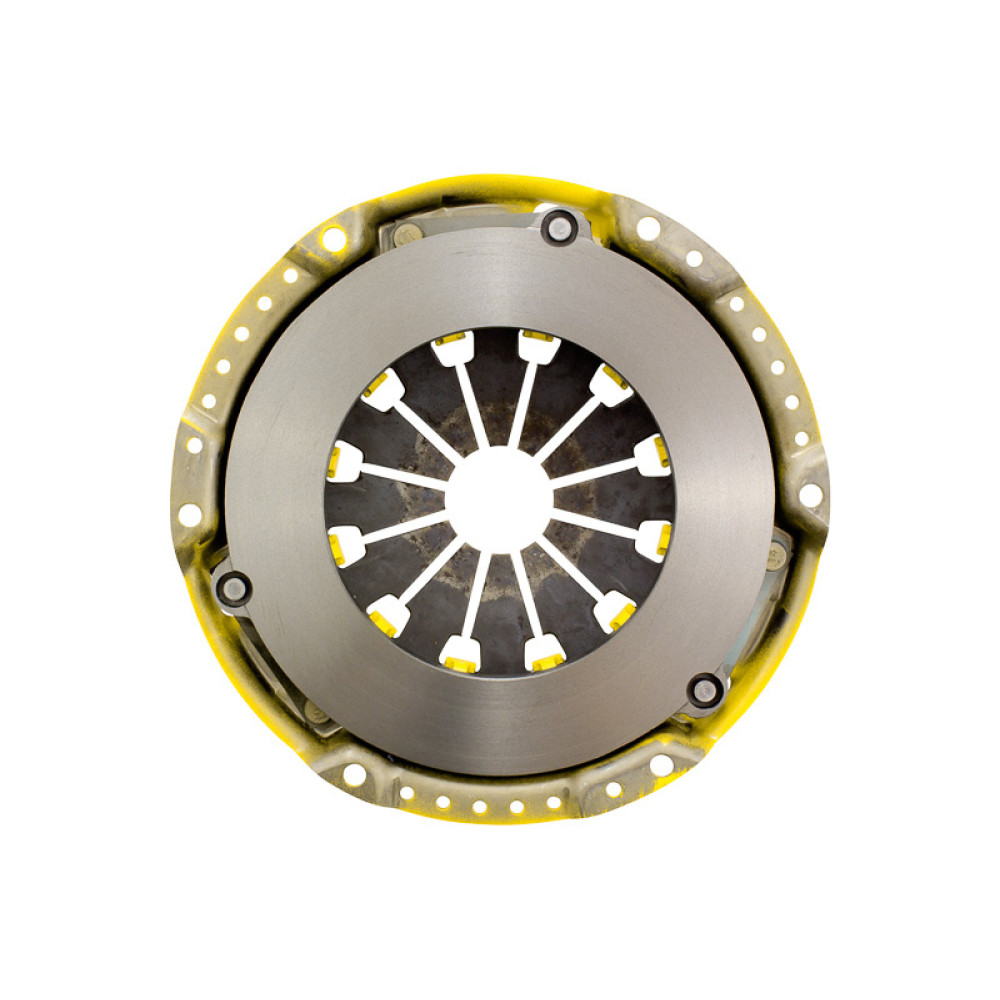

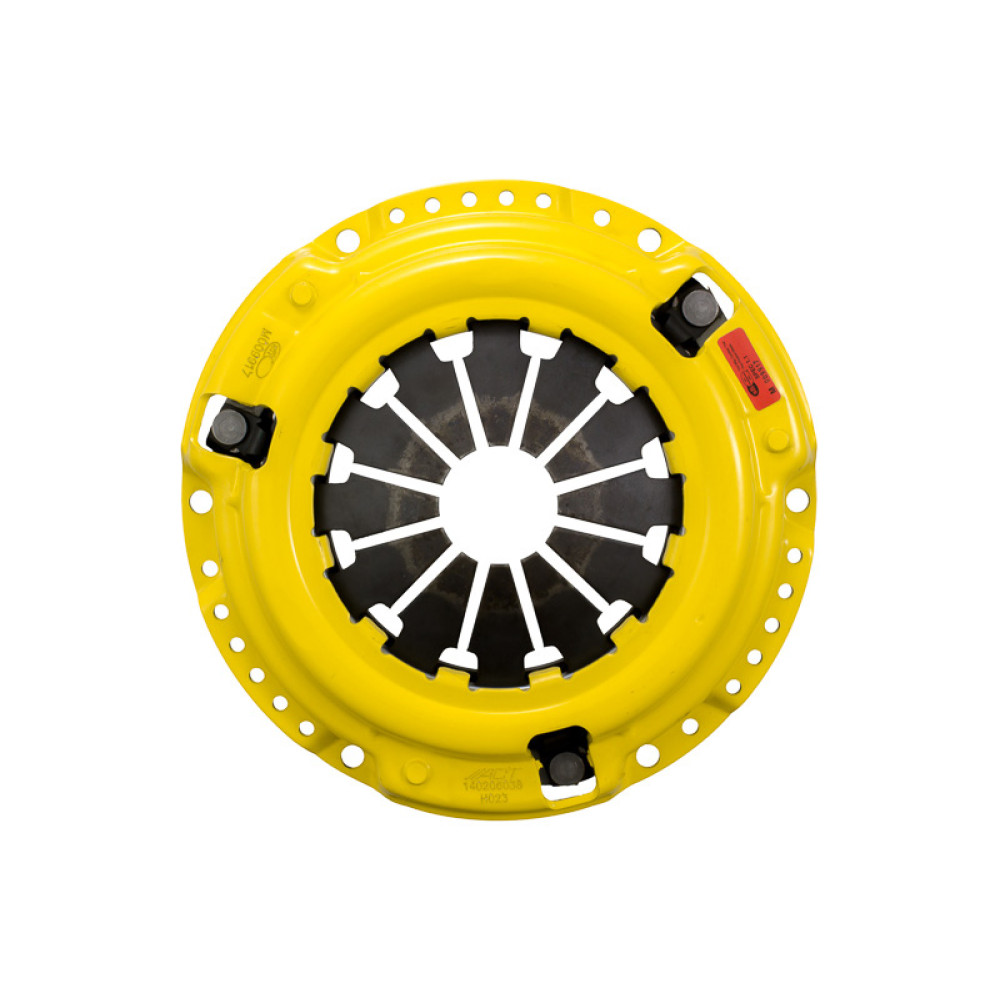

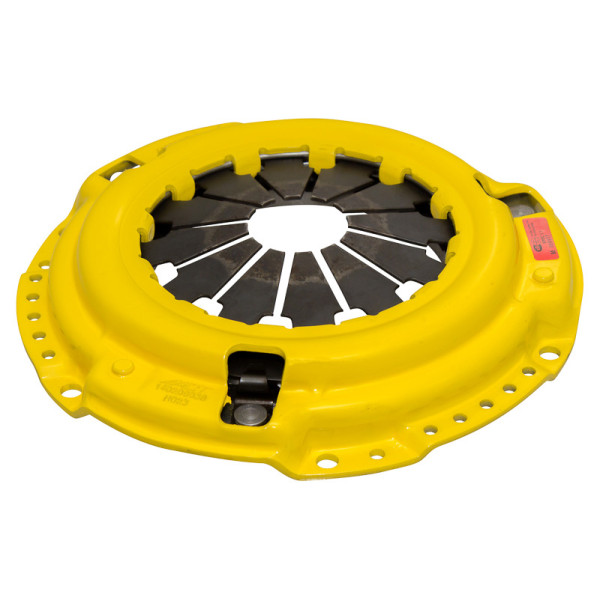

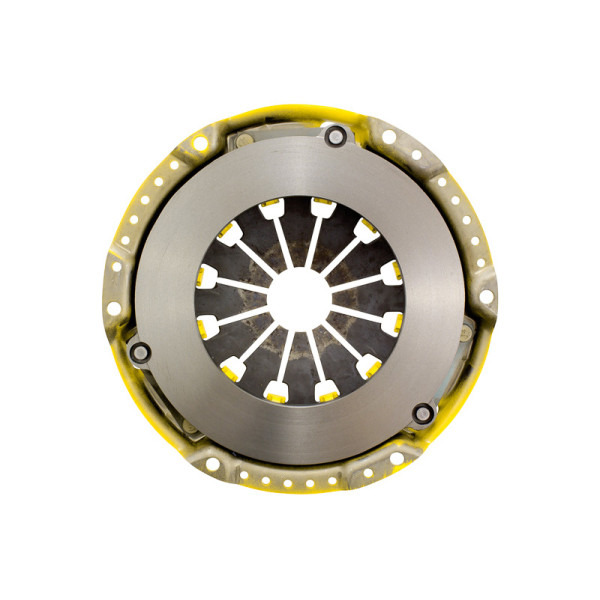

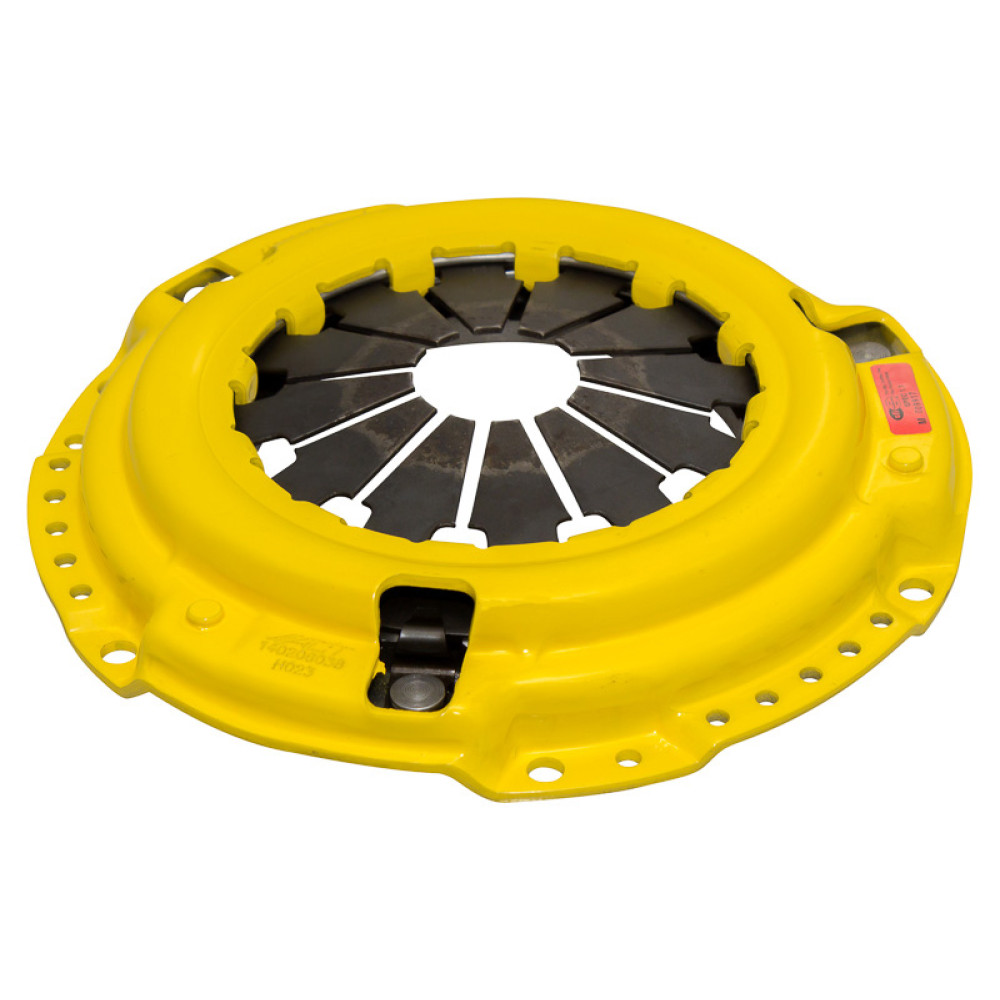

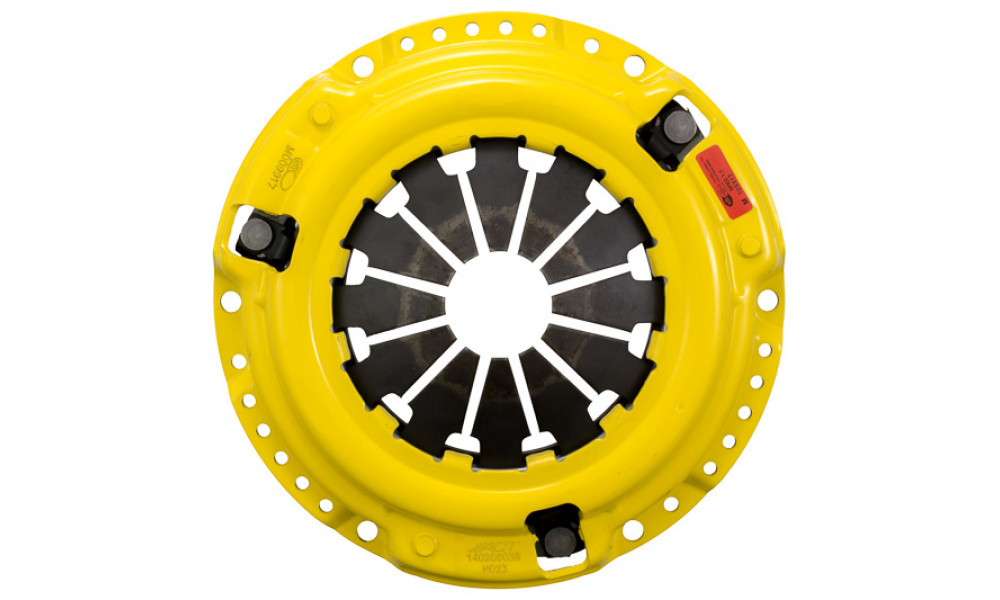

ACT H023 Pressure Plate Heavy Duty – Honda Civic, CRX & more
The ACT H023 pressure plate features an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Heavy Duty pressure plates increase clamp load by 20 to 50 percent. The Heavy Duty pressure plates are recommended for use with a street or race disc.
Key Features
- Feel: Light to moderate pedal effort, positive engagement
- Life: Available disc life extended by ACT's exclusive diaphragm design
- Quality: Carefully engineered for improved durability, precisely assembled and accurately balanced
- Recommendation: Recommended for street and race use
- Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specifications
| Spec | Value |
|---|---|
| Brand | ACT (Advanced Clutch Technology) |
| Part number | H023 |
| Product type | Pressure Plate Heavy Duty |
| Pressure plate diameter | 212 mm |
| SFI specification | SFI 1.1 |
| Package weight | 4.35 kg |
Fitment
| Make | Model | Years | Engine |
|---|---|---|---|
| Honda | Civic | 1987–2005 | 1.5L L4 1493cc D15B; 1.4L L4 1396cc GL/GLX D14A1; 1.6L L4 1590cc iLS/iSR D16Y7/D16Y8; 1.5L L4 1493cc VTEC-E D15Z6; 1.6L L4 1590cc D16V1; 1.7L L4 1668cc i ES/i LS D17A8/D17A9; 1.4L L4 1396cc D14A3/D14A4/D14Z2; 1.5L L4 1493cc DXi/LSi/VEi D15B2/D15B7/D15Z1; 1.6L L4 1590cc ESi D16Z6/D16Z9; 1.4L L4 1.396cc D14Z6; 1.6L L4 1590cc D16A8/D16A9/D16ZC |
| Honda | CRX | 1987–1992 | 1.5L L4 1493cc D15B; 1.4L L4 1396cc GL/GLX D14A; 1.6L L4 1590cc 97 CID; 1.6L L4 1590cc D16A8/D16A9/D16ZC |
| Honda | CRX Del Sol | 1992–1998 | 1.5L L4 1493cc; 1.6L L4 1590cc ESi D16Z6/D16Y8 |
| Honda | Accord | 1998–2003 | 1.6L L4 1590cc D16B6 |
Notes:
- Several clutches available check your original clutch spec before ordering
- 212mm upgrade, Must be used with 90-01 SOHC flywheel
