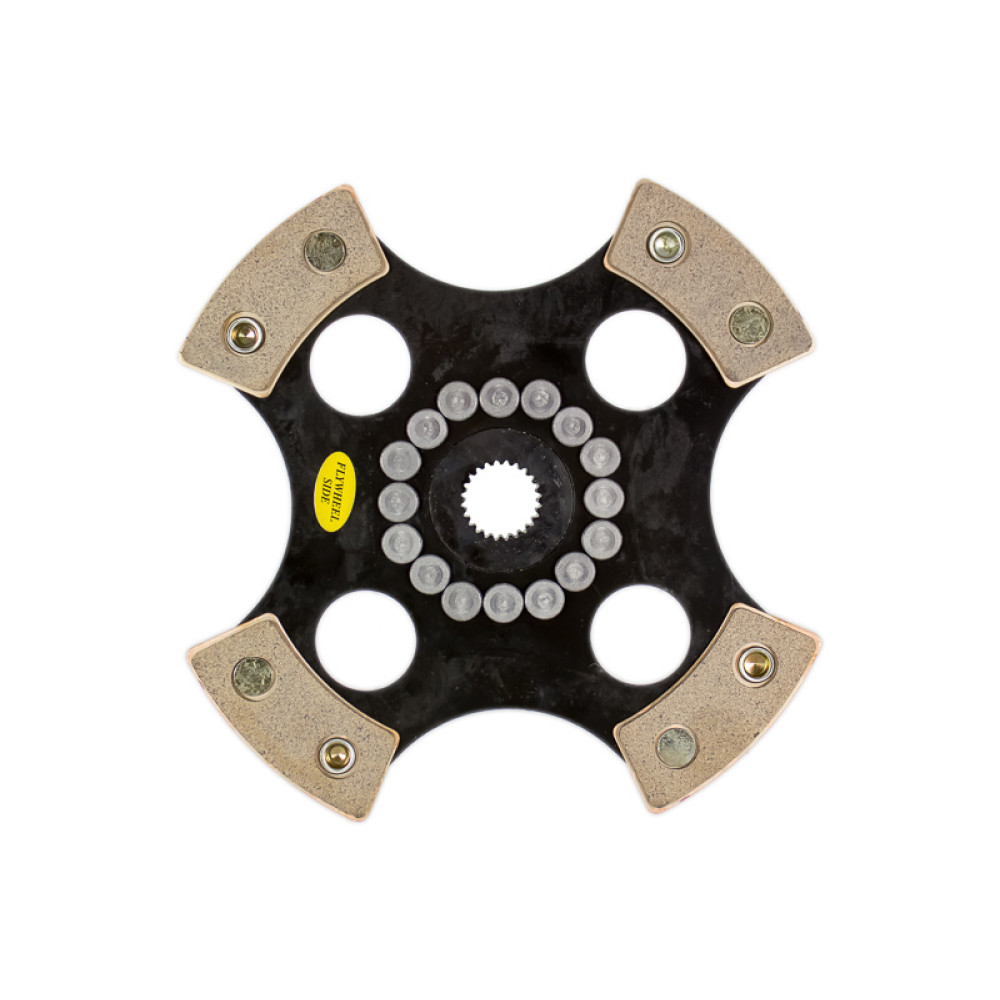

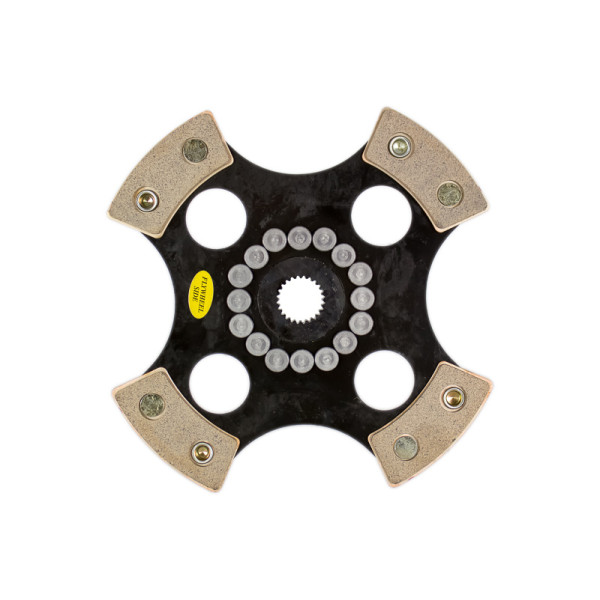

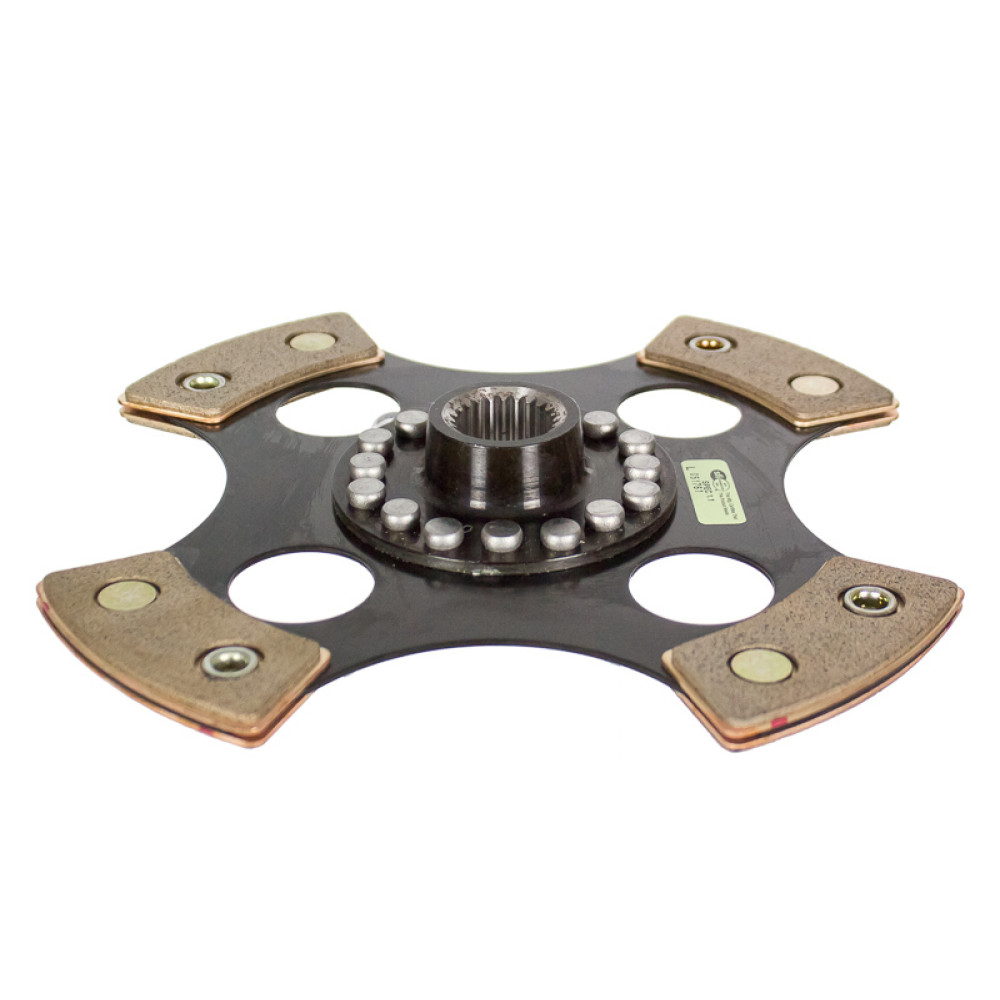

ACT 4224006 4-Pad Rigid Race Clutch Disc – Nissan 280Z, 240SX & more
The ACT 4224006 is a 4-pad rigid race disc made with high quality, ceramic friction materials. The disc engagement is harsher, but shifting is faster. The race disc features top grade rivets to securely fasten the part together. The rivet design and materials are carefully selected for maximum strength. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
Key Features
- Feel: Aggressive engagement, quickest shifts, increased gear rattle
- Life: Premium ceramic friction materials provide moderate wear rates and high heat tolerance, rigid design may increase spline wear
- Quality: Lightweight rigid design, chromoly hub is heat-treated for strength and durability
- Recommendation: Recommended for race use only
- Difference: High burst strength and holds 28% more torque than typical organic materials
Specifications
| Spec | Value |
|---|---|
| Brand | ACT (Advanced Clutch Technology) |
| Part number | 4224006 |
| Product type | 4-Pad Rigid Race Clutch Disc |
| Disc type | Race disc (Ceramic) |
| Disc hub | Solid/Rigid Hub |
| Disc diameter | 224 mm |
| Spline count | 24 |
| Spline size | 1" |
| SFI specification | SFI 1.1 |
| Package weight | 1.54 kg |
Fitment
| Make | Model | Years | Engine |
|---|---|---|---|
| Nissan | 280Z (& 280ZX NA) | 1974–1983 | 2.8L L6 2753cc L28E |
| Nissan | 240SX | 1989–1999 | S13 2.4L L4 2389cc; S14 2.4L L4 2389cc |
| Nissan | Stanza | 1989–1992 | 2.4L L4 2389cc KA24 |
| Nissan | 620 | 1975–1979 | 2.0L L4 1952cc |
| Nissan | Axxess | 1989–1993 | 2WD 2.4L L4 2389cc |
| Nissan | Maxima | 1981–1984 | 2.8L L6 2793cc; 2.4L L6 2393cc |
| Nissan | 720 (Sport Truck) | 1985–1986 | 2.4L L4 2389cc Z24I; 2.4L L4 2389cc Z24 |
| Nissan | 200SX | 1989–1993 | S13 1,8L I4 CA18DET |
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Nissan | 200SX | S13 | - |
| Nissan | 240SX | S13 | - |
| Nissan | 280Z | 1974-1983 | - |
| Nissan | 280ZX | 1974-1983 | - |
| Nissan | 620 | 1975-1979 | - |
| Nissan | 720 | 1985-1986 | - |
| Nissan | Axxess | 1989-1993 | - |
| Nissan | Maxima | 1981-1984 | - |
| Nissan | Stanza | 1989-1992 | - |
ACT 4224006 4-Pad Rigid Race Clutch Disc – Nissan 280Z, 240SX & more
200.39€
198.38€
Excl. VAT: 163.95€
