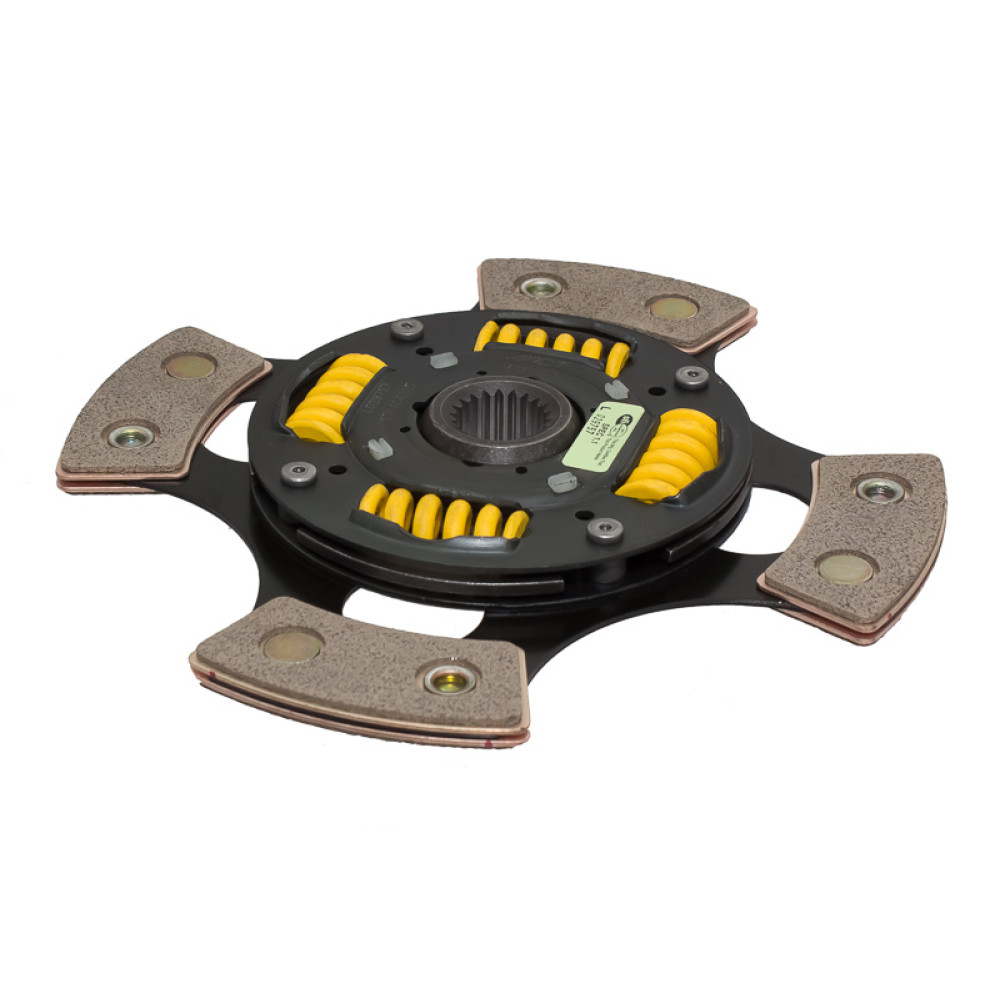

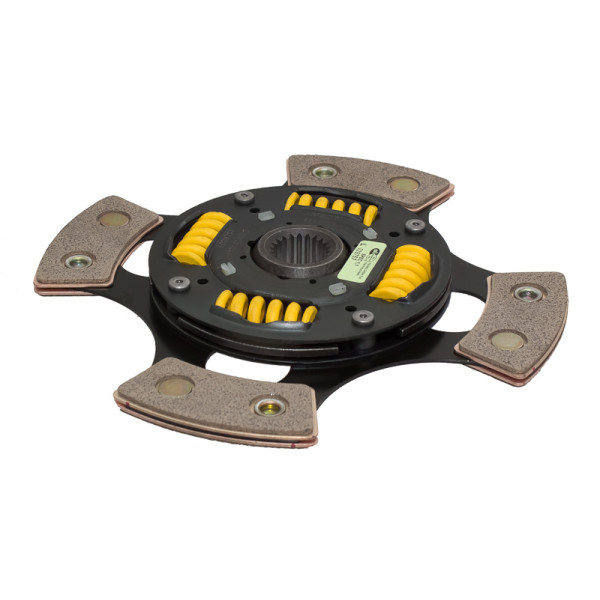

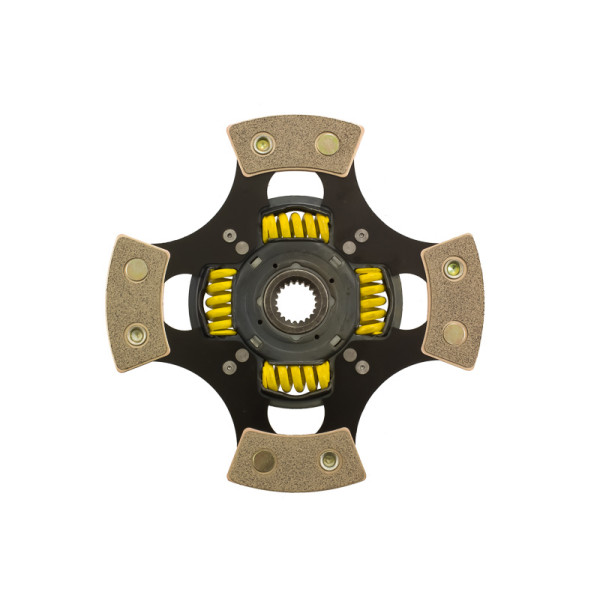

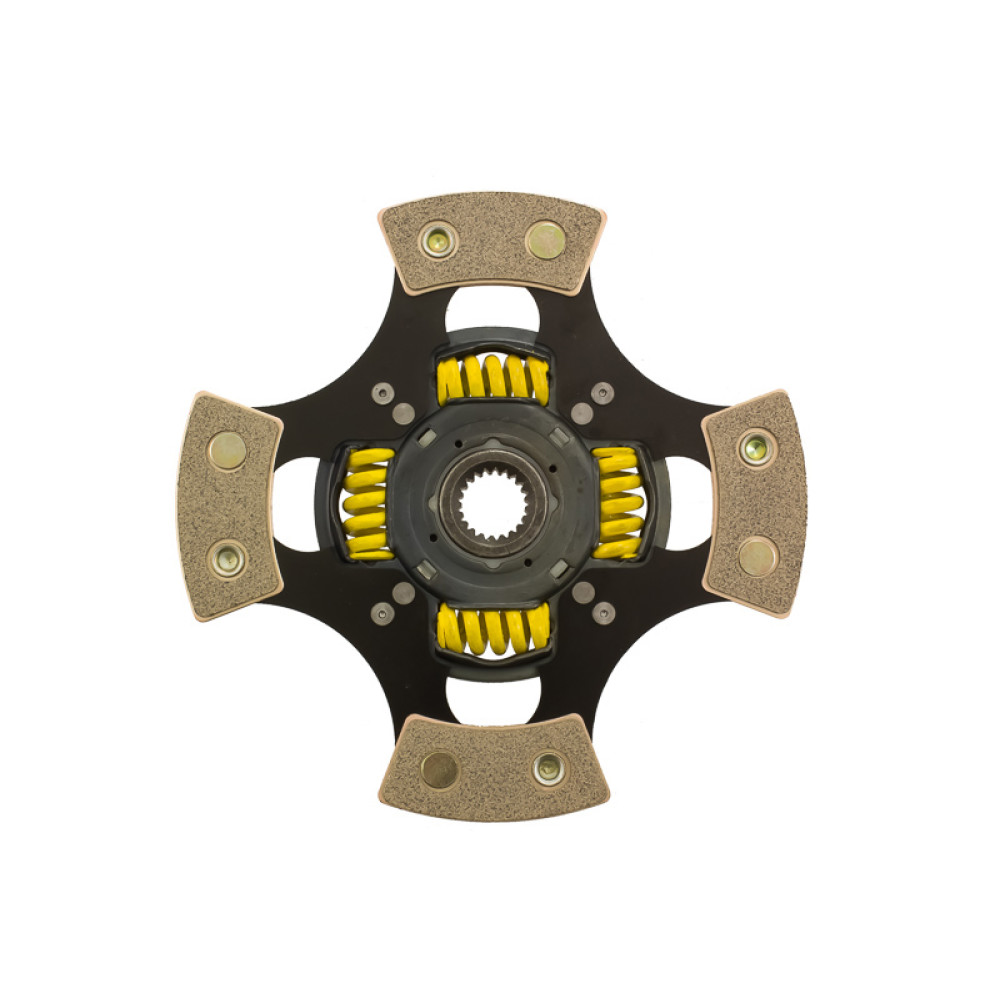

ACT 4212103 4-Pad Sprung Race Clutch Disc – Geo Prizm & more
The ACT 4212103 is a 4-pad spring-centered race disc made with high quality, ceramic friction materials. The engagement is harsher, but shifting is faster. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. The race disc features a heat-treated spring steel drive plate and is well-suited for the smaller disc sizes in smaller engines.
Key Features
- Feel: Aggressive engagement, quick shifts, OE to mild gear rattle
- Life: Premium ceramic friction materials provide moderate wear rates and high heat tolerance
- Quality: Utilizes wraparound spring windows, thicker retainer stampings and a heat-treated, spring steel drive plate to provide support, reduce stress concentrations and increase strength and reliability
- Recommendation: Recommended for race use only
- Difference: High burst strength and holds 28% more torque than typical organic materials
Specifications
| Spec | Value |
|---|---|
| Brand | ACT (Advanced Clutch Technology) |
| Part number | 4212103 |
| Product type | 4-Pad Sprung Race Clutch Disc |
| Disc type | Race disc (Ceramic) |
| Disc hub | Sprung Hub |
| Disc diameter | 212 mm |
| Spline count | 21 |
| Spline size | 15/16" |
| SFI specification | SFI 1.1 |
| Package weight | 1.86 kg |
Fitment
| Make | Model | Years | Engine |
|---|---|---|---|
| Geo | Prizm (Base, GSi, LSi) | 1990–1997 | 1.6L L4 1587cc (8th digit of VIN # must be ); 1.6L L4 1588cc 98 CID; 1.8L L4 1788cc 110 CID |
| Toyota | Corolla (9/, 6/) | 1989, 1992 | to 6/1991 GTS 1.6L L4 1587cc; to 2013 1.6L L4 1587cc; to 2013 1.8L L4 1762cc |
| Pontiac | Vibe (Base, GT) | 2003–2008 | 1.8L L4 1794cc; 1.8L L4 1795cc |
| Toyota | Starlet (GT-Turbo & Glanza V) | 1990–1999 | 1.3L I4 1331cc Turbo |
| Toyota | Celica (9/, 6/) | 1989, 1991, 1993, 2000–2005 | to 1991 ST 1.6L L4 1587cc; to 8/1993 ST 1.6L L4 1587cc; to 1997 1.8L L4 1762cc; GT & GTS 1.8L L4 1794cc 2ZZ-GE 6SPD |
| Toyota | MR2 (06/) | 1985 | to 1989 1.6L L4 1587cc |
| Toyota | MR-S | 2000–2005 | 1.8L L4 1794cc |
| Lotus | Elise | 2005–2011 | 1.8L L4 1795cc 2ZZ-GE |
| Lotus | Exige | 2006–2011 | 1.8L L4 1795cc 2ZZ-GE |
| Toyota | Yaris | 2007–2013 | 1.5L L4 1497cc |
Notes:
- 6
- 5
- 4E-FTE turbo
- 5 Speed
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Geo | Prizm | 1990-1997 | - |
| Lotus | Elise | 2005-2011 | - |
| Lotus | Exige | 2006-2011 | - |
| Pontiac | Vibe | 2003-2008 | - |
| Toyota | Celica | 1989 | - |
| Toyota | Corolla | 1989 | - |
| Toyota | MR-S | 2000-2005 | - |
| Toyota | MR2 | 1985-1989 | - |
| Toyota | Starlet | 1990-1999 | - |
| Toyota | Yaris | 2007-2013 | - |
ACT 4212103 4-Pad Sprung Race Clutch Disc – Geo Prizm & more
254.35€
251.81€
Excl. VAT: 208.11€
