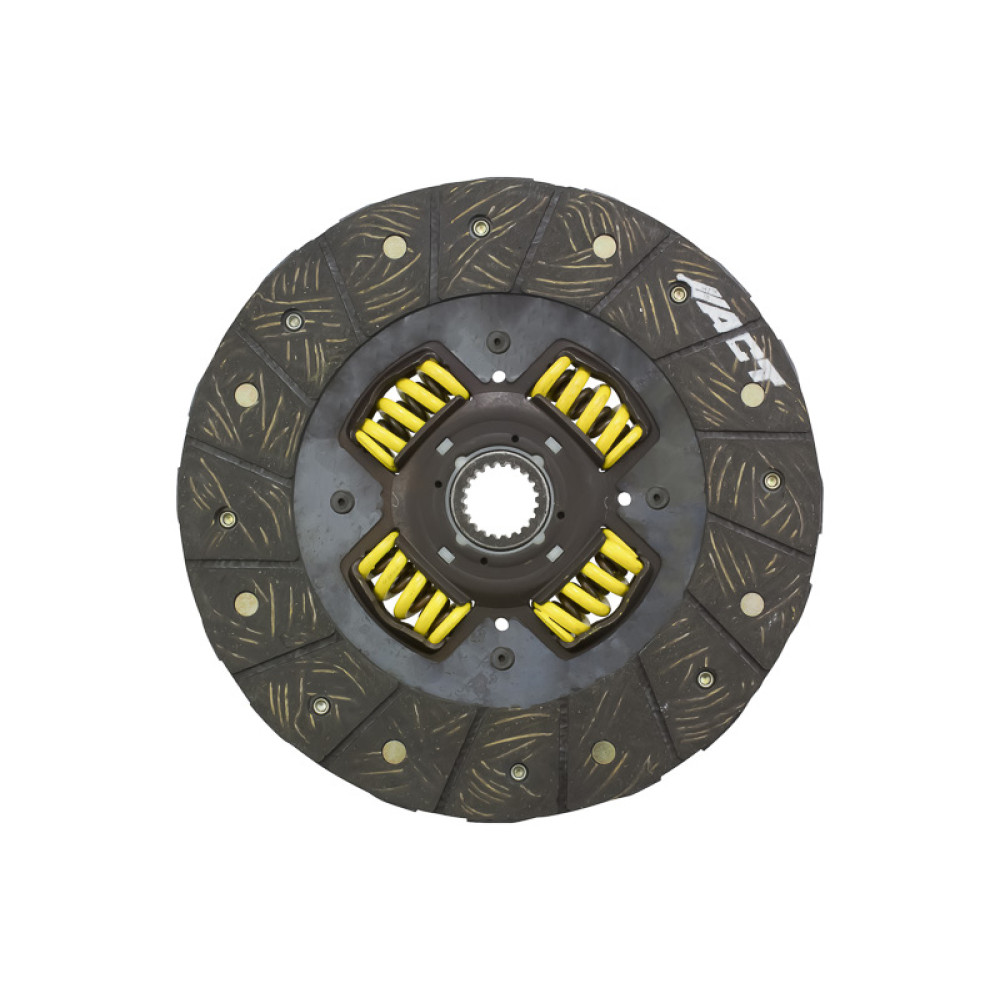

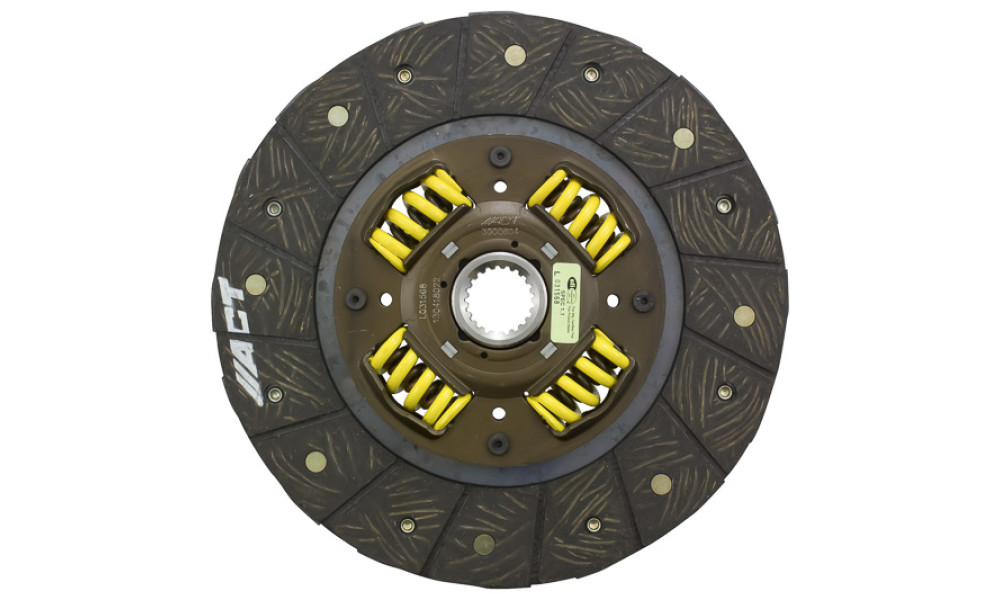

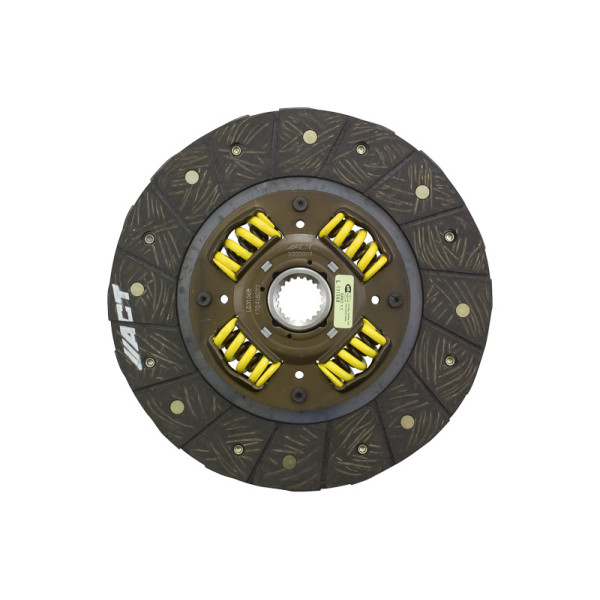

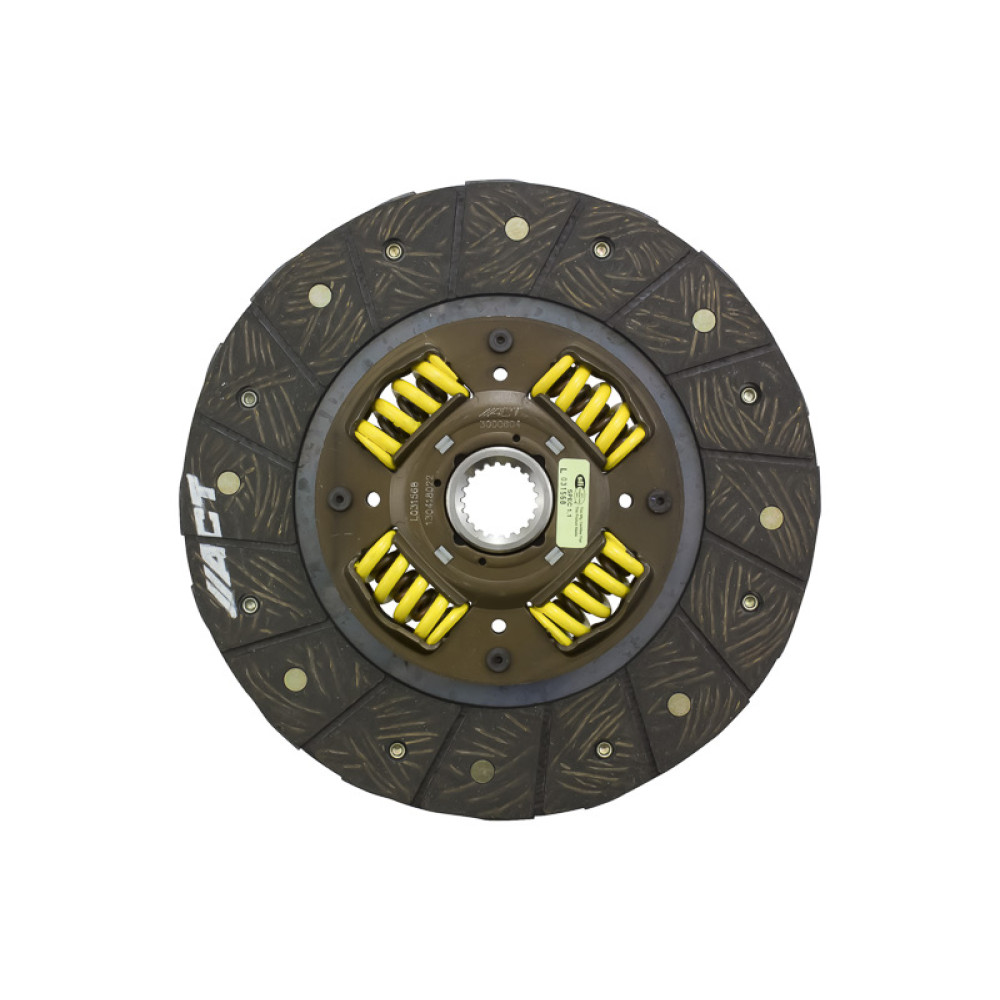

ACT 3000604 Perf Street Sprung Clutch Disc – Toyota Celica & more
The ACT 3000604 is a performance street disc and the most popular disc purchased. It features premium organic materials with high copper content for better heat transfer. Performance street discs allow for quicker shifting and smooth engagement. These discs feature a reduced marcel for faster shift action to complement ACT pressure plates. ACT spring-centered assemblies use bushings and cone springs similar to factory clutch discs. This creates frictional dampening, which improves clutch life and reduces noise. Quiet operation with increased strength and reliability.
Key Features
- Feel: Smooth engagement, quicker shifts, OE to mild gear rattle
- Life: Premium organic composite friction blended for high heat tolerance, increased burst strength, faster recovery from overheating and less wear of mating surfaces
- Quality: Spring retainers feature heat-treated wraparound spring windows that provide support and reduce stress concentrations that are common causes for failure
- Recommendation: Recommended for street and race use
- Difference: Steel-backed linings for higher burst strength, reduced marcel for quicker shifts
Specifications
| Spec | Value |
|---|---|
| Brand | ACT (Advanced Clutch Technology) |
| Part number | 3000604 |
| Product type | Perf Street Sprung Clutch Disc |
| Disc type | Street disc (Organic) |
| Disc hub | Sprung Hub |
| Disc diameter | 236 mm |
| Spline count | 21 |
| Spline size | 1-1/8" |
| SFI specification | SFI 1.1 |
| Package weight | 2.27 kg |
Fitment
| Make | Model | Years | Engine |
|---|---|---|---|
| Toyota | Celica (9/, Supra A60) | 1981–1986, 1988–1989 | to 8/1989 All Trac 2.0L L4 1998cc 122 CID 4WD; to 1993 All Trac Turbo 2.0L L4 1998cc 122 CID 4WD, 3SGTE; 2.8L L6 2754cc |
| Toyota | Supra MK2 ((A60)) | 1981–1986 | 2.8L L6 2754cc 5M-GE |
| Toyota | Supra MK3 ((A70)) | 1986–1993 | 3.0L L6 2954cc 7M-GE; 3.0L L6 2954cc |
| Toyota | Supra MK4 ((A80)) | 1994–1998 | 3.0L L6 2954cc NA 2JZ-GE |
| Lexus | ES250 (Base) | 1990–1991 | 2.5L V6 2508cc |
| Lexus | ES300 (Base) | 1992–1993 | 3.0L V6 2959cc |
| Lexus | IS300 (Base, Sportcross) | 2001–2005 | 3.0L L6 2997cc |
| Lexus | SC300 (Base) | 1992–1997 | 3.0L L6 2997cc |
| Toyota | MR2 (Turbo) | 1991–1995 | 2.0L L4 1998cc 122 CID 3S-GTE |
| Toyota | RAV4 | 1996–2000 | 2.0L L4 1998cc 122 CID |
| Toyota | Corolla (XRS) | 2009–2012 | 2.4L L4 2362cc 2AZ-FE |
Notes:
- 7M-GE / W58 Production till 7-88
- 7M-GE / W58 Production from 8-88
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Lexus | ES250 | 1990-1991 | - |
| Lexus | ES300 | 1992-1993 | - |
| Lexus | IS300 | 2001-2005 | - |
| Lexus | SC300 | 1992-1997 | - |
| Toyota | Celica | 9/ | - |
| Toyota | Corolla | XRS | - |
| Toyota | MR2 | 1991-1995 | - |
| Toyota | RAV4 | 1996-2000 | - |
| Toyota | Supra | A60 | - |
