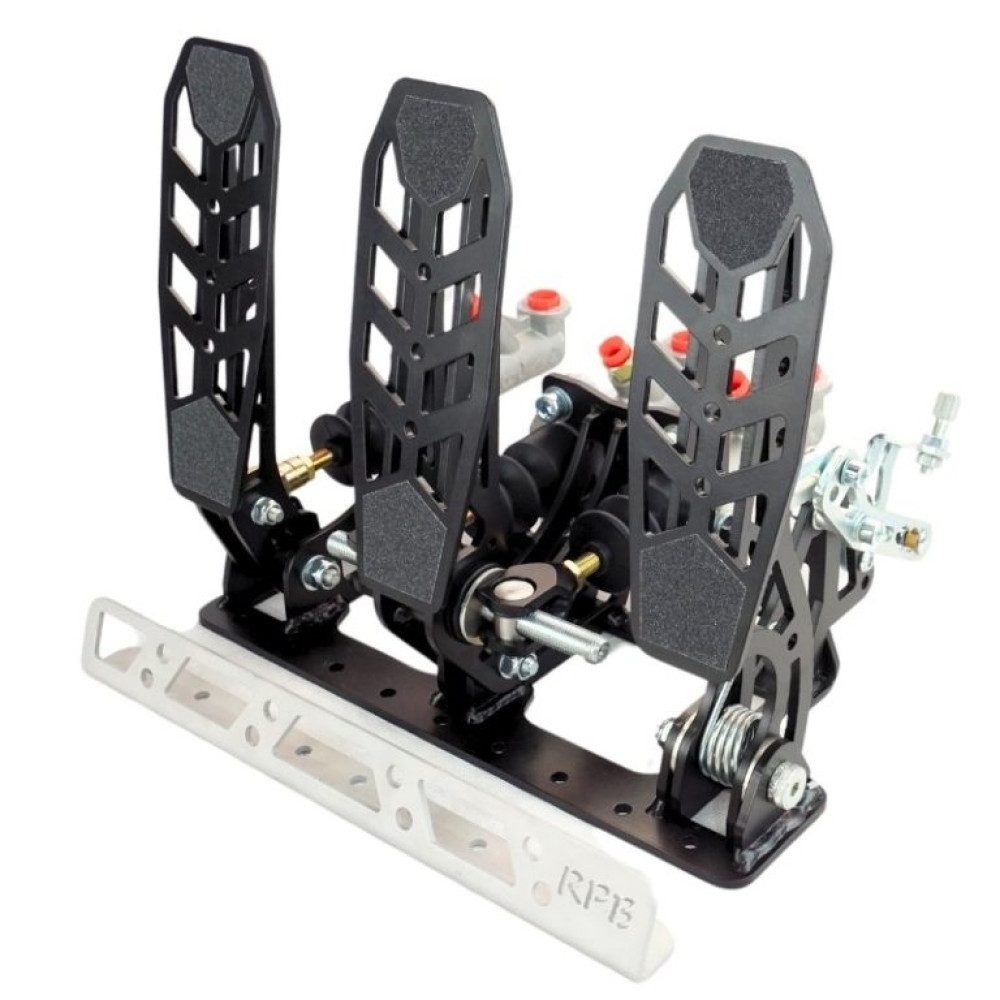

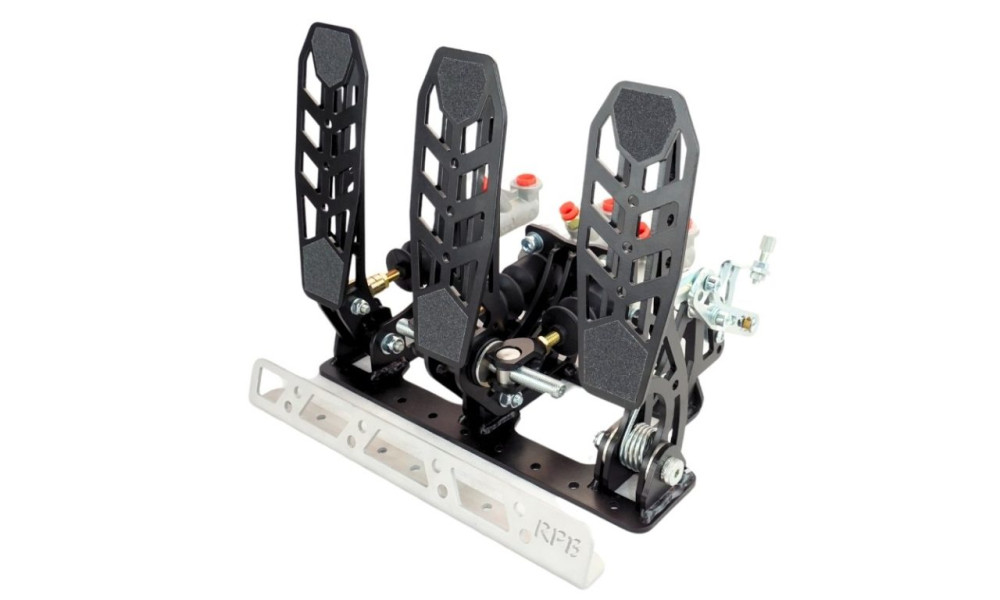

PEDALBOX DRIFTING & RALLY – Black (RPB0003B)

(Gray version – RPB0003 available in a separate offer)

The Pedalbox Drifting & Rally is designed specifically for drift and rally cars. It can be mounted directly to the floor or on adjustable guides, allowing the pedal position to be adapted for different drivers. The pedals feature a wide surface for improved ergonomics, comfortable driving, and easier pedal combinations.

The pedalbox is built from welded steel parts, offering a lightweight construction with an excellent stiffness-to-weight ratio.

Technical Features:

• Black colour (RPB0003B), Grey colour (RPB0003 – available separately).
• Floor-mounted pedalbox.

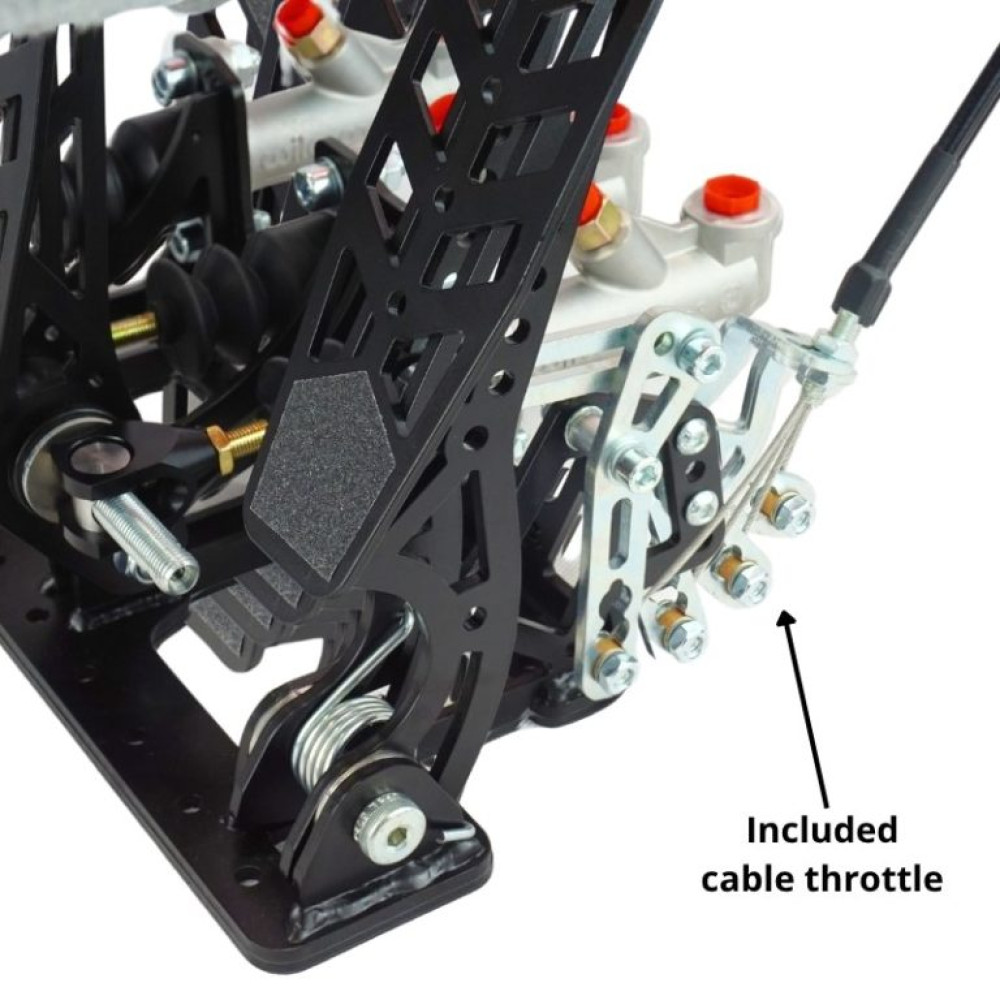

• Adjustable cable throttle pedal (included).
• Throttle pedal with adjustable rotation angle and wire stroke.
• Brake pedal with balance bar 5/16 UNF.
• Brake pedal ratio: 5:1.
• Hydraulic clutch pedal.
• Balance bar included: 7/16”-20 UNF thread for maximum stiffness.

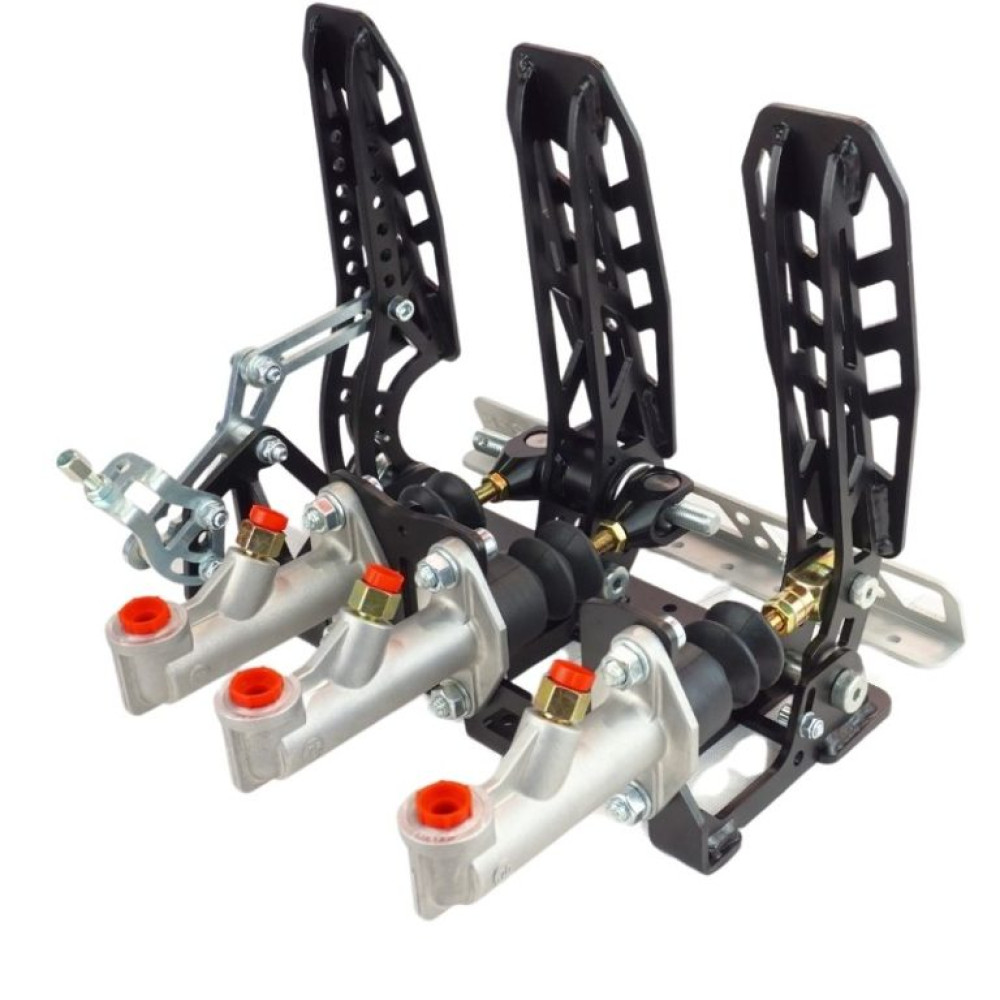

• Master cylinder connections: 5/16”-24 UNF.
• Compatible with Wilwood and OEM master cylinders.
• Footrest support included.
• All pedals with anti-slip surface.
• Pedal axes manufactured from high-quality steel with nut torque adjustment for lateral movement regulation.
• Components with anti-corrosion coating for maximum durability.
• Weight: 3.4 kg without master cylinders / 4.5 kg with master cylinders.
• Master cylinders sold separately.

Available optional accessories:

• Cable clutch accessory Pedalbox RPB0003 (ref. RPBAC06).
• Electronic sensor Pedalbox RPB0003 (ref. RPBAC07).

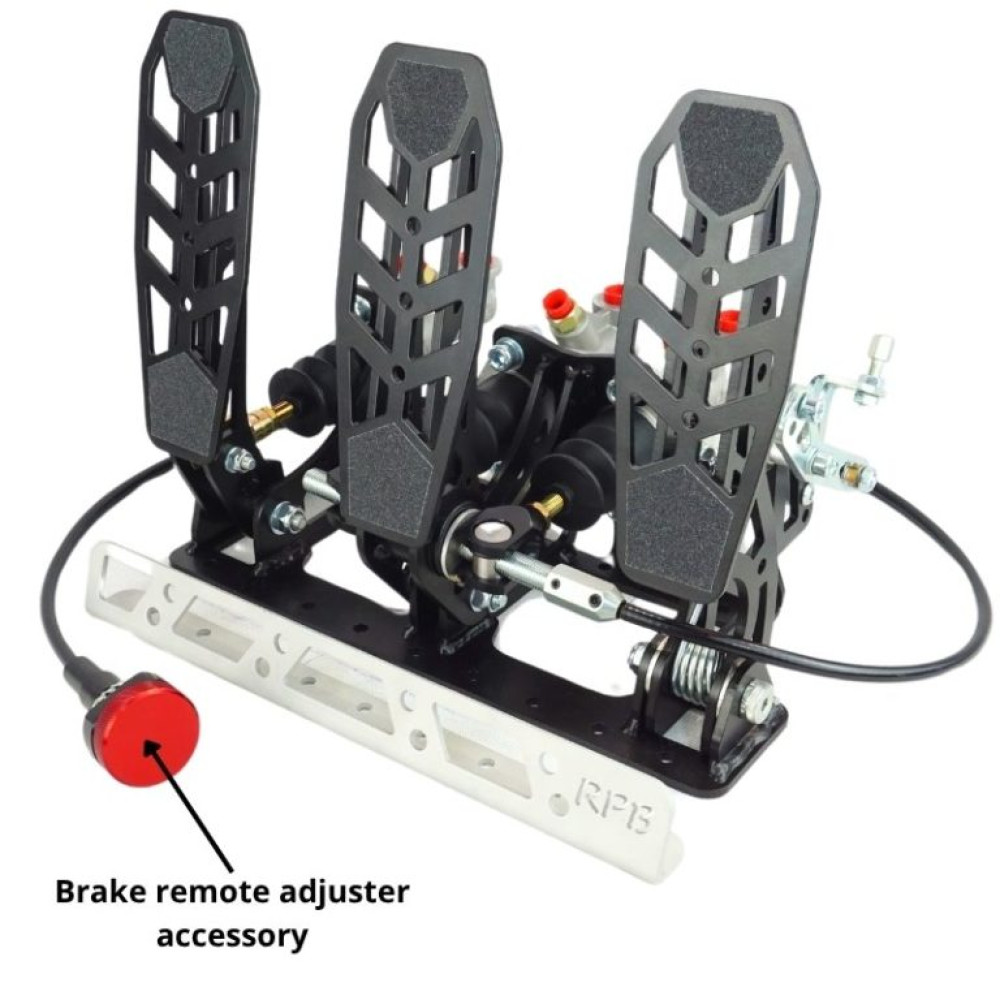

• Brake remote adjuster (7/16 UNF) (ref. RPBAB03).
