Universal Diesel Turbocharger HTD3356B2

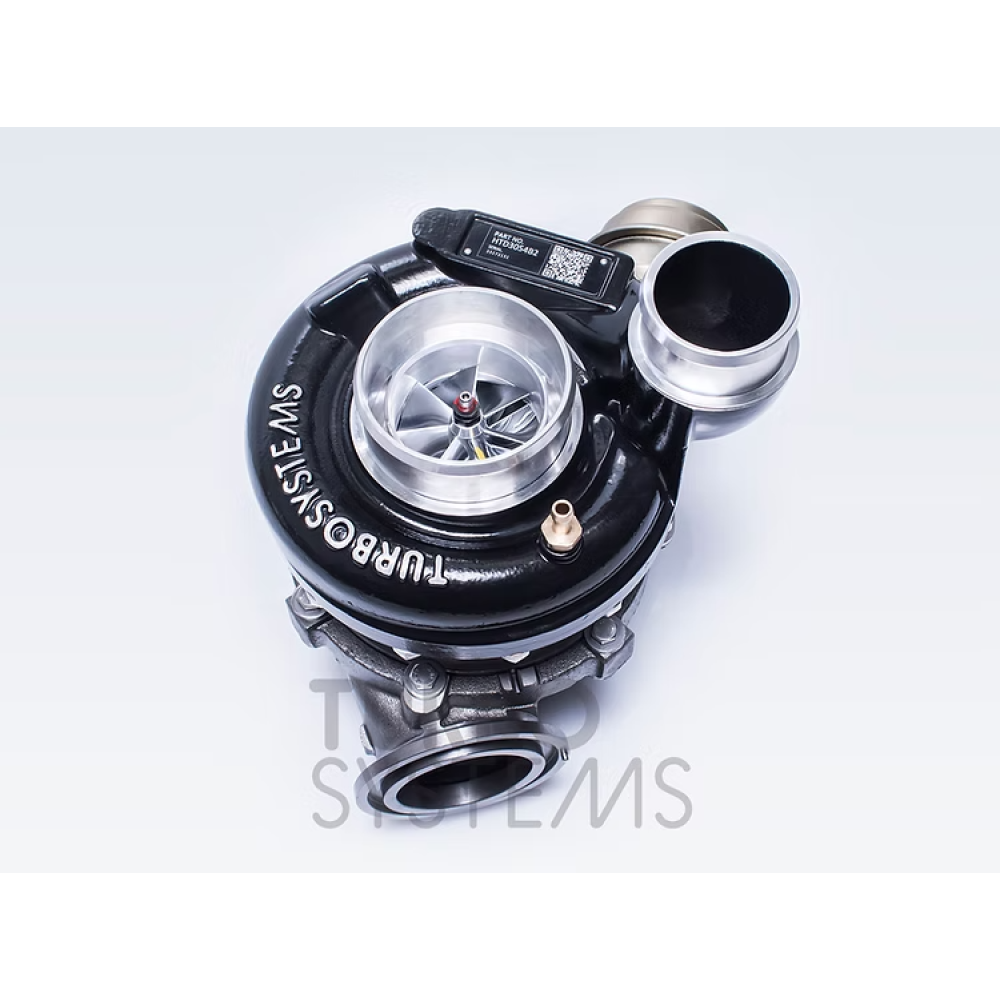

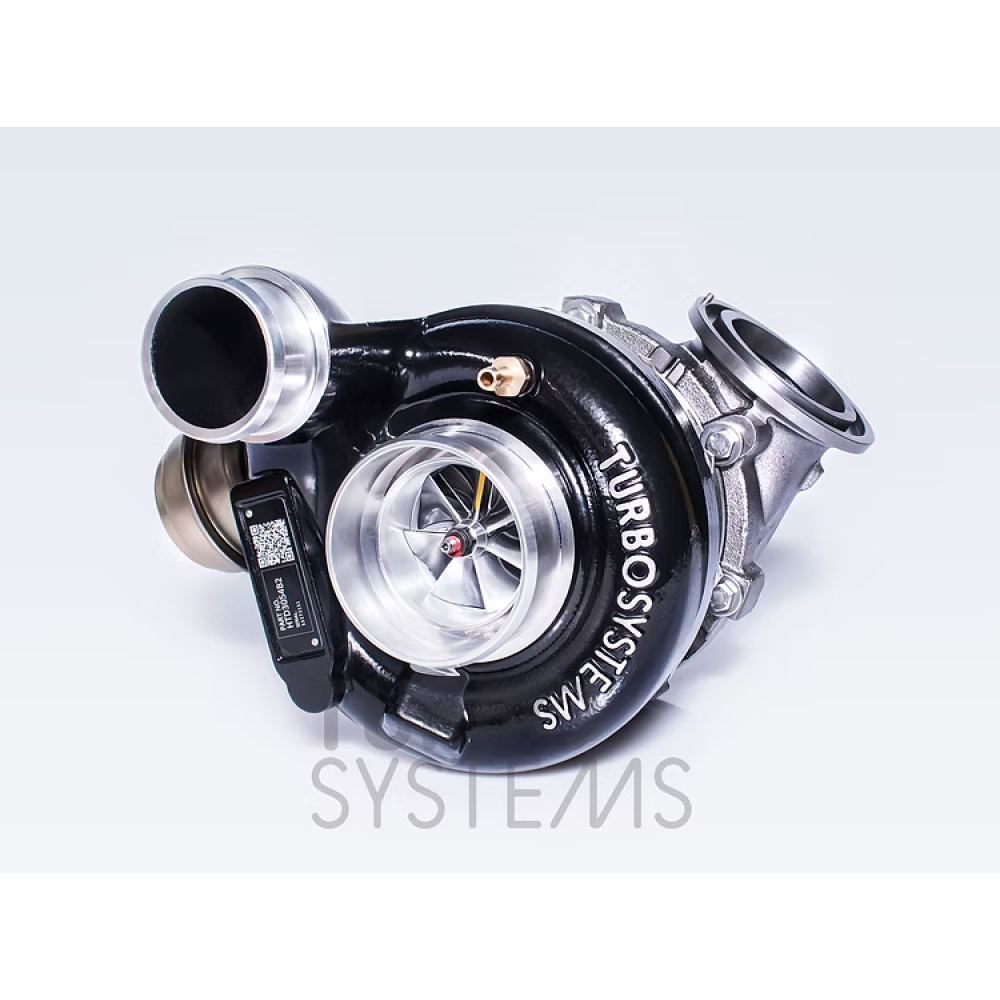

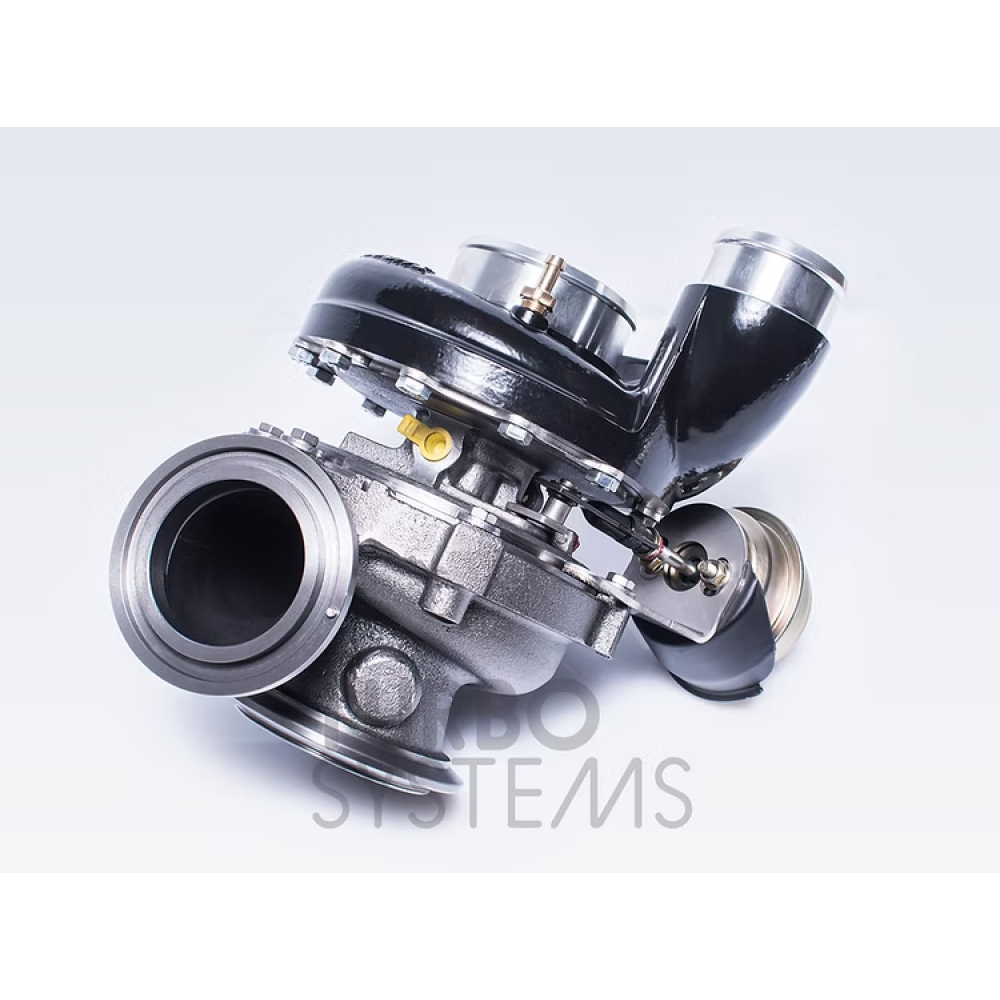

The HTD3356B2 Universal Diesel Turbocharger is built on a BMW diesel upgrade turbocharger base. It features V-band connections on both the exhaust and manifold sides, a reinforced billet compressor wheel, a durable ceramic ball bearing core, and a vacuum control actuator. These attributes facilitate universal adaptation and enhance power efficiency.

HTD3356B2 Specifications

Compressor side:

• Compressor wheel: 7+7 blades, custom reinforced billet
• Inducer: 56 mm
• Exducer: 79 mm
• Air intake inlet: 76 mm / 2"
• Air outlet: 90° 51 mm / 2"

Core:

• Custom dual ceramic ball bearing
• Newest generation variable geometry

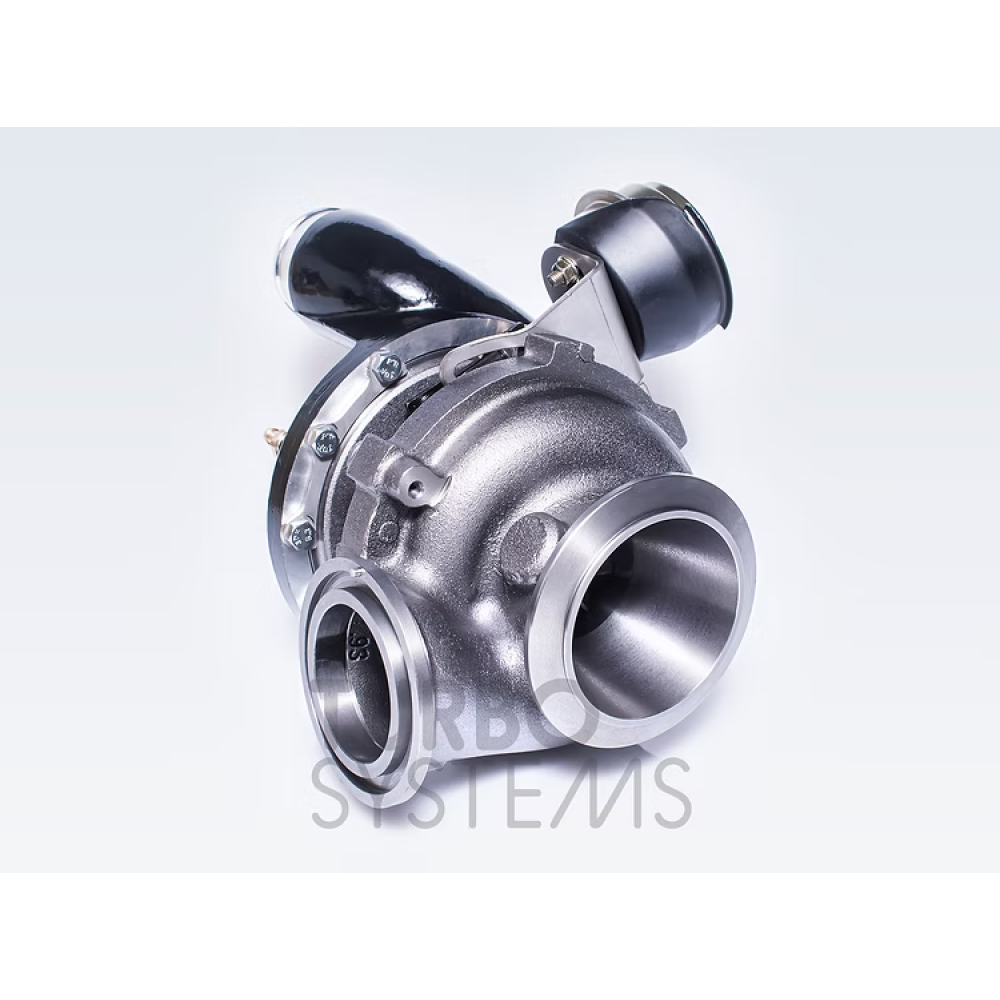

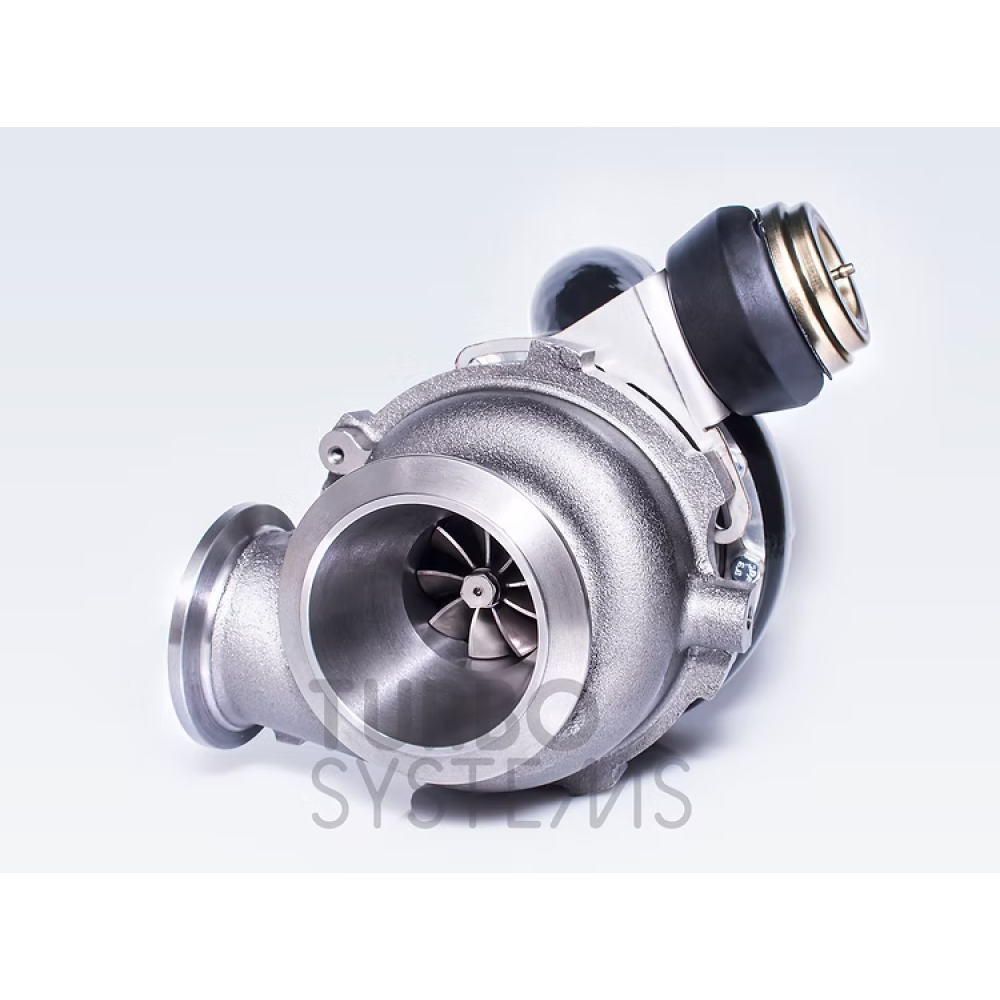

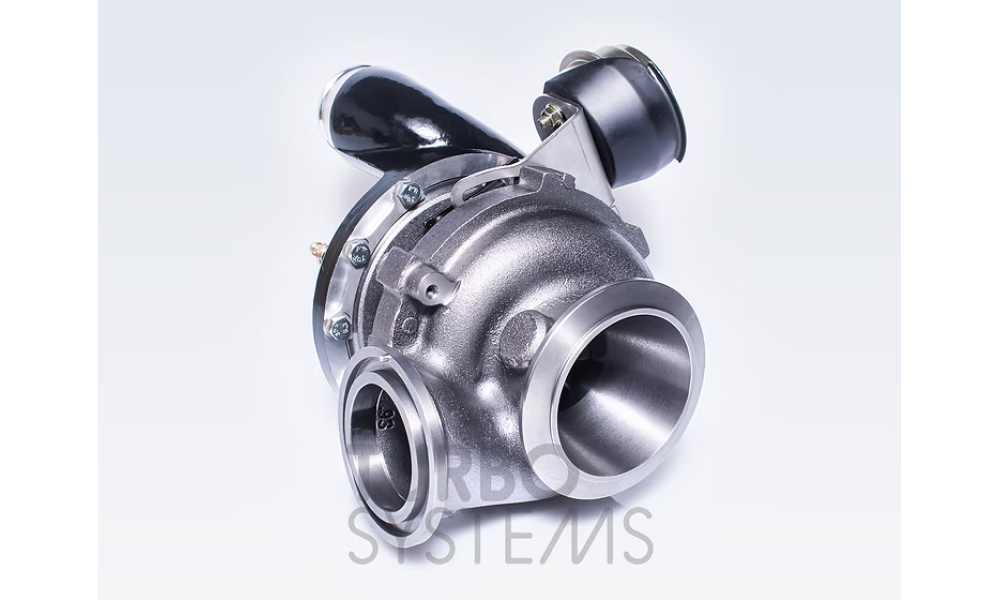

Turbine side:

• Turbine housing based on BMW F10 3.0d turbocharger model
• Turbine wheel: 11 blades
• Inducer: 62.8 mm
• Exducer: 56 mm
• Flange: BMW manifold V-band
• Exhaust connection: V-band
