Compatibility

• Mitsubishi EVO X
• Scion FR-S
• Subaru BRZ
• Toyota GT86
• Toyota GR86

This kit is designed to adapt a specific Denso fuel level sender (not included) to a flat surface. It can be used in other vehicles, but it is essential to reference the physical fuel level sender first to verify compatibility.

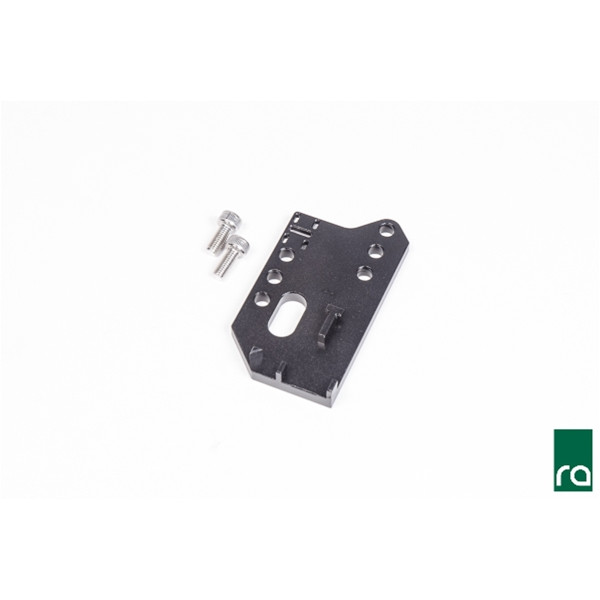

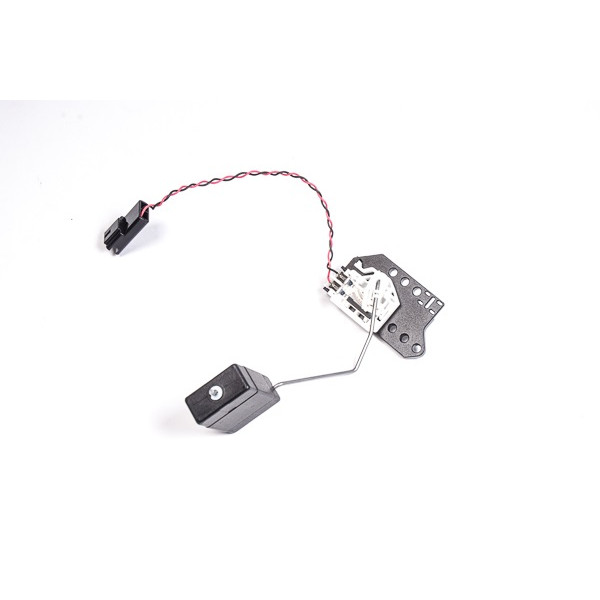

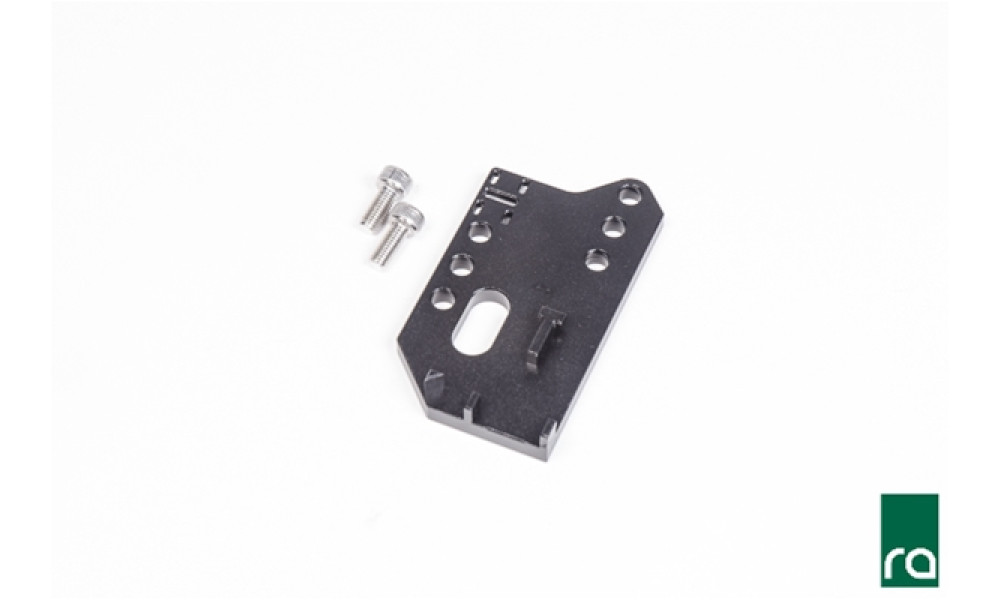

Installation is straightforward: place the Denso fuel level sender onto the adapter and slide it downwards until the tab locks into place. The adapter features multiple integrated holes to accommodate different float heights. Two M5x0.8x12mm stainless steel bolts are included.

Constructed from 6061 aluminum and anodized black, the adapter also includes a provision to secure an OEM fuel temperature sensor.
