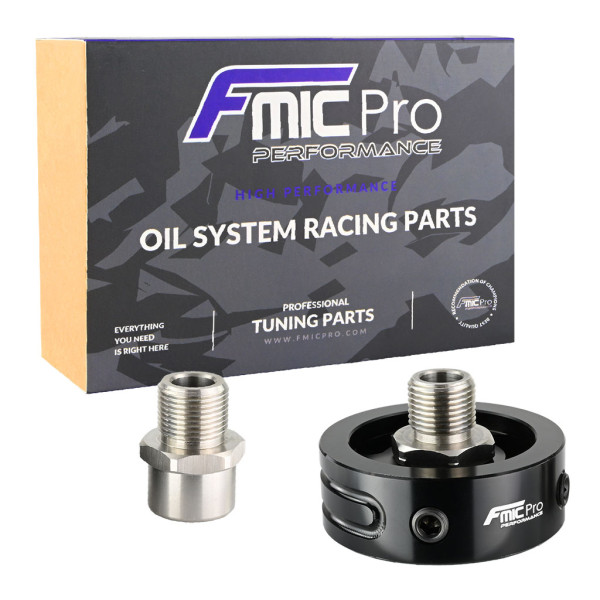

The oil filter adapter is a compact and practical solution that allows easy installation of additional oil temperature and pressure sensors without modifying the engine structure.

Made of high-quality aluminum, it ensures durability and a tight seal, even under high pressure and extreme temperatures. A key feature is the premium Viton O-ring, known for its excellent chemical and thermal resistance – eliminating leaks often found in cheaper rubber-sealed adapters.

The two standard 1/8 NPT ports fit most common sensors on the market. Unused ports can be closed using the included plugs. The adapter is compatible with most popular oil filter types – the kit includes M20x1.5 and 3/4-16 UNF threaded fittings.

Key features:

• High-quality aluminum 6061-T6 – durable and damage-resistant
• Viton O-ring – excellent chemical and thermal resistance
• Sensor threads: 2x 1/8 NPT
• Includes plugs for unused ports
• Compatible threads: M20x1.5 and 3/4-16 UNF
• Compact design – perfect for tight spaces
• Quality and attention to detail guaranteed

Dimensions:
Diameter: 68 mm
Thickness: 24 mm
O-ring: 64x3 mm
