The oil filter sandwich adapter is a premium-quality component designed for sports and performance vehicles, as well as drivers who demand top reliability and precision.

This version includes a built-in thermostat that opens at 85°C, regulating the flow of oil to the cooler. It allows the oil to reach optimal operating temperature faster and directs flow to the cooler only when needed – reducing the risk of overcooling during street use.

Made from 6061-T6 aluminum using CNC machining and anodized for corrosion resistance and a precise fit.

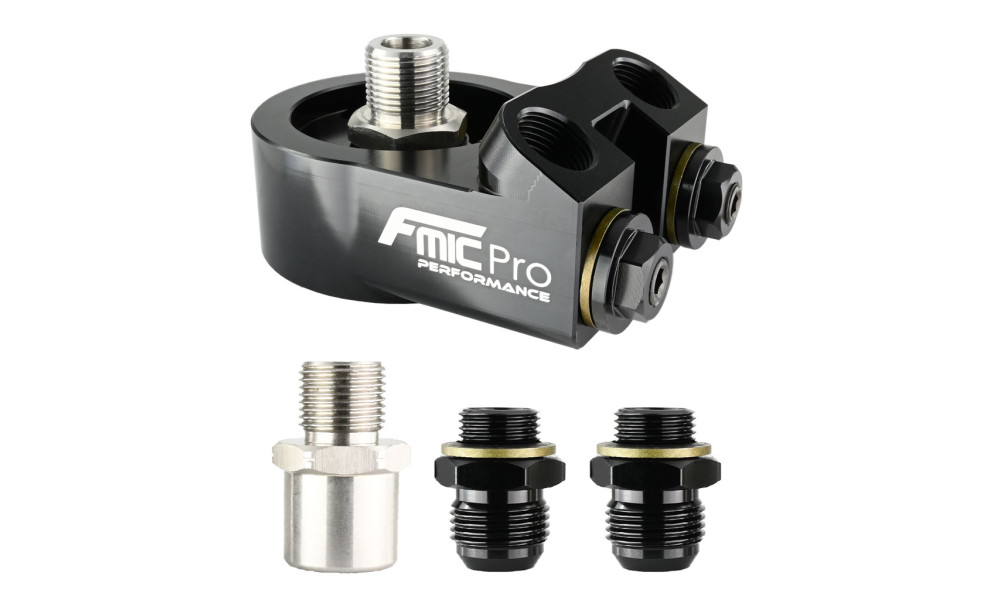

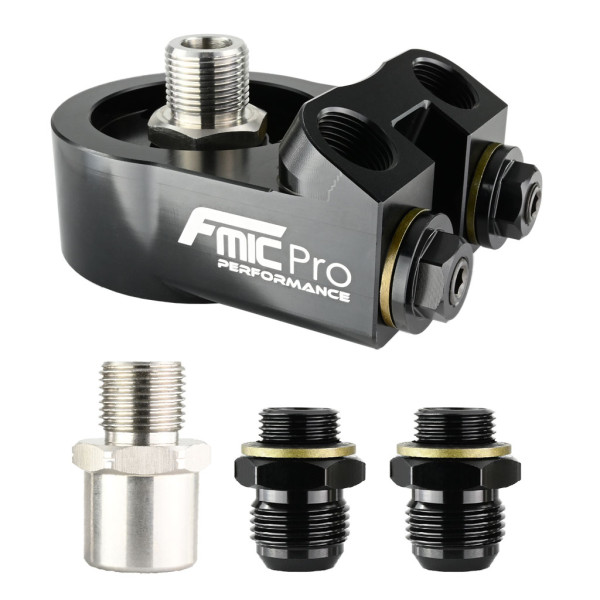

The adapter features four threaded ports:

• Two for connecting oil cooler lines,
• Two fitted with included 1/8" NPT adapters for oil temperature and pressure sensors.

Compatible with most popular oil filters – includes M20x1.5 and 3/4-16 UNF threaded inserts. Also includes a high-temperature Viton O-ring, offering superior resistance to oil and chemicals.

All products are tested in motorsport to ensure performance under extreme conditions.

Key Features:

• FULL CNC – machined from a solid aluminum block
• 6061-T6 aluminum – lightweight and durable
• Compatibility: M20x1.5 and 3/4-16 UNF inserts included
• Anodized surface – anti-corrosion protection
• Viton O-ring – excellent chemical and heat resistance
• Includes 1/8" NPT adapters for sensors
• Built-in thermostat – opens at 85°C

Dimensions:
Dimensions: 75x100 mm
Thickness: 45 mm

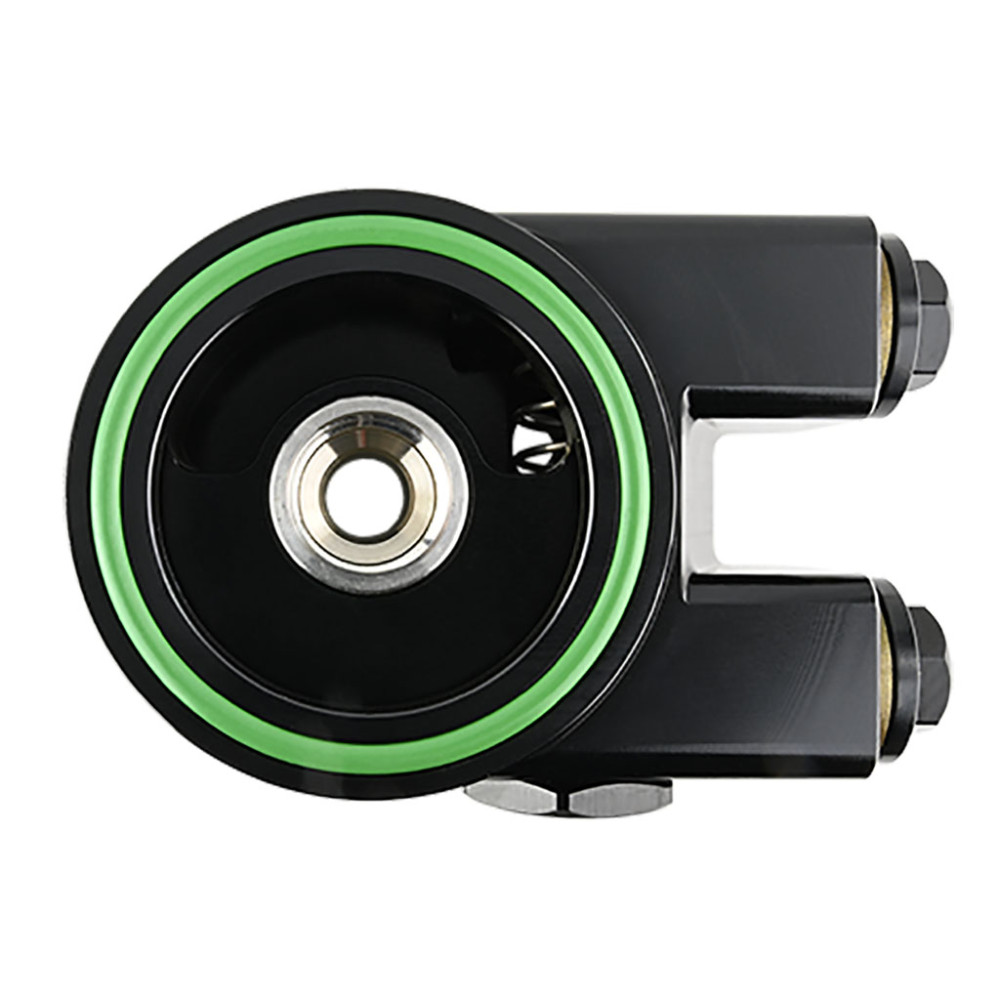

O-ring: Inner / outer diameter: 60 / 67 mm
