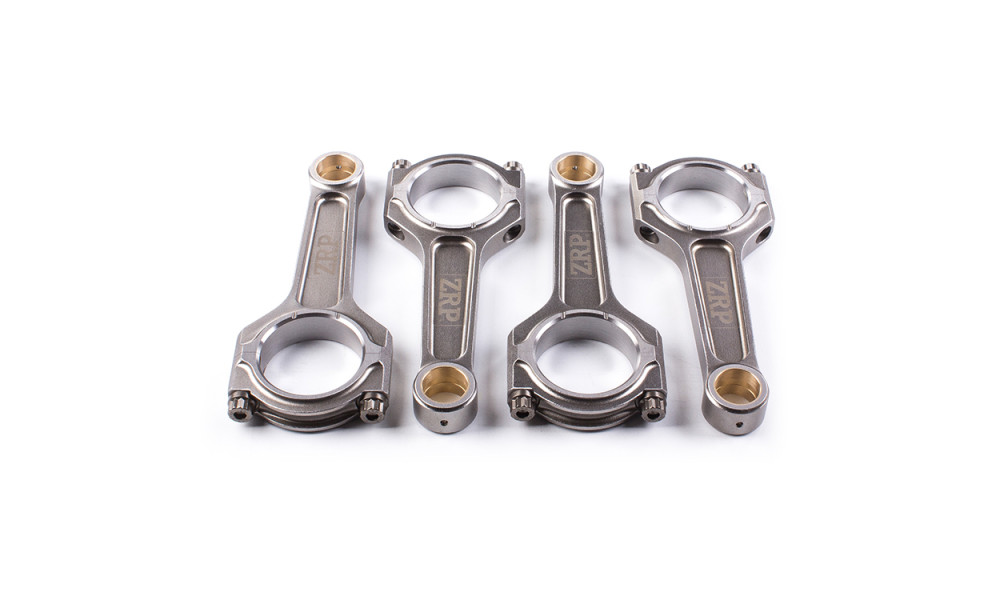

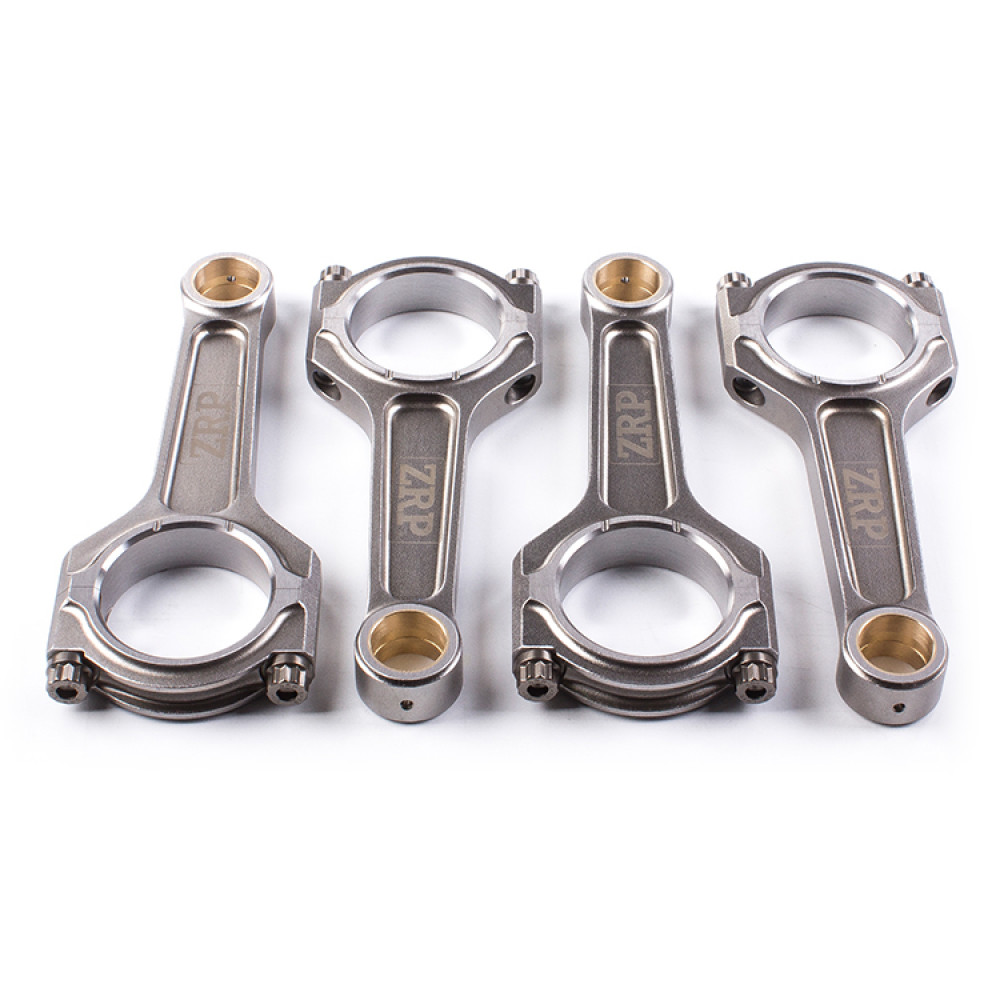

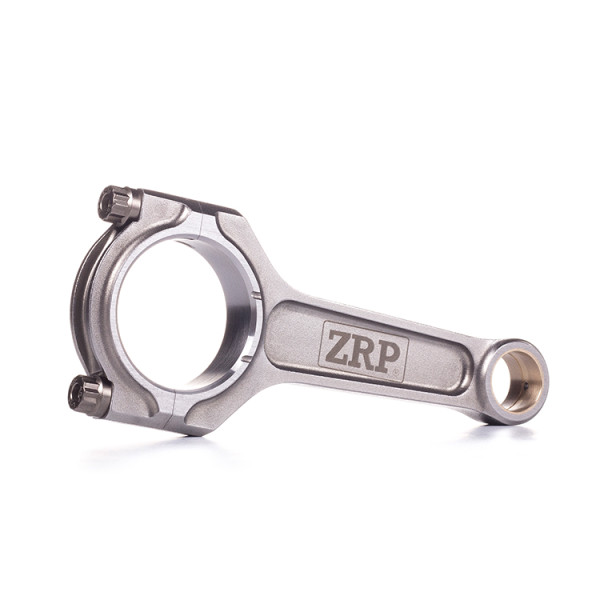

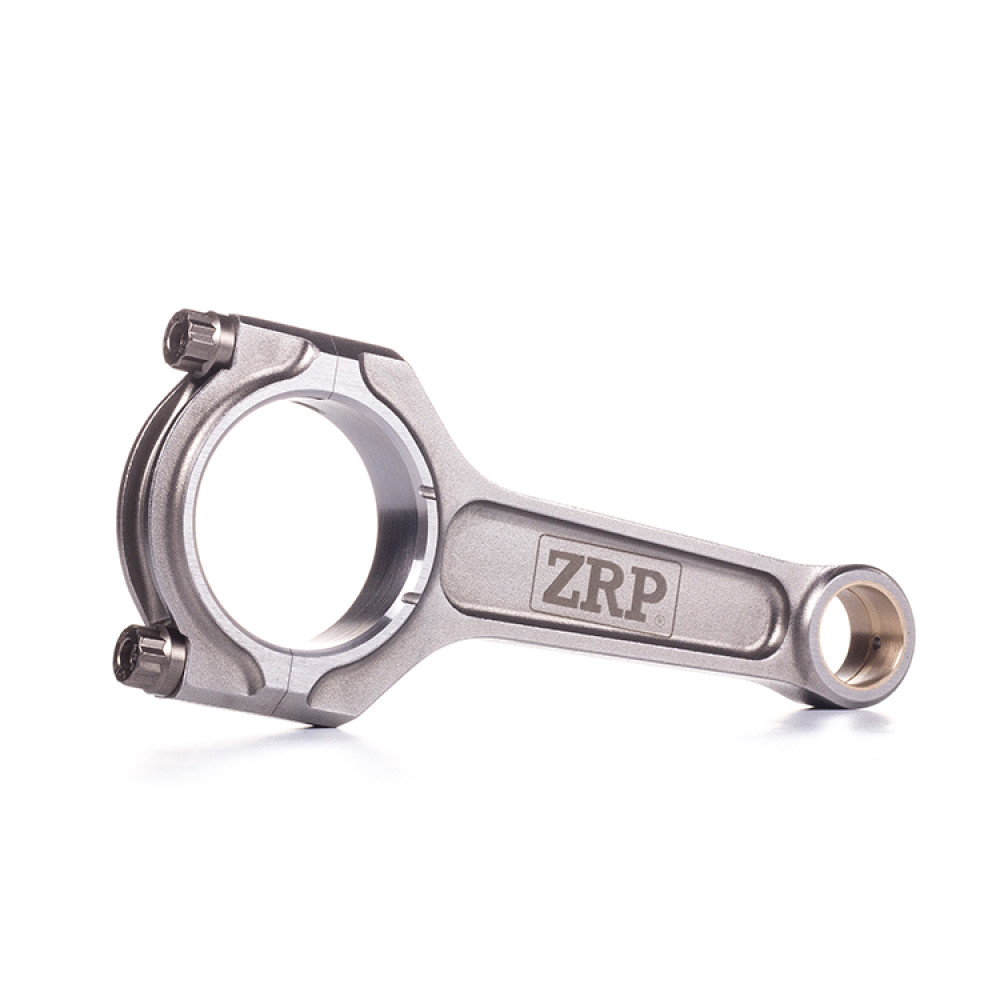

I-Beam Heavy Duty Connecting Rods for Honda K20

The I-Beam “Heavy Duty” series connecting rods are designed for high horsepower and boost applications in Honda K20 engines. Constructed from premium 4340 high tensile steel, these rods feature a specially optimized shape that ensures high performance and extreme durability.

The bushings are made from AMPCO 18 material, providing excellent resistance to wear and fatigue, and include a radial groove that acts as an oil reservoir. Each rod undergoes shot peening to relieve material stress and is multi-stage heat treated to enhance rigidity. The production process maintains tight tolerances for perfect fitment and optimized oil clearances, while controlling bend and twist.

Each connecting rod is equipped with 3/8 ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP L19 material rated at 260,000 psi. The kit includes ARP moly and comprehensive fitting instructions.

Additional Machining Processes

• Dowel sleeves for perfect fit and accurate re-assembling
• Lipped Cap Relief for improved big-end integrity in extreme applications
• Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

• I-Beam shape for extra rigidity
• Two-piece forging for enhanced strength
• Shot peening for improved fatigue life
• Magnaflux inspection to ensure consistency of forged material
• Double ribbed caps for added support
• Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue life
• CNC machining for superior tolerances, precise to 0.0002"
• Center to center maintained under 0.001" tolerance
• Finite Element Analysis (FEA) for computer-generated stress analysis of connecting rods
• Optimal balancing for weight-matched sets of ± 1 gram
