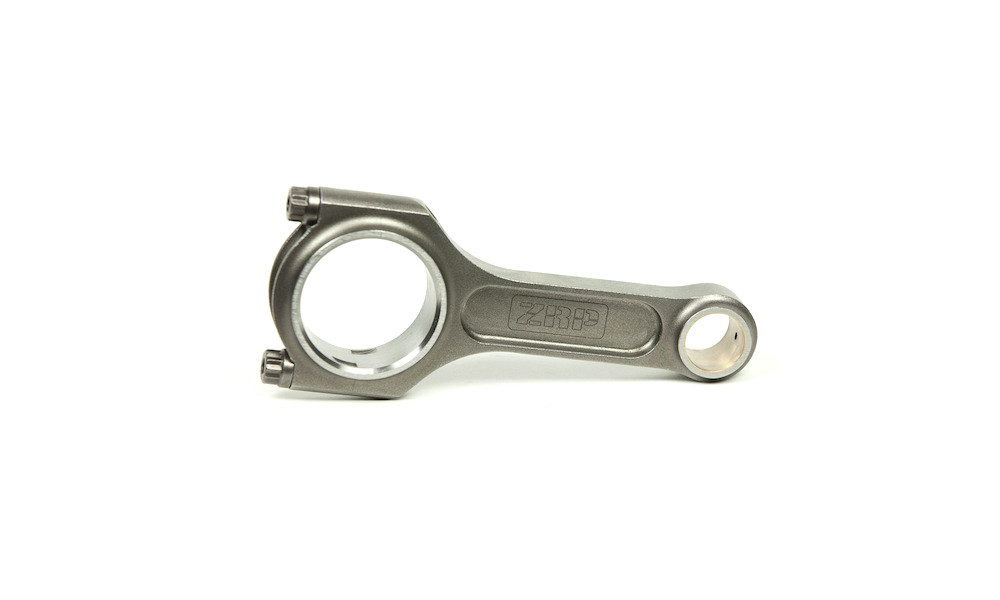

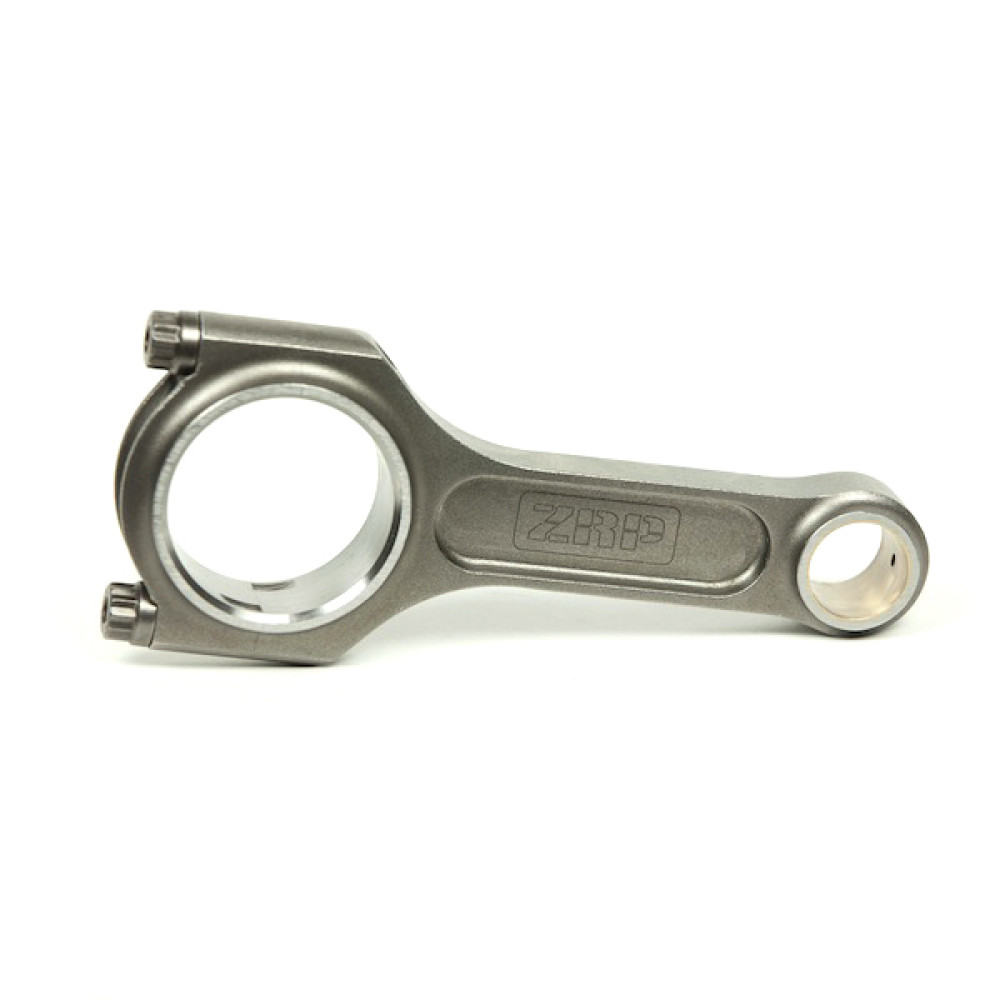

I-Beam Connecting Rods for Fiat 1.4L & 1.6L Turbo

The I-Beam Connecting Rods for Fiat 1.4L and 1.6L Turbo engines are crafted from 4340 high tensile steel, ensuring high performance, extreme durability, and enhanced rigidity. The bushings are made from an aluminum-silicon/bronze alloy and feature a radial groove for oil reservoir. Each rod undergoes shot peening to relieve material stress and is multi-stage heat treated to maximize rigidity. The precise tolerances in the manufacturing process guarantee a perfect fit while optimizing oil clearances, with strict control over bend and twist.

Each connecting rod is equipped with ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP L19 material rated at 260,000 psi. The complete kit includes ARP moly and comprehensive fitting instructions.

Application

• Fiat Uno 1.4L Turbo
• Fiat Punto 1.4L Turbo
• Fiat 1.6L Tempra
• Fiat 1.6L Ritmo

Additional Machining Processes

• Dowel sleeves for perfect fit and accurate re-assembly
• Lipped cap relief for improved big-end integrity under extreme conditions
• Grooves in thrust face for weight reduction

Technical Features of ZRP Connecting Rods

• I-Beam shape for extra rigidity
• Two-piece forging for exceptional strength
• Shot peening for enhanced fatigue life
• Magnaflux inspection to ensure the consistency of the forged material
• Double ribbed caps for added support
• Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue life
• CNC machining for superior tolerances, precise to 0.0002"
• Center-to-center maintained under 0.001" tolerance
• Finite Element Analysis (FEA) for computer-generated stress analysis of connecting rods
• Optimal balancing for weight-matched sets within ± 1 gram
