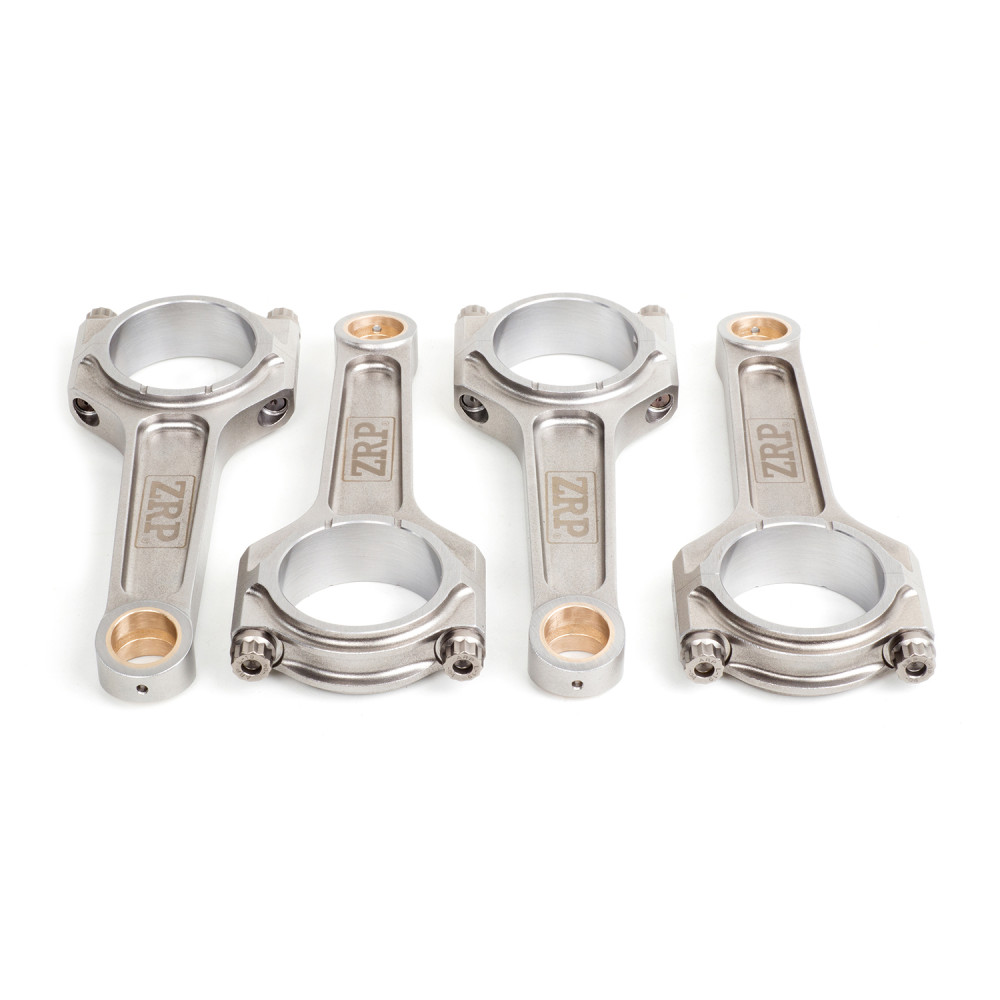

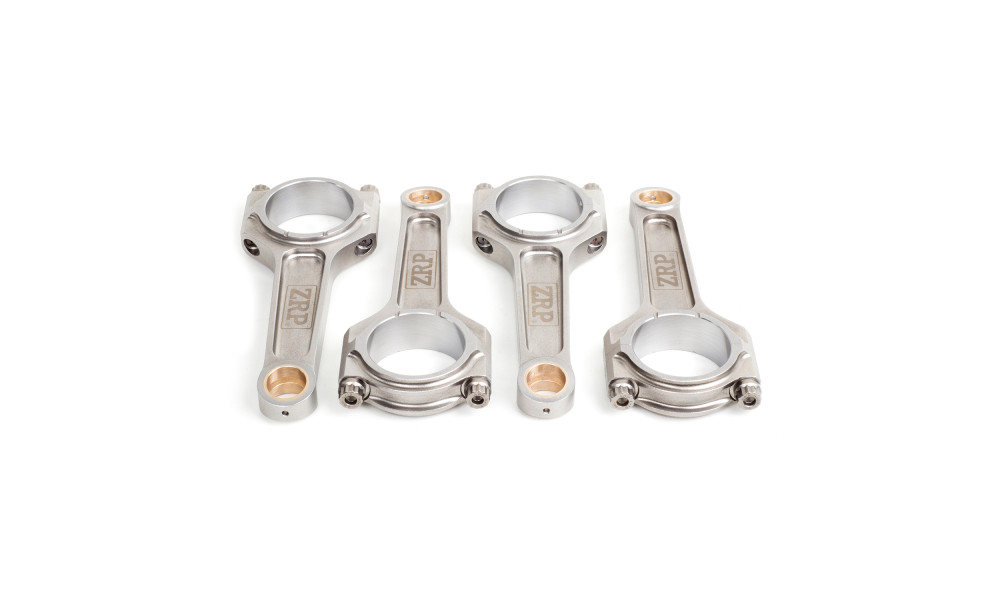

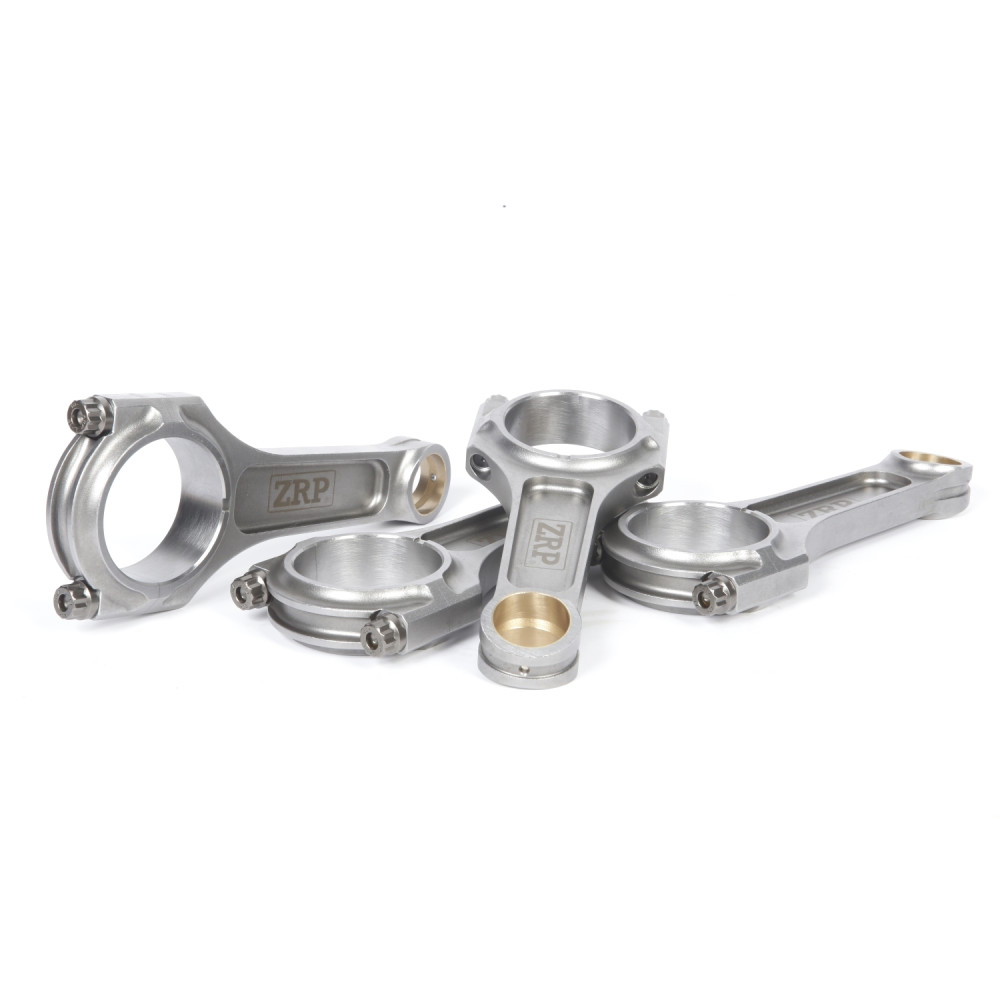

The Audi / VW 1.8L Turbo 20v (225PS) I-Beam Connecting rods are crafted from 4340 high tensile steel, ensuring high performance, extreme durability, and enhanced rigidity. Featuring a Tapered Pin End, these rods are compatible with OEM pistons. The bushings, made from AMPCO 18 material, offer excellent wear and fatigue resistance, complemented by a radial groove for oil retention. Each rod undergoes shot peening to relieve material stress and is subjected to multi-stage heat treatment to maximize rigidity. The precise tolerances achieved during production guarantee a perfect fit while optimizing oil clearances, with strict control over bend and twist. Each rod is equipped with ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP L19 material rated at 260,000 psi. The complete kit includes ARP moly and comprehensive fitting instructions.

Additional Machining Processes

• Tapered Pin End – Suitable for O.E.M. pistons
• Dowel sleeves for perfect fit and accurate re-assembling
• Lipped Cap Relief for improved big-end integrity under extreme conditions
• Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

• I-Beam Shape for enhanced rigidity
• Two-Piece forging for superior strength
• Shot Peening for extended fatigue life
• Magnaflux Inspection ensures the consistency of the forged material meets high-quality standards
• Double ribbed caps for added support
• Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life
• CNC machining for superior tolerances, precise to 0.0002″
• Center to center maintained under .001″ tolerance
• Finite Element Analysis (FEA) for computer-generated stress analysis of connecting rods
• Optimal balancing for weight-matched sets of ± 1 gram
