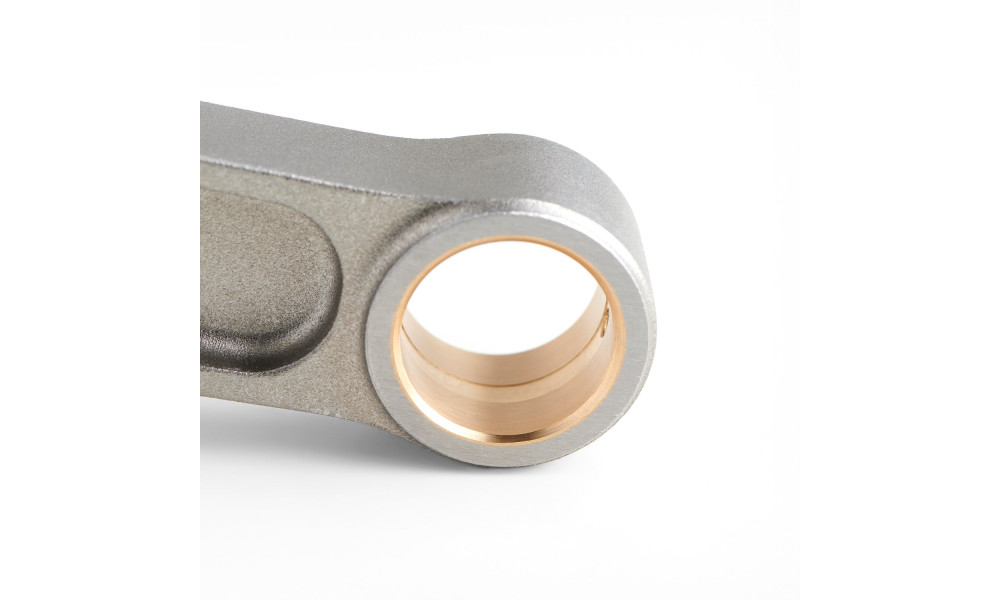

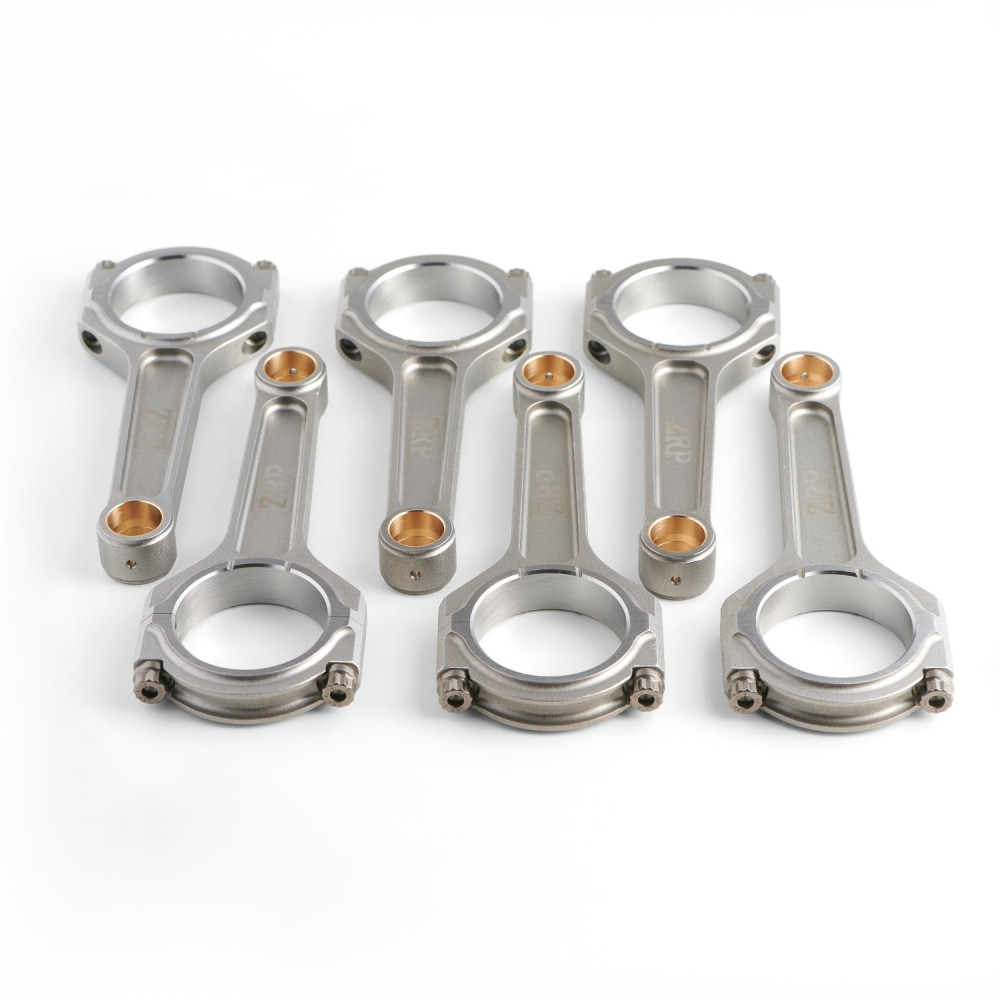

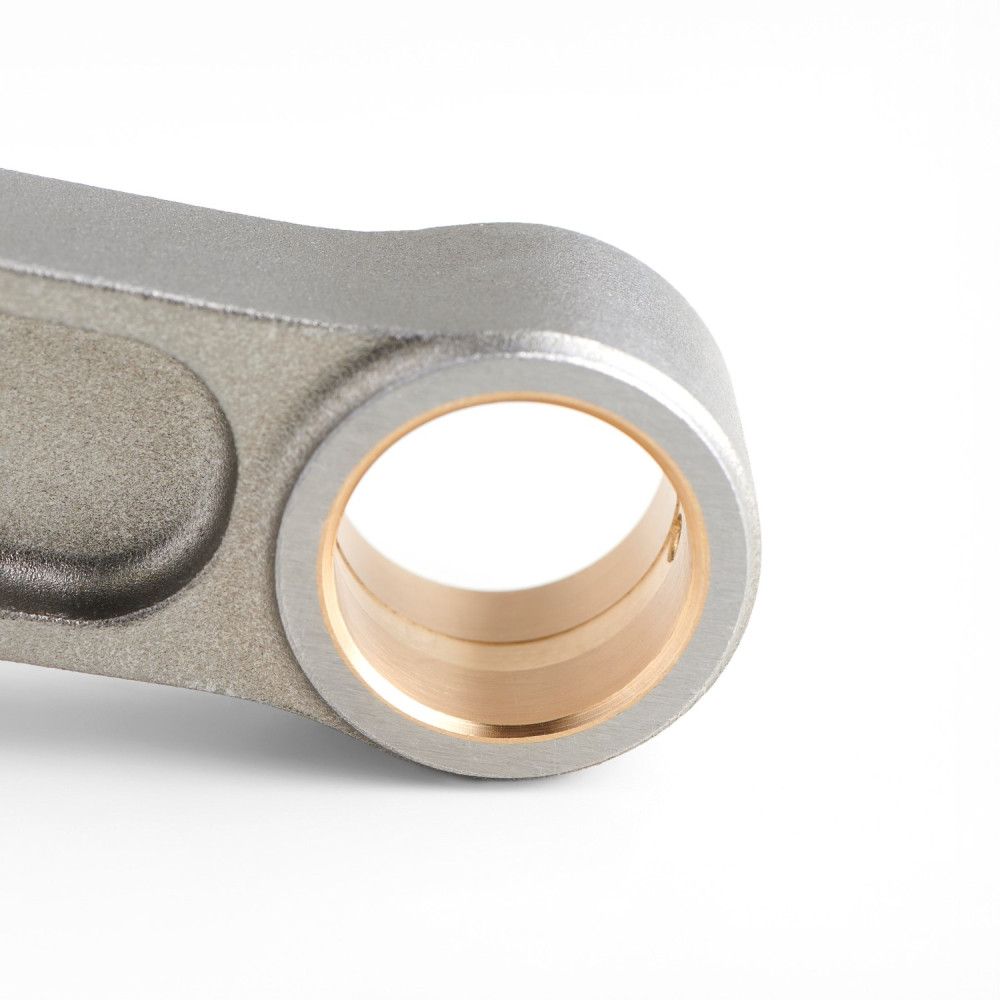

The I-Beam Connecting rods for BMW M50/M52 engine series are crafted from high-quality 4340 high tensile steel, featuring a specially optimized shape for enhanced performance and durability. The bushings, made from AMPCO 18 material, offer excellent resistance to wear and fatigue, with a radial groove acting as an oil reservoir. These rods undergo shot peening to relieve material stress and multi-stage heat treatment to boost rigidity. Tight production tolerances ensure perfect fitment and optimized oil clearances, with controlled bend and twist. Each rod includes ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP L19 material at 260,000 psi. The kit is supplied with ARP moly and full fitting instructions. Application: M20B25 / M50B25 / M52B25 / M50B28 / M52B28 / M54B30 / M52B32.

Additional Machining Processes

• Dowel sleeves for perfect fit and accurate re-assembling
• Lipped Cap Relief for improved big-end integrity at extreme application
• Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

• I-Beam Shape for extra rigidity
• Two-Piece forging for great strength
• Shot Peening for improved fatigue life
• Magnaflux Inspection ensures high-quality material consistency
• Double ribbed caps for added support
• Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life
• CNC machining for superior tolerances, precise to 0.0002″
• Center to center maintained under .001″ tolerance
• Finite Element Analysis (FEA) for stress analysis of con rods
• Optimal balancing for weight matched sets of ± 1 gram
