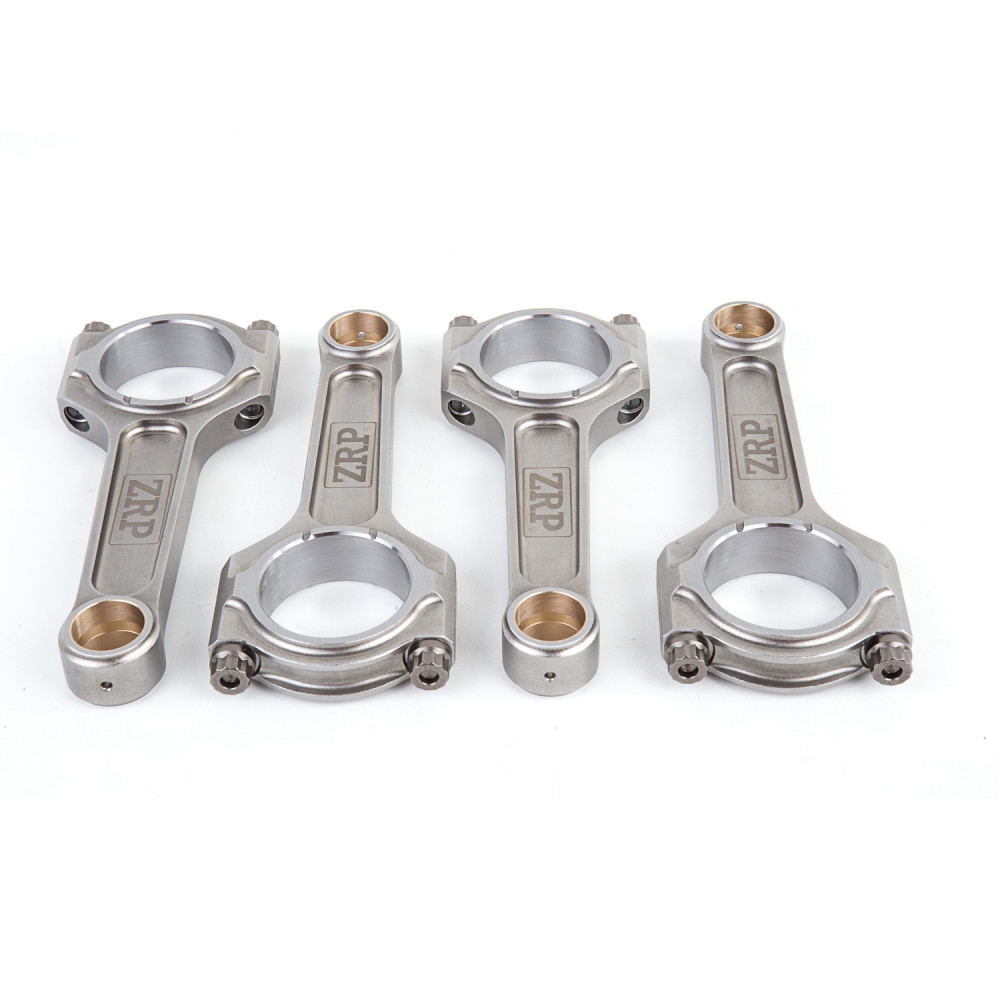

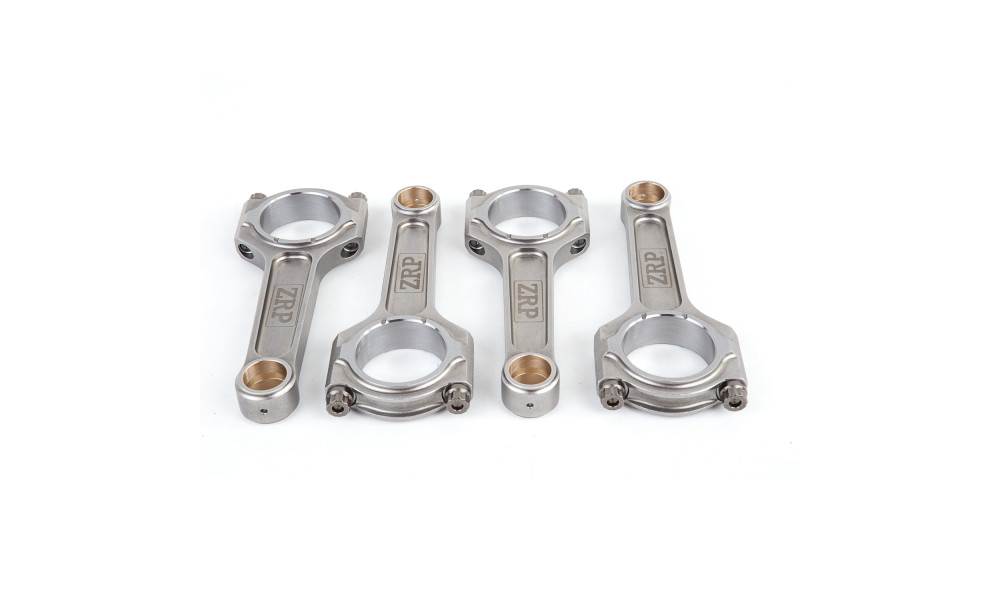

I-Beam Connecting Rods for BMW M42B18 & M44B19

The I-Beam Connecting rods are constructed from high-quality 4340 high tensile steel, designed with an optimized shape for enhanced performance and durability. The bushings utilize AMPCO 18 material, providing excellent resistance to wear and fatigue, featuring a radial groove that acts as an oil reservoir. Each rod undergoes shot peening to relieve material stress and is subjected to multi-stage heat treatment to enhance rigidity. The production process ensures tight tolerances for perfect fitment and optimized oil clearances, with controlled bend and twist.

Each rod is equipped with ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP L19 material rated at 260,000 psi. The complete kit includes ARP moly and comprehensive fitting instructions.

Additional Machining Processes

• Dowel sleeves for perfect fit and accurate re-assembling
• Lipped Cap Relief for improved big-end integrity at extreme applications
• Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

• I-Beam Shape for extra rigidity
• Two-Piece forging for great strength
• Shot Peening for improved fatigue life
• Magnaflux Inspection ensures consistency of the forged material meets high-quality standards
• Double ribbed caps for added support
• Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life
• CNC machining for superior tolerances, precise to 0.0002"
• Center to center maintained under .001" tolerance
• Finite Element Analysis (FEA) for computer-generated stress analysis of connecting rods
• Optimal balancing for weight-matched sets of ± 1 gram
