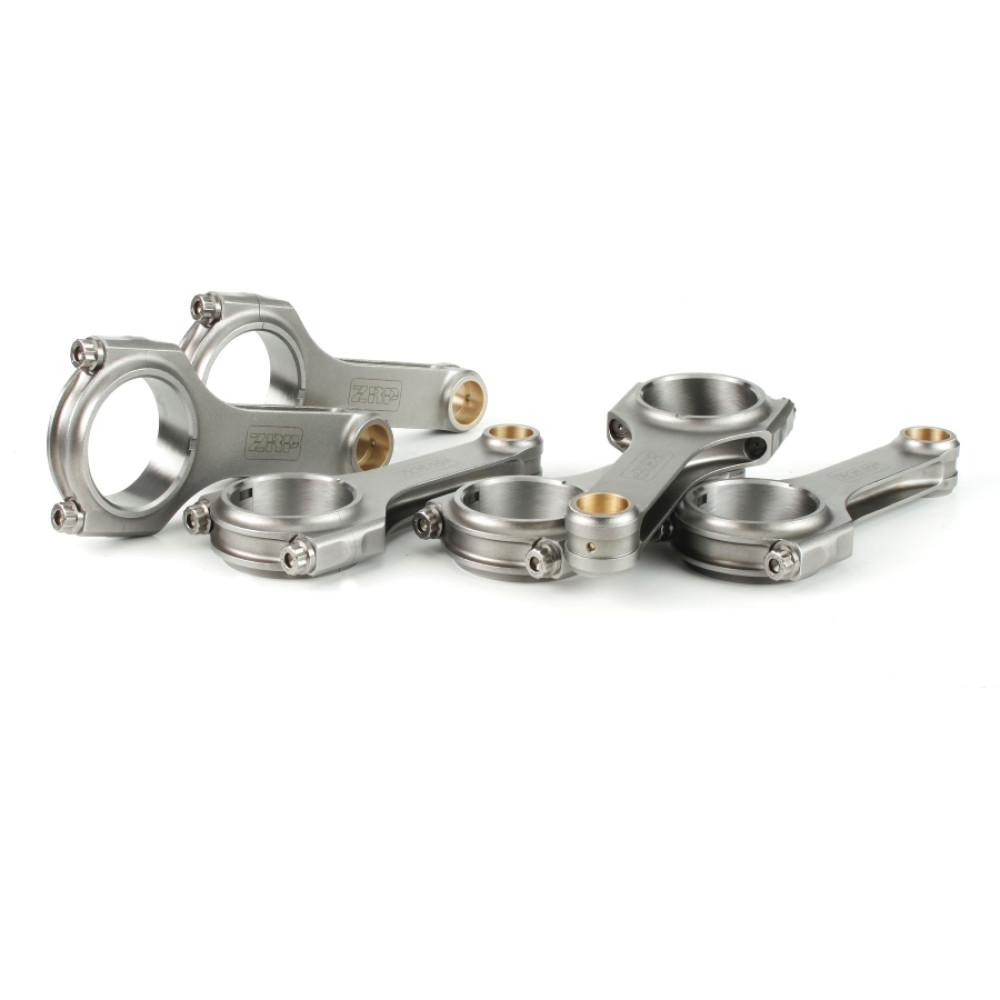

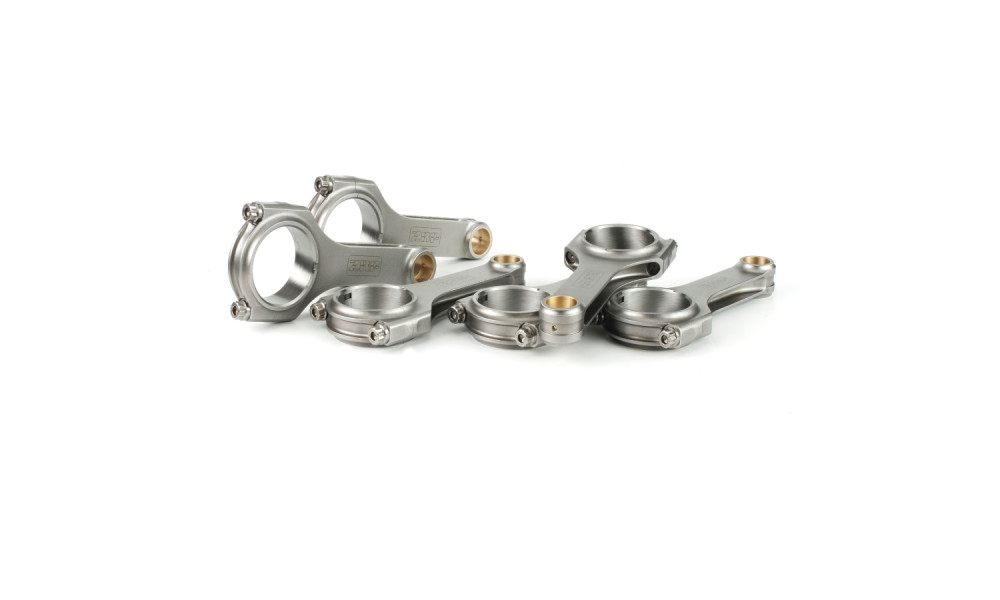

Alfa Romeo 2.5L / 3.0L V6 ZRP Connecting Rods

The ZRP Connecting Rods for Alfa Romeo 2.5L and 3.0L V6 engines feature an H-Beam design crafted from 4340 high tensile steel, ensuring high performance and exceptional durability. These rods are equipped with a ribbed pin end that reduces distortion under heavy inertial loads while minimizing weight. They undergo shot peening to relieve material stress and are subjected to multi-stage heat treatment to enhance rigidity. The precise tolerances achieved during production guarantee a perfect fit and optimized oil clearances, with controlled bend and twist.

Each rod is supplied with ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP L19 material rated at 260,000 psi. The complete kit includes ARP moly and comprehensive fitting instructions.

Additional Machining Processes

• Dowel sleeves for precise fit and accurate reassembly
• Lipped cap relief to enhance big-end integrity under extreme conditions
• Grooves in thrust face for weight reduction

Technical Features of ZRP Connecting Rods

• Two-piece forging for superior strength
• Shot peening to improve fatigue life
• Aluminum-silicon/bronze bushing with radial groove
• Magnaflux inspection to ensure material consistency meets high-quality standards
• Double ribbed caps for additional support
• Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue life
• CNC machining for superior tolerances, precise to 0.0002"
• Center-to-center maintained under 0.001" tolerance
• Finite Element Analysis (FEA) for computer-generated stress analysis of connecting rods
• Optimal balancing for weight-matched sets within ± 1 gram
