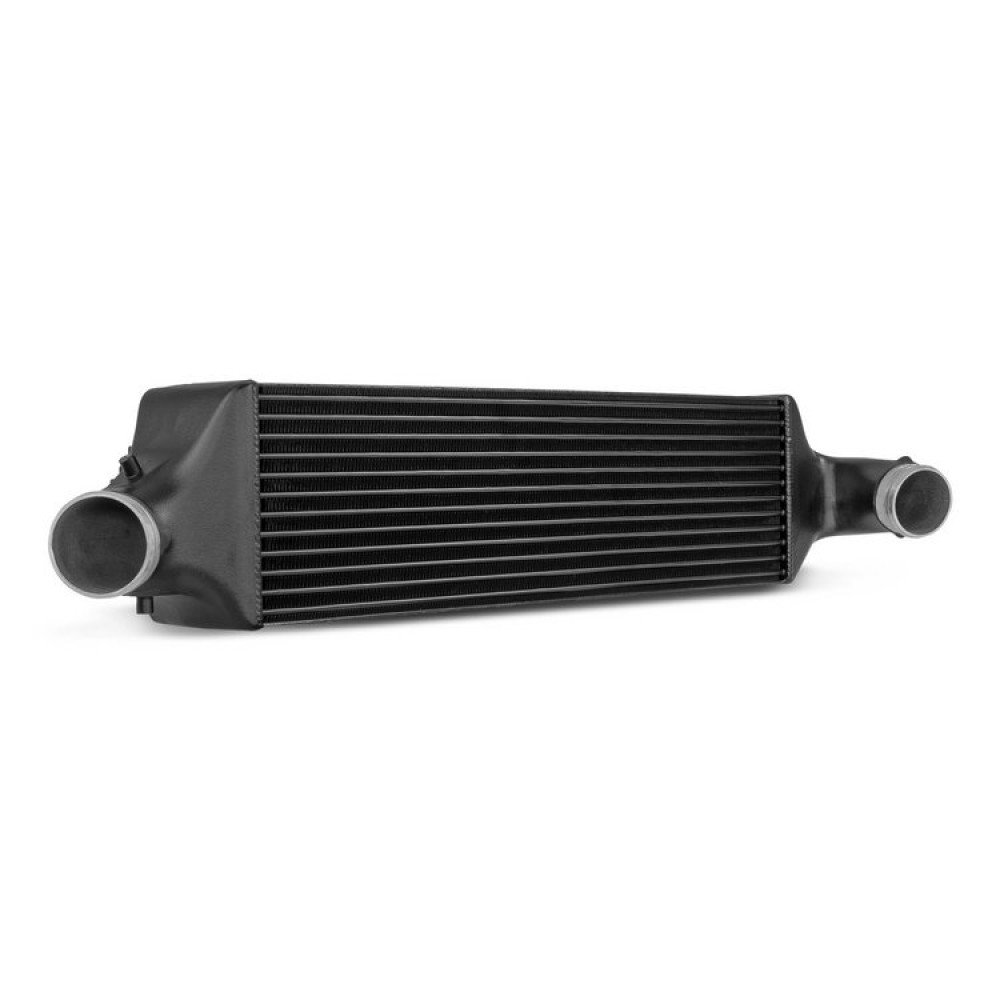

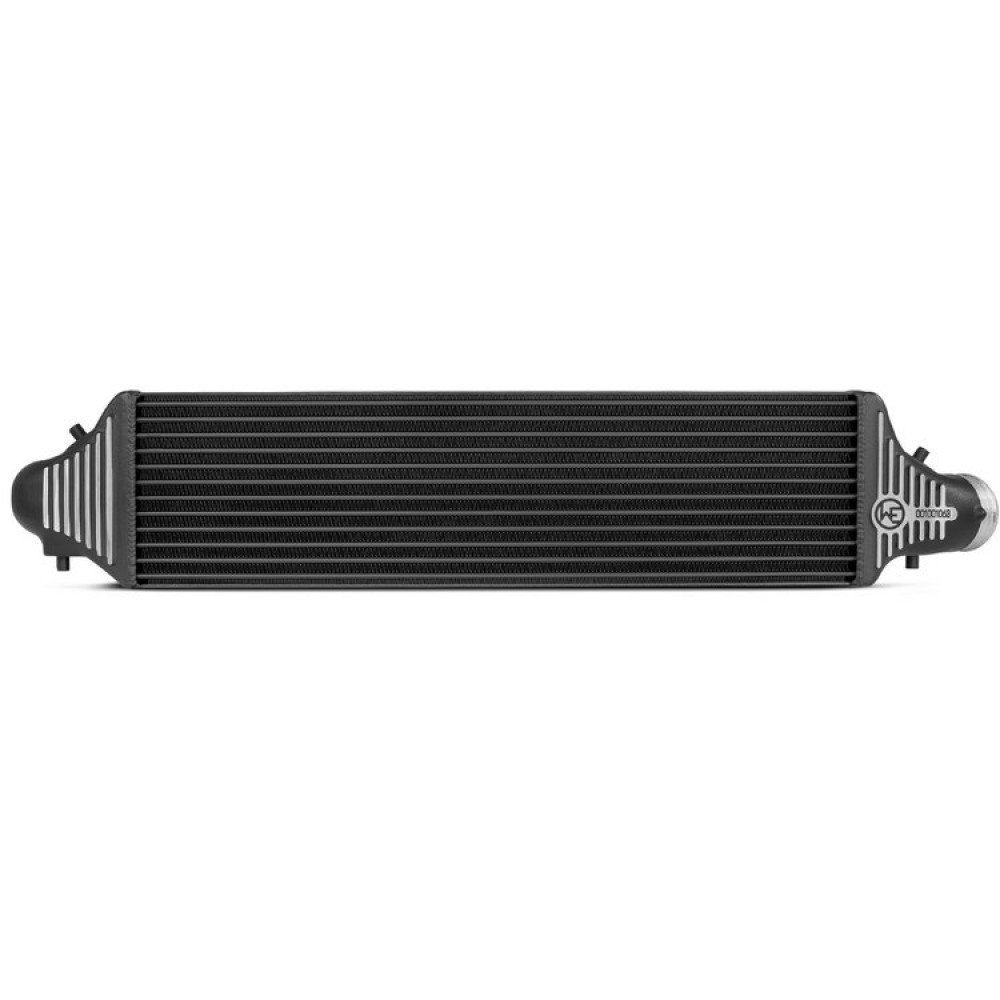

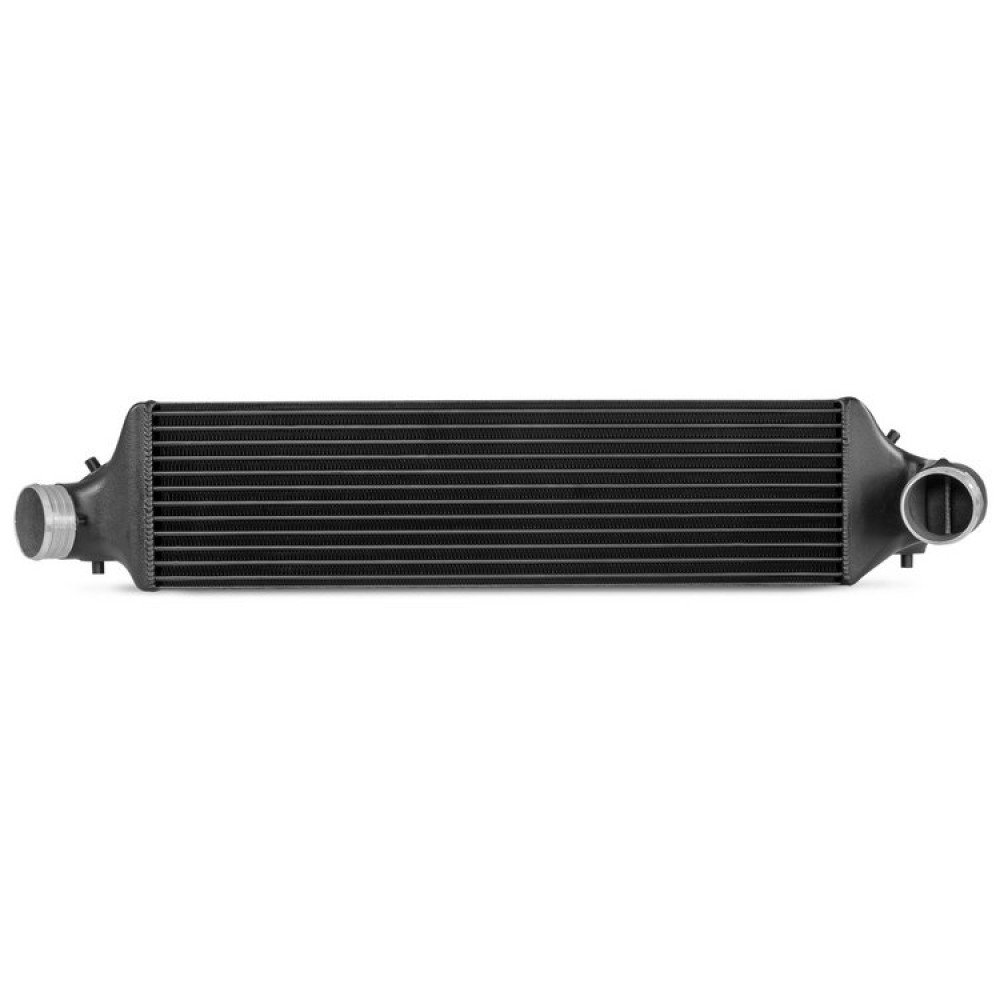

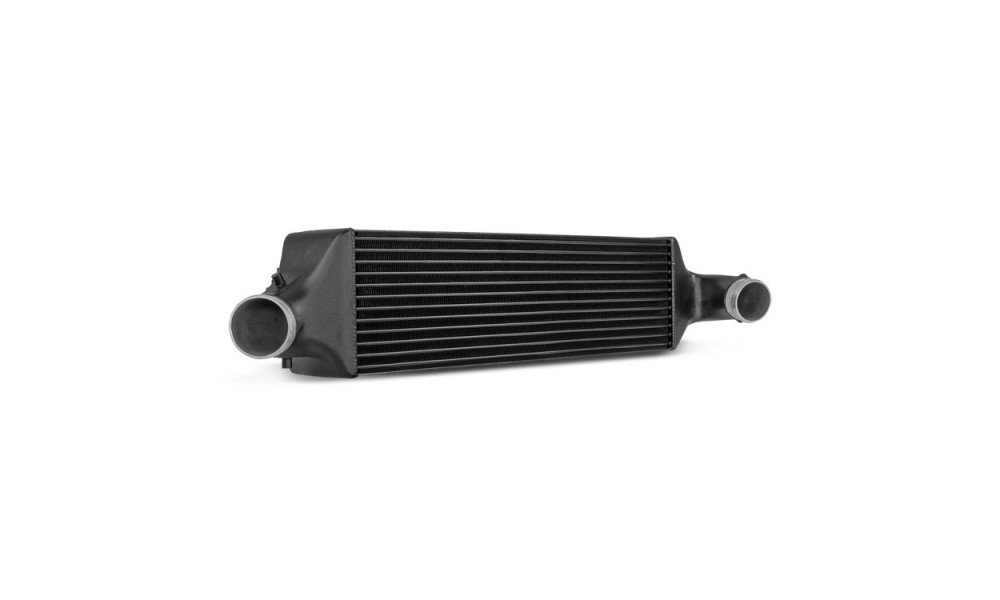

Competition Intercooler Kit – Honda Civic Type R FK2
This high-performance intercooler kit is designed for the Honda Civic Type R FK2 and targets improved charge-air cooling with minimal back pressure. It mounts to the factory locations and installs as a straightforward 1:1 replacement.
Highlights
- Competition high-performance core designed for high efficiency and low weight

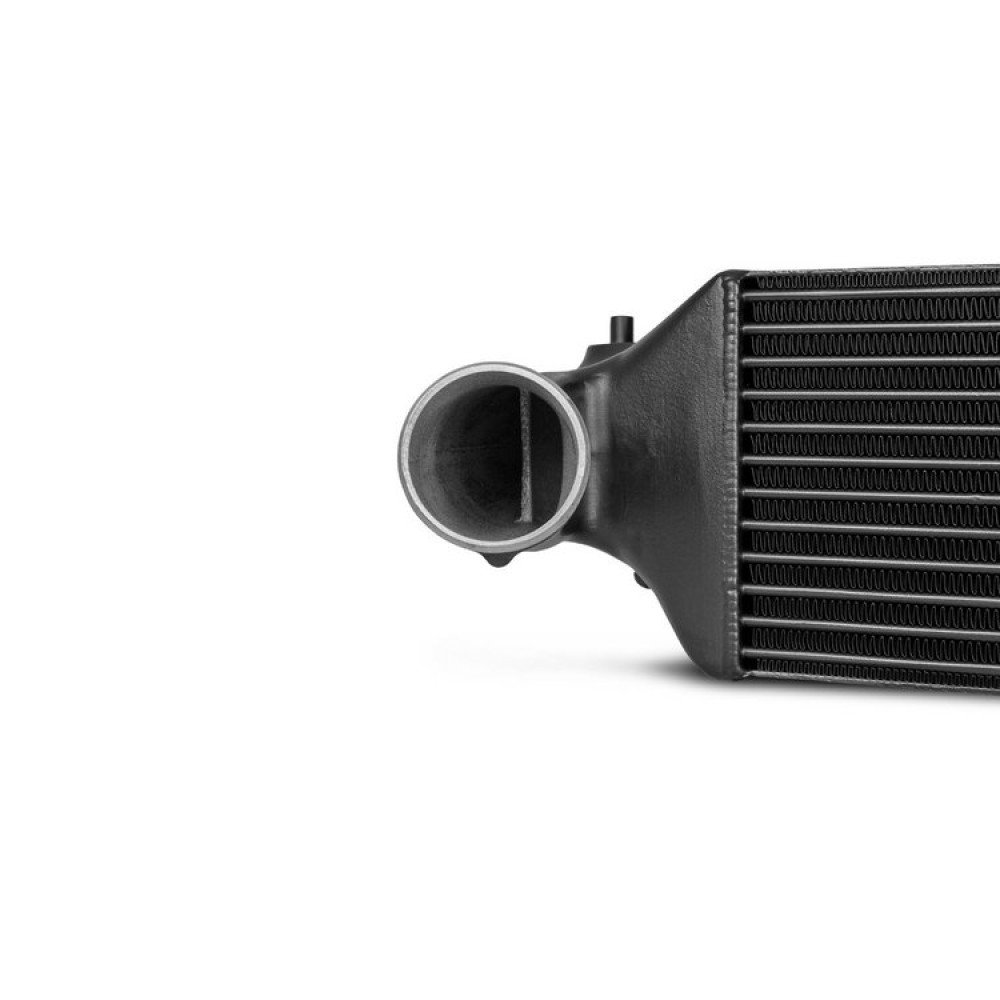

- Cast aluminum end tanks, CAD flow-optimized

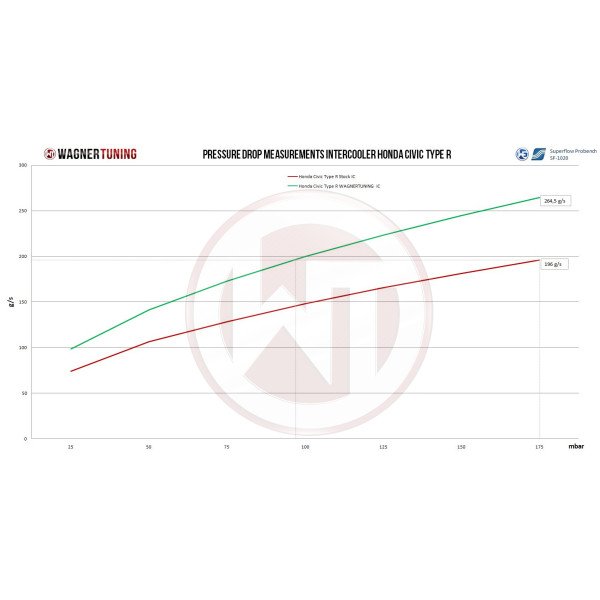

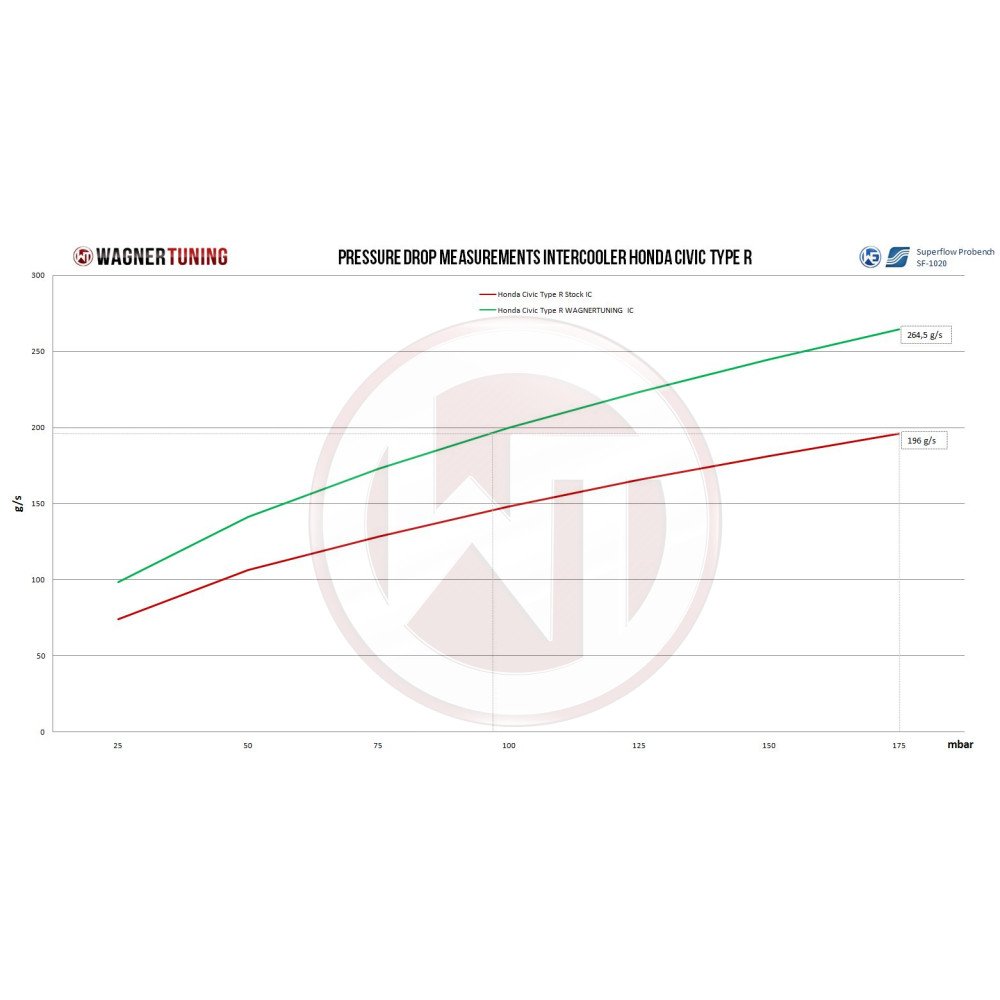

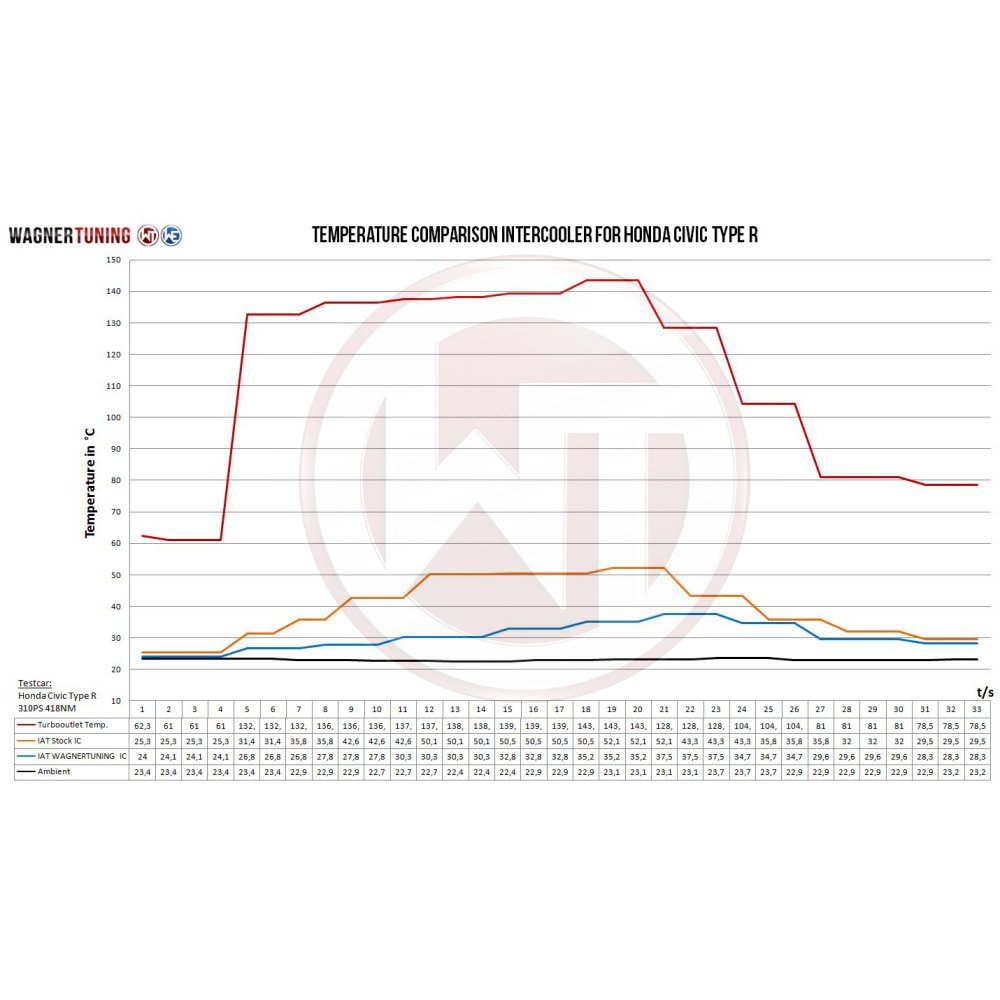

- Optimized cooling characteristics with minimal back pressure
- Direct fitment using original mounting points (1:1 exchange)
Technical Specifications
- Intercooler core dimensions: 650 mm × 175 mm × 110 mm
- Inlet diameter: Ø65 mm
- Outlet diameter (listed as “Exhaust”): Ø70 mm
- Core flow area increase vs OEM: +23%
- Charge-air volume increase vs OEM: +101%
- Intercooler weight (Wagner Tuning core): 10 kg
Core Comparison
| Core | Flow Area (A) | Volume (V) |
|---|---|---|
| OEM intercooler core | 924 cm² | 6.2 L |
| Wagner Tuning intercooler core | 1137.5 cm² | 12.5 L |

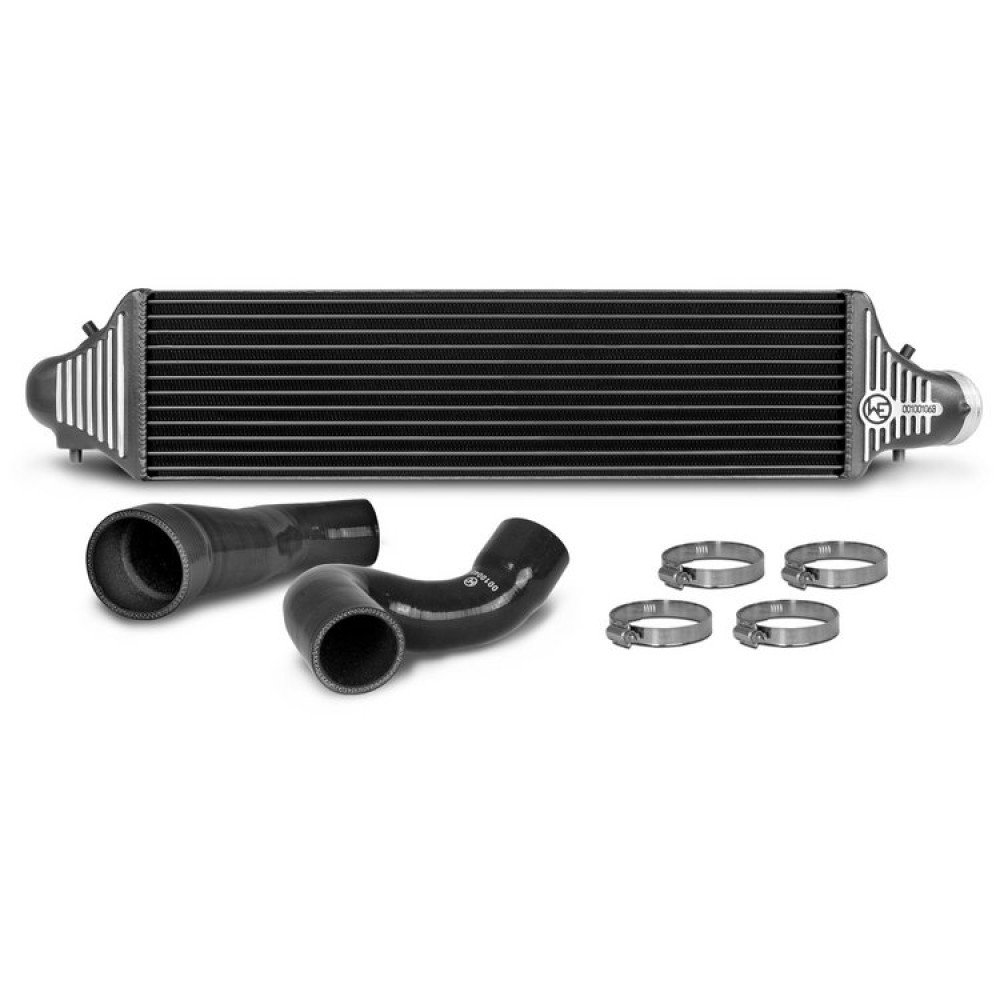

Kit Contents
- 1 × intercooler
- 2 × silicone hoses
- 4 × hose clamps
Part number: 200001086
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Honda | Civic Type R | FK2 | - |
Competition Intercooler Kit Wagner Tuning Honda for Civic Type R FK2
- Brand: Wagner Tuning
- Product id: 81450
- Availability: In Stock
-
1,003.42€
- Excl. VAT: 829.27€
EU Shipping – No Import Taxes
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Honda | Civic Type R | FK2 | - |
