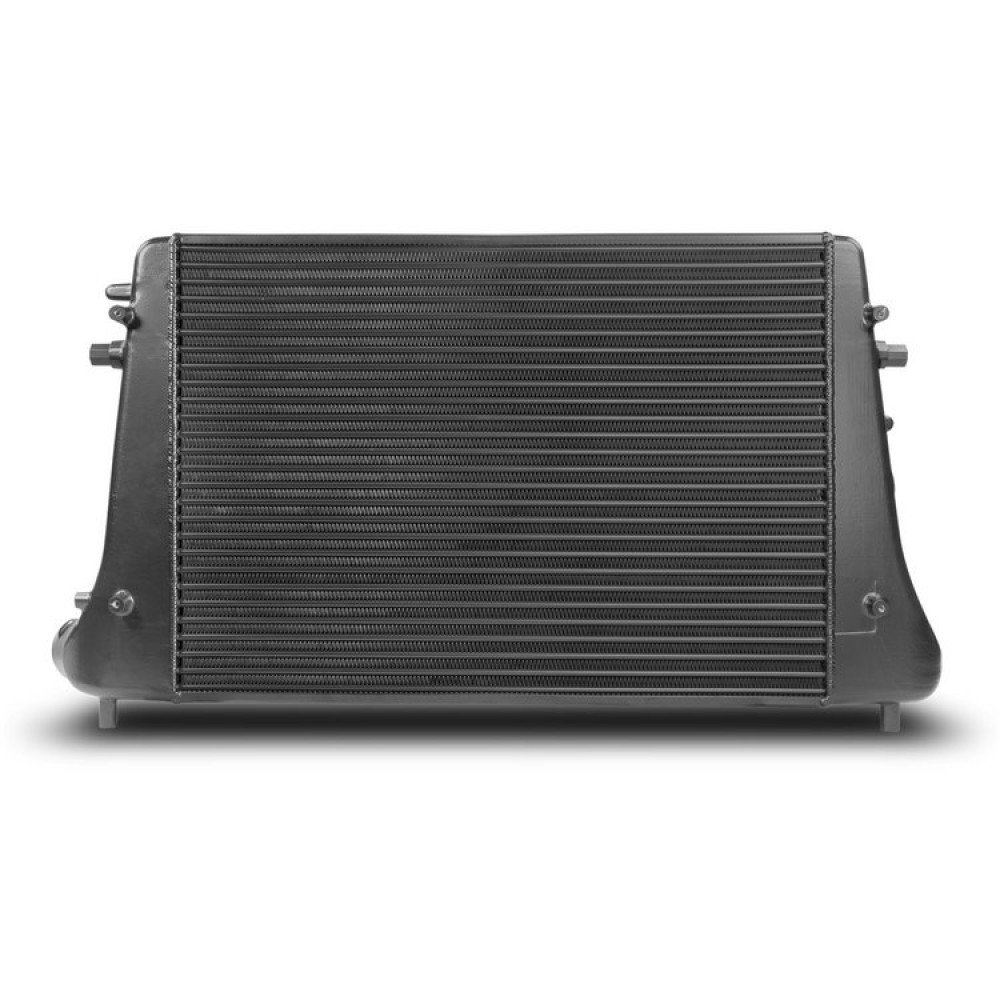

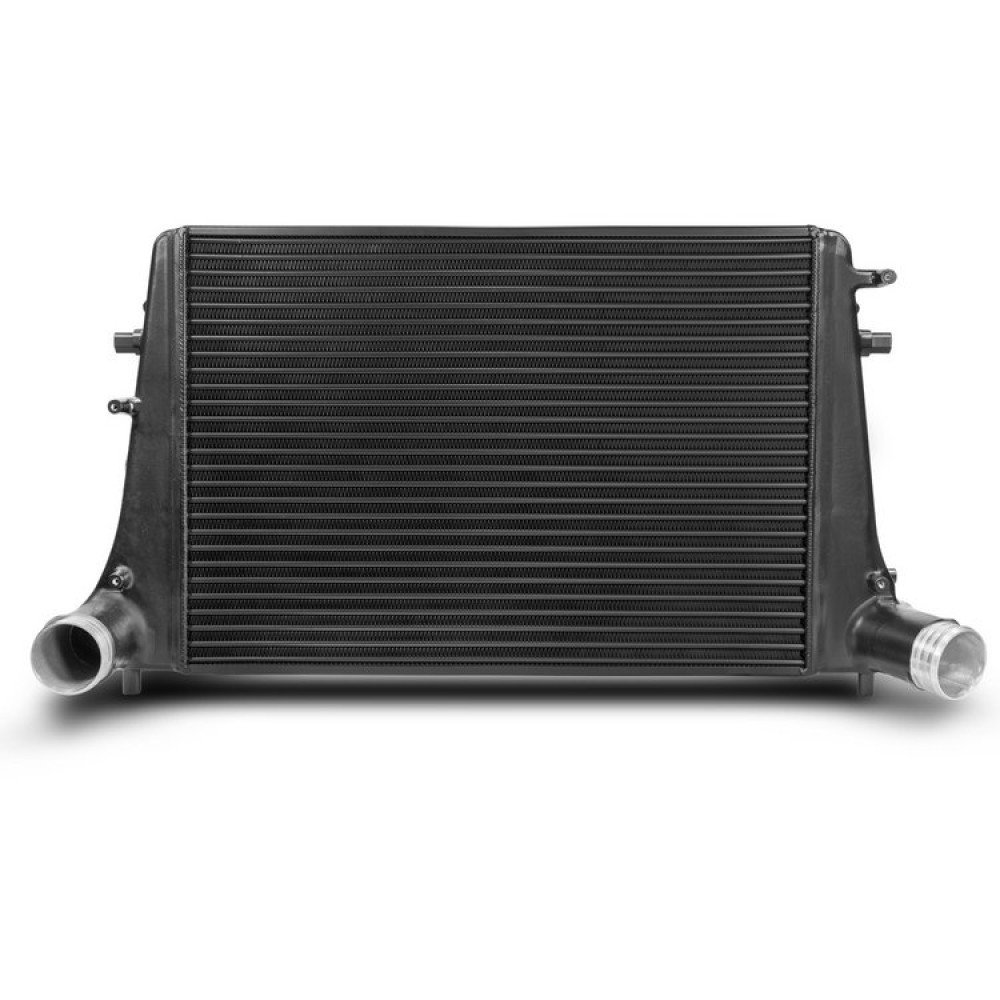

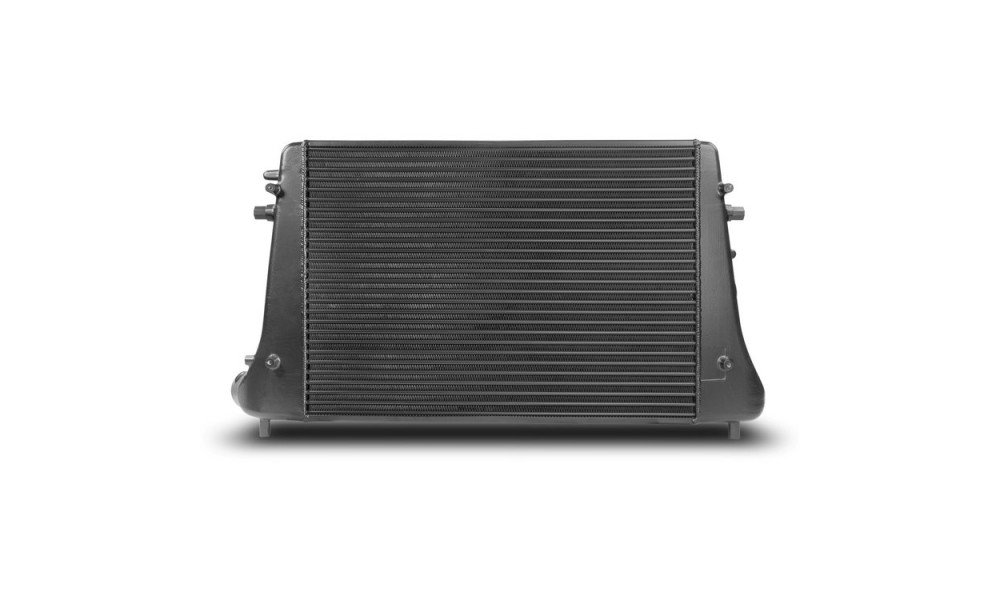

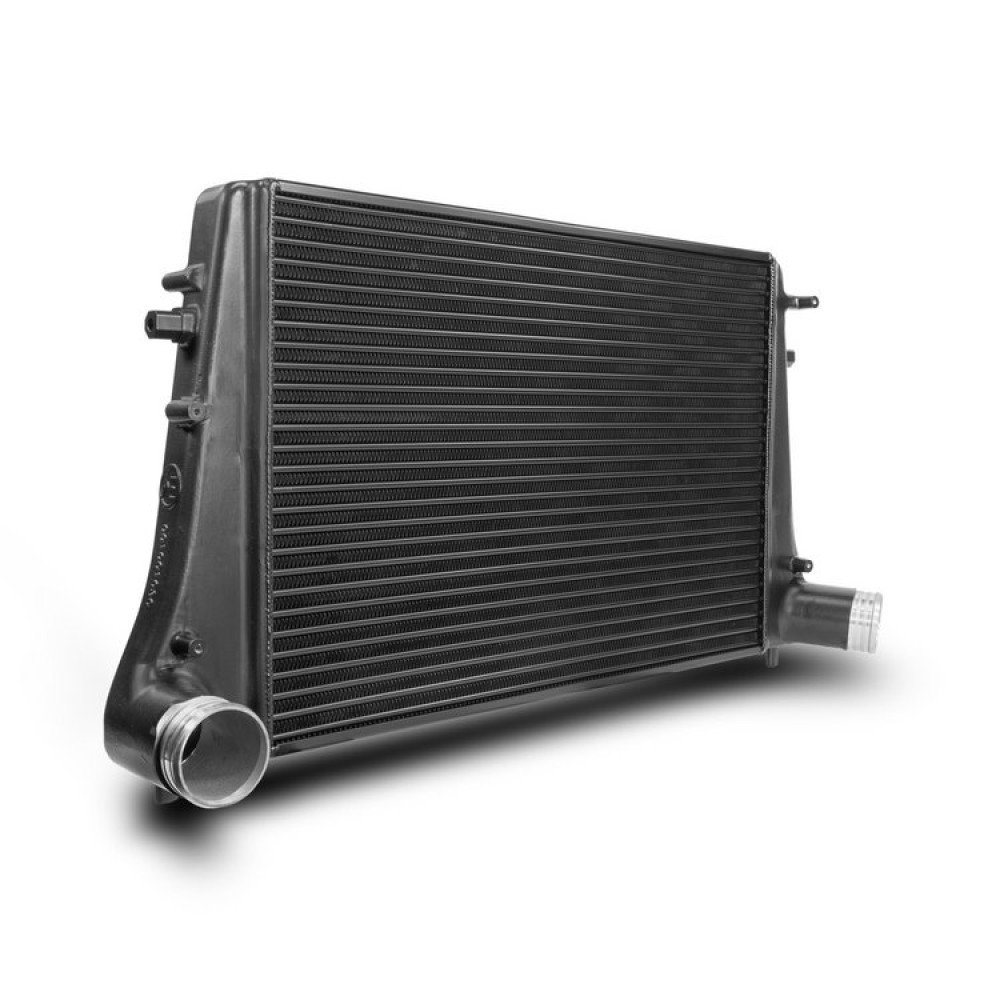

The WAGNERTUNING Competition Gen.2 intercooler kit is designed for VAG vehicles fitted with 1st and 2nd generation 2.0T(F)SI (TFSI/TSI) engines, replacing the OEM intercooler.

Core & Design

• Core dimensions: 610 mm x 440 mm x 65 mm (17.45 L)
• 10% larger flow area and 50% more intercooler volume vs. the original Audi S3 intercooler
• Competition high-performance core designed to maintain airflow to adjacent components (e.g., water cooler)
• Weight: Audi S3 OEM 8 kg / WAGNERTUNING 9.2 kg
• CAD-developed freeform end tanks with integrated cast aluminum air baffle for internal air distribution

Connections & Cooling

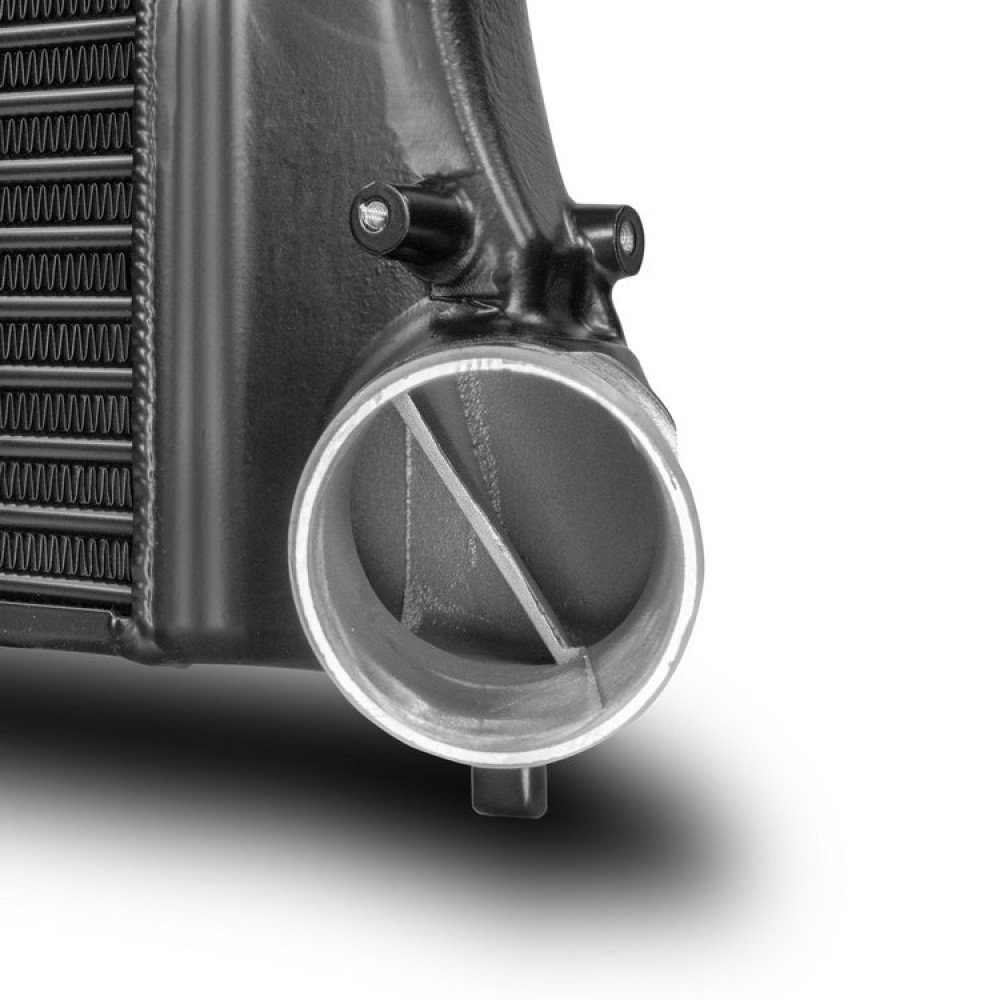

• CNC-machined hose connections enlarged to Ø67 mm
• Includes matching silicone hoses

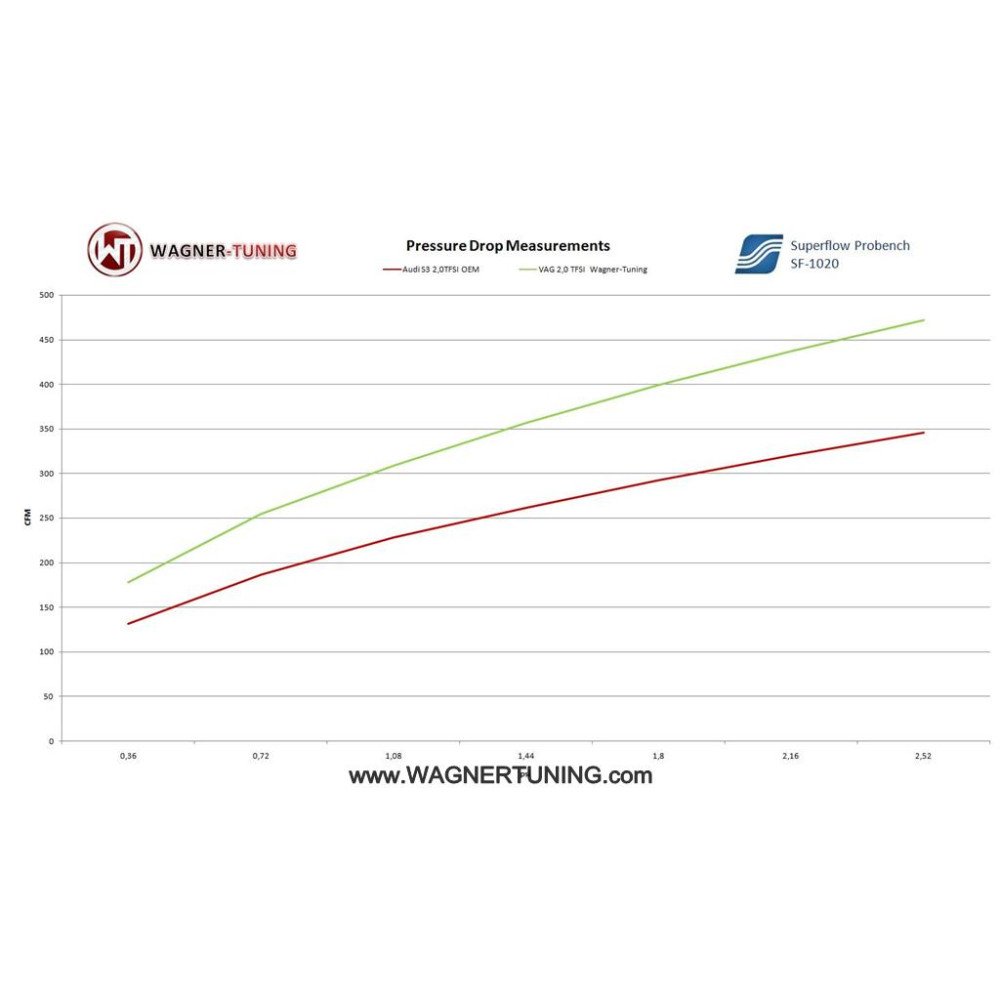

• Designed to reduce back pressure compared to the stock cooler
• Anti-corrosion coating with heat conduction properties

Installation & Quality

• Installs by replacing the OEM intercooler
• Subject to constant qualitative monitoring
• Available with TÜV parts certificate for many vehicles

Vehicle Fitment

Audi

• Audi A3 8P 1.8 TFSI 118 kW / 160 PS (2007–2012) — except convertible models with original intake
• Audi A3 8P 2.0 TFSI 147 kW / 200 PS (2004–2012) — except convertible models with original intake
• Audi S3 8P 195 kW / 265 PS (2006–2012)
• Audi TT 8J 1.8 TSI 118 kW / 160 PS (2008–2014)
• Audi TT 8J 2.0 TFSI 147–155 kW / 200–211 PS (2006–2014) (not MKB: CETA; CESA)
• Audi TTS 8J 200 kW / 272 PS (2008–2014) (not MKB: CETA; CESA)

Volkswagen

• Volkswagen Golf 5 GTI (incl. ED 30) 147–169 kW / 200–230 PS (2004–2008)
• Volkswagen Golf 6 GTI (incl. ED 35) (convertible) 155–173 kW / 211–235 PS (2009–2013)
• Volkswagen Golf 6 R (incl. convertible) 199 kW / 270 PS (2009–2013)
• Volkswagen Scirocco 3 2.0 TSI 147–162 kW / 200–220 PS (2008–2015) (EA888 Gen1–Gen3)
• Volkswagen Scirocco 3 R 195–206 kW / 265–280 PS (2009–2015) (EA888 Gen1–Gen3)
• Volkswagen EOS 2.0 TFSI 147 kW / 200 PS (2006–2009)
• Volkswagen EOS 2.0 TFSI 155 kW / 211 PS (2009–2014)
• Volkswagen Jetta 5 2.0 TFSI 147 kW / 200 PS (2005–2010)
• Volkswagen Jetta 6 2.0 TSI 147–155 kW / 200–211 PS (2010–2014)
• Volkswagen Passat B6 1.8 TSI 118 kW / 160 PS (2007–2010)
• Volkswagen Passat B6 2.0 TSI 147 kW / 200 PS (2005–2010)
• Volkswagen Passat B7 1.8 TSI 118 kW / 160 PS (2010–2012)
• Volkswagen Passat B7 2.0 TSI 155 kW / 211 PS (2010–2014)
• Volkswagen Passat CC 1.8 TSI 118 kW / 160 PS (2008–2012)
• Volkswagen Passat CC 2.0 TFSI 147 kW / 200 PS (2008–2010)
• Volkswagen Passat CC 2.0 TSI 155 kW / 211 PS (2010–2014)
• Volkswagen Beetle 2.0 TSI 147–162 kW / 200–220 PS (2011–2016)

Skoda

• Skoda Octavia 1Z 1.8 TSI 118 kW / 160 PS (2008–2013)
• Skoda Octavia 1Z MK2 RS 147 kW / 200 PS (2005–2009)
• Skoda Octavia 1Z MK2 RS 155 kW / 211 PS (2009–2013)
• Skoda Superb 3T 2.0 TSI 147 kW / 200 PS (2010–2013)

Seat

• Seat Leon 1P 1.8 TFSI 118 kW / 160 PS (2009–2012)*
• Seat Leon 1P 2.0 TFSI 136 kW / 185 PS (2005–2006)*
• Seat Leon 1P FR 147 kW / 200 PS (2006–2009)*
• Seat Leon 1P FR 155 kW / 211 PS (2009–2012)*
• Seat Leon 1P Cupra 177 kW / 241 PS (2007–2011)*
• Seat Leon 1P Cupra R 195 kW / 265 PS (2009–2012)*
• Seat Leon 1P Copa Edition 210 kW / 286 PS (2008)*
• Seat Leon 1P Cupra R310 LE 228 kW / 310 PS (2009–2012)*
• Seat Leon 1P Cupra R310 WCE 228 kW / 310 PS (2009–2012)*

* Slight modifications to the vehicle are necessary.

Part Number

200001034

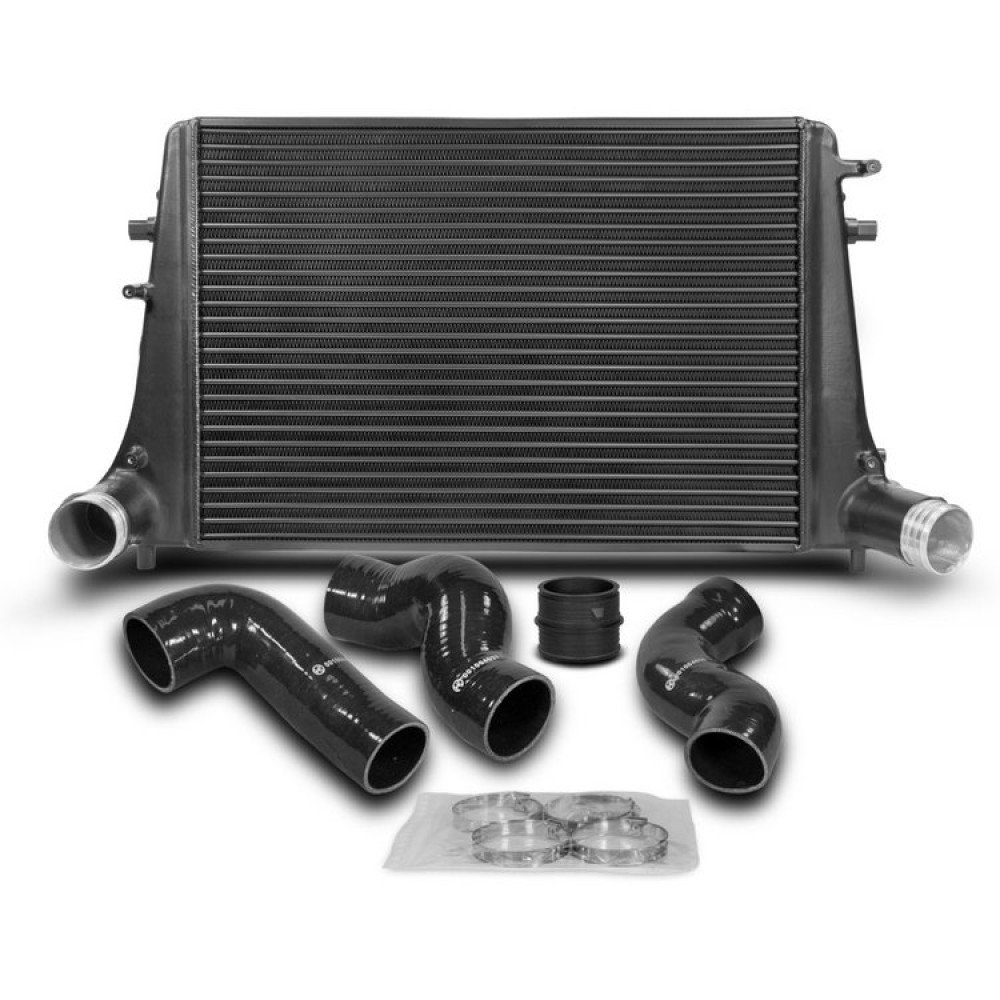

Kit Includes

• 1 intercooler
• 2 silicone hoses
• 4 hose clamps
• 1 aluminum adapter
• 1 installation instruction
