Competition Intercooler Kit for Toyota GR Yaris 1.6L Turbo

This WAGNERTUNING high-performance intercooler kit for the Toyota GR Yaris features a stepped tube-fin competition core developed specifically for the platform. Compared with the stock intercooler, it increases frontal area by 24% and core volume by 69% to improve charge-air cooling while keeping back pressure low.

Key Features

• Stepped competition core (tube-fin): 630 × 137 × 135 mm + 630 × 43 × 100 mm (14.36 L / 876 in³)
• CAD-designed, CFD-optimized cast aluminum end tanks for efficient internal airflow
• Specially prepared air baffle to maintain airflow to adjoining components (e.g., water cooler)
• Anti-corrosion powder coating with heat-conducting properties
• Direct replacement of the original intercooler (plug and play)
• Inlet/outlet increased to Ø60 mm (2.36 in)

Intercooler Comparison

• Stock intercooler: V = 8.5 L (519 in³), A = 913 cm² (141 in²)
• WAGNERTUNING intercooler: V = 14.36 L (876 in³) (+69%), A = 1134 cm² (176 in²) (+24%)

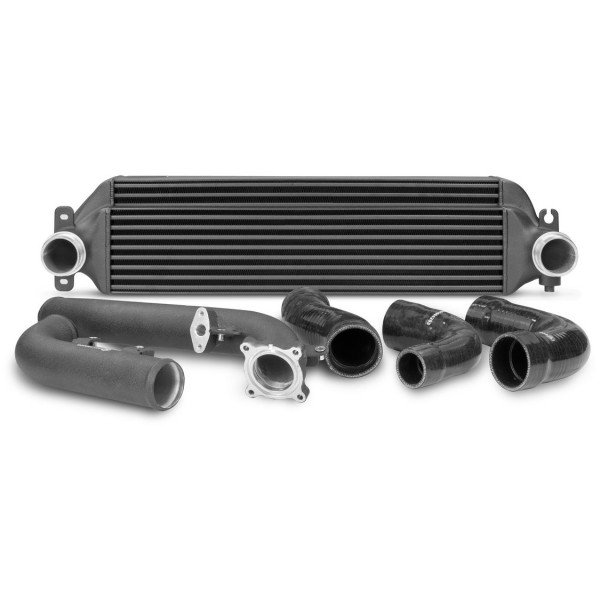

What’s Included

• 1 intercooler
• 3 reinforced silicone hoses (black)
• 1 aluminum boost pipe
• 1 aluminum charge pipe
• Mounting material
• Installation instructions
