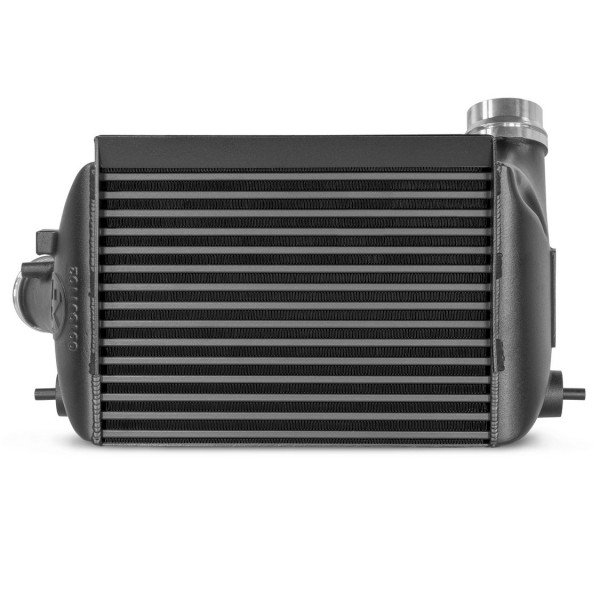

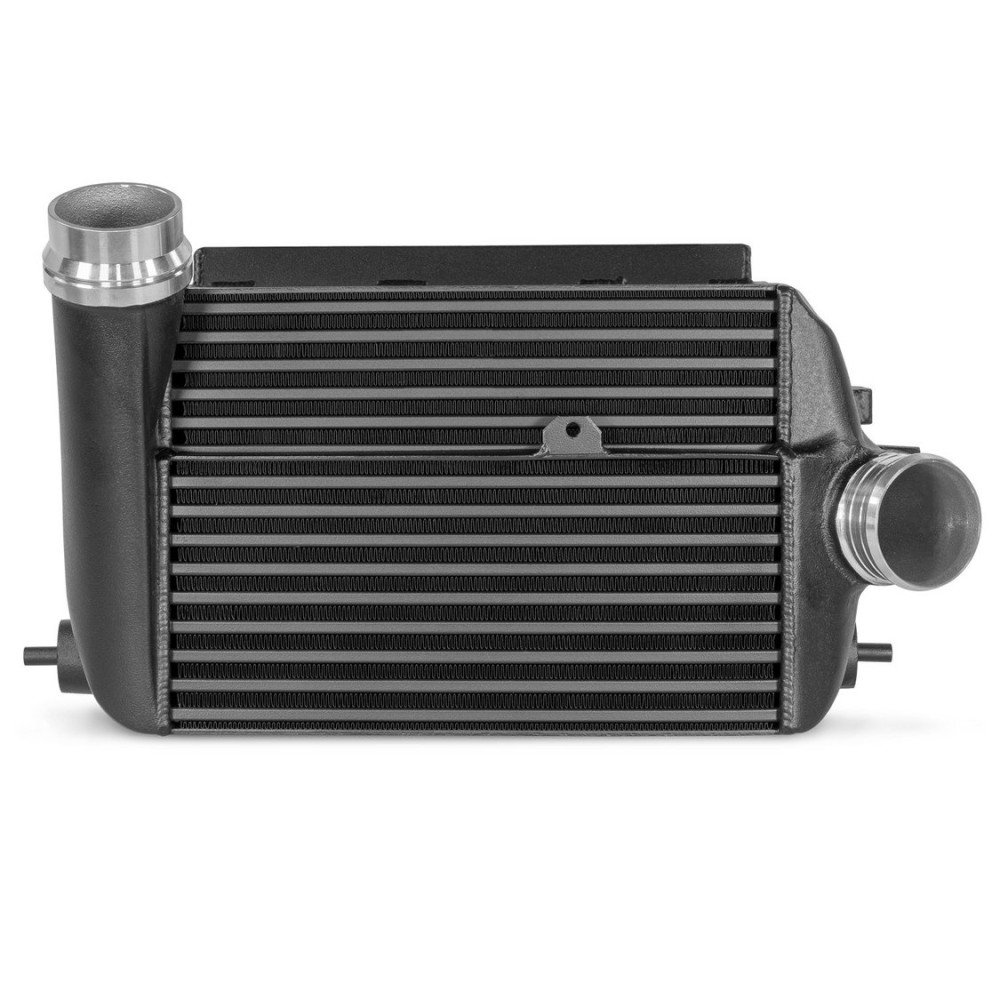

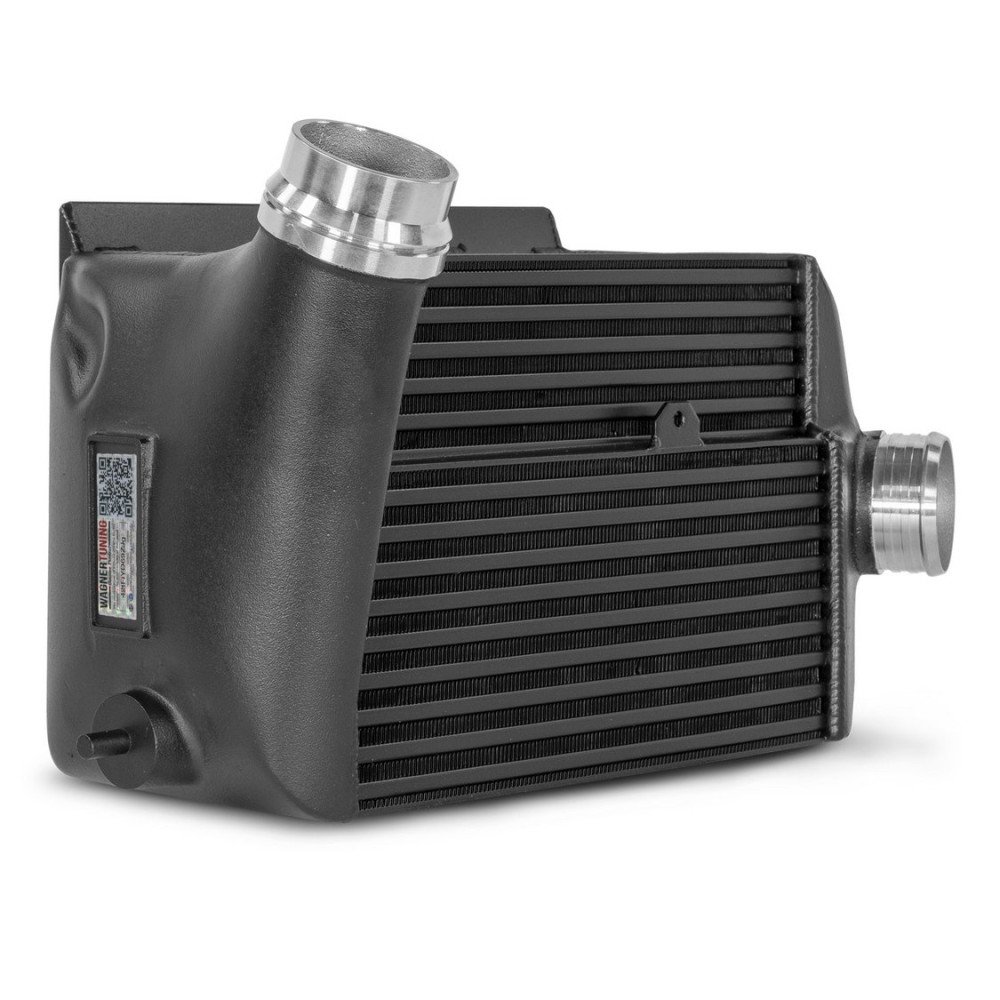

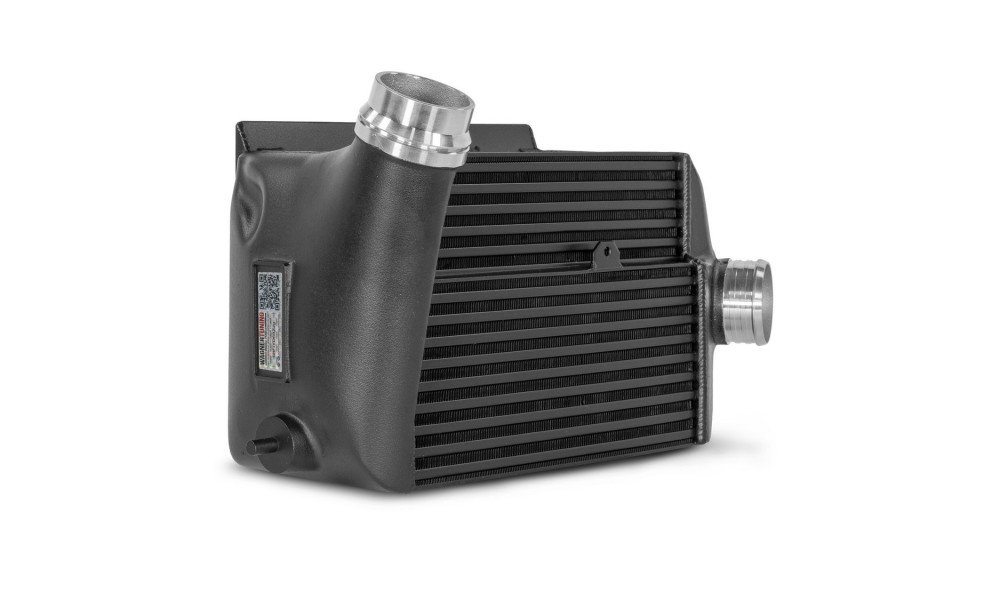

Wagner Tuning Competition Charge Air Cooler Kit – Renault Megane 4 R.S. (Trophy)
This Wagner Tuning charge air cooler kit is designed for the Renault Megane 4 R.S. (Trophy) and uses a Competition Tube-Fin core with cast aluminum end tanks developed in CAD and validated with CFD for efficient internal airflow and low back pressure.
Key features
- Competition core design (Tube Fin)
- Cast aluminum end tanks (CAD design, CFD-optimized)
- Anti-corrosion coating with good heat conduction properties
- Installs at the original mounting points
- Plug-and-play fitment using the stock click-connection
Connections
- Inlet diameter: Ø65 mm (2.56 in)
- Outlet diameter: Ø67.2 mm (2.64 in), stock click-connection
Intercooler core specifications
| Stock intercooler | Wagner Tuning intercooler | |
|---|---|---|
| Core dimensions | 290 × 233 × 115 mm (11.4 × 9.2 × 4.5 in) | 315 × 227 [142] × 165 [150] mm, stepped (12.4 × 8.9 [5.6] × 6.4 [5.9] in) |
| External core volume | 7.77 L (474 in³) | 11.4 L (696 in³) |
| Frontal flow area (A) | 675 cm² (104.6 in²) | 715 cm² (110.8 in²) |

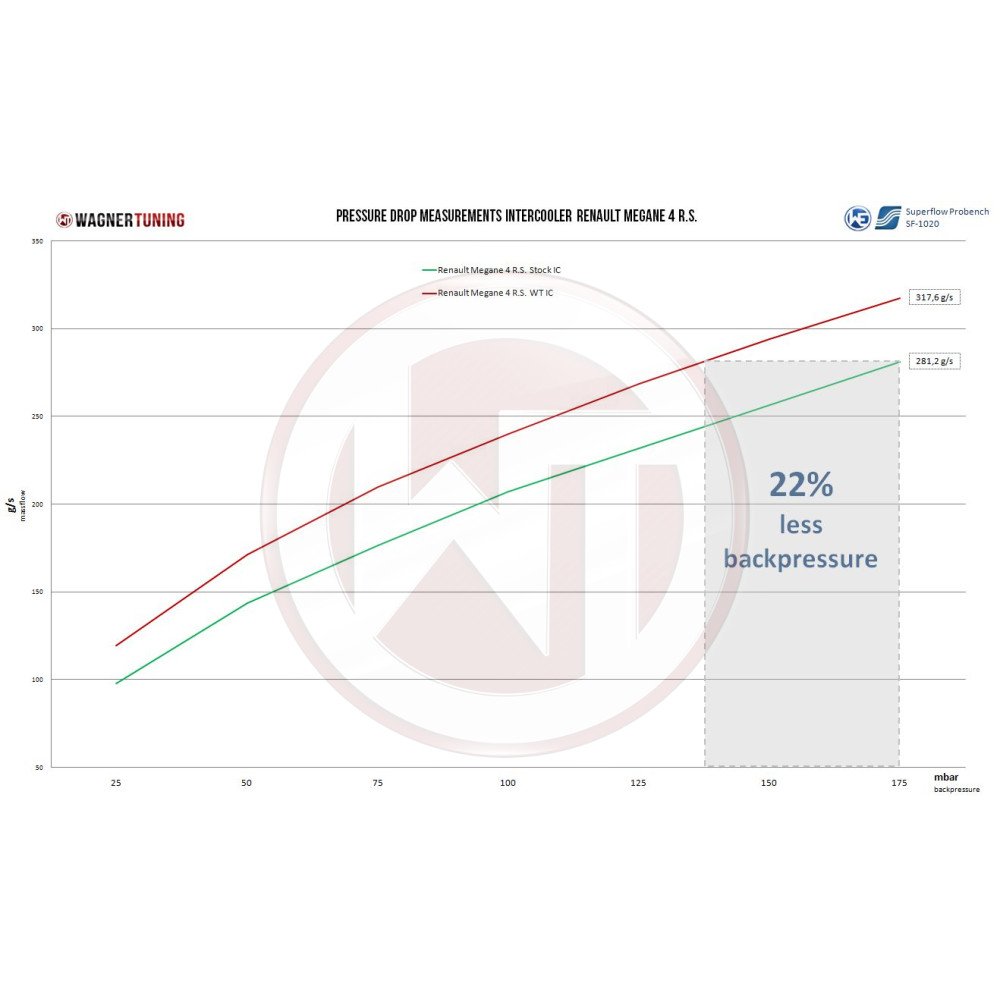

Compared to the stock intercooler, the Wagner core provides a 6% larger frontal flow area and 47% more external core volume.
Part number
200001145

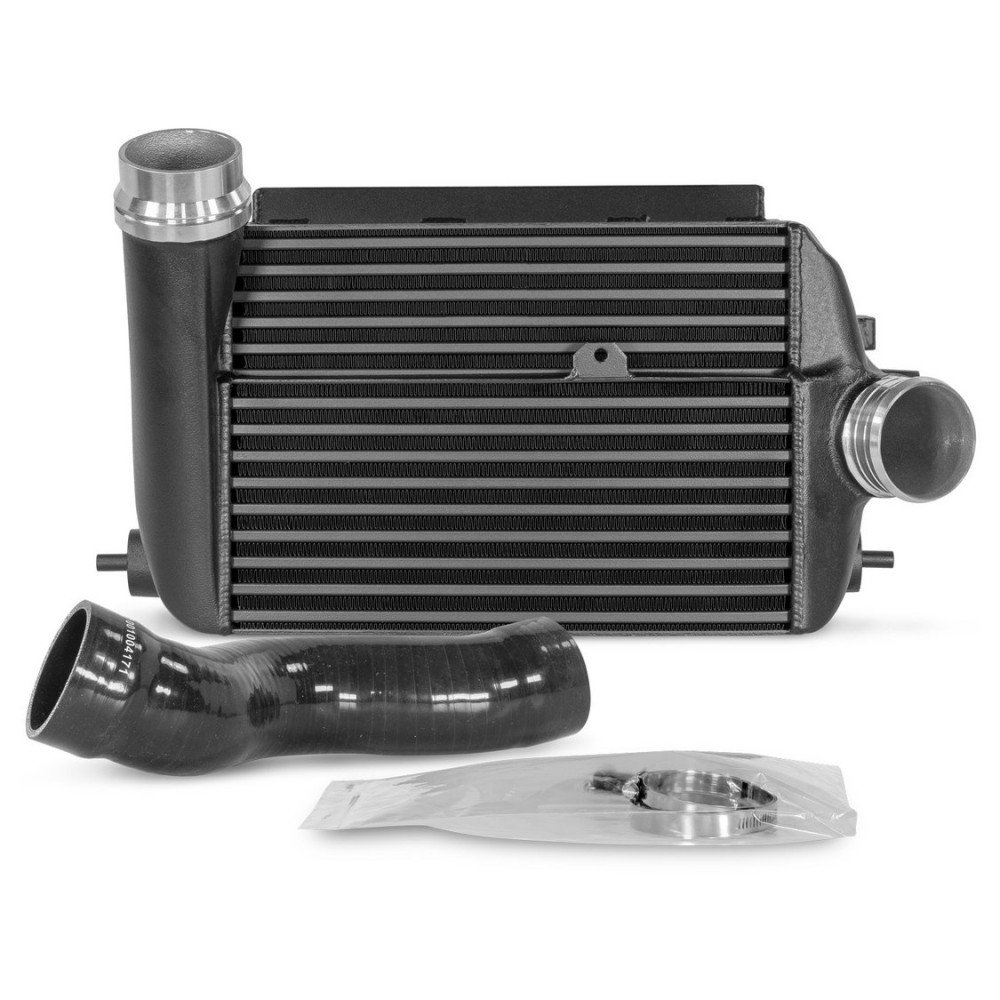

Kit contents
- 1 intercooler
- 1 black silicone hose
- 1 set of mounting material
- 1 installation instruction
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Renault | Megane 4 R.S. (Trophy) | Megane 4 | - |
Competition Intercooler Kit Wagner Tuning for Renault Megane 4RS
- Brand: Wagner Tuning
- Product id: 81442
- Availability: In Stock
-
777.16€
- Excl. VAT: 642.28€
EU Shipping – No Import Taxes
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Renault | Megane 4 R.S. (Trophy) | Megane 4 | - |
