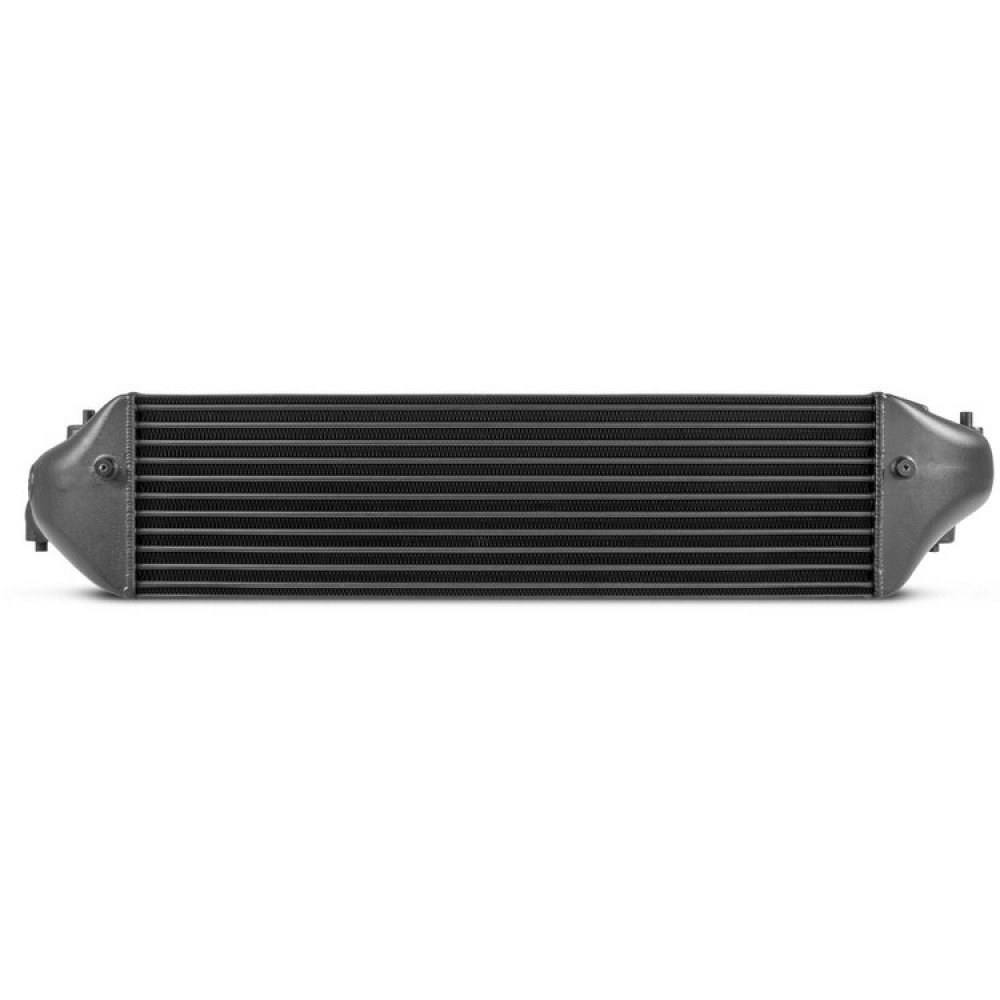

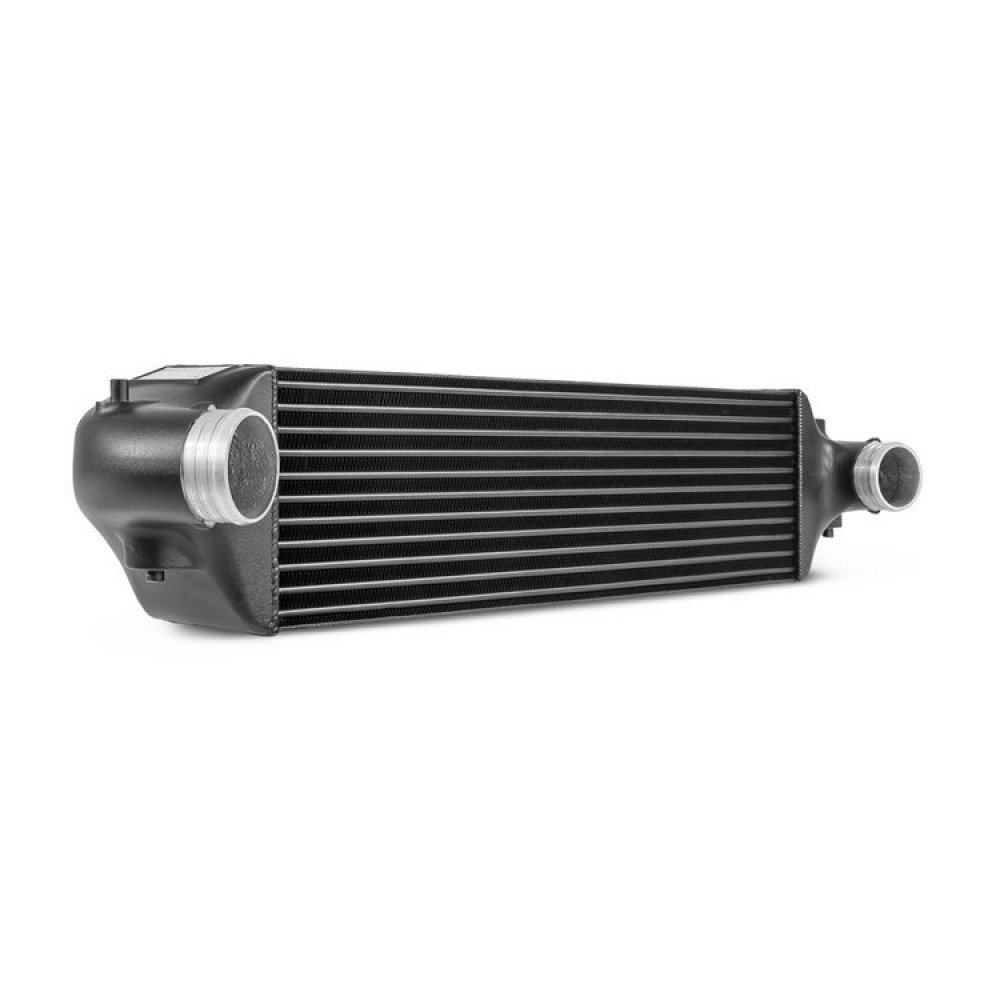

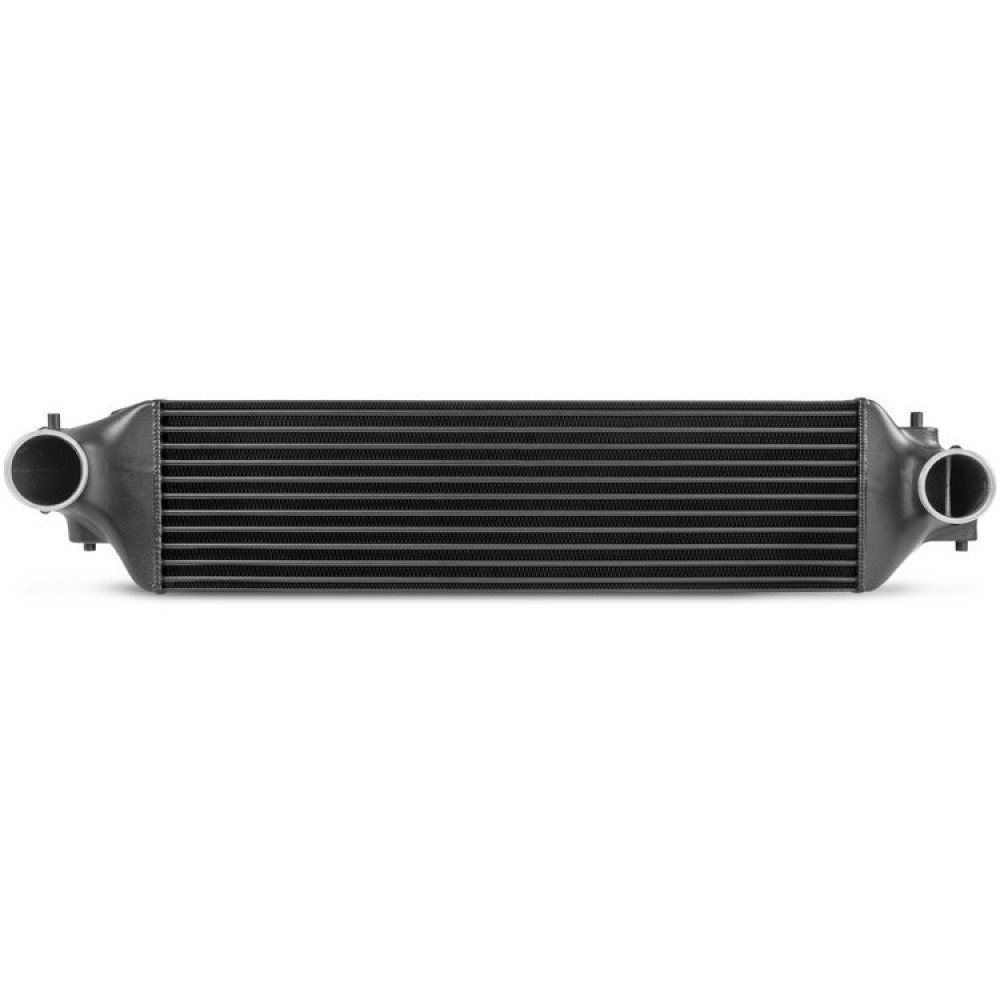

The Wagner Tuning high-performance intercooler for the Honda Civic Type R FK8 is designed to increase charge-air cooling efficiency with a larger, lower-restriction core and airflow-optimized end tanks.

• Competition intercooler core (Tube Fin)
• Core dimensions: 670 mm x 183.4 mm x 125 mm
• Core volume: 15.4 L

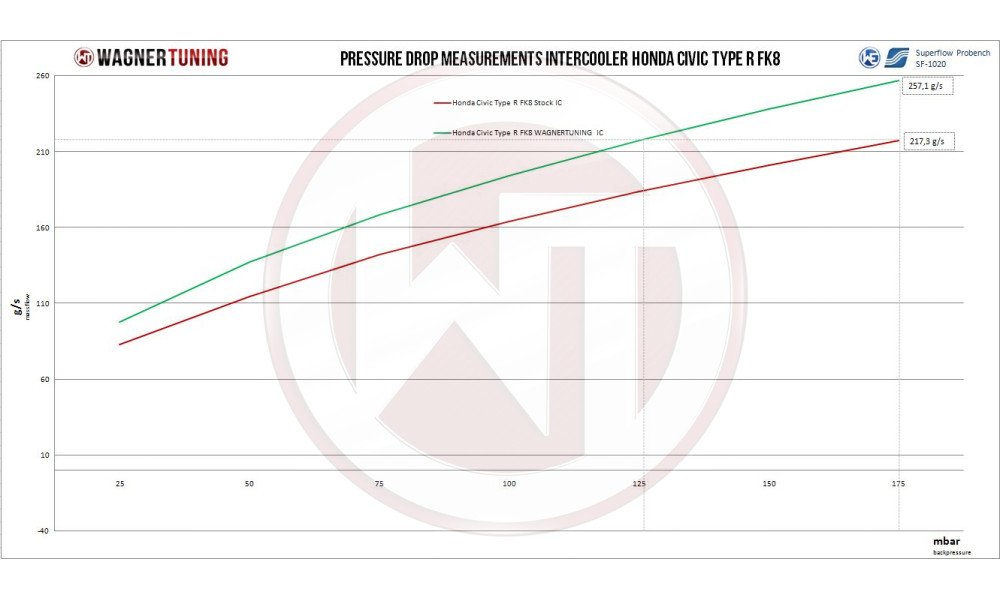

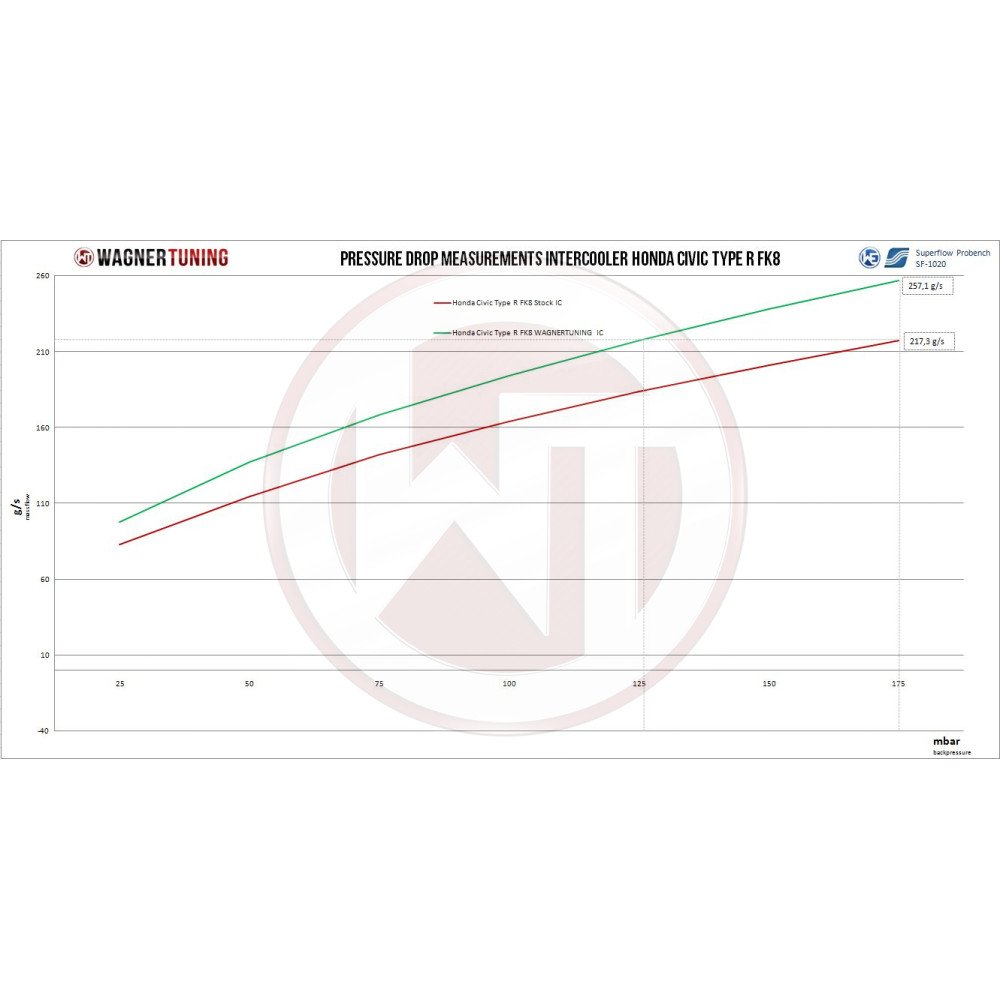

• Flow area increase vs. OEM: +91%
• Core volume increase vs. OEM: +140%

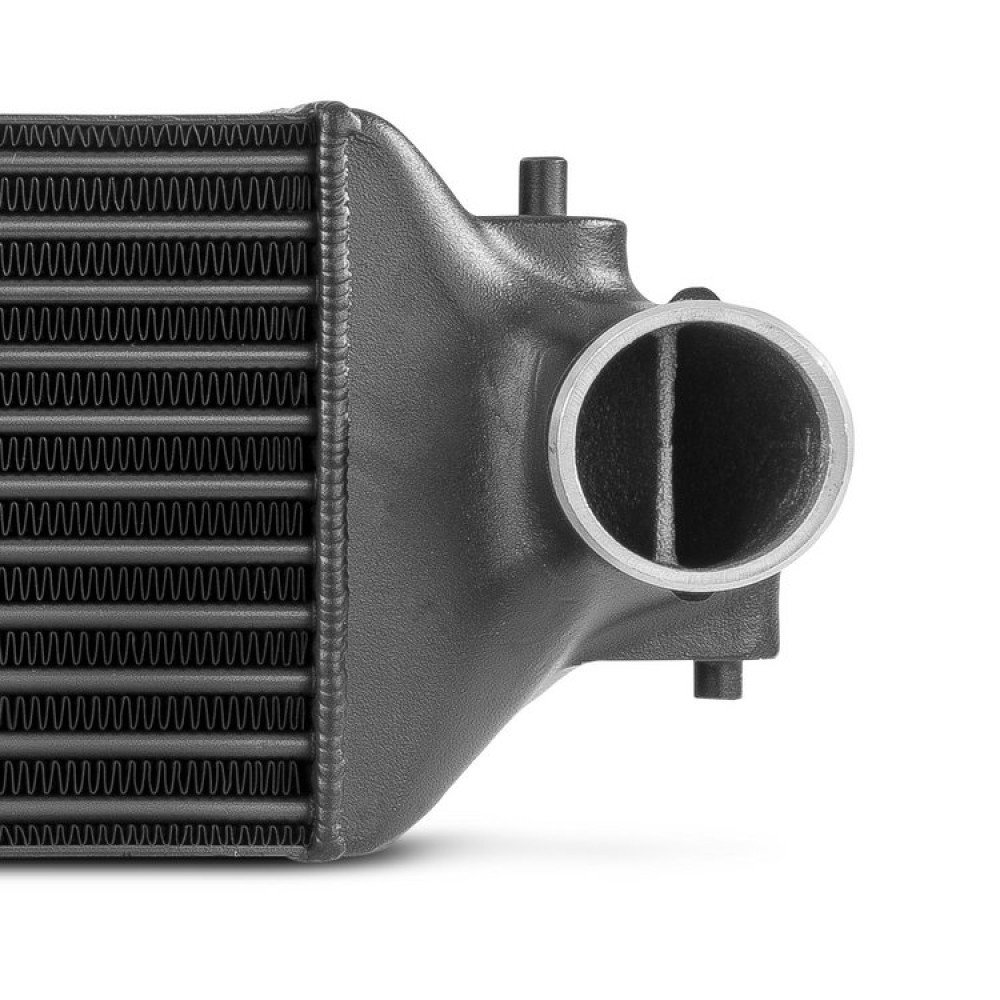

• Cast aluminum end tanks designed in CAD and optimized via CFD
• Integrated air baffle at the inlet for more even core utilization
• Anti-corrosion coating with good heat conduction properties
• Designed to maintain airflow to adjacent components (e.g., water cooler)
• Installs at original mounting points (plug and play)

Connections

• Inlet diameter: Ø65 mm
• Outlet diameter: Ø70 mm

Core Comparison

• OEM intercooler: V = 6.4 L, A = 640 cm²
• Wagner Tuning intercooler: V = 15.4 L, A = 1226 cm²

Part Number

200001128

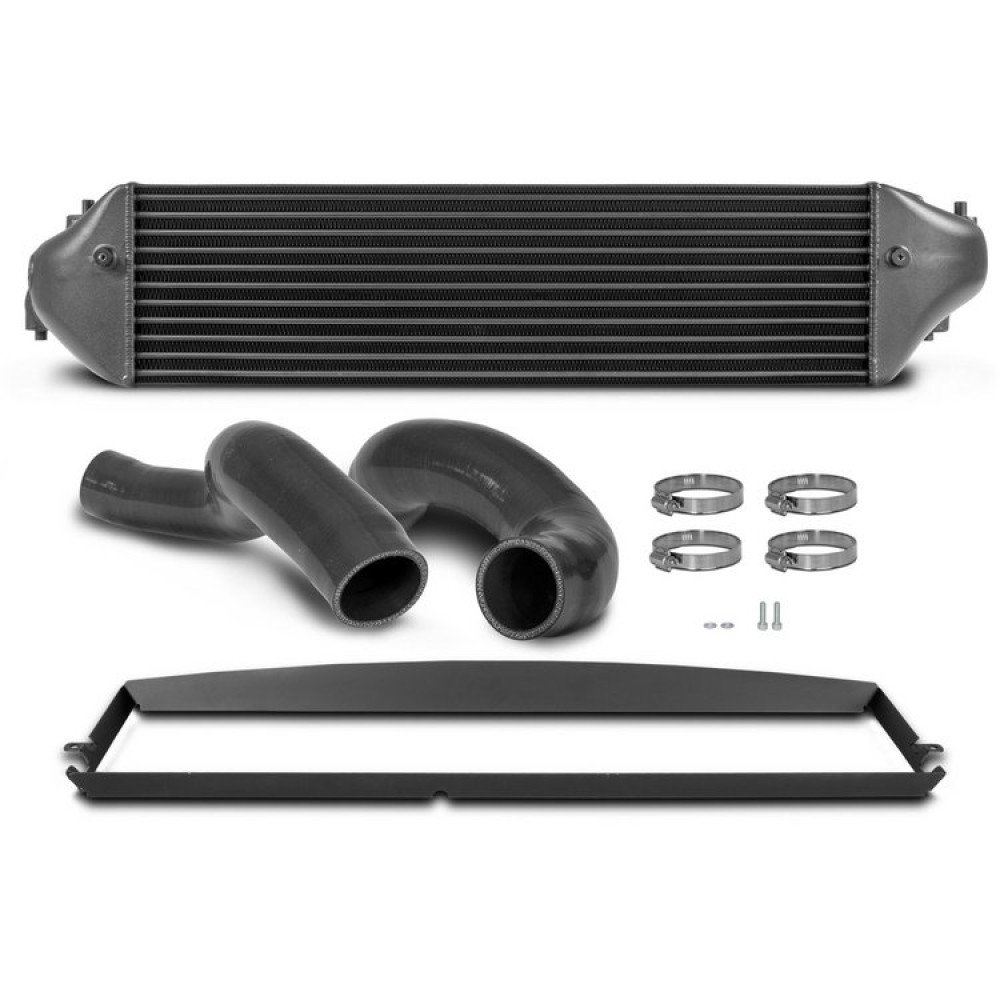

What’s Included

• 1 intercooler
• 1 air baffle
• 2 silicone hoses
• 1 mounting material kit
• 1 installation instruction
