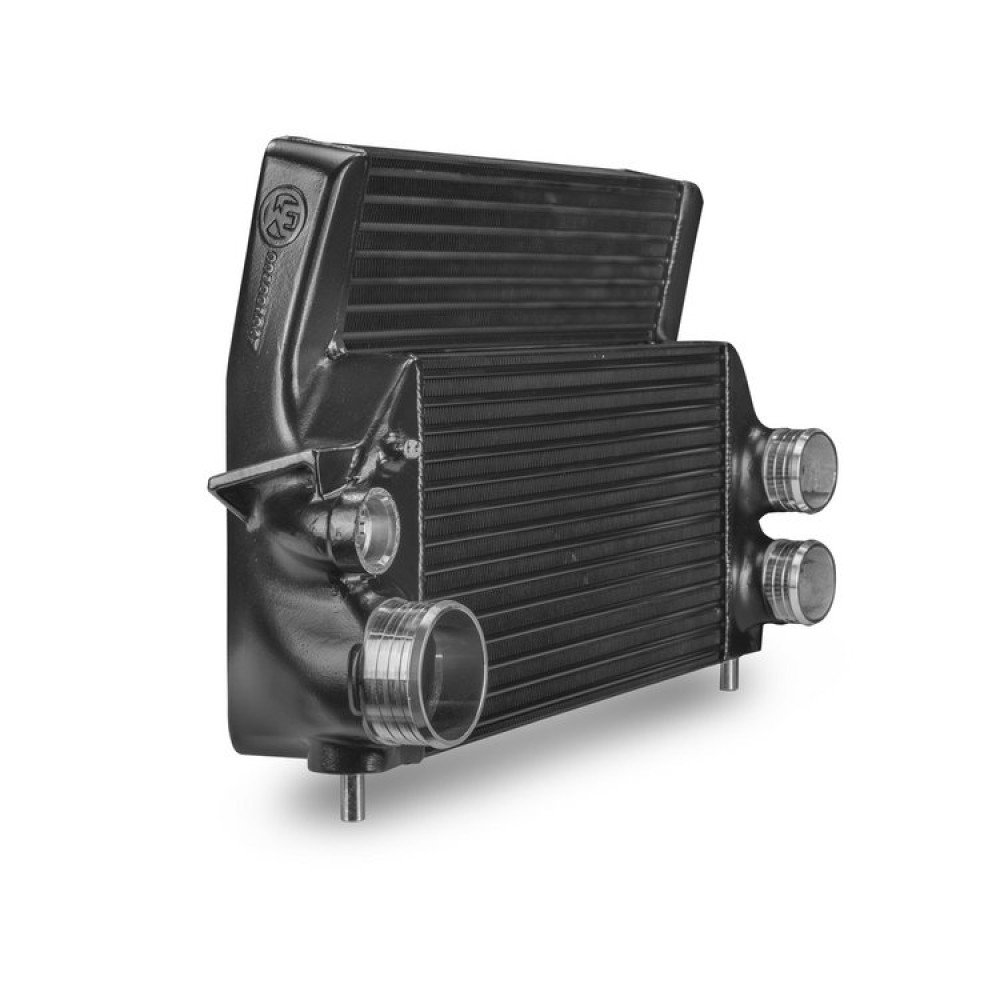

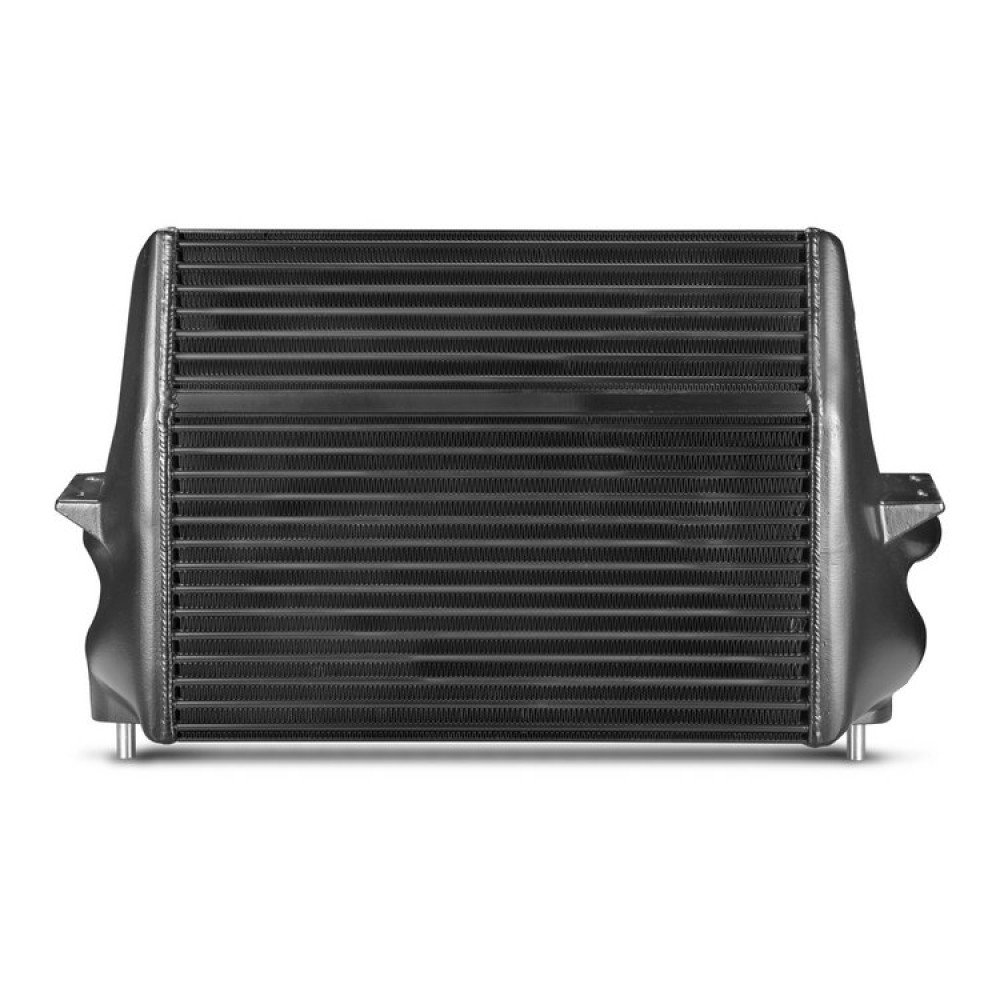

Competition Charge Air Cooler Kit – Ford F-150 Raptor Gen 2

Intercooler upgrade kit for Ford (USA) F-150 Raptor 3.5L EcoBoost with 10-speed automatic transmission.

Overview

This Competition intercooler uses a stepped high-performance core (500 mm x 388 mm x 125 mm) designed to increase charge-air cooling efficiency with reduced backpressure. The core is engineered to maintain airflow to nearby heat exchangers such as the water cooler while remaining lightweight.

Key Features

• Stepped intercooler core: 500 mm x 388 mm x 125 mm
• 62% larger flow area vs. conventional intercooler
• 108% more charge air volume vs. conventional intercooler
• Lower backpressure for reduced intake temperatures
• Cast aluminum end tanks, CAD flow-optimized

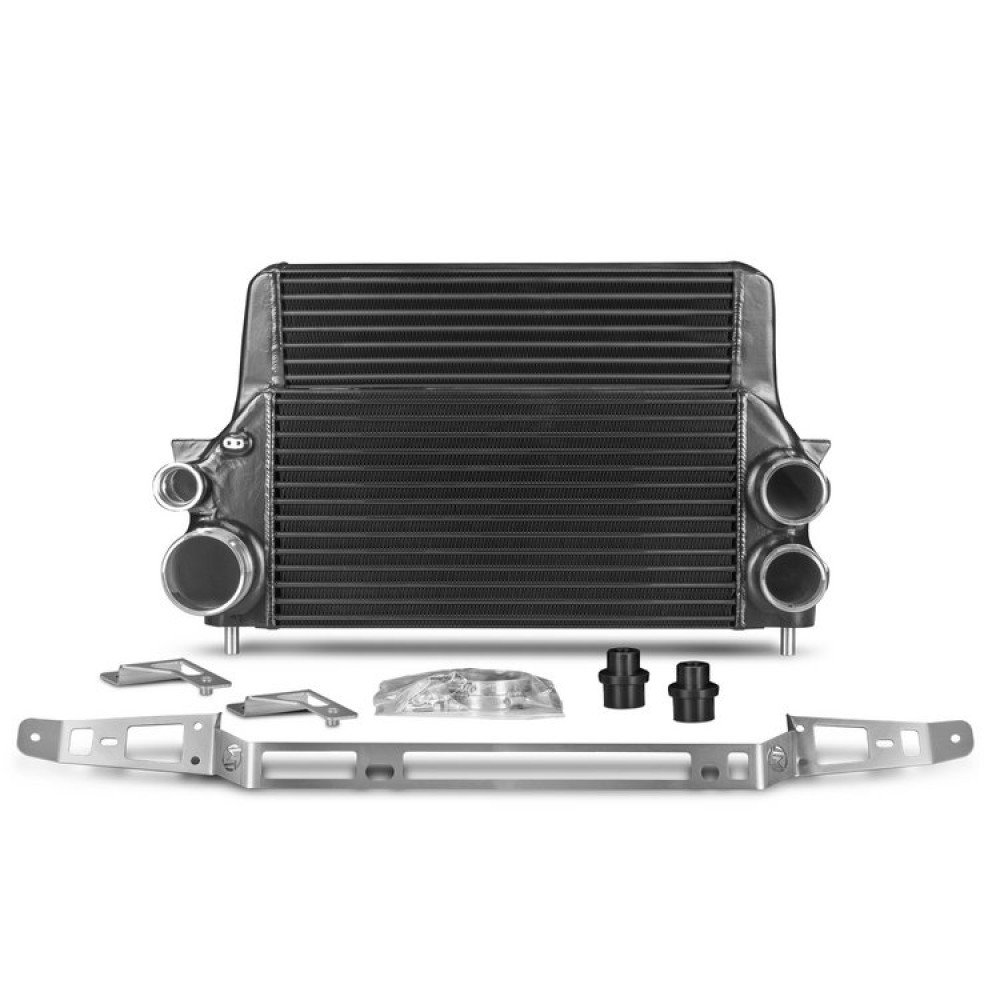

• Installation kit includes mounting material to relocate the original oil cooler and adapt the original fan frame
• Ongoing quality monitoring

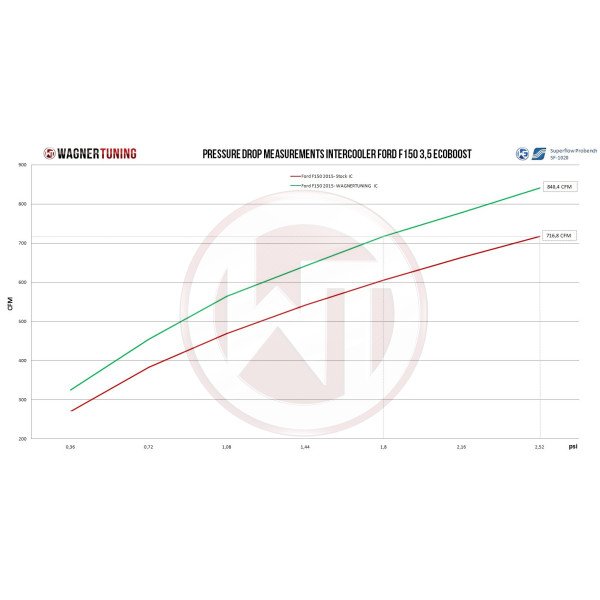

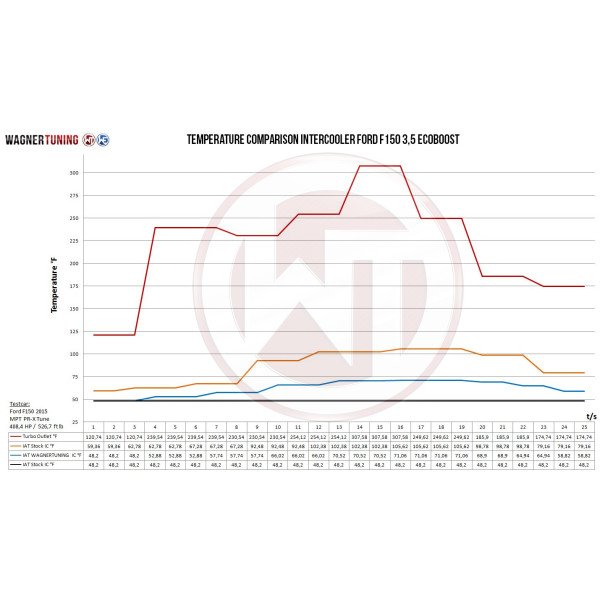

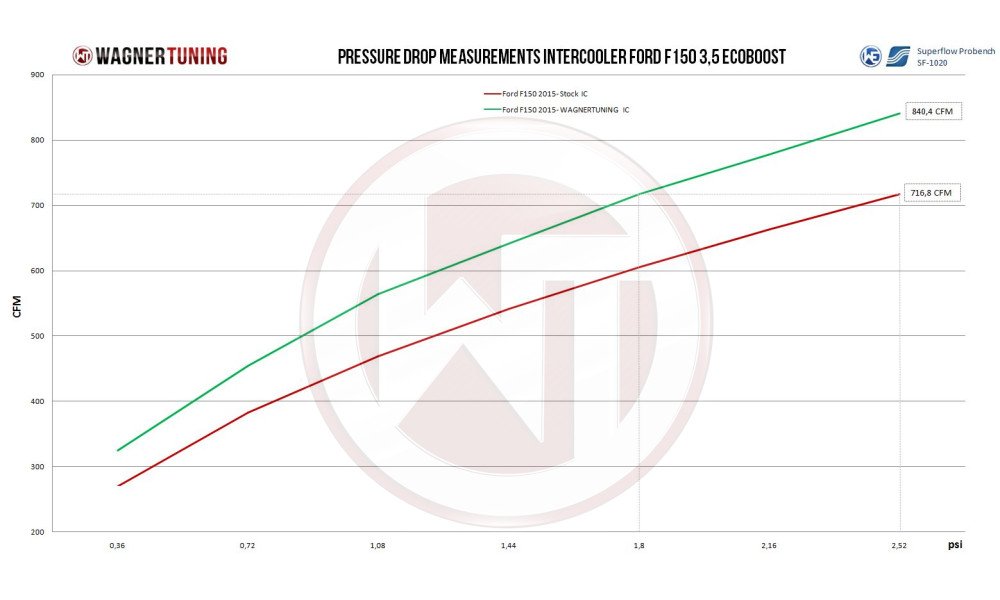

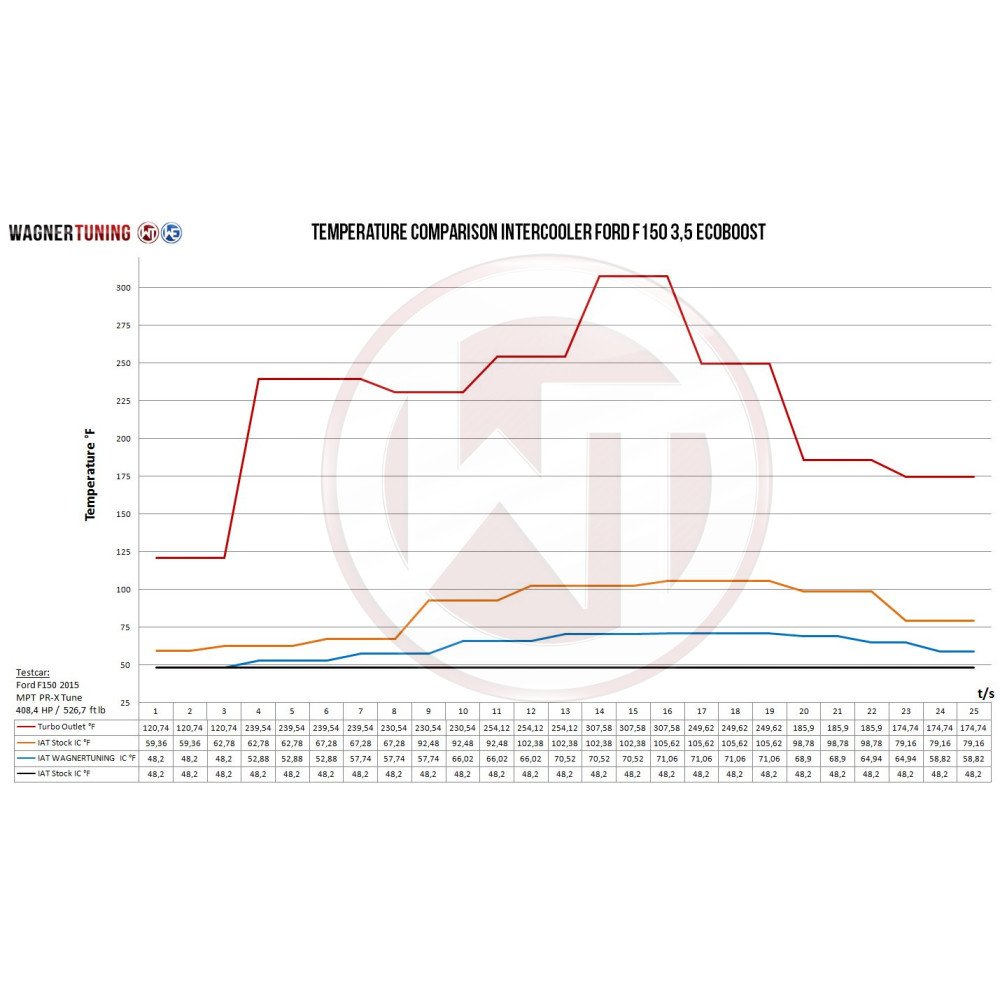

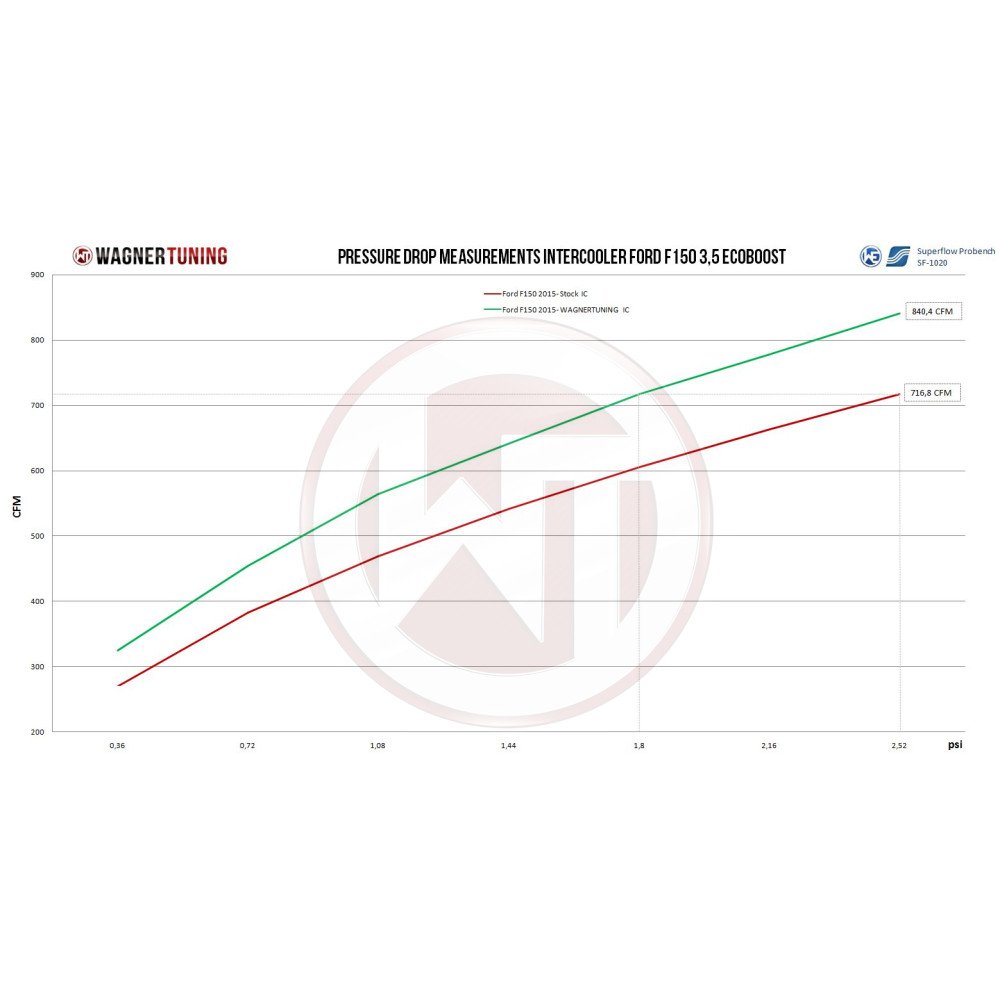

Core Comparison
