WAGNERTUNING Competition intercooler kit for the Fiat 500 Abarth.

Vehicle fitment

• Fiat Abarth 500 1.4 Turbo 99 kW / 135 PS (2008–)
• Note: does not fit plug and play for US models

Overview

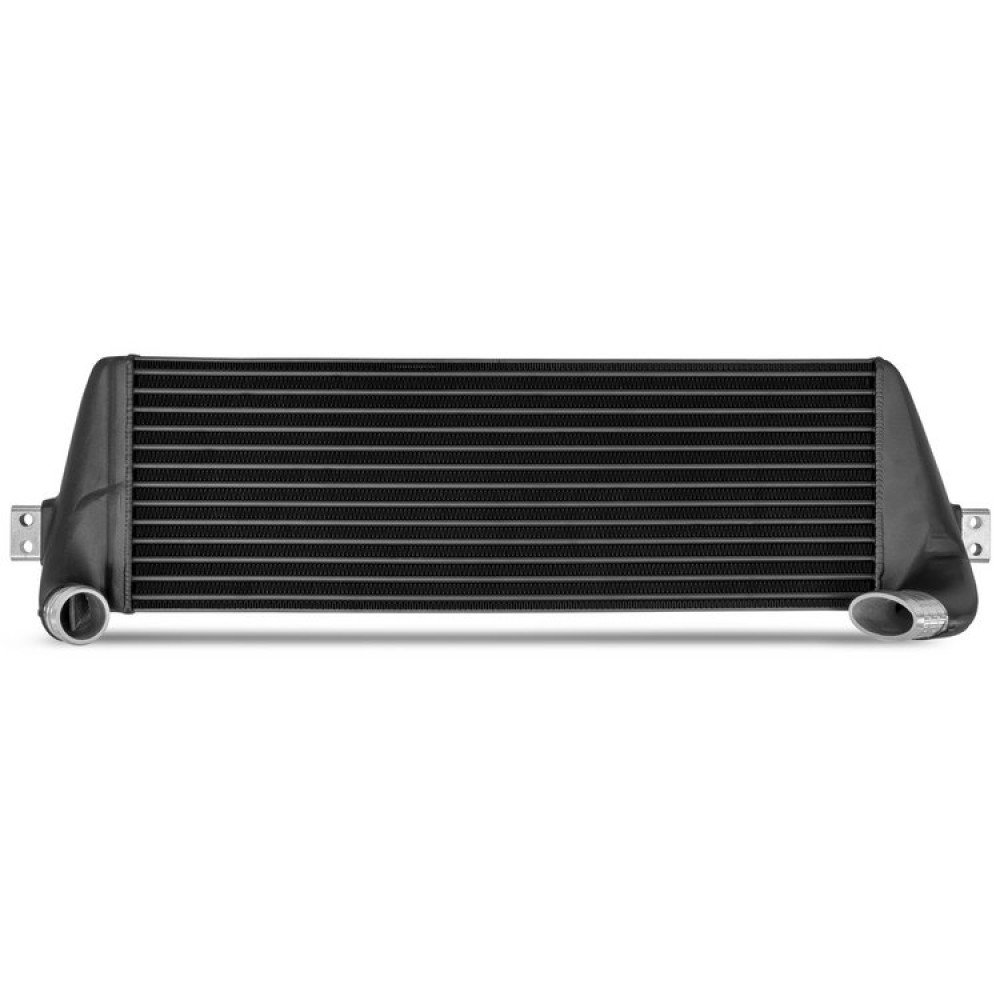

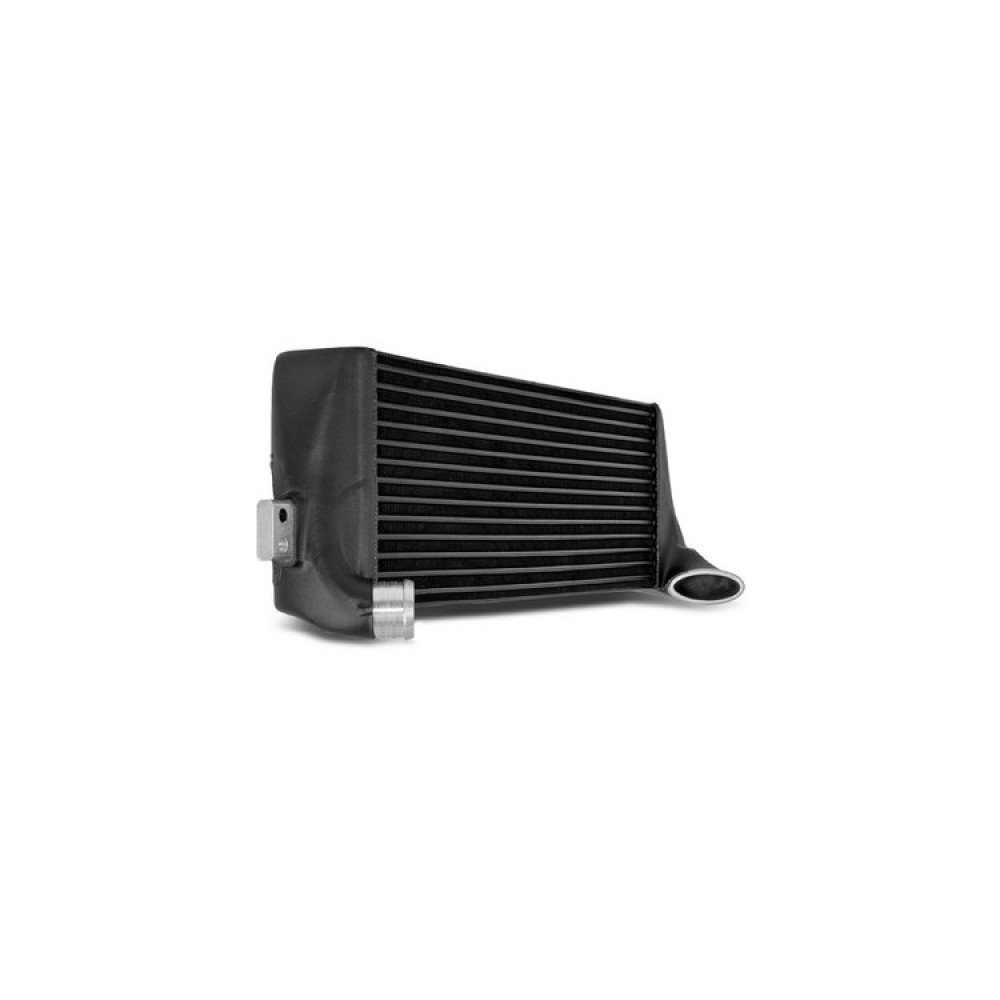

This kit replaces the factory twin side-mount intercoolers with a single front-mounted WAGNERTUNING high-performance intercooler. It uses a Tube Fin competition core and CAD-designed, CFD-optimized cast aluminum end tanks for efficient internal airflow. An elliptical outlet connection and included WAGNERTUNING silicone hoses are designed to shorten the charge-air path and help reduce overall system back pressure, improving response.

Construction & protection

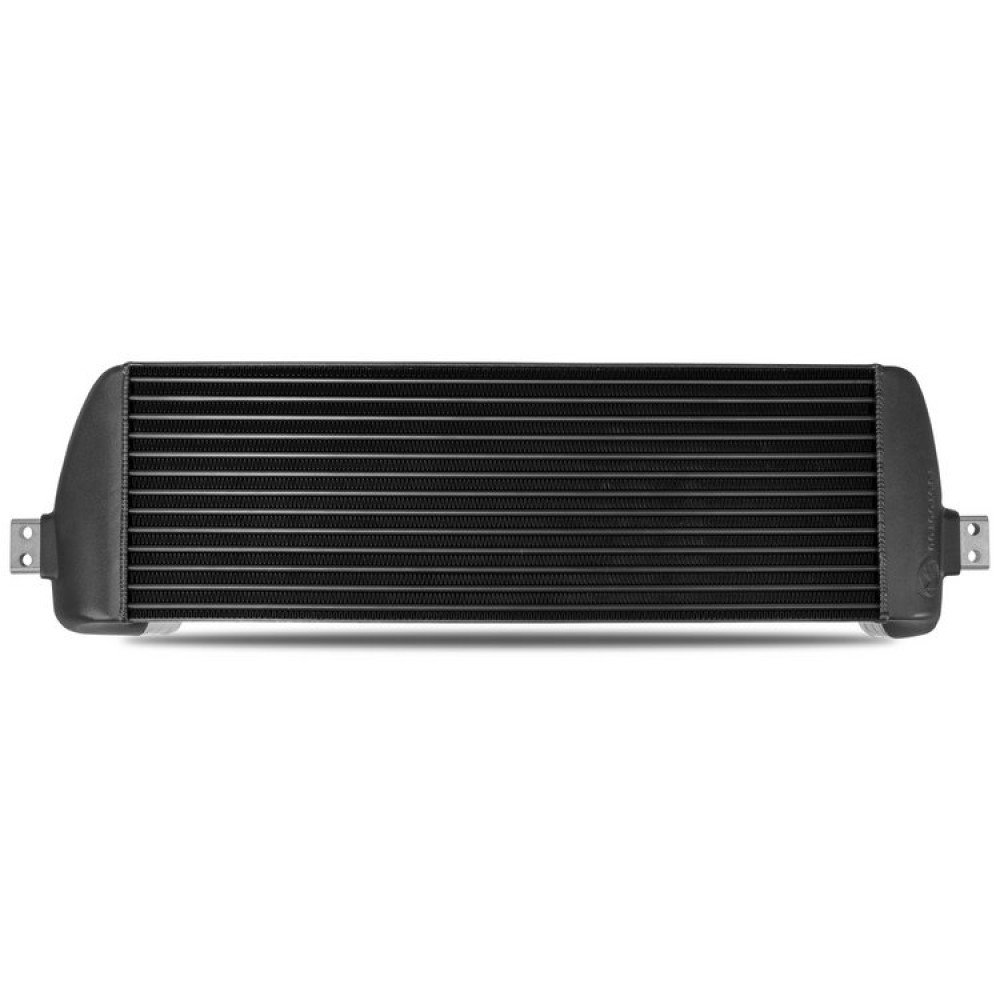

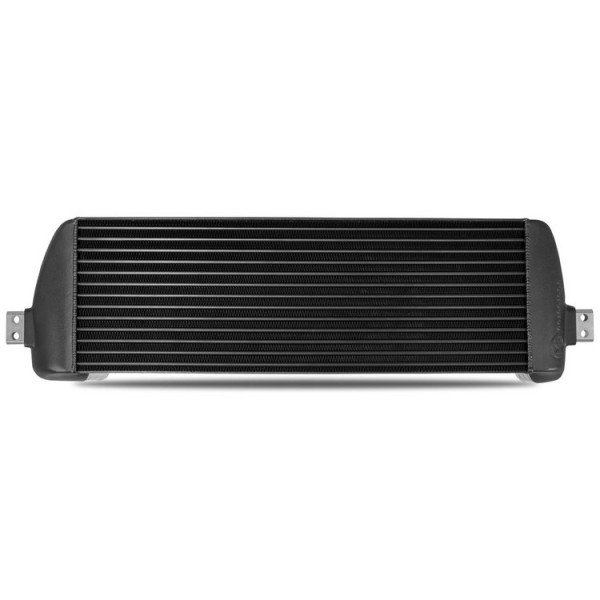

• Competition core (Tube Fin)
• Cast aluminum end tanks (CAD designed, CFD optimized)
• Anti-corrosion coating with heat-conducting properties
• Replaces original intercoolers; plug and play installation (non-US models)

Dimensions

• Stock intercoolers (2x): 190 mm x 175 mm x 64 mm; V = 4.3 liters; A = 665 cm²
• WAGNERTUNING intercooler: 600 mm x 204.6 mm x 80 mm (also listed as 600 mm x 205 mm x 80 mm); V = 9.8 liters; A = 1227 cm²
• Compared to stock: 85% larger frontal surface; 131% more core volume

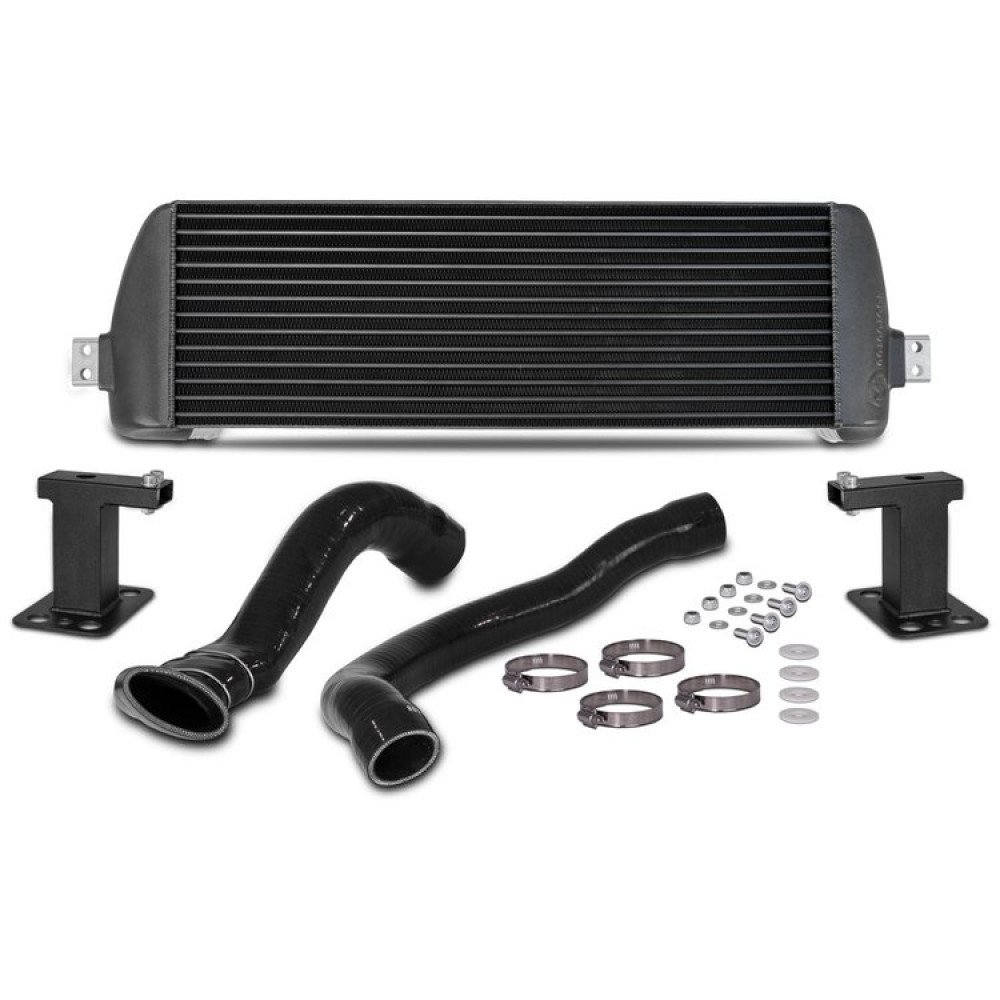

What’s included

• 1 intercooler (black coated)
• 1 cross member (black coated)
• 2 silicone hoses (black)
• 1 mounting material
• 1 installation instruction
