WAGNERTUNING Competition Intercooler Kit for BMW E46 diesel models (from 2003).

Vehicle fitment

• BMW E46 318d (85 kW/116 PS) from 2003, M47N engine (Charge Pipe 11617799397 required)
• BMW E46 320d/Cd/td (100–110 kW/136–150 PS) from 2003, M47N engine (Charge Pipe 11617799397 required)
• BMW E46 330d/Cd/xd (135–150 kW/184–204 PS) from 2003, M57N engine (Charge Pipe 11617799398 required)

Not compatible

• Does not fit BMW E46 320td Compact with M Bumper r. (BMW PartNr: 51 11 7 894750 or 51 71 7 895 094, [XENON])

Overview

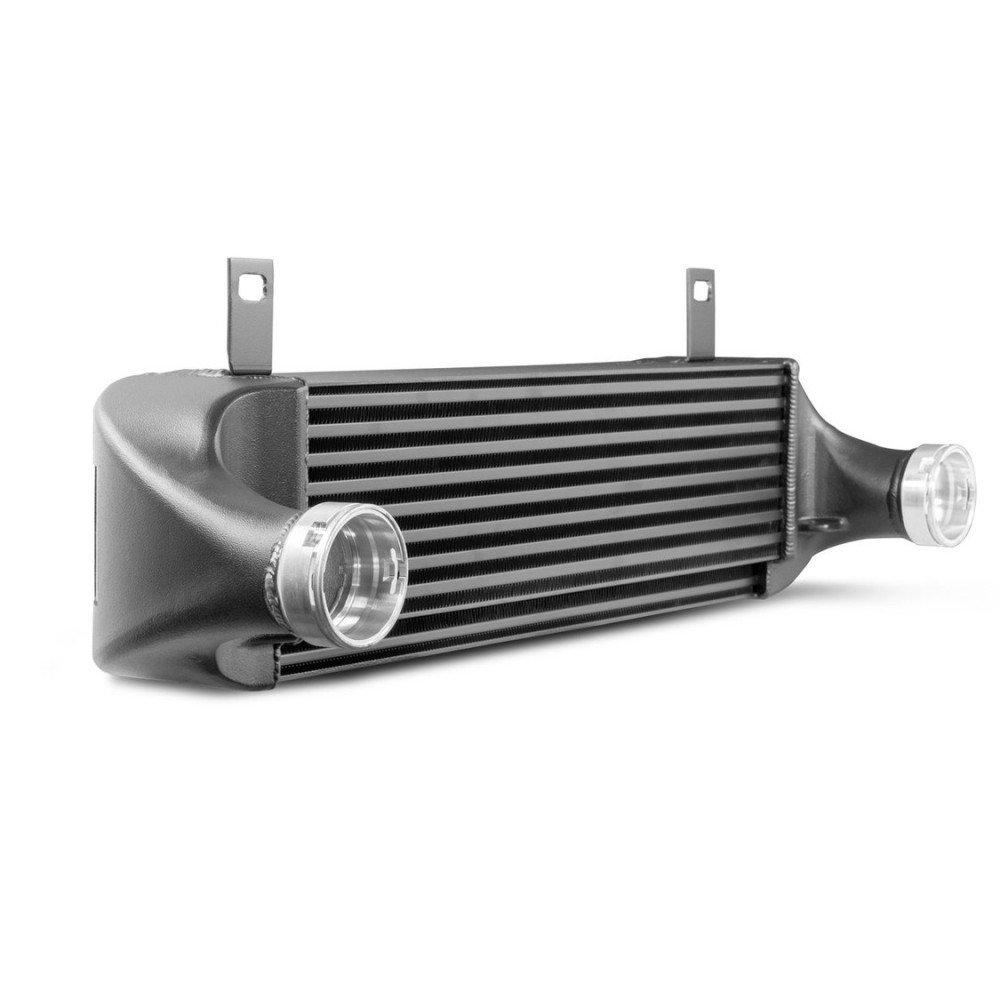

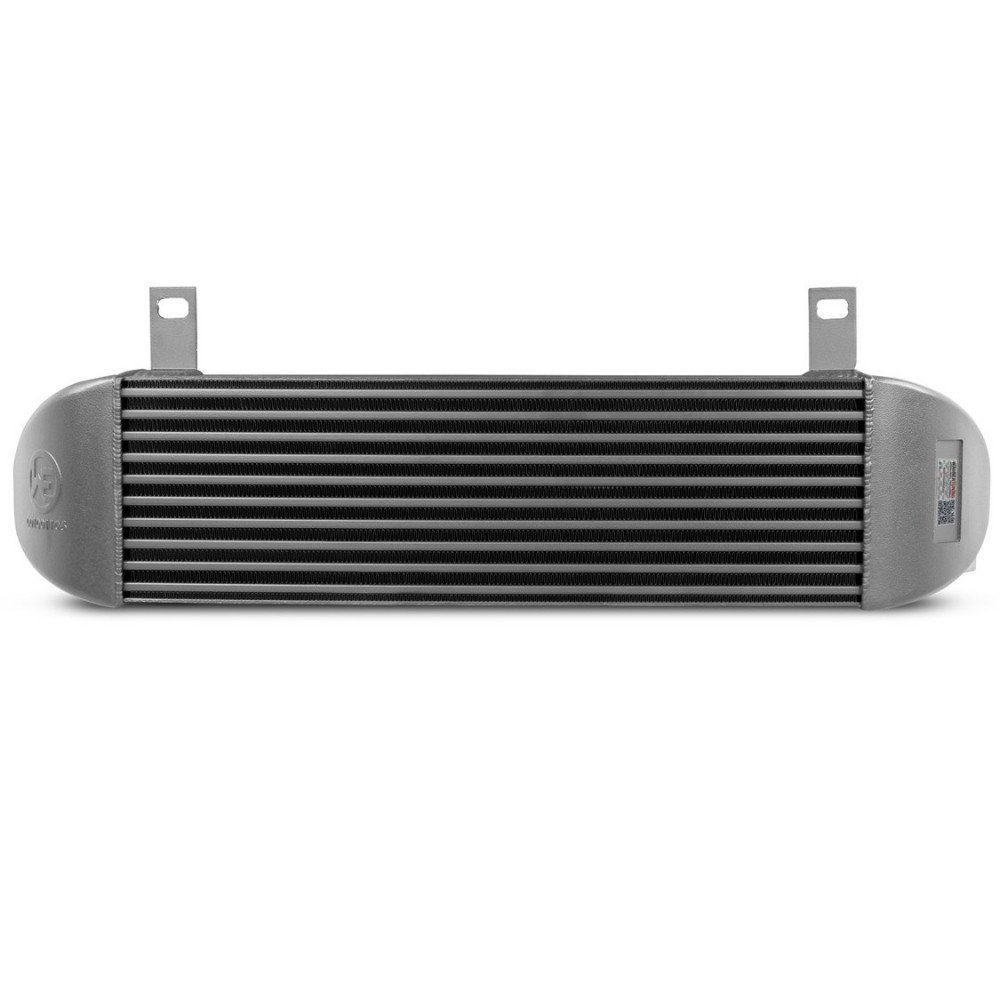

This kit replaces the factory intercooler with a stepped Tube-Fin competition core developed for BMW E46 diesel requirements. Compared with the stock intercooler, it provides 31% larger frontal surface area and 205% more core volume.

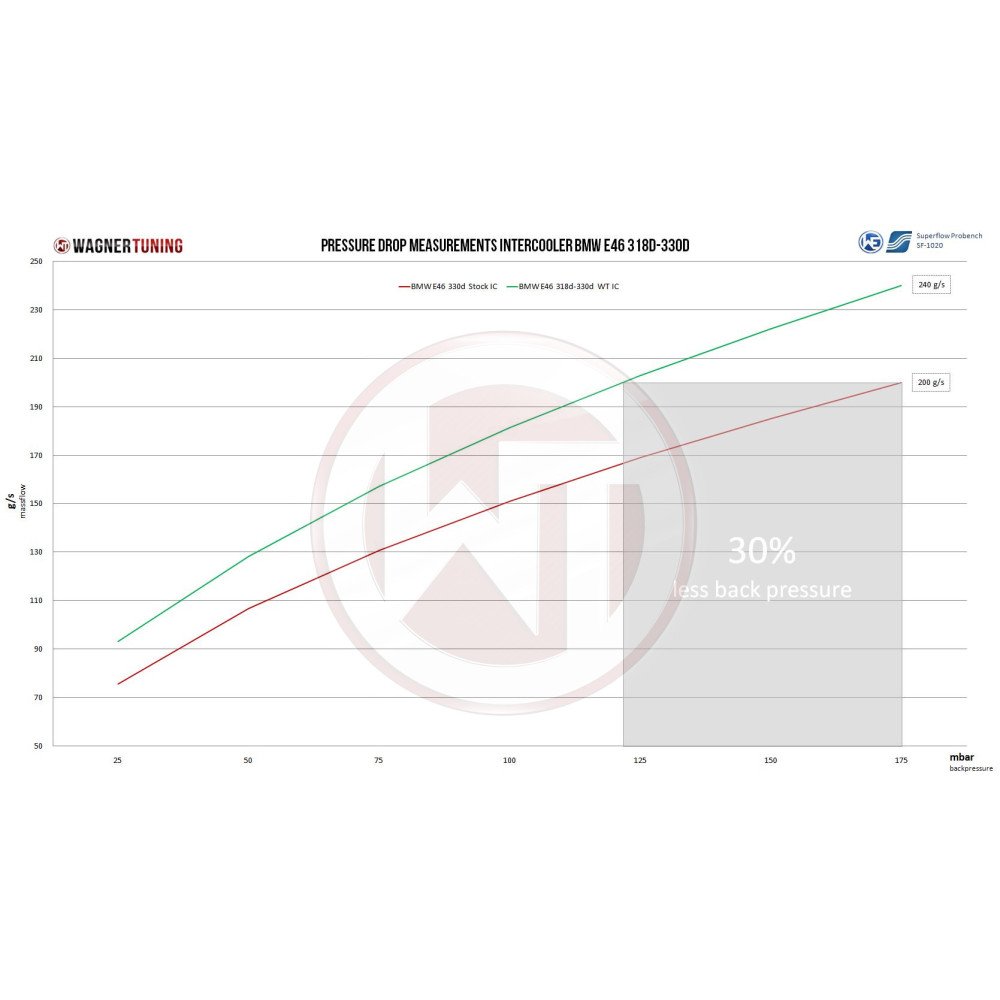

Cast aluminum end tanks are CAD-designed and CFD-optimized for internal airflow, targeting strong cooling performance with minimal back pressure. The intercooler features an anti-corrosion powder coating with heat-conducting properties. Installation is a direct replacement and plug-and-play using the factory click connections.

Connections

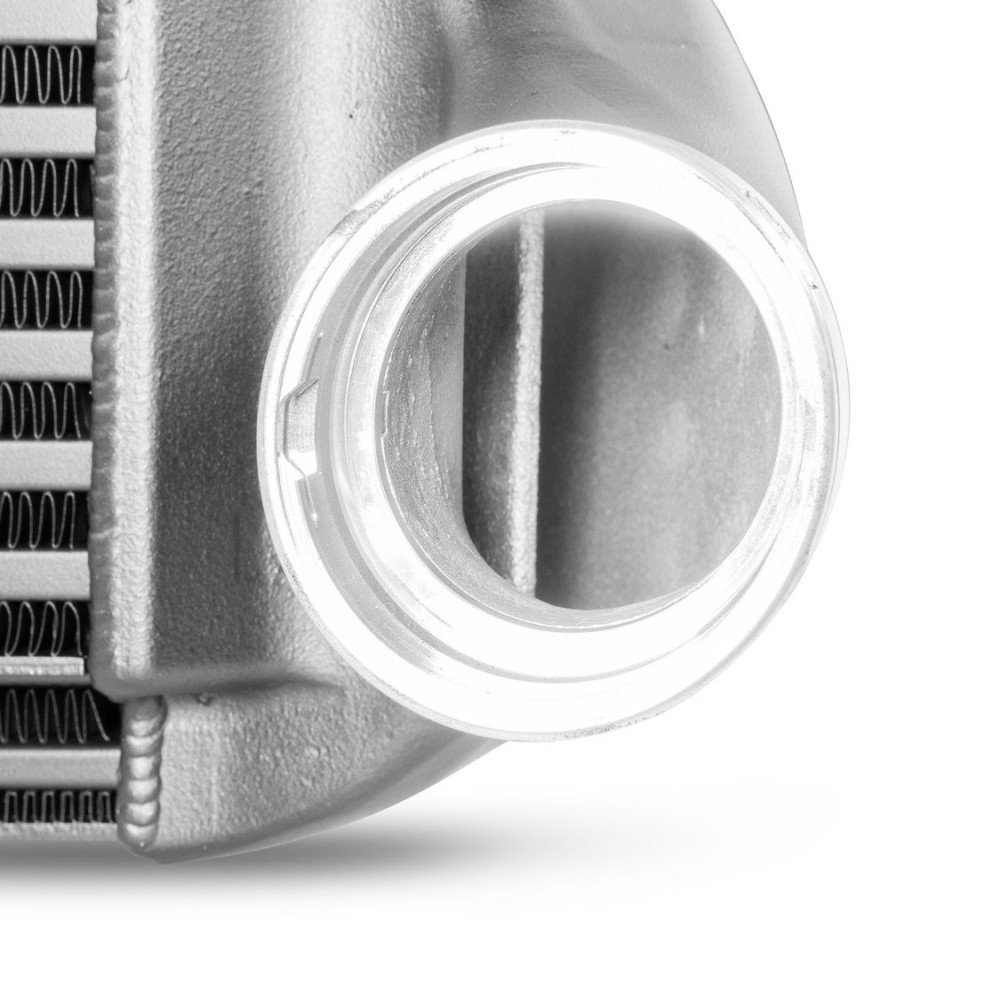

• Inlet diameter: Ø63 mm / 2.5 inch (stock click-connection)
• Outlet diameter: Ø63 mm / 2.5 inch (stock click-connection)

Dimensions

Stock intercooler

• 540 mm x 130 mm x 50 mm (21.3" x 5.1" x 2.0")
• Volume: 3.51 L (214.2 in³)
• Frontal area: 702 cm² (108.8 in²)

WAGNERTUNING intercooler

• 550 mm x 168 [139] mm x 120 [100] mm, stepped (21.6" x 6.6 [5.5]" x 4.7 [3.9]", stepped)
• Volume: 10.7 L (653 in³)
• Frontal area: 919 cm² (142.5 in²)

What’s included

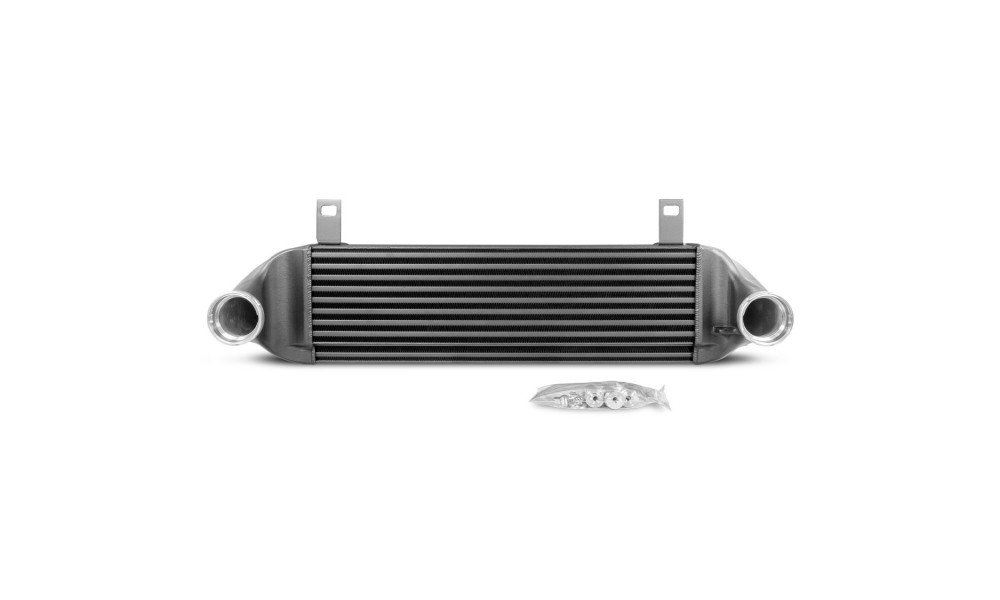

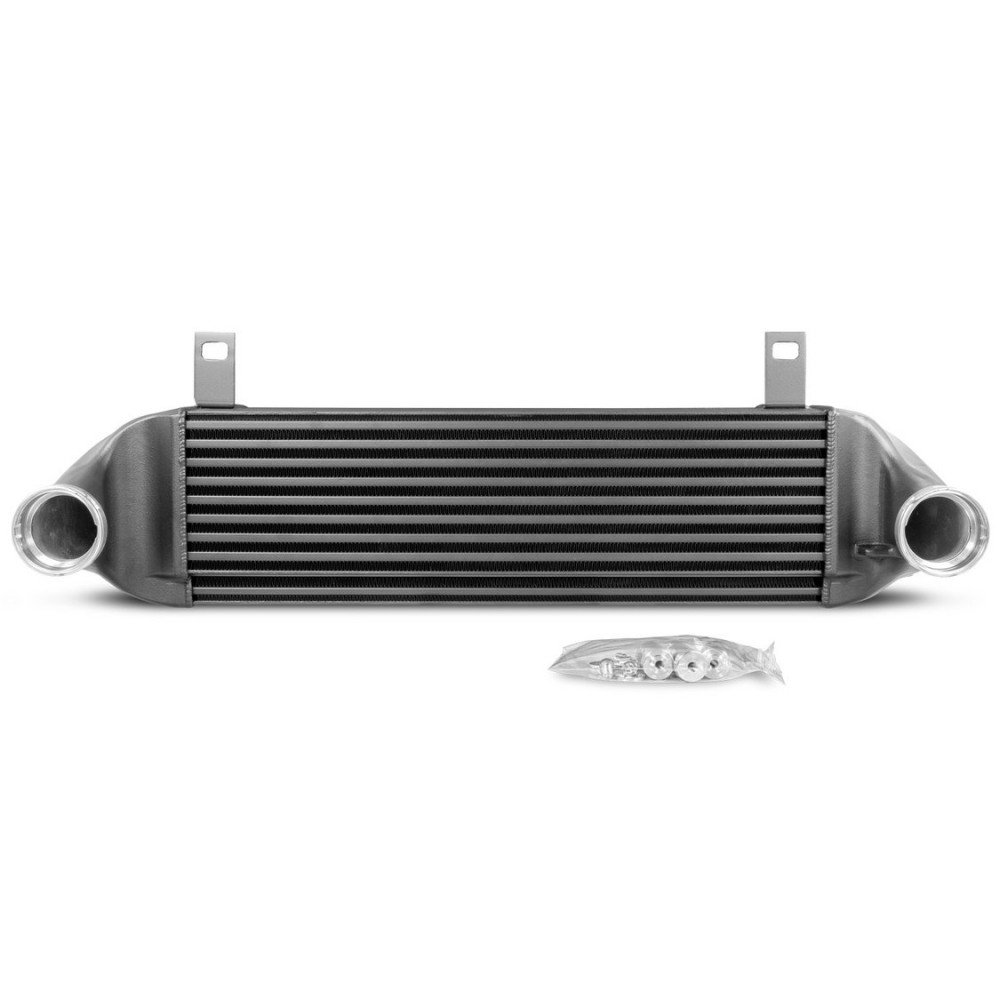

• 1 intercooler
• 1 mounting material
• 1 installation instruction
