The Competition Intercooler Kit is a high-volume upgrade designed to improve charge-air cooling efficiency on the Audi 3.0 TFSI platform. Compared to the factory intercooler core, it increases both core volume and flow area to support lower intake temperatures with minimal backpressure.

Key features

• Tube Fin core with internal turbulators for efficient heat transfer
• Cast aluminum end tanks developed using CFD flow analysis
• Anti-corrosion coating with good thermal conductivity
• Pressure tested and stable up to 6 bar
• Approx. weight: 9.5 kg
• Direct replacement (plug-and-play style installation)
• Suitable for motorsport use (per manufacturer)

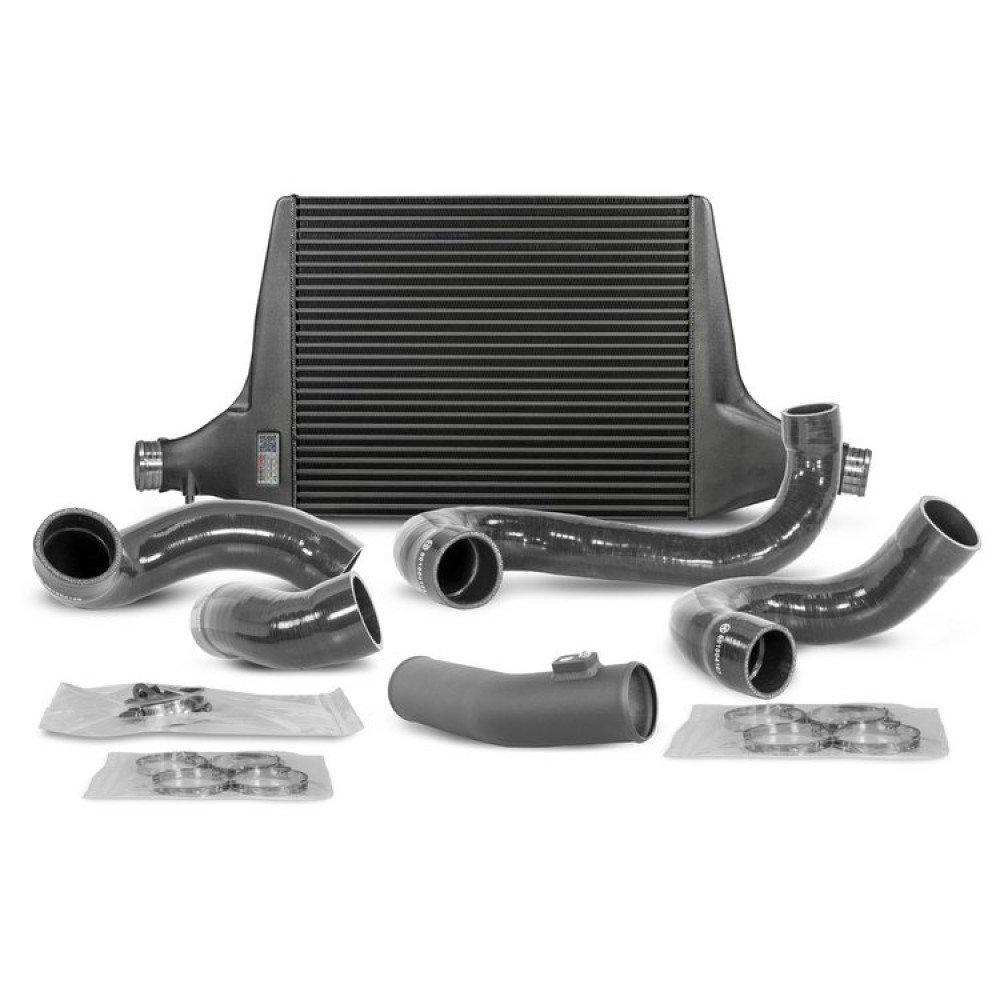

Optional charge-air piping (kit variant)

• Three reinforced silicone hoses
• One aluminum charge-air tube

Fitment

• Audi S4 B9 3.0 TFSI 260 kW / 354 PS (2016+)*
• Audi S5 F5 3.0 TFSI 260 kW / 354 PS (2016+)*

*The supplied brackets are only suitable for the US model.

Core specifications

• Wagner Tuning core dimensions: 550 mm × 445 mm × 70 mm
• Charge-air volume: 17.13 L (17,130 cc)
• Flow area: 2,447 cm²

Comparison to original intercooler core

• Original core dimensions: 720 mm × 145 mm × 80 mm
• Original volume: 8.35 L
• Original flow area: 1,044 cm²
• Increase vs. original: +105% charge-air volume, +134% flow area
