Competition Intercooler Kit for Audi S4 B9 / S5 F5 3.0 TFSI

Vehicle Fitment

• Audi S4 B9 3.0 TFSI 260 kW / 354 PS (2016+)*
• Audi S5 F5 3.0 TFSI 260 kW / 354 PS (2016+)*

*Supplied brackets are suitable for EU models.

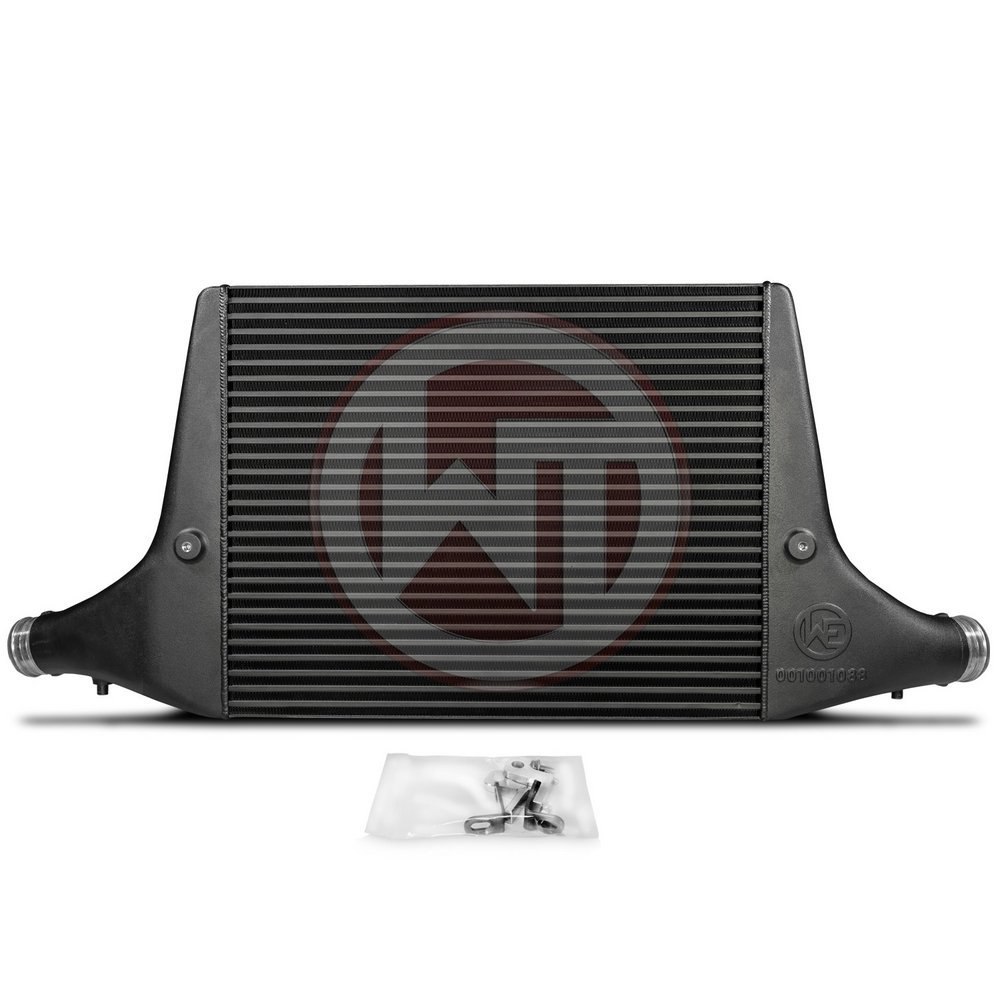

Overview

This Competition intercooler uses the WAGNERTUNING Competition Intercooler Core developed for this application. The tube-fin core features internal turbulators and cast aluminum end tanks designed with CFD to support strong internal airflow and to address OEM flow restrictions.

Technical Details

• Core dimensions: 550 mm x 445 mm x 70 mm (17.13 L / 17,130 cm³)
• Frontal area vs. stock: +134%
• Volume vs. stock: +105%
• Inlet diameter: Ø62 mm
• Outlet diameter: Ø67 mm
• Intercooler weight: 9.5 kg
• Finish: anti-corrosion protective coating (black)
• Installation: 100% plug and play

Stock vs. WAGNERTUNING Dimensions

• Stock intercooler: 720 mm x 145 mm x 80 mm; V=8.35 L; A=1044 cm²
• WAGNERTUNING intercooler: 550 mm x 445 mm x 70 mm; V=17.13 L; A=2447 cm²

Charge Air Piping (Optional)

Optionally available with complete charge air piping, including 1 aluminum charge pipe and 3 reinforced silicone hoses.

What’s Included

• 1 intercooler (coated black)
• 1 aluminum charge pipe (coated black) (optional)
• 3 reinforced silicone hoses, black (optional)
• Mounting material
• Installation instructions
