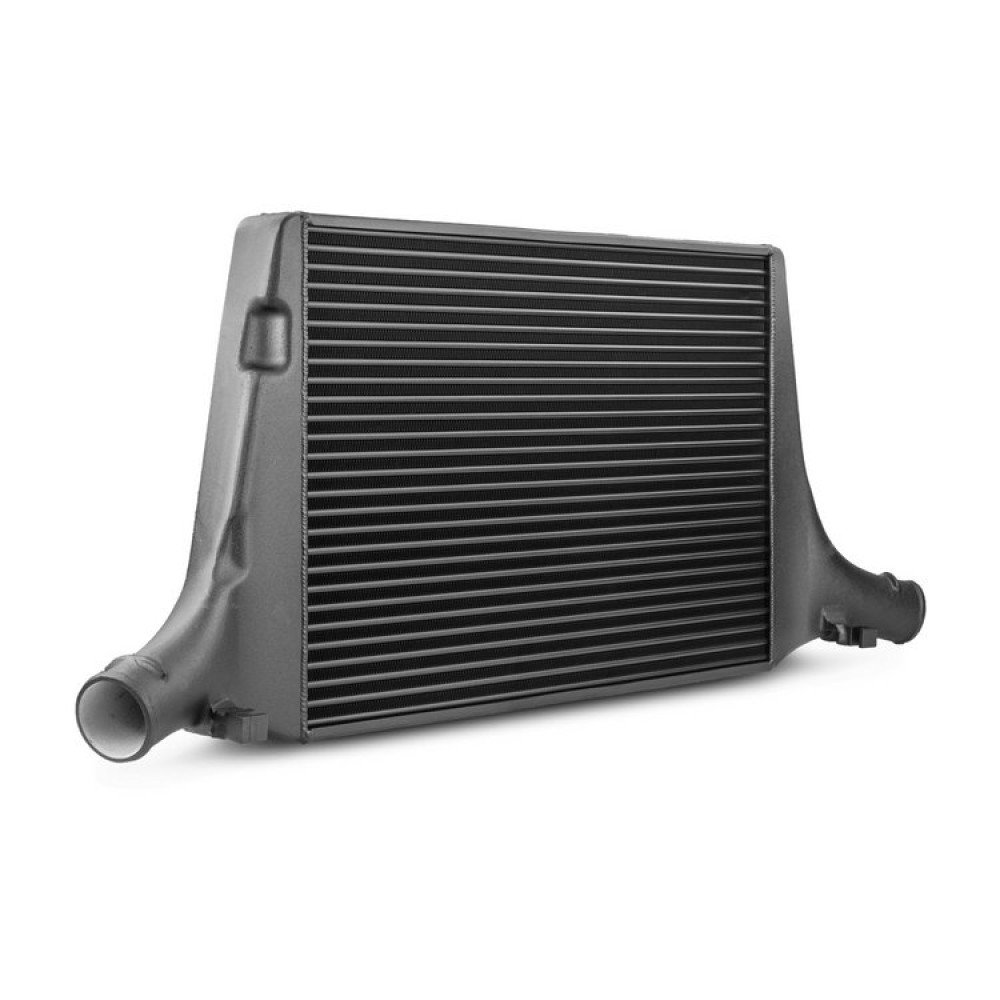

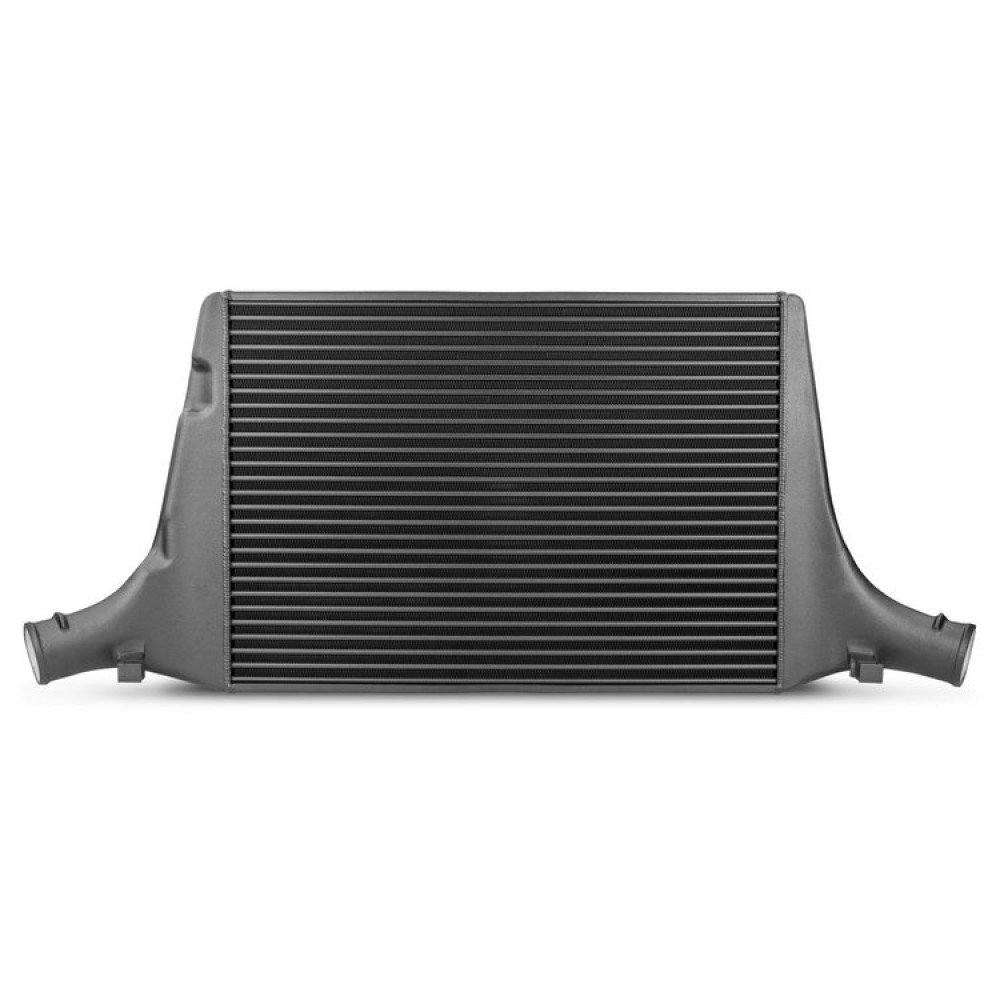

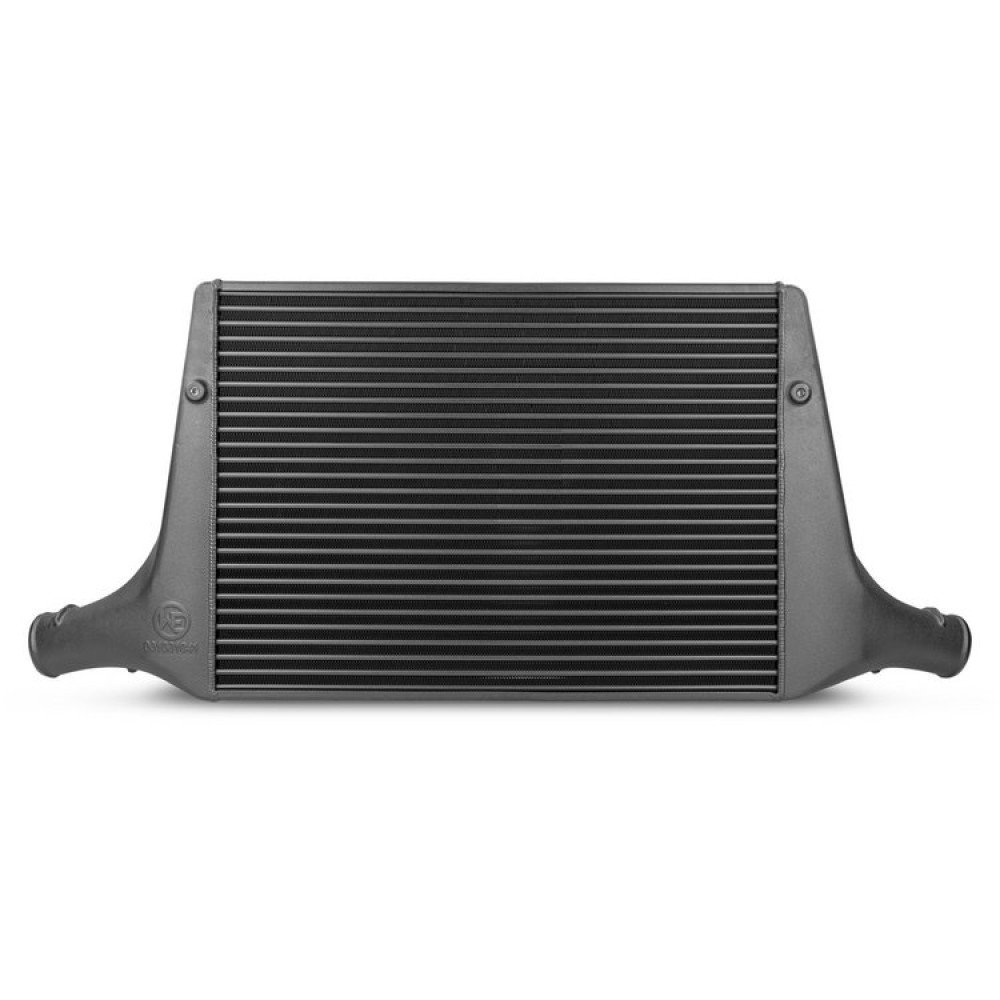

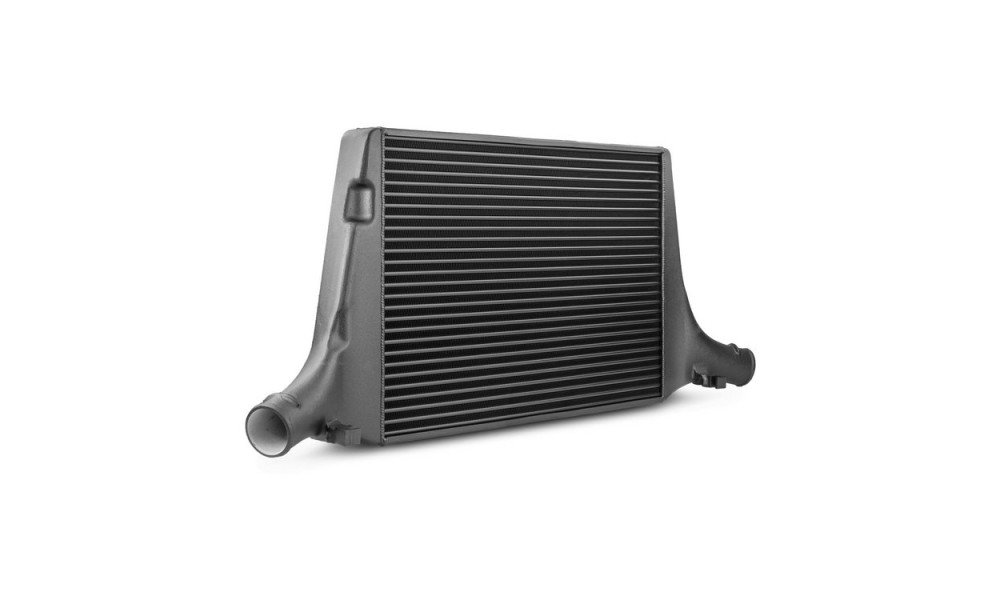

This competition intercooler upgrade kit is a direct replacement designed to increase charge-air cooling capacity on the Audi Q5 2.0 TFSI. It uses a Tube Fin core with internal turbulators and CFD-optimized cast aluminum end tanks to improve internal airflow and core utilization.

Key features

• Tube Fin intercooler core with internal turbulators
• CAD-designed, CFD-optimized cast aluminum end tanks
• Integrated air guide in the end tank for more even core filling
• Anti-corrosion coating with good heat transfer properties

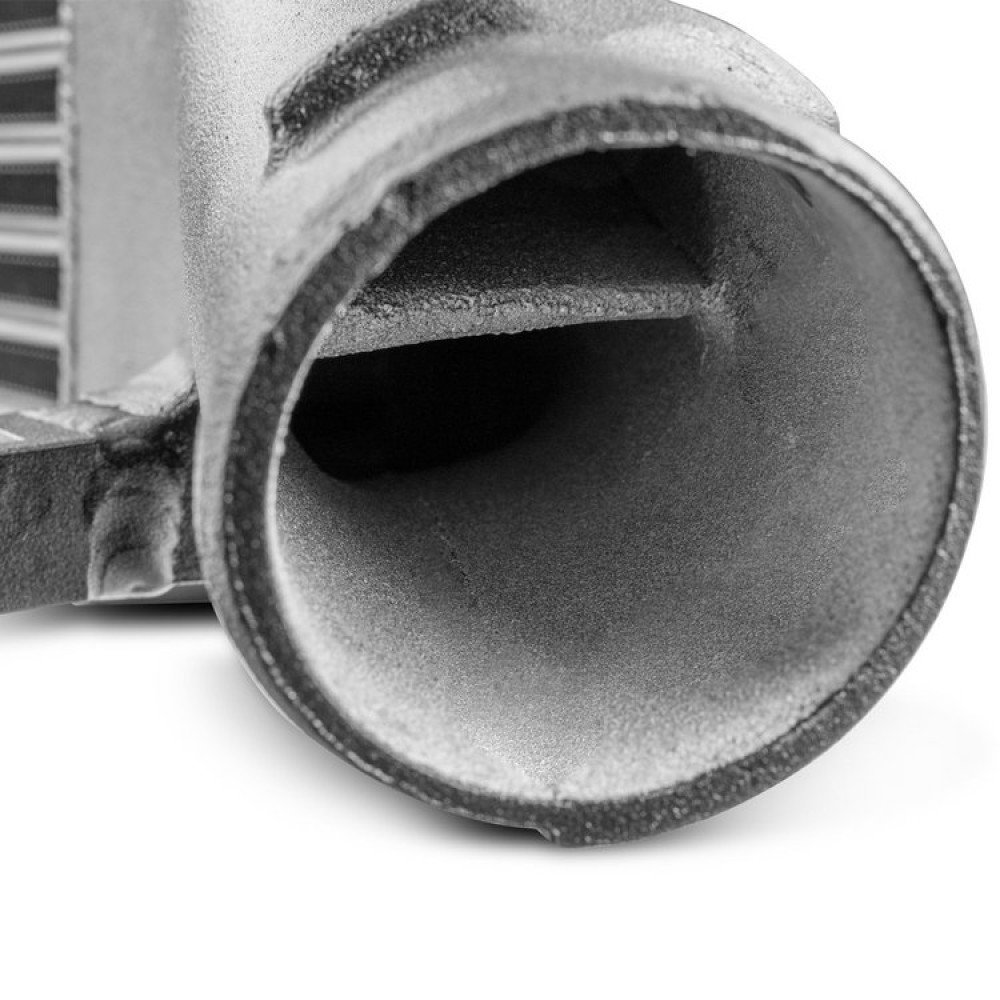

• Enlarged connection diameter: Ø67 mm
• Tested load capacity up to 6 bar
• Direct replacement for the stock intercooler (no complex adjustments required)

Technical specifications

• Core dimensions: 610 x 440 x 65 mm
• Core volume: 17.446 L

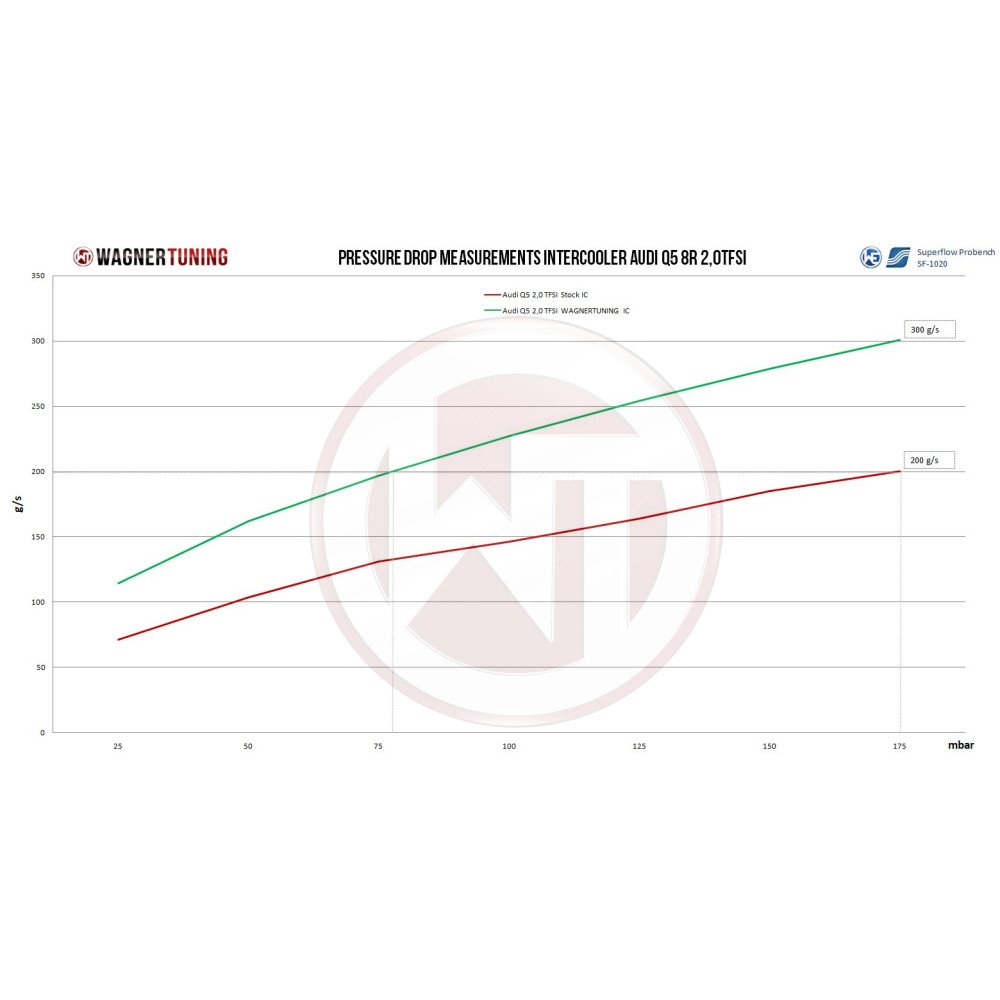

• Flow area vs. stock: +178%
• Charge air volume vs. stock: +158%
• Weight: 9.1 kg

Vehicle fitment

• Audi Q5 2.0 TFSI (CDNB; CNBC) 2009–2015 — 132 kW / 180 PS
• Audi Q5 2.0 TFSI (CDNC) 2008–2012 — 155 kW / 211 PS
• Audi Q5 2.0 TFSI (CNCD) 2012–2015 — 165 kW / 225 PS

Part number

200001108

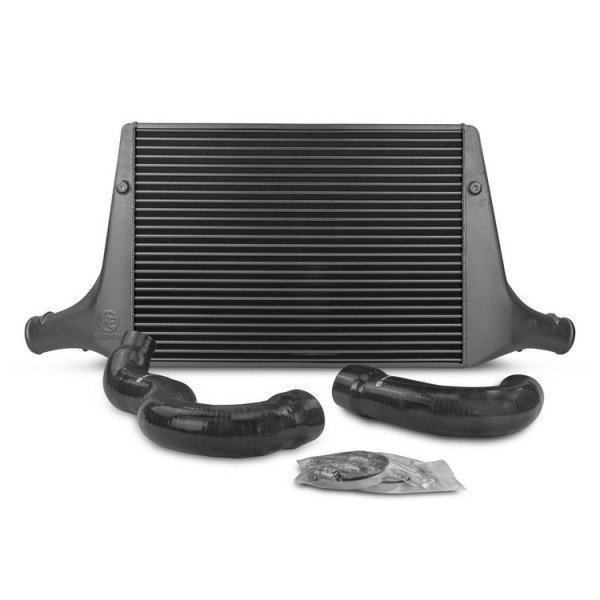

Kit contents

• 1 intercooler
• 2 charge air hoses (reinforced silicone)
• 4 hose clamps
• Mounting material
• Assembly instructions
