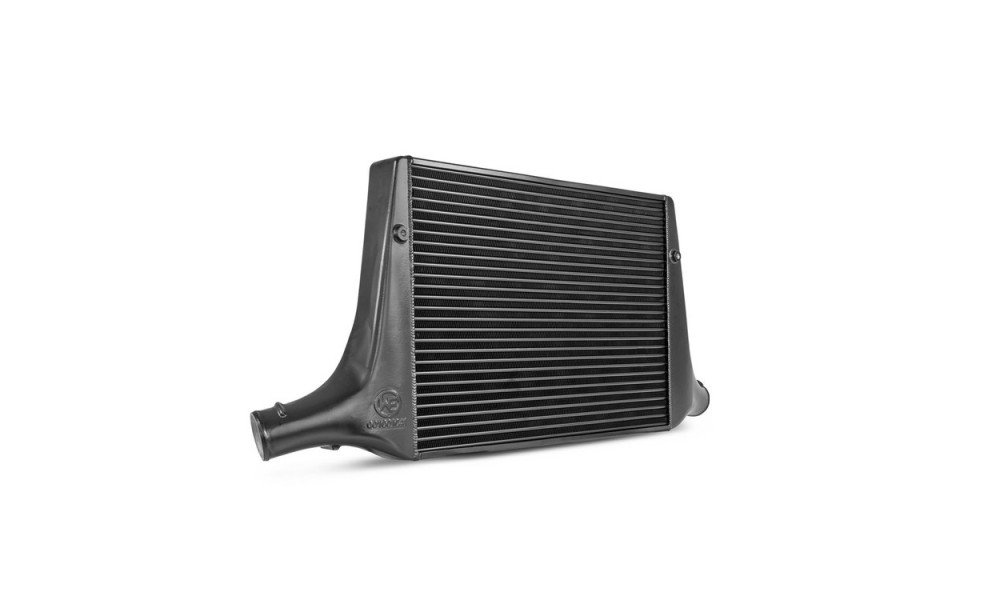

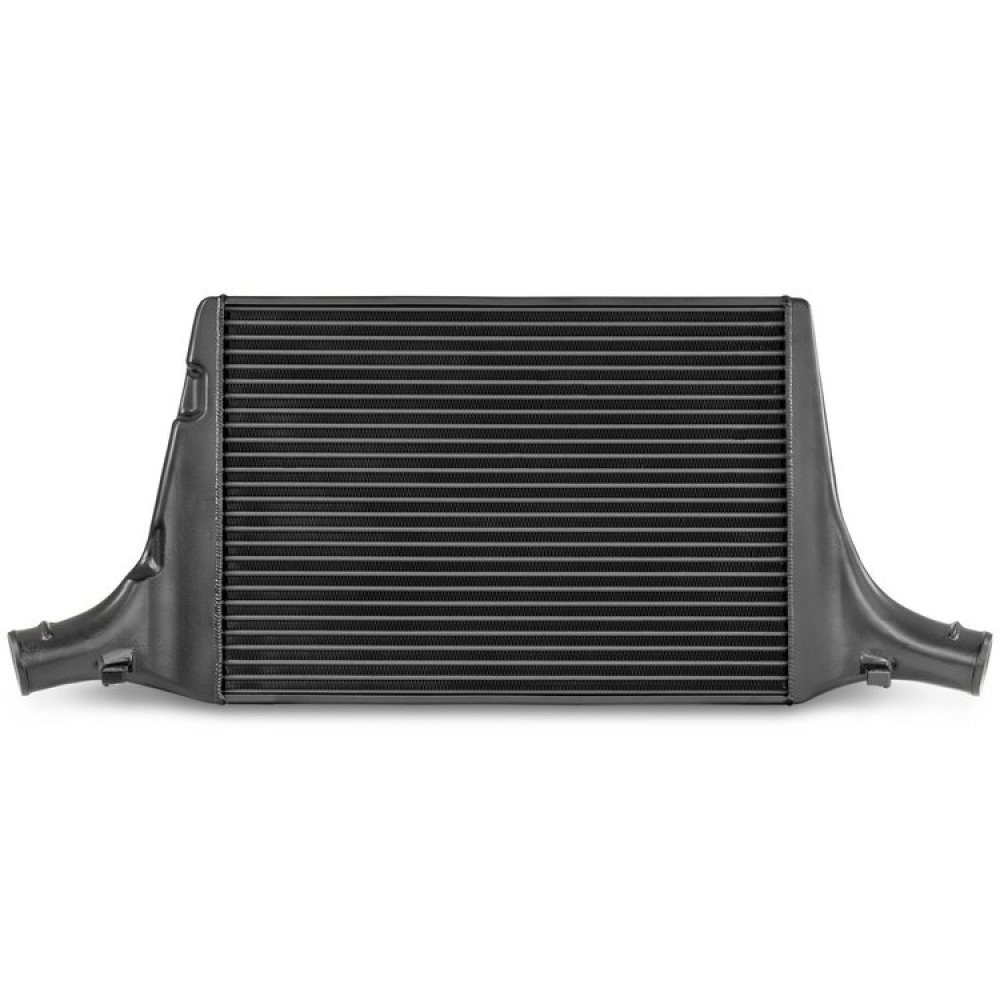

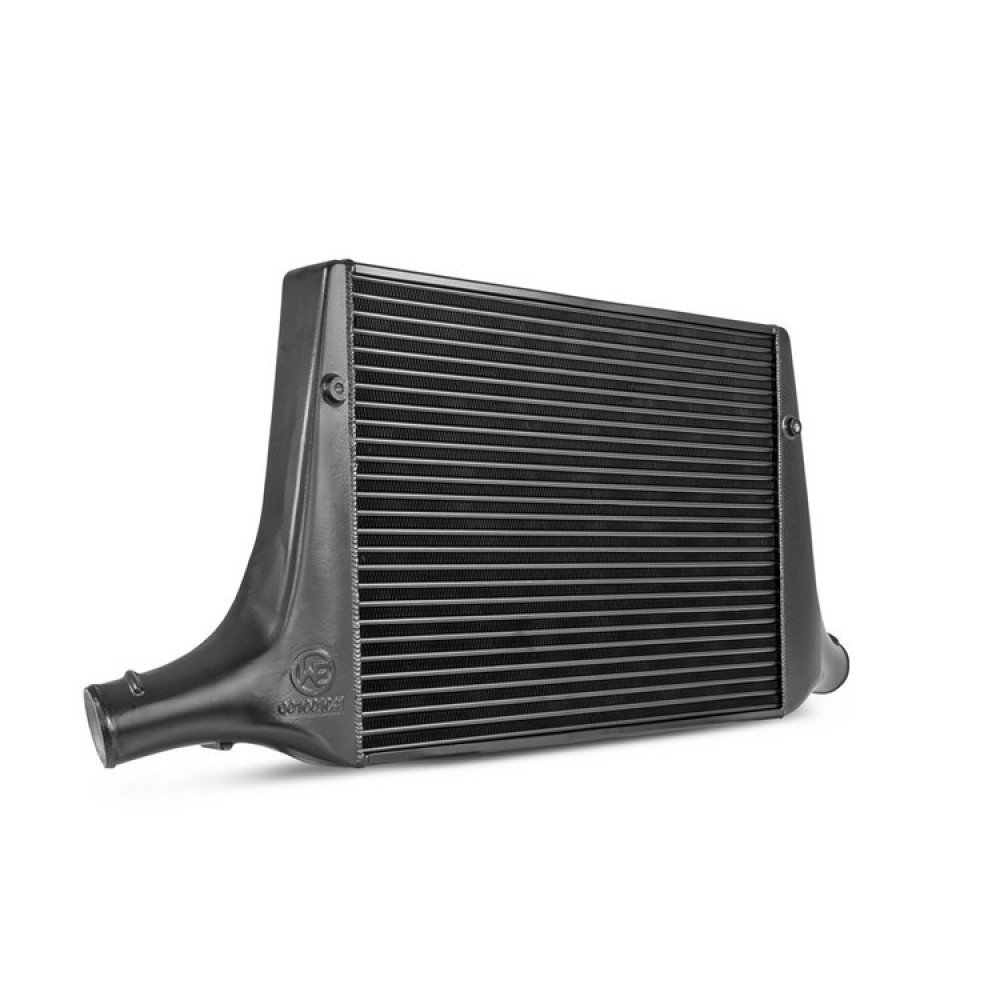

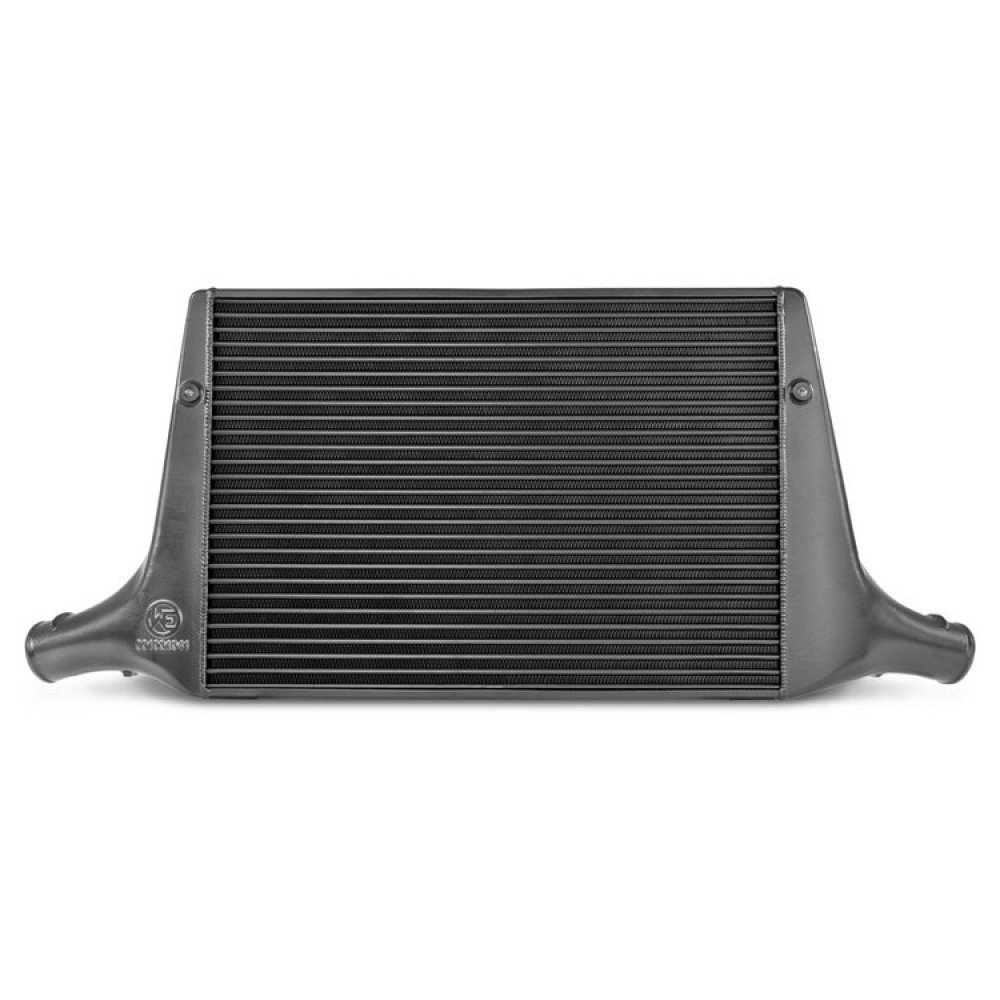

Competition Intercooler Kit – Audi A4/A5 B8 & B8 Allroad 2.7/3.0 TDI

This Competition intercooler kit is designed as a ready-to-install replacement for the factory intercooler, with increased core size, larger connections, and optimized end tanks for improved charge-air cooling under load.

Key Features

• Tube-fin core with internal turbulators
• Cast aluminum end tanks, CAD-designed and CFD-optimized
• Integrated air guide for uniform core utilization

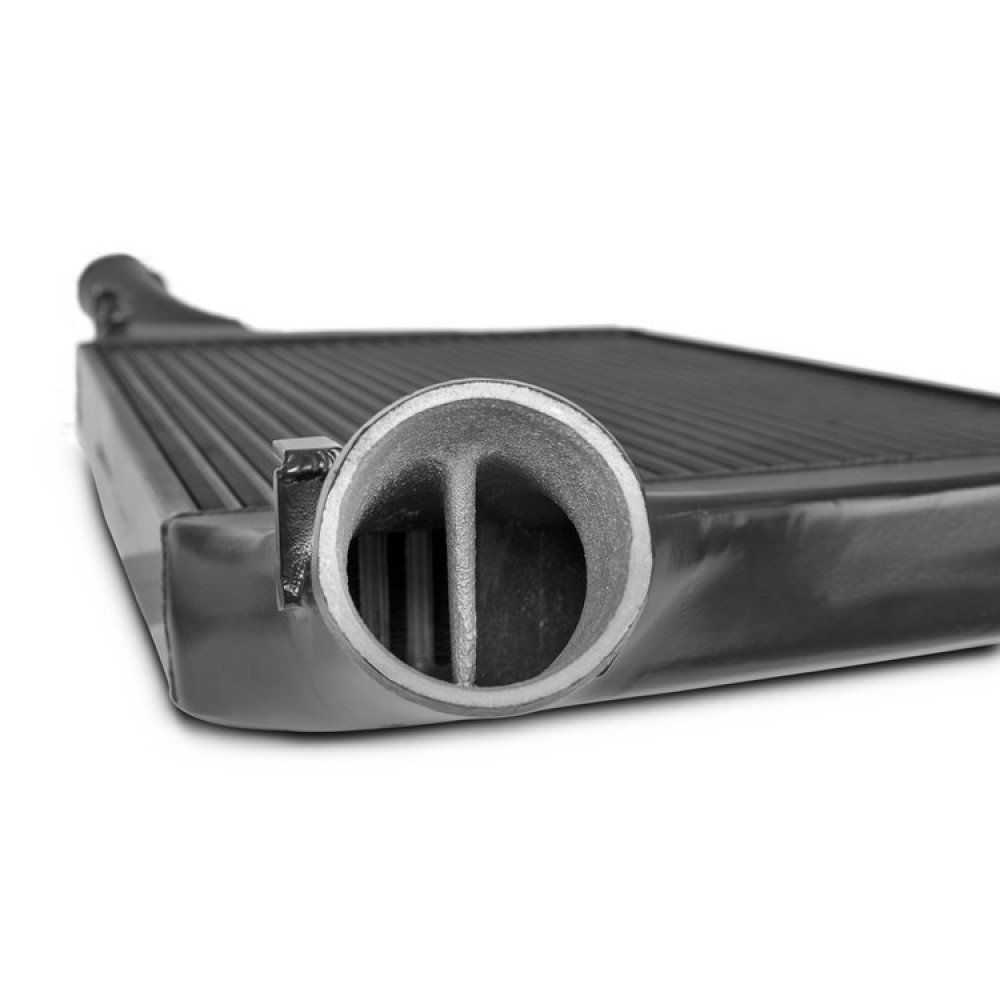

• Enlarged connection diameter: Ø67 mm
• Reinforced silicone charge-air hoses included
• Anti-corrosion coating with good heat-conduction properties
• Pressure-tested up to 6 bar
• Direct replacement for the factory intercooler

Technical Specifications

• Core dimensions: 610 x 440 x 65 mm
• Intercooler volume: 17.446 liters
• Flow area: +178% vs. factory intercooler
• Intercooler volume: +158% vs. factory intercooler
• Weight: 9.1 kg

Vehicle Fitment

• Audi A4 B8 2.7 TDI (140 kW/190 PS, MKB: CAMA, CGKA)*
• Audi A4 B8 3.0 TDI (176 kW/240 PS, MKB: CAPA, CCWA)*
• Audi A4 B8 Allroad 2.7 TDI (140 kW/190 PS, MKB: CAMA, CGKA)*
• Audi A4 B8 Allroad 3.0 TDI (176 kW/240 PS, MKB: CAPA, CCWA)*
• Audi A5 B8 2.7 TDI (140 kW/190 PS, MKB: CAMA, CGKA)*
• Audi A5 B8 3.0 TDI (176 kW/240 PS, MKB: CAPA, CCWA)*
• Audi A5 Sportback 2.7 TDI (140 kW/190 PS, MKB: CAMA, CGKA)*
• Audi A5 Sportback 3.0 TDI (176 kW/240 PS, MKB: CAPA, CCWA)*

Notes

• * For B8.5 Facelift models, part number: 200001123
• * For vehicles with dynamic steering, the additional cooling loop must be relocated to a different position (see installation manual).

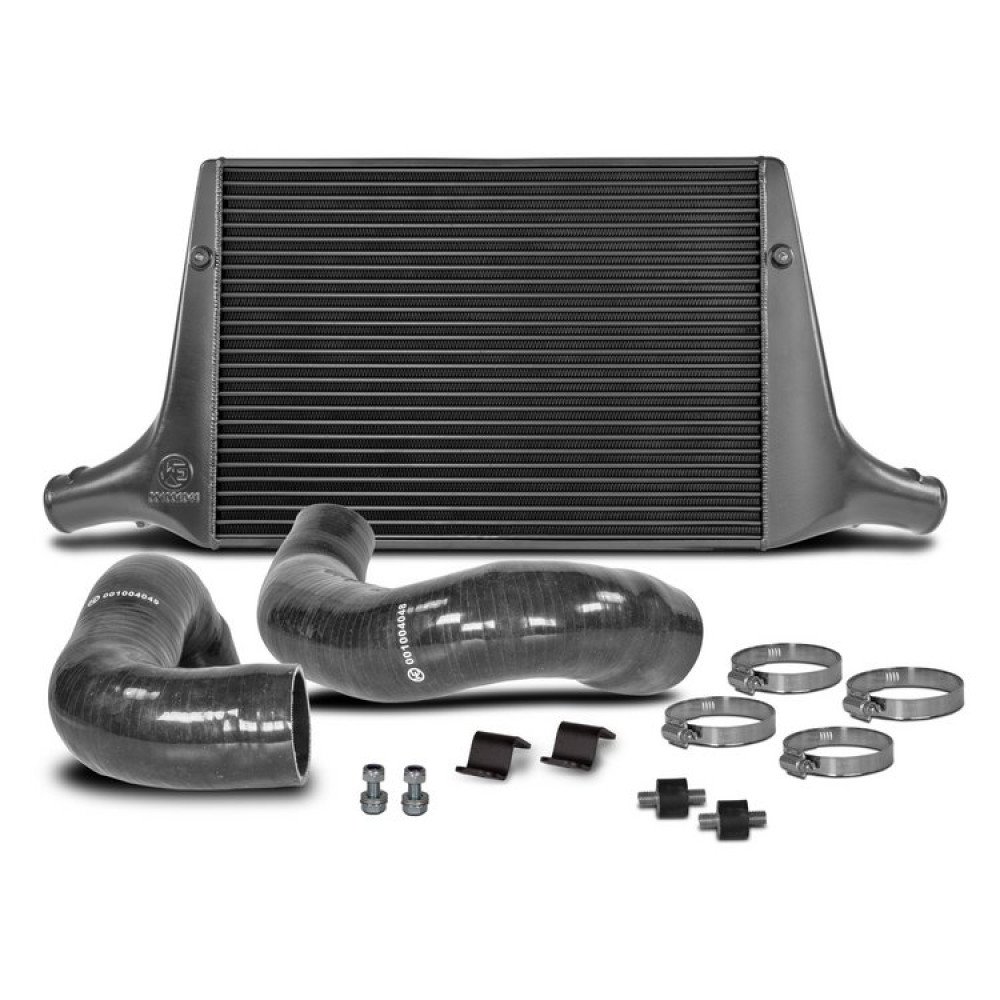

Kit Contents

• 1 intercooler
• 2 charge air hoses
• 4 hose clamps
• 1 mounting material
• 1 assembly instruction

Item number: 200001054
