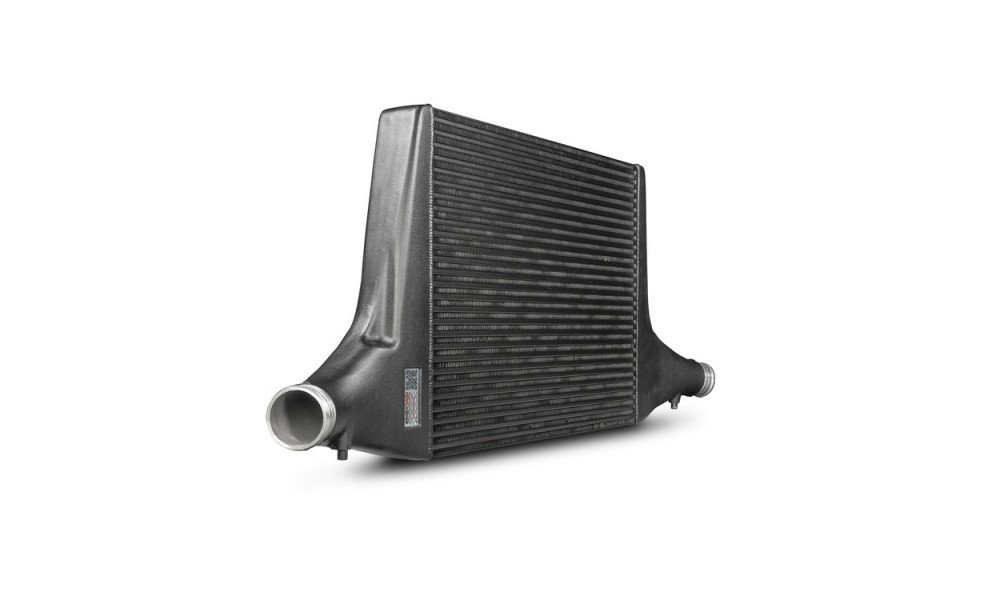

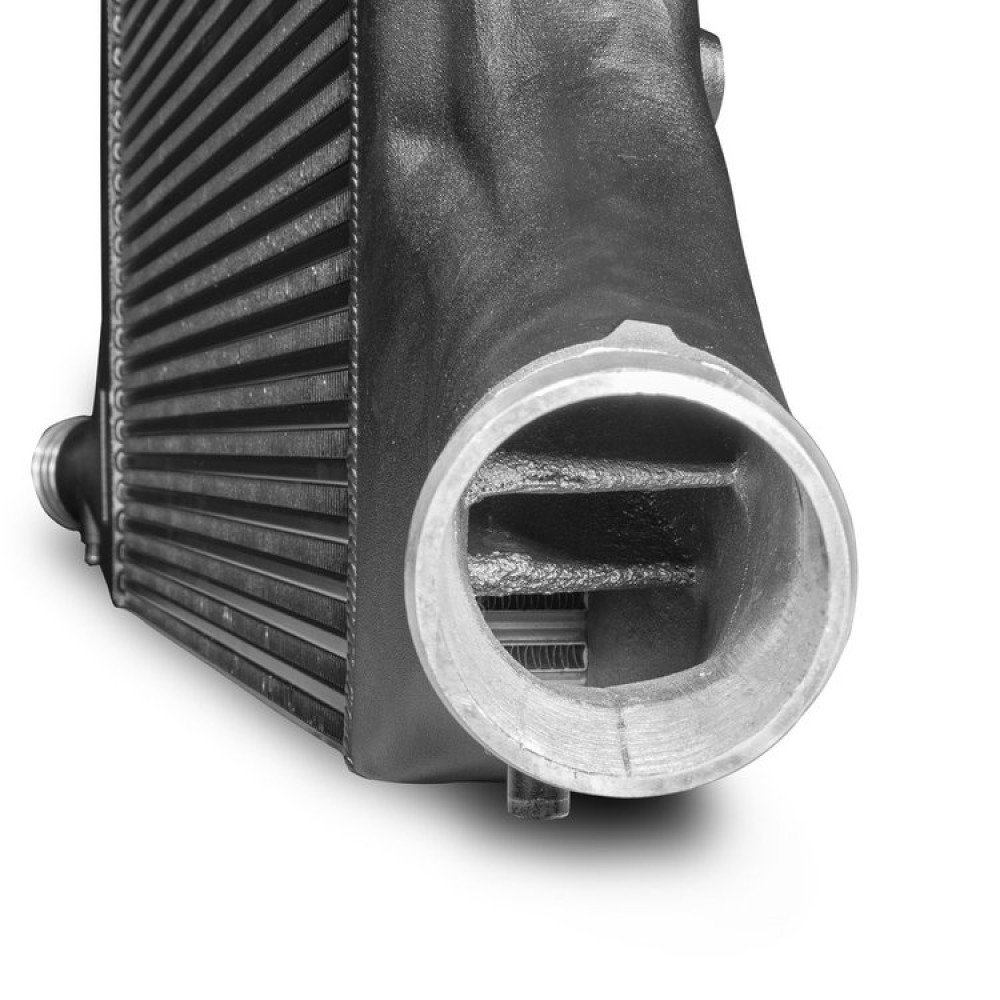

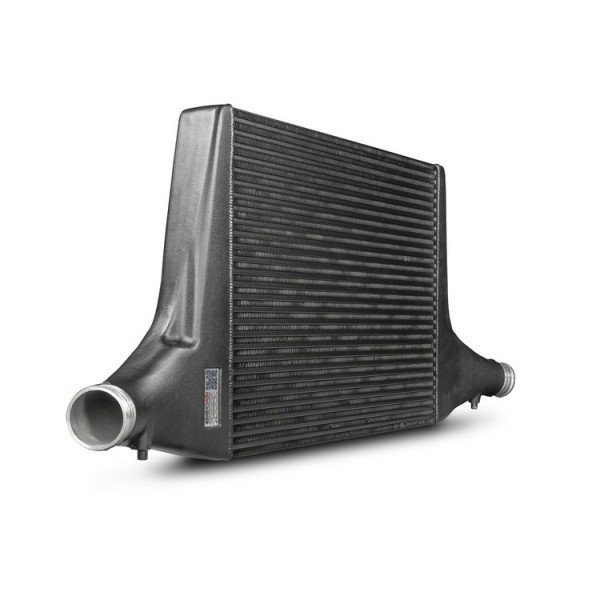

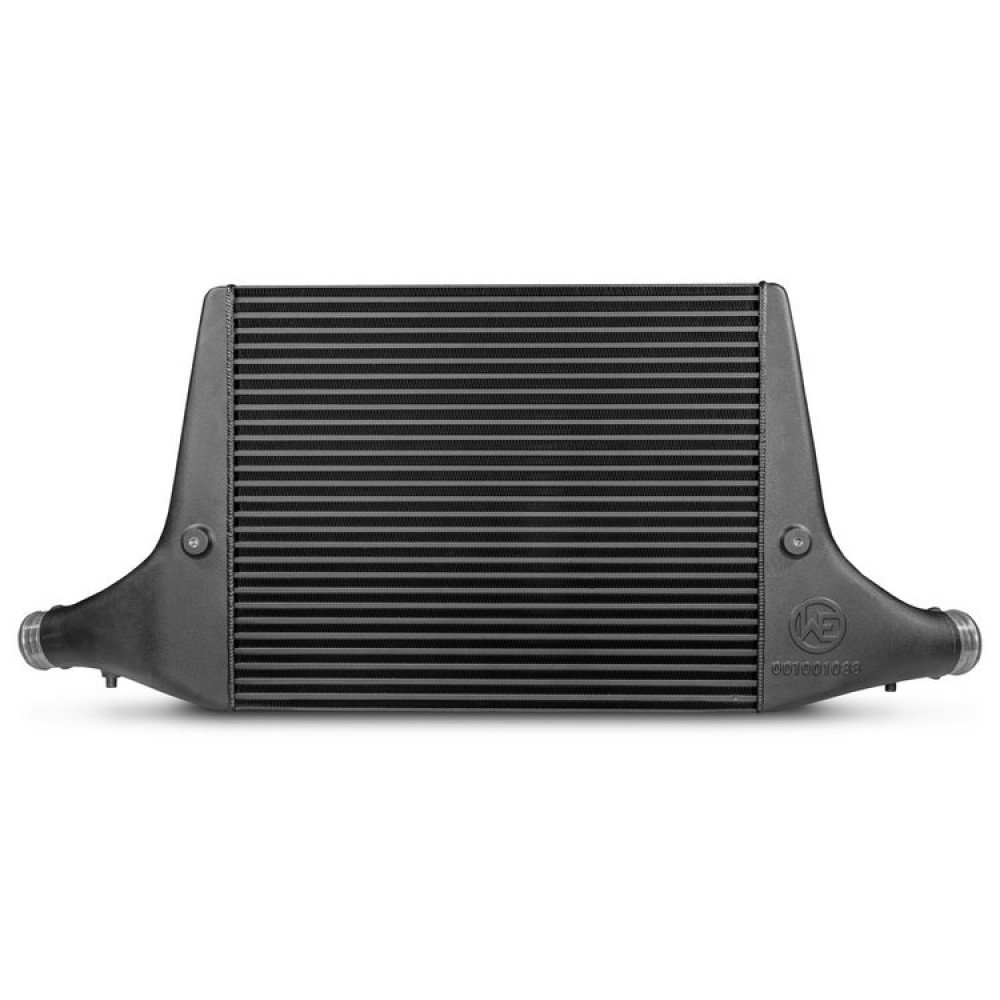

The Competition high-performance intercooler kit is a direct-fit upgrade for Audi A4 B9 and Audi A5 F5 3.0 TDI applications, designed to increase charge-air cooling efficiency while keeping pressure drop low.

Key features

• Bar-and-plate core with internal turbulators
• CFD-optimized cast aluminum end tanks
• Anti-corrosion coating with good heat conduction properties
• Plug-and-play replacement for the factory intercooler
• Pressure tested up to 6 bar

Technical specifications

• Core dimensions: 550 mm x 445 mm x 70 mm
• Core volume: 17.13 L (17,130 cc)
• Flow area: 2447 cm²
• Increase vs. stock: +105% charge-air volume, +134% flow area
• Weight: 9.5 kg
• Inlet diameter: Ø62 mm
• Outlet diameter: Ø67 mm

Stock intercooler core (for reference)

• Core dimensions: 720 mm x 145 mm x 80 mm
• Core volume: 8.35 L
• Flow area: 1044 cm²

Vehicle fitment

• Audi A4 B9 3.0 TDI 160–200 kW / 218–272 HP (2015–2018)
• Audi A4 B9 45 TDI 170 kW / 231 HP (2019+)
• Audi A4 B9 50 TDI 210 kW / 286 HP (2019–2020) (fits VW EA897evo2 engine only)
• Audi A5 F5 3.0 TDI 160–210 kW / 218–286 PS (2017–2018)
• Audi A5 F5 45 TDI 170 kW / 231 HP (2019+)
• Audi A5 F5 50 TDI 210 kW / 286 PS (2019–2020) (fits VW EA897evo2 engine only)

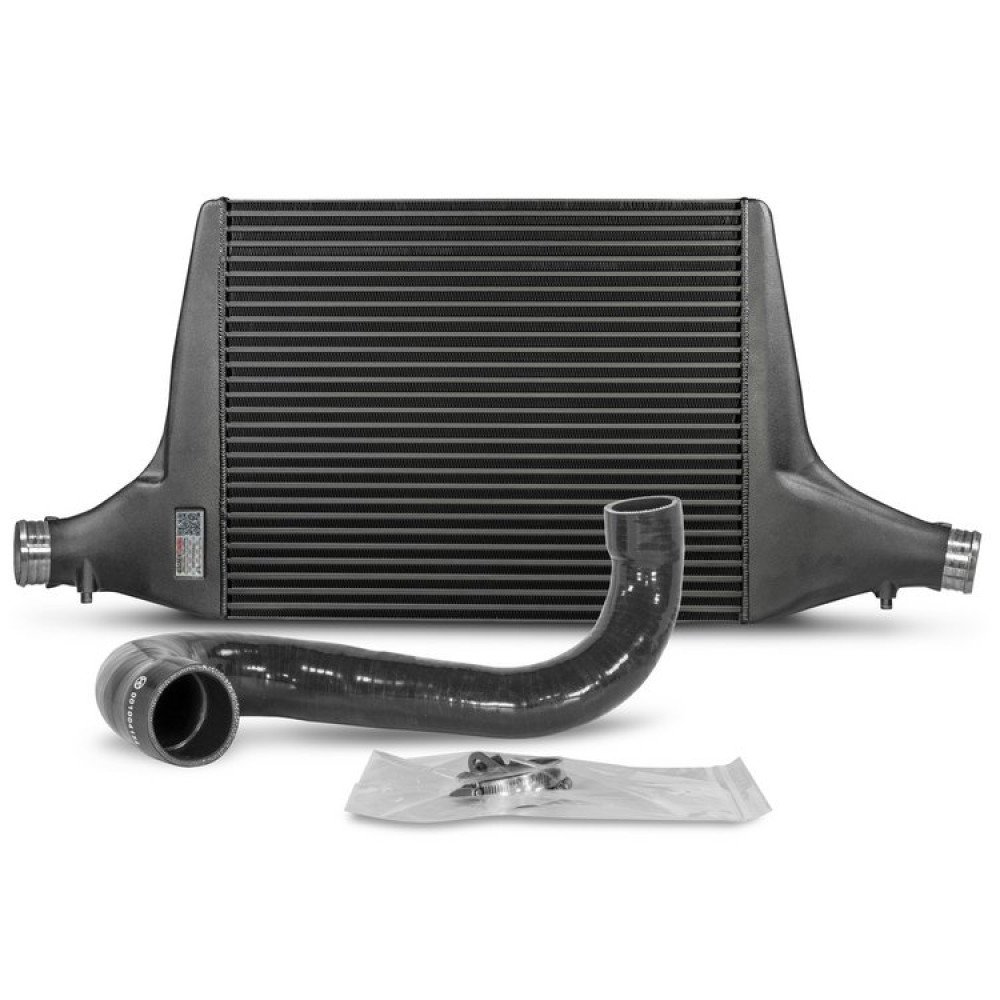

Kit contents

• 1 intercooler (black coated)
• 1 silicone hose (black)
• 1 mounting material
• 1 assembly instruction

Part number: 200001127
