This high-performance intercooler upgrade is designed to improve charge-air cooling efficiency and reduce backpressure compared to the factory intercooler.

Key specifications

• Core (mesh) dimensions: 610 x 440 x 65 mm
• Charge-air volume: 17.446 L
• Flow area: +178% vs. stock
• Charge-air volume increase: +158% vs. stock
• Core design: Tube-fin with internal turbulators

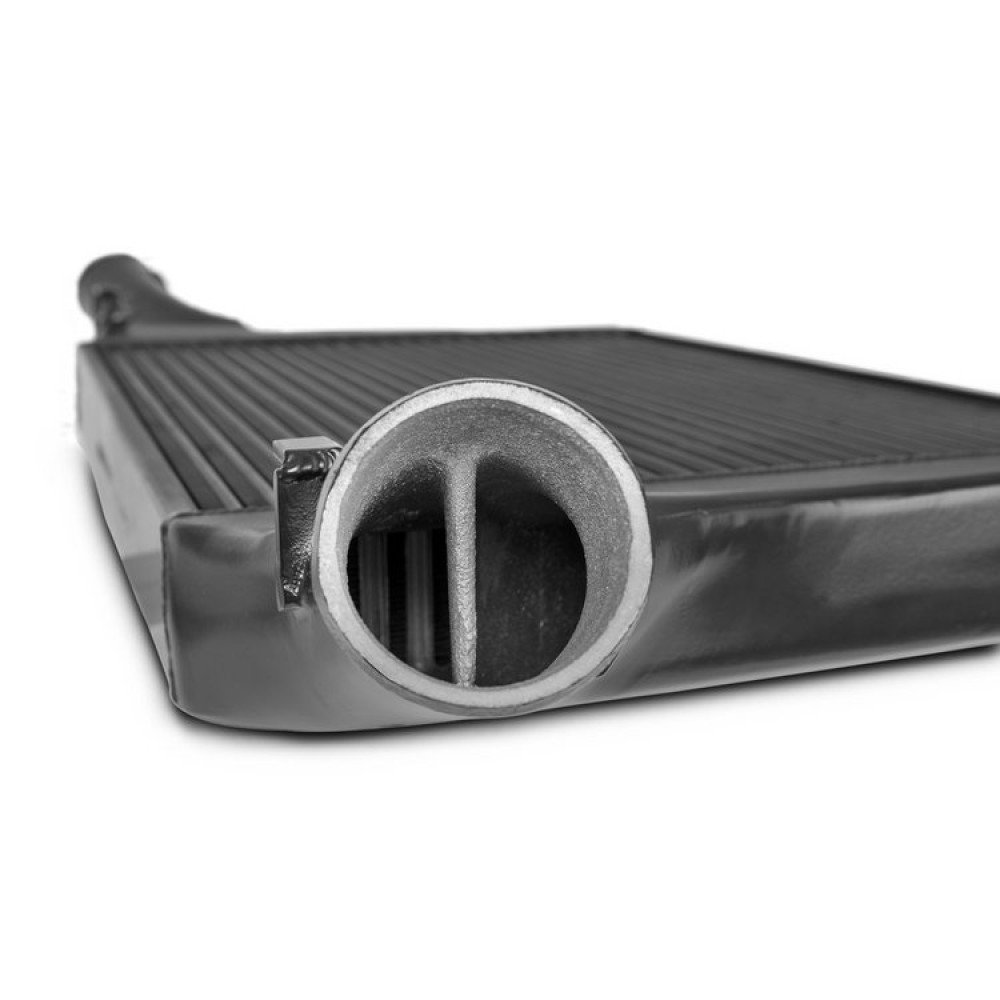

• End tanks: Cast aluminum, CAD-developed and CFD-optimized with integrated air routing
• Inlet/outlet diameter: Ø67 mm
• Weight: 9.1 kg
• Coating: Anti-corrosion coating with heat-conduction properties
• Pressure stability: Tested up to 6 bar

Vehicle fitment

• Audi A4 B8 1.8 TFSI (2008–2013) — MKB: CABA, CDHA, CABB, CABD, CDHB*
• Audi A4 B8 2.0 TFSI (2008–2013) — MKB: CDNB, CAEA, CDNC, CAEB, CFKA*
• Audi A4 B8 Allroad 2.0 TFSI (2008–2013) — MKB: CDNB, CAEA, CDNC, CAEB, CFKA*
• Audi A5 B8 1.8 TFSI (2008–2013) — MKB: CABA, CDHA, CABB, CABD, CDHB*
• Audi A5 B8 2.0 TFSI (2008–2013) — MKB: CDNB, CAEA, CDNC, CAEB, CFKA*
• Audi A5 B8 Sportback 1.8 TFSI (2008–2013) — MKB: CABA, CDHA, CABB, CDHB*
• Audi A5 B8 Sportback 2.0 TFSI (2008–2013) — MKB: CDNB, CAEA, CDNC, CAEB, CFKA*

* Not suitable for B8.5 facelift models.
For vehicles with dynamic steering, the additional cooling loop must be relocated.

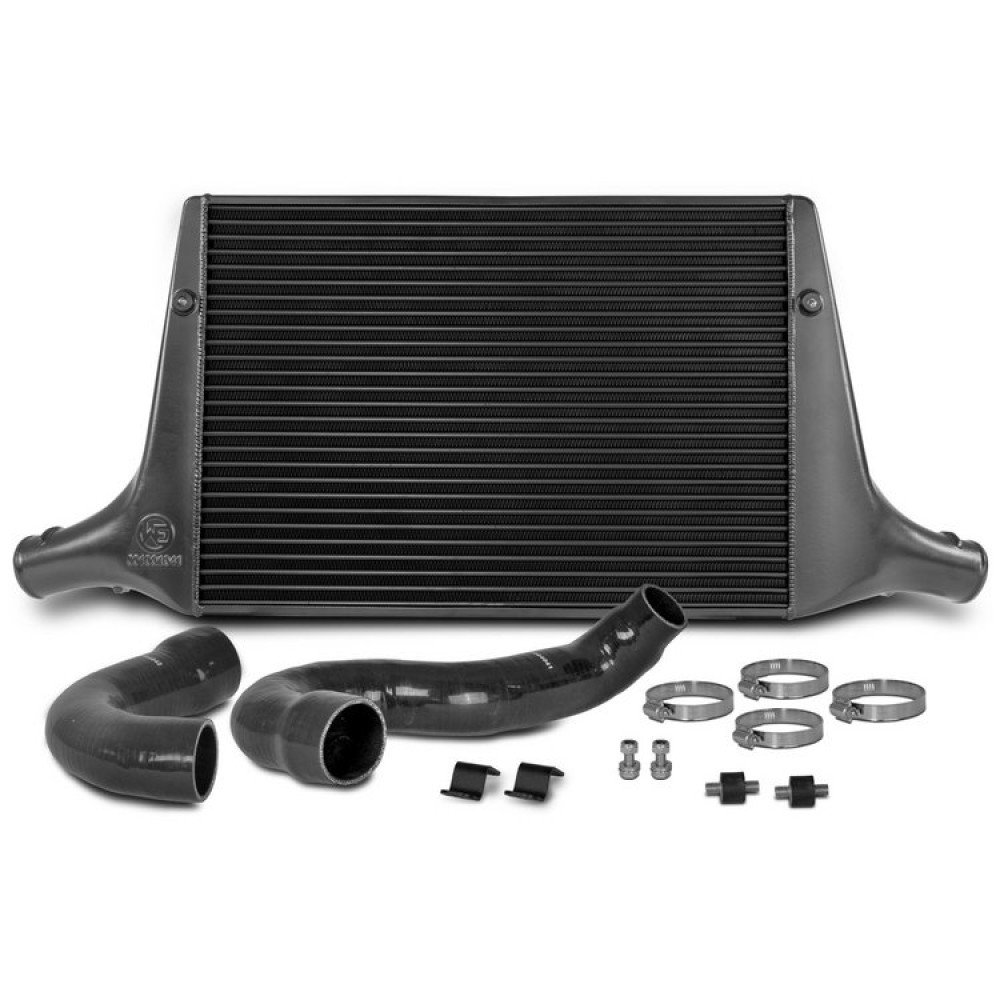

Included in the kit

• 1 intercooler
• 2 reinforced silicone charge-air hoses
• 4 hose clamps
• Mounting material
• Assembly instructions

Part number

200001045
