The Wagner Tuning EVO III Competition intercooler kit is designed for high-output tuning on BMW Z4 35i(s) models with N54 and N55 engines. It uses a Tube Fin core with internal turbulators and CFD-optimized cast aluminum end tanks to deliver strong cooling performance with low backpressure.

• Core dimensions: 510 x 303 x 180 mm
• Total volume: 20.65 L
• Flow area increase vs. stock: 162%
• Charge-air volume increase vs. stock: 182%
• Weight: 13.2 kg
• Inlet/outlet diameter: Ø70 mm
• Reinforced silicone hoses; replaces OE clip/click connections
• Anti-corrosion coated
• Pressure tested to 6 bar
• Plug-and-play fitment; minor radiator support trimming may be required due to size

Vehicle Fitment

• BMW Z4 35i (E89) 2009+
• BMW Z4 35is (E89) 2010+

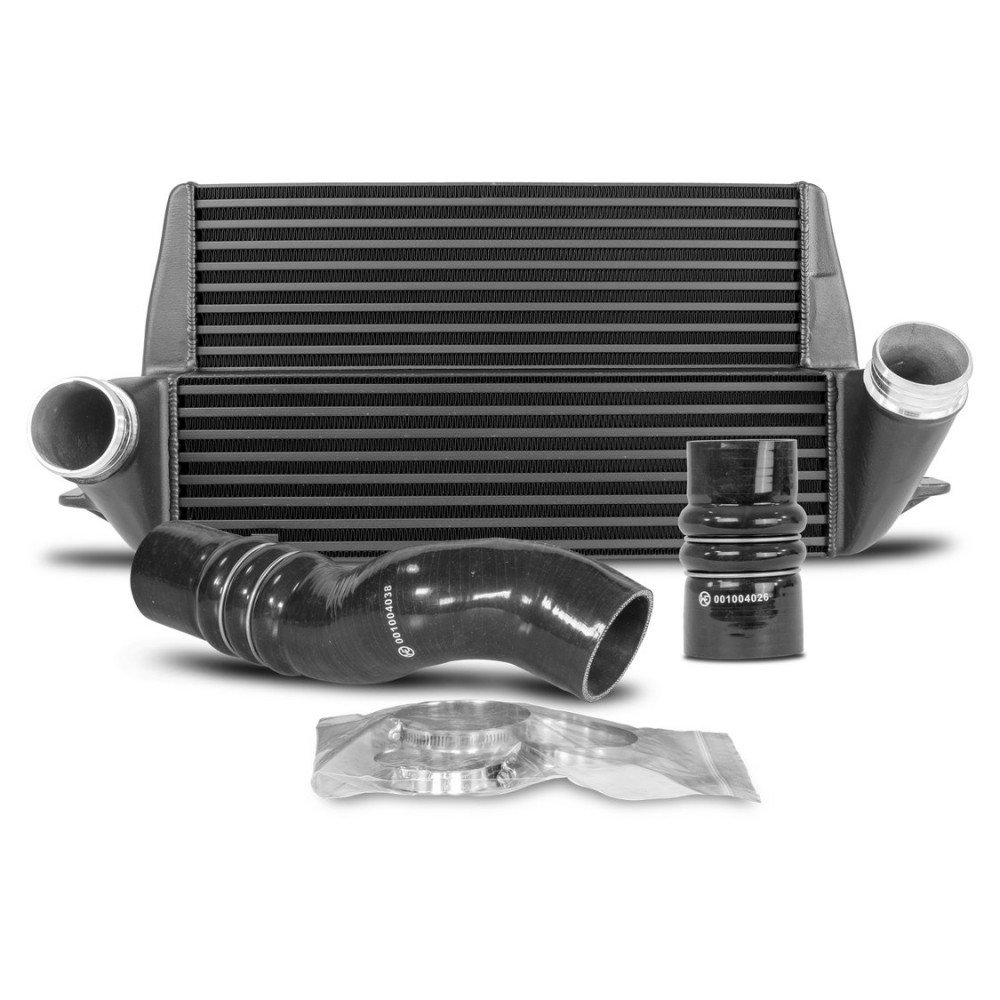

What’s Included

• 1 intercooler
• 2 silicone hoses
• 1 mounting material set
• 1 assembly instruction

Part number: 200001158
