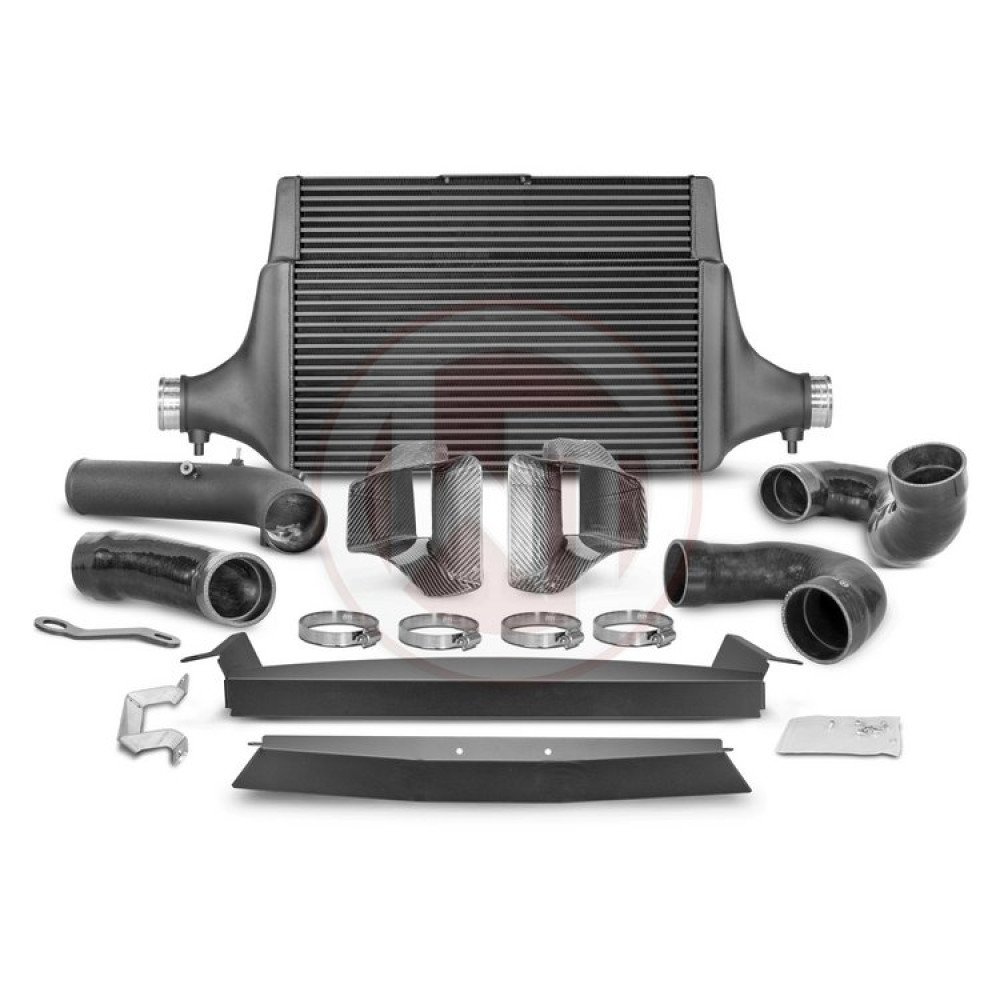

The Wagner Tuning Competition Charge Air Cooler Kit is a high-performance intercooler upgrade for the Kia Stinger GT 3.3T-GDi AWD (EU), designed to improve charge-air cooling capacity under demanding street and track conditions.

Key features

• Competition core (Tube Fin) with stepped design: 600 mm x 445(315) mm x 105(60) mm

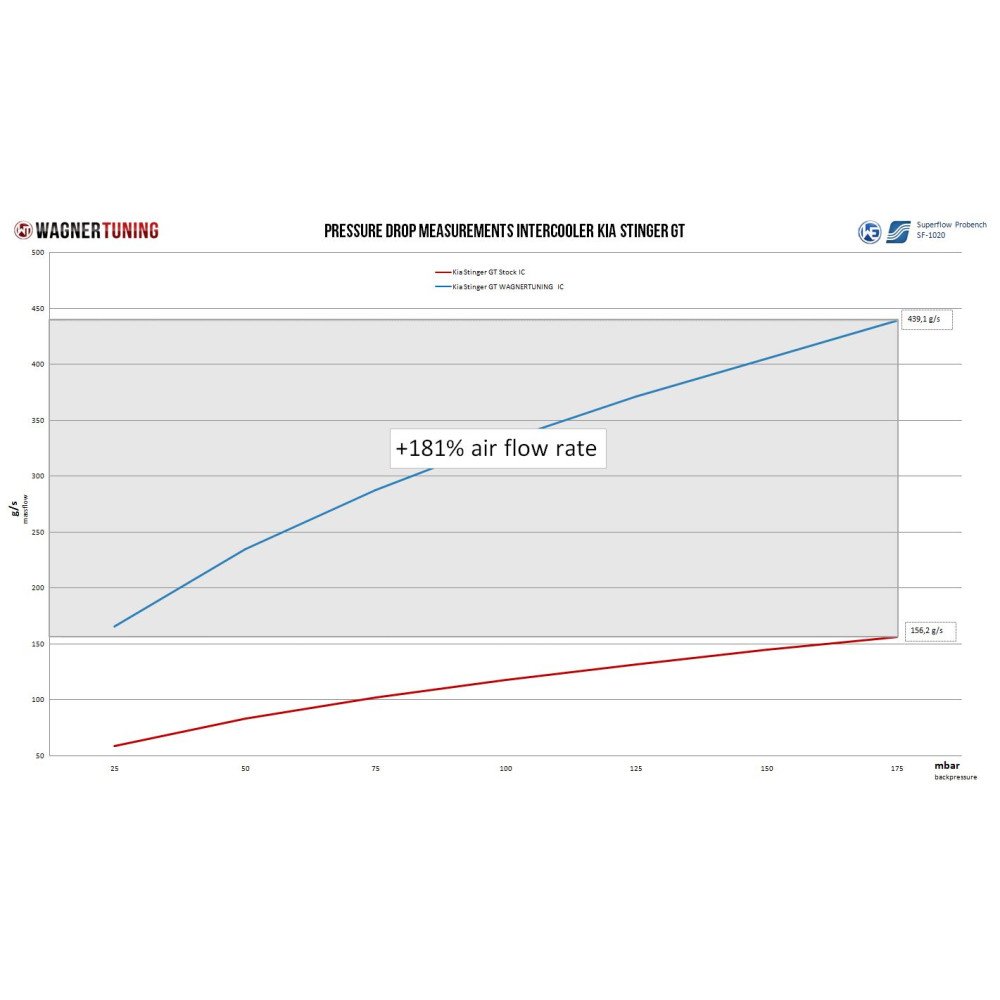

• 175% larger flow area vs. OEM intercooler
• 183% more net volume vs. OEM intercooler
• Cast aluminum end tanks developed in CAD and optimized using CFD for efficient internal airflow
• Integrated inlet air baffle for more even core filling
• Competition high-performance mesh to maintain airflow to adjacent components (e.g., water cooler)
• Anti-corrosion coating with heat-conduction properties
• Installs at original mounting points (plug and play)

Connections

• Inlet/Outlet diameter: Ø76 mm

Core specifications

• OEM intercooler core: V = 8.75 L, A = 972 cm²
• Wagner Tuning intercooler core: V = 24,8 L, A = 2670 mm²

Optional accessories

• Ø76 mm aluminum charge air tube
